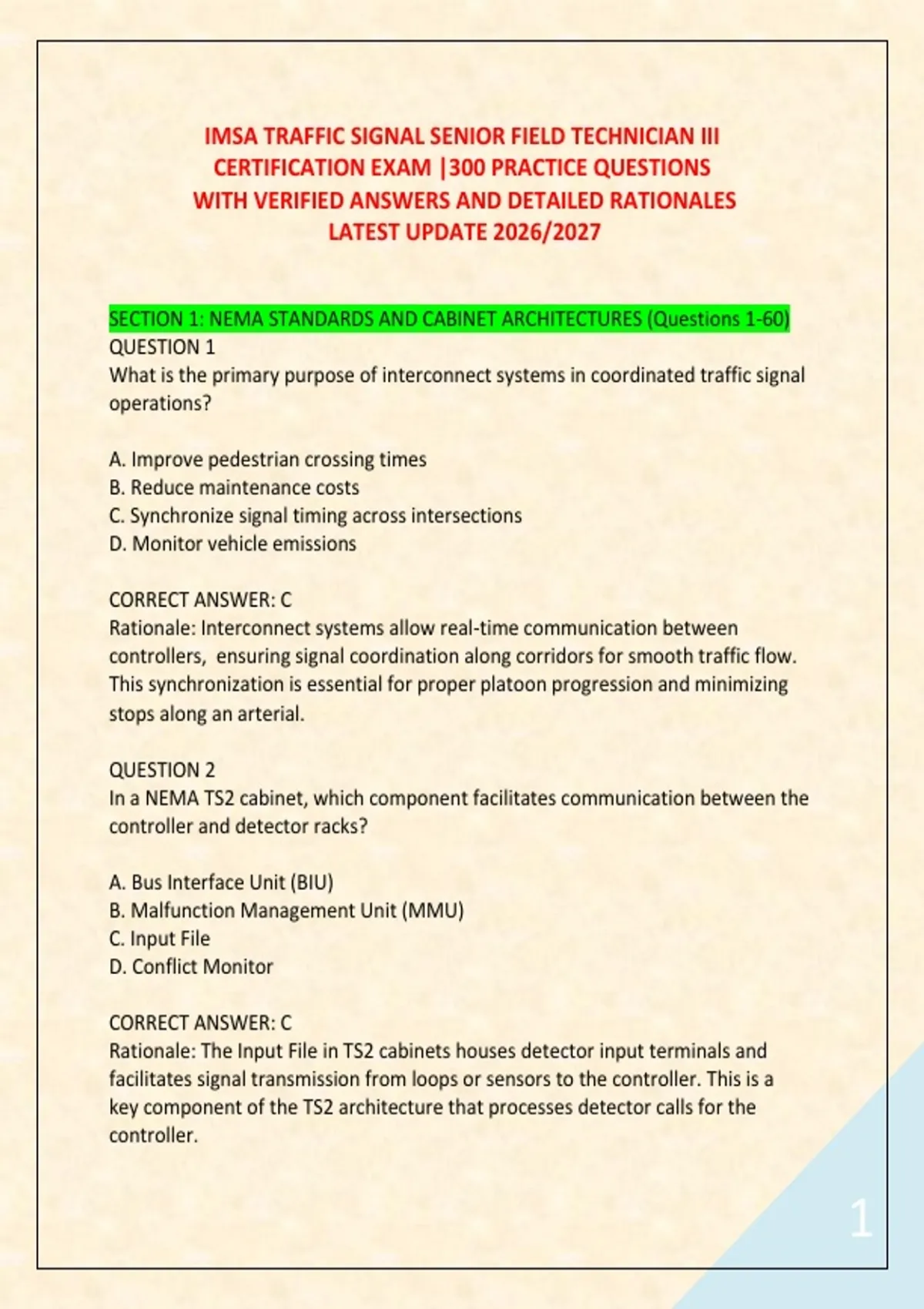

IMSA TRAFFIC SIGNAL SENIOR FIELD TECHNICIAN III
CERTIFICATION EXAM |300 PRACTICE QUESTIONS
WITH VERIFIED ANSWERS AND DETAILED RATIONALES
LATEST UPDATE 2026/2027
SECTION 1: NEMA STANDARDS AND CABINET ARCHITECTURES (Questions 1-60)
QUESTION 1
What is the primary purpose of interconnect systems in coordinated traffic signal
operations?
A. Improve pedestrian crossing times
B. Reduce maintenance costs
C. Synchronize signal timing across intersections
D. Monitor vehicle emissions
CORRECT ANSWER: C
Rationale: Interconnect systems allow real-time communication between
controllers, ensuring signal coordination along corridors for smooth traffic flow.
This synchronization is essential for proper platoon progression and minimizing
stops along an arterial.
QUESTION 2
In a NEMA TS2 cabinet, which component facilitates communication between the
controller and detector racks?
A. Bus Interface Unit (BIU)
B. Malfunction Management Unit (MMU)
C. Input File
D. Conflict Monitor
CORRECT ANSWER: C
Rationale: The Input File in TS2 cabinets houses detector input terminals and
facilitates signal transmission from loops or sensors to the controller. This is a
key component of the TS2 architecture that processes detector calls for the
controller.
1
,QUESTION 3
Which NEMA standard specifies the dimensions and mounting requirements for
traffic
signal heads?
A. NEMA TS1
B. NEMA TS2
C. NEMA TS3
D. NEMA TS4
CORRECT ANSWER: A
Rationale: NEMA TS1 covers traffic signal hardware, including dimensions and
mounting specifications for signal heads. NEMA TS2 addresses controller cabinet
and communication standards.
QUESTION 4
In an NEMA TS-2 Type 1 cabinet, how is communication handled between the
controller and the Malfunction Management Unit (MMU)?
A. Via a standard A, B, and C harness
B. Through a dedicated SDLC (Synchronous Data Link Control) bus
C. Using discrete 24V DC wiring
D. Through the power distribution assembly (PDA)
CORRECT ANSWER: B
Rationale: NEMA TS-2 Type 1 cabinets utilize an SDLC bus for high-speed serial
communication between the controller, MMU, and BIUs, reducing the amount of
discrete wiring. This design improves reliability and simplifies cabinet
architecture.
QUESTION 5
What is the primary purpose of a load switch in a traffic signal cabinet?
A. To regulate the incoming utility voltage
B. To switch the 120V AC to the signal heads based on low-voltage DC inputs from
the controller
C. To detect vehicle presence
D. To monitor conflict conditions
2
,CORRECT ANSWER: B
Rationale: Load switches receive low-voltage DC signals from the controller (field
outputs) and switch 120V AC power to the signal heads. They are essentially
solid-state relays that control the traffic signal indications.
QUESTION 6
Which of the following is a key difference between NEMA TS1 and TS2 cabinets?
A. TS1 cabinets use solid-state load switches only
B. TS2 cabinets utilize serial communication and have standardized card files
C. TS1 cabinets include built-in conflict monitors
D. TS2 cabinets are not suitable for coordinated systems
CORRECT ANSWER: B
Rationale: TS2 cabinets utilize serial communication (SDLC) between the
controller and other cabinet components, reducing wiring complexity. TS1
cabinets use discrete wiring for all inputs and outputs.
QUESTION 7
In a NEMA TS2 cabinet, what is the function of the Power Distribution Assembly
(PDA)?
A. To distribute 120V AC and 24V DC power to cabinet components
B. To monitor conflict conditions
C. To process detector inputs
D. To communicate with the central system
CORRECT ANSWER: A
Rationale: The PDA distributes incoming utility power (120V AC) and provides
24V DC power to various cabinet components including the controller, MMU,
BIUs, and other modules.
QUESTION 8
The term "BIU" in NEMA TS2 architecture stands for:
A. Basic Interface Unit
B. Bus Interface Unit
3
, C. Binary Input Unit
D. Backup Interface Unit
CORRECT ANSWER: B
Rationale: BIU stands for Bus Interface Unit. These devices connect various
cabinet components (like detector racks and auxiliary devices) to the SDLC
communication bus used in TS2 cabinets.
QUESTION 9
How many channels are typically available in a NEMA TS2 cabinet's detector rack?
A. 8 channels
B. 16 channels
C. 24 channels
D. 32 channels
CORRECT ANSWER: C
Rationale: A standard NEMA TS2 detector rack typically provides 24 channels for
vehicle and pedestrian detection inputs, each capable of processing loop or
sensor signals.
QUESTION 10
Which NEMA standard introduces the concept of the "controller unit" with
centralized processing?
A. NEMA TS1
B. NEMA TS2
C. NEMA TS3
D. Both A and B
CORRECT ANSWER: A
Rationale: NEMA TS1 introduced the concept of a centralized controller unit that
processes all inputs and generates outputs. TS2 refined this architecture with
distributed intelligence and serial communication.
QUESTION 11
The conflict monitor in a traffic signal cabinet is responsible for:
4
