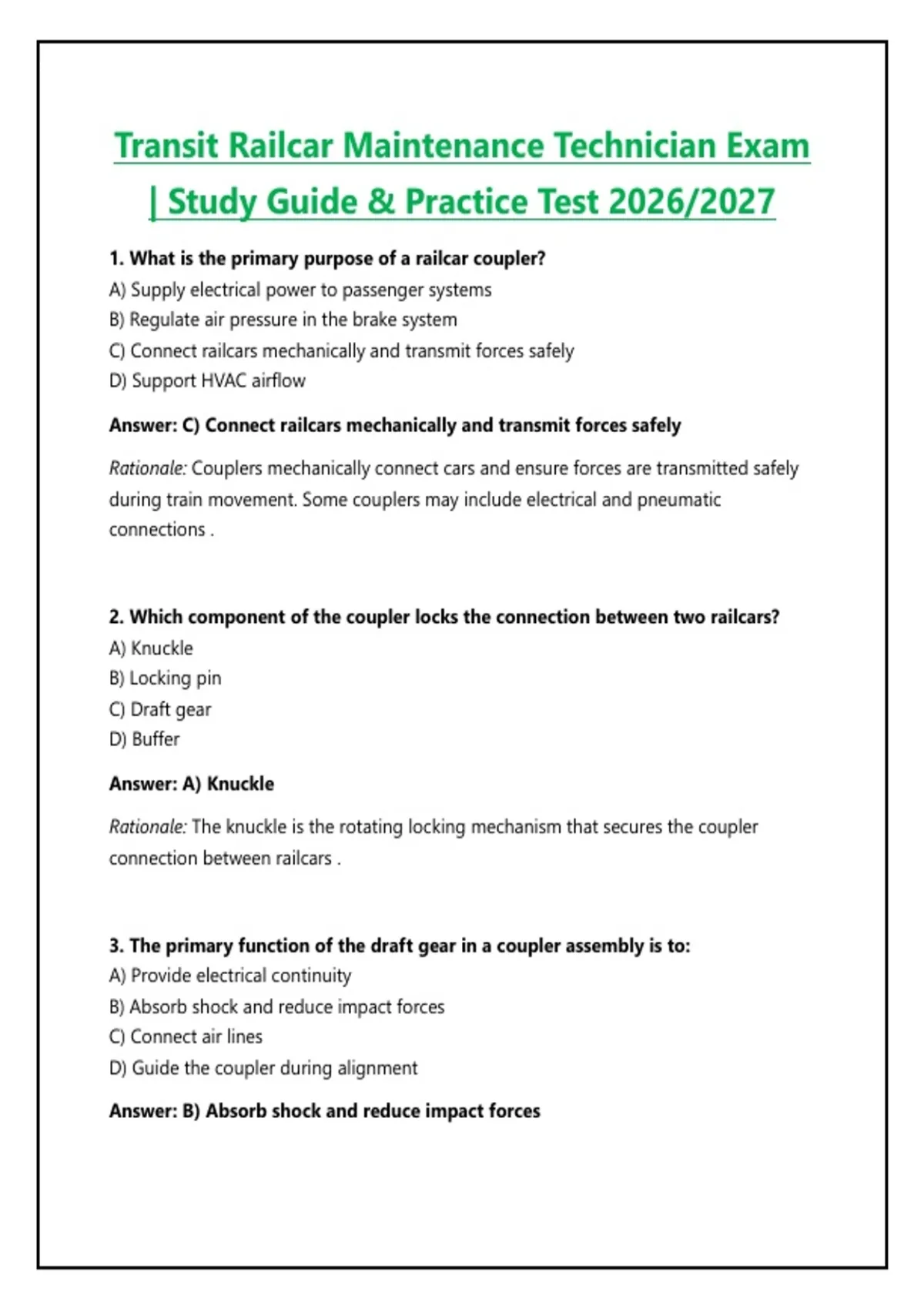

Transit Railcar Maintenance Technician Exam
| Study Guide & Practice Test 2026/2027
1. What is the primary purpose of a railcar coupler?
A) Supply electrical power to passenger systems
B) Regulate air pressure in the brake system
C) Connect railcars mechanically and transmit forces safely
D) Support HVAC airflow
Answer: C) Connect railcars mechanically and transmit forces safely
Rationale: Couplers mechanically connect cars and ensure forces are transmitted safely
during train movement. Some couplers may include electrical and pneumatic
connections .
2. Which component of the coupler locks the connection between two railcars?
A) Knuckle
B) Locking pin
C) Draft gear
D) Buffer
Answer: A) Knuckle
Rationale: The knuckle is the rotating locking mechanism that secures the coupler
connection between railcars .
3. The primary function of the draft gear in a coupler assembly is to:
A) Provide electrical continuity
B) Absorb shock and reduce impact forces
C) Connect air lines
D) Guide the coupler during alignment
Answer: B) Absorb shock and reduce impact forces
,Rationale: Draft gears absorb longitudinal impact and buffing forces during train
operation and coupling, protecting the car body and passengers from shock.
4. The APTA Rail Vehicles Maintenance Training Standards identify couplers as
which subject area?
A) Subject Area 1
B) Subject Area 3
C) Subject Area 5
D) Subject Area 7
Answer: A) Subject Area 1
Rationale: Couplers are Subject Area 1 in the APTA 12-subject area training framework .
5. What should a technician check for when inspecting a railcar coupler?
A) Proper lubrication, wear, and alignment
B) Brake pad thickness
C) HVAC system functionality
D) Wheel alignment
Answer: A) Proper lubrication, wear, and alignment
Rationale: Coupler inspections focus on lubrication, wear, alignment, and the condition
of knuckles, pins, and draft gear components .
6. During a coupler inspection, which finding would require immediate repair?
A) Light surface rust on the coupler shank
B) A visible crack in the coupler knuckle
C) Minor wear on the pivot pin
D) Slight corrosion on the coupler surface
Answer: B) A visible crack in the coupler knuckle
Rationale: Cracks in the coupler knuckle are a critical safety issue that can lead to
catastrophic failure during operation .
,7. The type of coupler that automatically locks when two cars are pushed together
is known as:
A) Drawbar coupler
B) Automatic coupler
C) Screw coupler
D) Manual coupler
Answer: B) Automatic coupler
Rationale: Automatic couplers lock when cars are pushed together without manual
intervention, improving efficiency and safety .
8. What is the most common type of coupler used on modern transit railcars?
A) Screw coupler
B) Type H tightlock coupler
C) Drawbar coupler
D) English coupler
Answer: B) Type H tightlock coupler
Rationale: Type H tightlock couplers are widely used on modern transit railcars due to
their strength and vertical locking capability.
9. If a railcar has a coupler with a missing shear pin, the technician should:
A) Use any available pin as a replacement
B) Replace with a manufacturer-specified shear pin
C) Weld the coupler into position
D) Notify the dispatcher and continue operation
Answer: B) Replace with a manufacturer-specified shear pin
Rationale: Using the correct manufacturer-specified shear pin is essential to ensure the
coupler functions safely under load conditions .
, 10. During an inspection, the technician notes that the coupler lock is not fully
engaging. This condition could result in:
A) Improved ride quality
B) Accidental uncoupling during train movement
C) Reduced brake effectiveness
D) Increased electrical resistance
Answer: B) Accidental uncoupling during train movement
Rationale: A lock that does not fully engage is a critical safety hazard that could result in
accidental uncoupling during train operation .
11. The air and electrical connections on a railcar coupler are often:
A) Integrated into the same coupler head
B) Located on separate, dedicated hoses and cables
C) Non-functional on modern railcars
D) Used only during coupling
Answer: A) Integrated into the same coupler head
Rationale: Many modern couplers integrate air and electrical connections into the
coupler head for convenience and reliability .
12. When lubricating coupler pivot points, the technician should use:
A) Hydraulic oil
B) A high-quality, non-gumming grease or dry lubricant
C) Diesel fuel
D) Engine oil
Answer: B) A high-quality, non-gumming grease or dry lubricant
Rationale: Non-gumming grease or dry lubricants ensure smooth operation without
attracting dust or debris .
