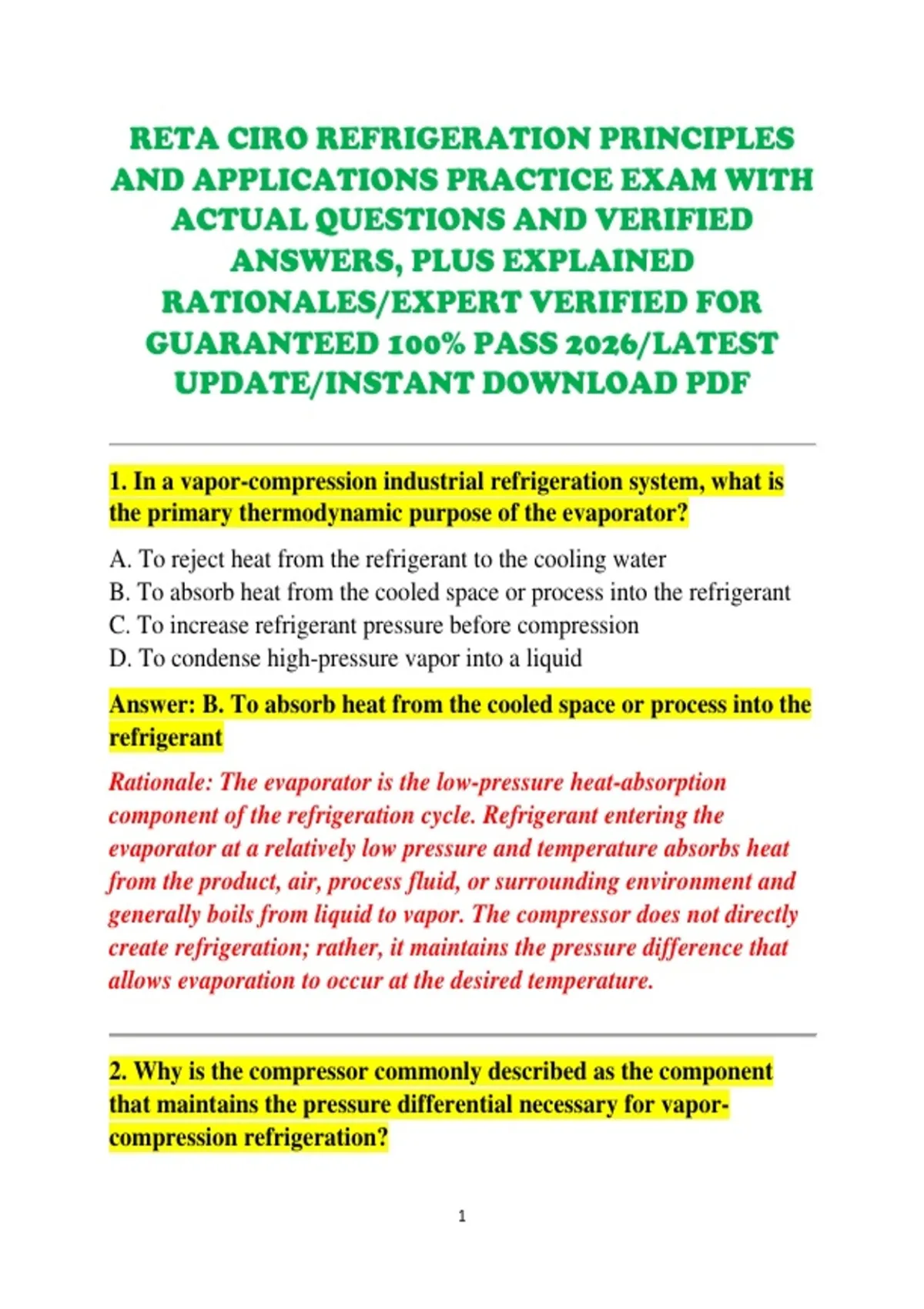

RETA CIRO REFRIGERATION PRINCIPLES AND APPLICATIONS PRACTICE EXAM WITH ACTUAL QUESTIONS AND VERIFIED ANSWERS, PLUS EXPLAINED RATIONALES/EXPERT VERIFIED FOR GUARANTEED 100% PASS 2026/LATEST UPDATE/INSTANT DOWNLOAD PDF

RETA CIRO REFRIGERATION PRINCIPLES
AND APPLICATIONS PRACTICE EXAM WITH
ACTUAL QUESTIONS AND VERIFIED
ANSWERS, PLUS EXPLAINED
RATIONALES/EXPERT VERIFIED FOR
GUARANTEED 100% PASS 2026/LATEST
UPDATE/INSTANT DOWNLOAD PDF

1. In a vapor-compression industrial refrigeration system, what is
the primary thermodynamic purpose of the evaporator?
A. To reject heat from the refrigerant to the cooling water
B. To absorb heat from the cooled space or process into the refrigerant
C. To increase refrigerant pressure before compression
D. To condense high-pressure vapor into a liquid
Answer: B. To absorb heat from the cooled space or process into the
refrigerant
Rationale: The evaporator is the low-pressure heat-absorption
component of the refrigeration cycle. Refrigerant entering the
evaporator at a relatively low pressure and temperature absorbs heat
from the product, air, process fluid, or surrounding environment and
generally boils from liquid to vapor. The compressor does not directly
create refrigeration; rather, it maintains the pressure difference that
allows evaporation to occur at the desired temperature.


2. Why is the compressor commonly described as the component
that maintains the pressure differential necessary for vapor-
compression refrigeration?

1

,A. It converts liquid refrigerant directly into solid refrigerant
B. It lowers the evaporator pressure by removing vapor from the
evaporator
C. It reduces condenser pressure below evaporator pressure
D. It controls refrigerant flow by replacing the expansion device
Answer: B. It lowers the evaporator pressure by removing vapor
from the evaporator
Rationale: The compressor draws vapor from the evaporator and
discharges it toward the condenser. By continuously removing vapor
from the evaporator, it helps maintain the low suction pressure
required for the refrigerant to evaporate at the desired low
temperature. Simultaneously, discharge compression raises the vapor
to a pressure and temperature at which heat can be rejected in the
condenser.


3. A refrigeration operator observes that the compressor suction
pressure is substantially higher than the expected operating
pressure while the refrigerated space is warmer than normal. Which
condition is most consistent with this observation?
A. The evaporating temperature may be too high because the system is
not maintaining the intended low-side pressure
B. The condenser is necessarily operating at an extremely low pressure
C. The expansion valve has converted all refrigerant into solid ice
D. The compressor must automatically be operating at maximum
efficiency
Answer: A. The evaporating temperature may be too high because
the system is not maintaining the intended low-side pressure
Rationale: Refrigerant saturation temperature is directly related to
pressure. If suction pressure rises, the corresponding saturation

2

,temperature generally rises as well. A higher evaporating temperature
can reduce the temperature difference available for cooling the space
or process, potentially resulting in inadequate refrigeration. The
operator should investigate load, evaporator performance, expansion-
device behavior, compressor capacity, and control settings rather than
assuming a single cause.


4. What is the primary function of a condenser in a conventional
vapor-compression refrigeration system?
A. Absorb heat from the refrigerated product
B. Lower the refrigerant pressure before evaporation
C. Reject heat from the refrigerant to another medium while converting
vapor toward liquid
D. Separate oil from ammonia vapor exclusively
Answer: C. Reject heat from the refrigerant to another medium
while converting vapor toward liquid
Rationale: High-pressure refrigerant vapor leaving the compressor
enters the condenser and rejects heat to air, water, evaporative-cooling
media, or another heat sink. As sufficient heat is removed, the
refrigerant condenses into a liquid. The condenser therefore rejects
both the heat absorbed in the evaporator and the compressor's heat of
compression.


5. Which statement best describes superheat in a refrigeration
system?
A. The amount by which a liquid refrigerant is below its saturation
temperature
B. The temperature of a refrigerant vapor above its saturation
temperature at a given pressure

3

, C. The difference between condenser pressure and atmospheric pressure
D. The temperature difference between compressor discharge and
condenser water
Answer: B. The temperature of a refrigerant vapor above its
saturation temperature at a given pressure
Rationale: Superheat exists when vapor temperature exceeds its
saturation temperature at the measured pressure. For example, if
refrigerant saturation temperature corresponding to a measured
suction pressure is 20°F and the actual suction-line temperature is
30°F, the vapor has 10°F of superheat. Superheat measurements are
important for evaluating evaporator feeding and ensuring that liquid
does not reach a compressor designed to receive vapor.


6. What does subcooling indicate in a refrigeration system?
A. Vapor temperature above its saturation temperature
B. Liquid refrigerant temperature below its saturation temperature at the
same pressure
C. Compressor oil temperature above its maximum allowable value
D. Condenser pressure below evaporator pressure
Answer: B. Liquid refrigerant temperature below its saturation
temperature at the same pressure
Rationale: Subcooling means that liquid refrigerant has been cooled
below its saturation temperature at the relevant pressure. Adequate
liquid subcooling can help ensure that liquid reaches the expansion
device without excessive flashing in the liquid line. The actual amount
of subcooling must be evaluated against the system design and
operating conditions rather than treated as universally desirable at one
fixed value.


4
