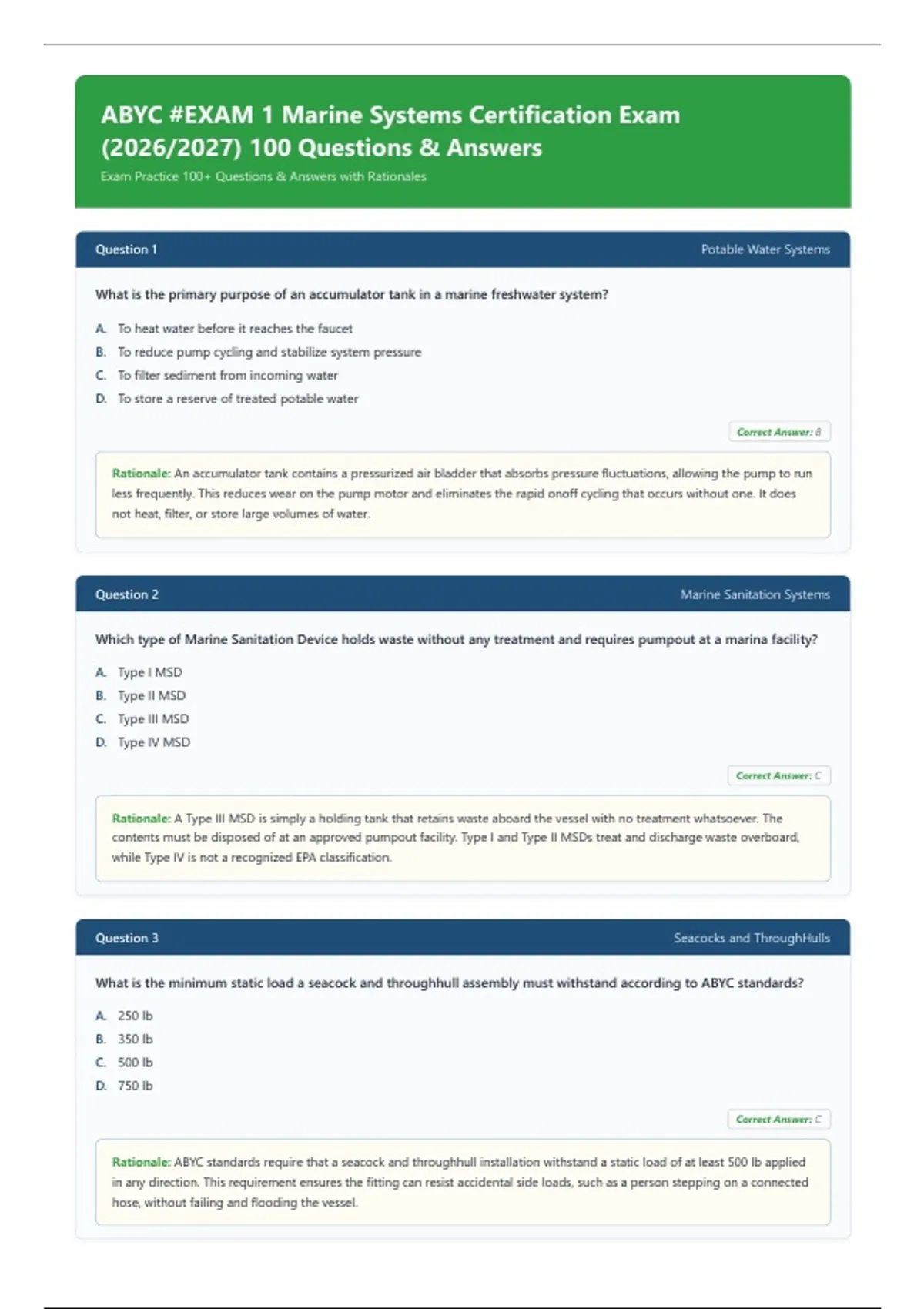

ABYC #EXAM 1 Marine Systems Certification Exam
(2026/2027) 100 Questions & Answers
Exam Practice 100+ Questions & Answers with Rationales
Question 1 Potable Water Systems
What is the primary purpose of an accumulator tank in a marine freshwater system?
A. To heat water before it reaches the faucet
B. To reduce pump cycling and stabilize system pressure
C. To filter sediment from incoming water
D. To store a reserve of treated potable water
Correct Answer: B
Rationale: An accumulator tank contains a pressurized air bladder that absorbs pressure fluctuations, allowing the pump to run
less frequently. This reduces wear on the pump motor and eliminates the rapid onoff cycling that occurs without one. It does
not heat, filter, or store large volumes of water.
Question 2 Marine Sanitation Systems
Which type of Marine Sanitation Device holds waste without any treatment and requires pumpout at a marina facility?
A. Type I MSD
B. Type II MSD
C. Type III MSD
D. Type IV MSD
Correct Answer: C
Rationale: A Type III MSD is simply a holding tank that retains waste aboard the vessel with no treatment whatsoever. The
contents must be disposed of at an approved pumpout facility. Type I and Type II MSDs treat and discharge waste overboard,
while Type IV is not a recognized EPA classification.
Question 3 Seacocks and ThroughHulls
What is the minimum static load a seacock and throughhull assembly must withstand according to ABYC standards?
A. 250 lb
B. 350 lb
C. 500 lb
D. 750 lb
Correct Answer: C
Rationale: ABYC standards require that a seacock and throughhull installation withstand a static load of at least 500 lb applied
in any direction. This requirement ensures the fitting can resist accidental side loads, such as a person stepping on a connected
hose, without failing and flooding the vessel.
,Question 4 Potable Water Systems
What chlorine concentration is recommended when sanitizing a marine potable water system?
A. 10 ppm
B. 50 pm
C. 100 ppm
D. 200 ppm
Correct Answer: C
Rationale: ABYC standards recommend a chlorine concentration of approximately 100 ppm for sanitizing marine potable water
systems. This concentration is sufficient to kill bacteria and other pathogens. After contact time, the system should be
thoroughly flushed before returning to service for drinking water.
Question 5 Marine Sanitation Systems
A vessel operator opens a Yvalve to divert waste overboard while navigating in a freshwater lake 2 miles from shore.
Which statement best describes this action?
A. It is legal because the vessel is in freshwater
B. It is legal because the vessel is more than 3 miles from a nodischarge zone
C. It may be illegal depending on state and federal nodischarge zone regulations
D. It is always legal in freshwater bodies
Correct Answer: C
Rationale: Many freshwater lakes, rivers, and coastal areas are designated nodischarge zones (NDZs) under federal and state
law, where overboard discharge of any treated or untreated waste is prohibited. Even outside NDZs, state regulations may be
more restrictive than federal rules. Technicians must advise vessel owners to comply with all applicable regulations.
Question 6 Potable Water Systems
Which component in a freshwater system prevents backflow from the water heater into the cold water supply?
A. Pressure switch
B. Check valve
C. Accumulator tank
D. Strainer
Correct Answer: B
Rationale: A check valve is installed in the cold water supply line to the water heater to prevent heated water from flowing
backward into the cold water distribution piping. Without a check valve, thermal expansion can push hot water into cold water
lines. It is a onedirectional flow control device.
Question 7 Seacocks and ThroughHulls
What type of threads are specified for throughhull fittings per ABYC standards?
A. NPT tapered pipe threads
B. NPS straight pipe threads
C. UNC coarse machine threads
, D. BSP tapered threads
Correct Answer: B
Rationale: ABYC standards require National Pipe Straight (NPS) threads for throughhull fittings used in marine applications.
Tapered NPT threads can crack a seacock body when overtightened because the wedging action generates excessive stress.
Straight NPS threads provide a secure connection without this risk.
Question 8 Potable Water Systems
Which type of antifreeze is approved for use in marine potable water systems during winterization?
A. Ethylene glycol
B. Methanolbased antifreeze
C. Propylene glycol
D. Isopropyl alcohol
Correct Answer: C
Rationale: Propylene glycol is the only antifreeze considered safe for use in potable water systems because it has low toxicity
and is approved for foodcontact applications. Ethylene glycol is toxic and must never be used in systems that carry drinking
water. Methanol is also toxic and inappropriate for potable systems.
Question 9 Marine Sanitation Systems
What is the function of a joker valve in a marine head?
A. To allow air into the system to prevent vacuum lock
B. To prevent backflow of waste and seawater into the toilet bowl
C. To macerate waste before it enters the holding tank
D. To regulate pump speed during flushing
Correct Answer: B
Rationale: The joker valve is a oneway duckbill check valve located at the outlet of a marine toilet pump. It allows waste to exit
during the pump stroke but prevents seawater and waste from flowing back into the bowl. A worn or damaged joker valve is a
common cause of seawater flooding back into the toilet bowl.
Question 10 Seacocks and ThroughHulls
In which orientation should a seacock handle be positioned when the seacock is in the open position?
A. Perpendicular to the connected hose or pipe
B. Parallel to the connected hose or pipe
C. At a 45degree angle to the hull
D. Pointing toward the vessel centerline
Correct Answer: B
Rationale: When a balltype seacock is open, the handle is parallel to the pipe or hose it is connected to, indicating that the ball
port is aligned with the flow path. When the handle is perpendicular, the valve is closed. This orientation is intuitive and
consistent with standard ball valve practice.
