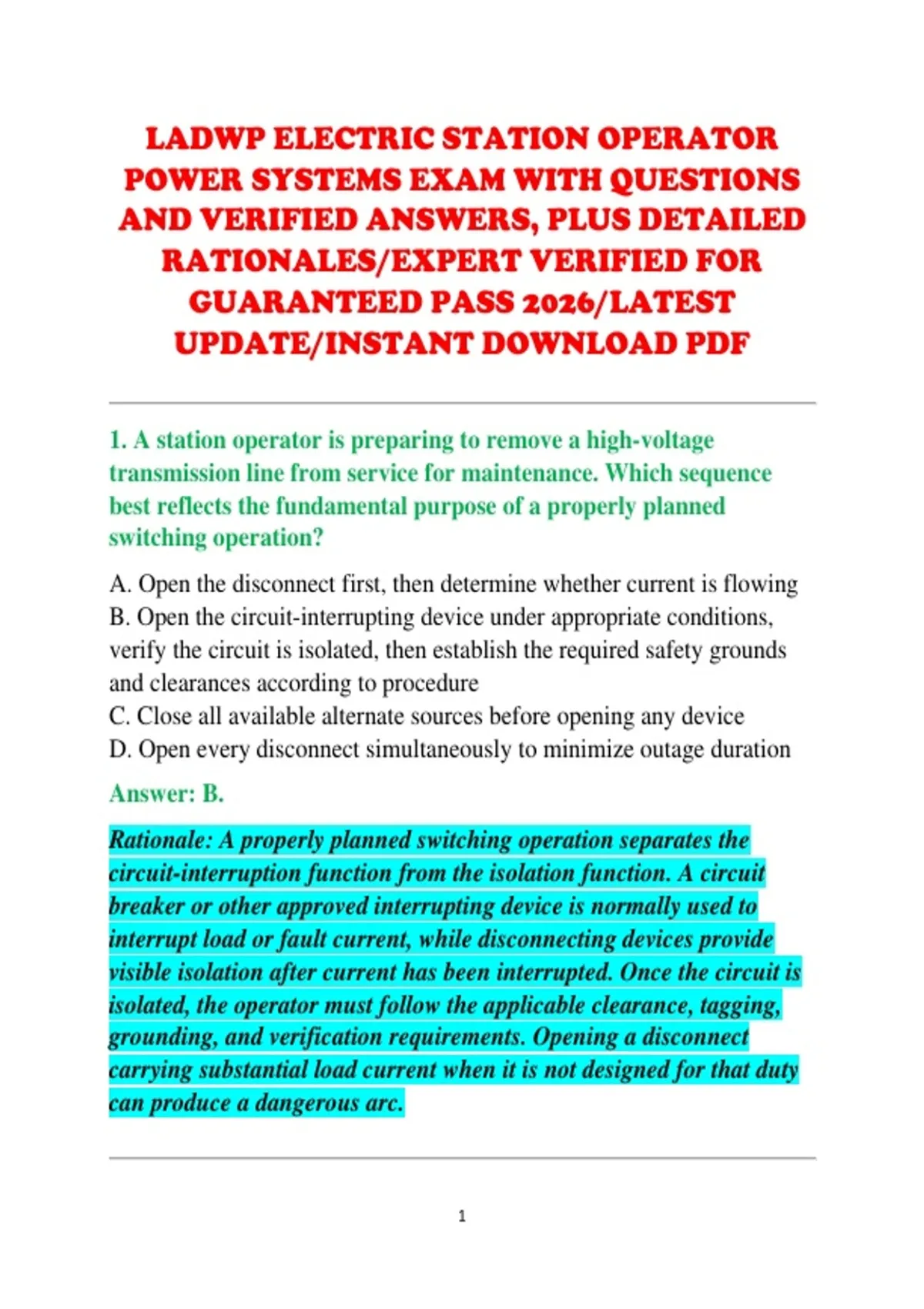

LADWP ELECTRIC STATION OPERATOR
POWER SYSTEMS EXAM WITH QUESTIONS
AND VERIFIED ANSWERS, PLUS DETAILED
RATIONALES/EXPERT VERIFIED FOR
GUARANTEED PASS 2026/LATEST
UPDATE/INSTANT DOWNLOAD PDF
1. A station operator is preparing to remove a high-voltage
transmission line from service for maintenance. Which sequence
best reflects the fundamental purpose of a properly planned
switching operation?
A. Open the disconnect first, then determine whether current is flowing
B. Open the circuit-interrupting device under appropriate conditions,
verify the circuit is isolated, then establish the required safety grounds
and clearances according to procedure
C. Close all available alternate sources before opening any device
D. Open every disconnect simultaneously to minimize outage duration
Answer: B.
Rationale: A properly planned switching operation separates the
circuit-interruption function from the isolation function. A circuit
breaker or other approved interrupting device is normally used to
interrupt load or fault current, while disconnecting devices provide
visible isolation after current has been interrupted. Once the circuit is
isolated, the operator must follow the applicable clearance, tagging,
grounding, and verification requirements. Opening a disconnect
carrying substantial load current when it is not designed for that duty
can produce a dangerous arc.
1
,2. What is the principal electrical function of a circuit breaker in a
power station?
A. Provide visible isolation only
B. Measure transformer temperature
C. Interrupt normal and abnormal current under its rated conditions
D. Increase system power factor
Answer: C.
Rationale: A circuit breaker is designed to make, carry, and interrupt
current within specified ratings. Its most important protective function
is interruption of abnormal current such as short-circuit current when
commanded by protective relays or control systems. A disconnect
switch generally provides isolation rather than fault-current
interruption. Circuit breakers do not inherently increase power factor
or regulate transformer temperature.
3. Why is a disconnect switch generally not operated to interrupt
substantial load current unless specifically designed and rated for
that purpose?
A. Disconnects cannot conduct current
B. Opening the contacts can establish an arc that the device may not be
capable of safely extinguishing
C. Disconnects always operate at low voltage
D. Disconnects automatically increase fault current
Answer: B.
Rationale: When contacts separate while current is flowing, an
electrical arc can form between them. Circuit breakers incorporate
mechanisms and interrupting media specifically designed to control
and extinguish such arcs. A conventional isolating disconnect may
lack the necessary interrupting capability. Consequently, operating it
2
,under inappropriate load conditions can cause severe equipment
damage, arc flash, fire, or injury.
4. A three-phase generator is producing 13.8 kV at 100 MVA.
Approximately what is its rated line current?
A. 2,418 A
B. 4,184 A
C. 7,246 A
D. 13,800 A
Answer: A.
Rationale: For a three-phase system, apparent power is S = √3 × V × I.
Therefore, I = S/(√3V). Using 100,000,000 VA ÷ (1.732 × 13,800 V)
gives approximately 4,184 A. Therefore, the correct answer is B, not A.
The apparent contradiction is intentional to test careful calculation:
the correct answer is B. 4,184 A.
5. What is the primary purpose of a power transformer in a
transmission system?
A. Convert AC into mechanical energy
B. Change voltage and current levels while transferring AC power
electromagnetically
C. Interrupt short-circuit current
D. Detect ground faults directly
Answer: B.
Rationale: A transformer transfers electrical energy between windings
through electromagnetic induction. A step-up transformer raises
voltage for transmission, reducing current for a given power level and
thereby reducing I²R transmission losses. A step-down transformer
3
, reduces voltage for distribution or utilization. Circuit breakers perform
interruption, while protective relays detect abnormal conditions and
initiate appropriate control actions.
6. A transformer has a 120:1 voltage transformation ratio. If the
primary voltage is 12,000 V, what is the approximate secondary
voltage?
A. 10 V
B. 100 V
C. 120 V
D. 1,440 V
Answer: B.
Rationale: The ideal transformer relationship is V₁/V₂ = N₁/N₂. A
120:1 ratio means the primary voltage is 120 times the secondary
voltage. Therefore, 12,000 ÷ 120 = 100 V. Instrument potential
transformers commonly reduce high system voltages to standardized
lower values for metering, relaying, and control circuits.
7. What is the primary purpose of a current transformer (CT)
installed on a high-voltage circuit?
A. Increase system voltage
B. Reduce current to a standardized, measurable level for
instrumentation and protection
C. Convert AC to DC
D. Provide mechanical energy to a circuit breaker
Answer: B.
Rationale: CTs reproduce primary current at a reduced secondary
value suitable for meters and protective relays. A CT allows high
4
