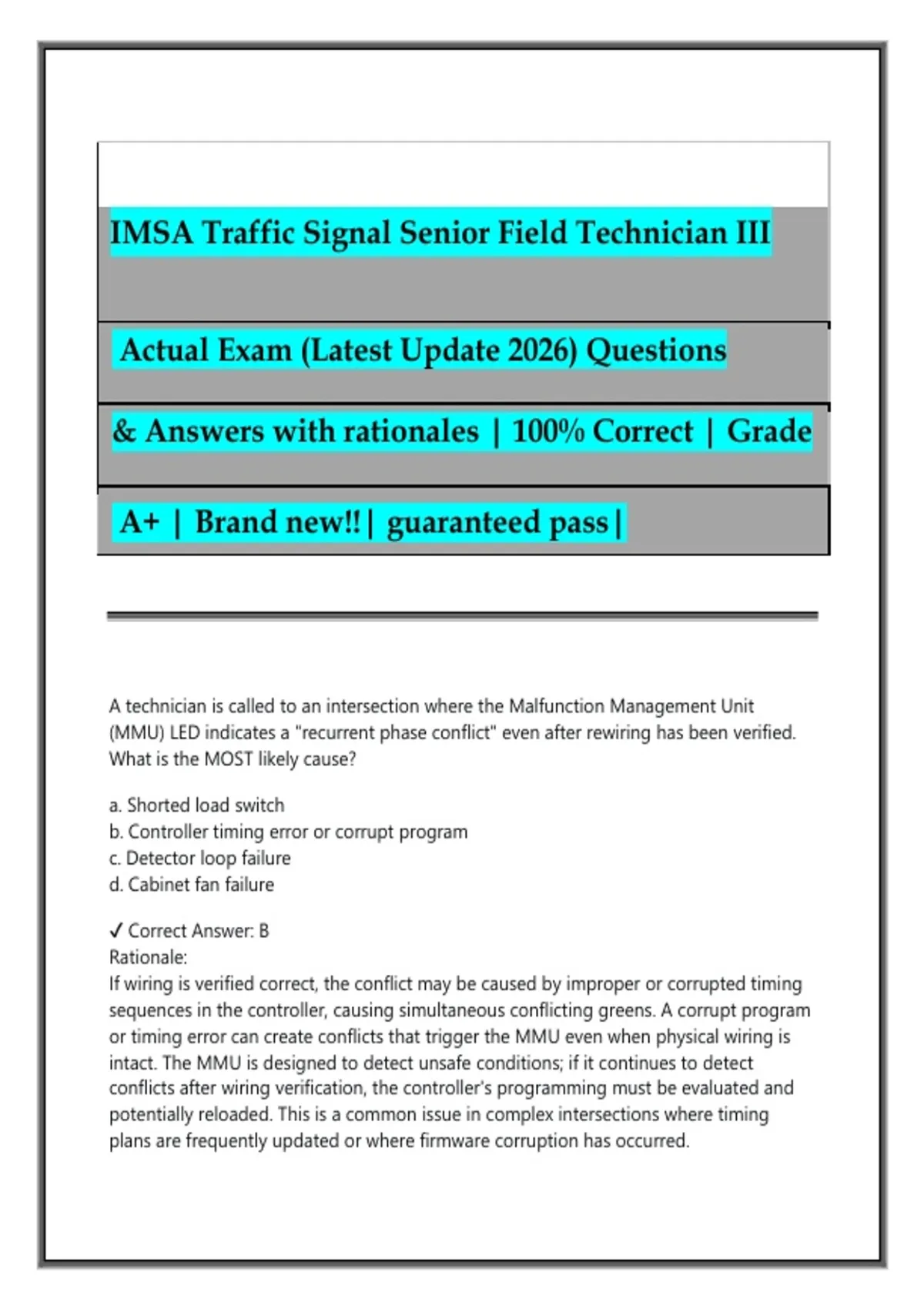

IMSA Traffic Signal Senior Field Technician III
Actual Exam (Latest Update 2026) Questions
& Answers with rationales | 100% Correct | Grade
A+ | Brand new!!| guaranteed pass|
A technician is called to an intersection where the Malfunction Management Unit
(MMU) LED indicates a "recurrent phase conflict" even after rewiring has been verified.
What is the MOST likely cause?
a. Shorted load switch
b. Controller timing error or corrupt program
c. Detector loop failure
d. Cabinet fan failure
✔️ Correct Answer: B
Rationale:
If wiring is verified correct, the conflict may be caused by improper or corrupted timing
sequences in the controller, causing simultaneous conflicting greens. A corrupt program
or timing error can create conflicts that trigger the MMU even when physical wiring is
intact. The MMU is designed to detect unsafe conditions; if it continues to detect
conflicts after wiring verification, the controller's programming must be evaluated and
potentially reloaded. This is a common issue in complex intersections where timing
plans are frequently updated or where firmware corruption has occurred.
,Option A is incorrect because a shorted load switch would typically be detected by the
MMU and would have been identified during the rewiring process. Option C is incorrect
because detector loop failure affects vehicle detection, not phase conflicts. Option D is
incorrect because cabinet fan failure does not cause phase conflicts.
Which NEMA TS-2 feature allows remote detection and dynamic timing adjustments?
a. Free mode
b. Ethernet/IP communication
c. Flasher relay
d. Malfunction Management Unit (MMU)
✔️ Correct Answer: B
Rationale:
TS-2 controllers with Ethernet/IP enable real-time monitoring, adaptive timing, and
remote configuration. This communication protocol allows technicians and traffic
management centers to access controller data, adjust timing parameters, and diagnose
issues without physical presence at the cabinet. Ethernet/IP is the standard for modern
traffic signal networks, providing the bandwidth and reliability needed for advanced
traffic management systems.
Option A is incorrect because free mode is a controller operating state, not a
communication feature. Option C is incorrect because the flasher relay provides flash
mode timing, not remote communication. Option D is incorrect because the MMU
monitors conflicts, not remote communication.
When troubleshooting a corridor of coordinated signals, vehicles experience
"platooning gaps." Which parameter is MOST likely misconfigured?
a. Detector sensitivity
b. Offset timing
c. Minimum green interval
d. Red clearance interval
,✔️ Correct Answer: B
Rationale:
Incorrect offsets disrupt the intended coordination, causing vehicles to stop
unnecessarily or gaps in the platoon flow. Offset timing determines the relationship
between the start of green at one intersection and the start of green at the next. When
offsets are misconfigured, vehicles traveling at the design speed will encounter red
signals, causing the platoon to break up into gaps. Proper offset tuning is essential for
maintaining "green wave" progression along a corridor.
Option A is incorrect because detector sensitivity affects detection accuracy, not platoon
flow. Option C is incorrect because minimum green affects individual phase timing, not
coordination. Option D is incorrect because red clearance affects safety intervals, not
progression.
A controller shows a constant pedestrian call even when the pushbutton is not pressed.
What is the most likely cause?
a. MMU failure
b. Shorted pedestrian wiring
c. Low AC voltage
d. Flashing mode activation
✔️ Correct Answer: B
Rationale:
Shorted wiring can appear as a continuous call to the controller, similar to a stuck
pushbutton. When the pedestrian pushbutton wiring is shorted, the controller interprets
this as a constant call, causing the pedestrian phase to activate every cycle. This
condition wastes time and reduces intersection efficiency. The wiring must be inspected
for damage, corrosion, or improper connections.
Option A is incorrect because MMU failure would cause conflict detection or flash
mode, not a constant pedestrian call. Option C is incorrect because low AC voltage
affects overall system operation, not specific calls. Option D is incorrect because flashing
mode affects signal heads, not pedestrian calls.
, Which device provides preemption for fire and emergency medical services (EMS)
vehicles using optical strobe emitters?
a. Inductive loop detector
b. Optical preemption detector
c. Sidefire radar
d. Pedestrian pushbutton
✔️ Correct Answer: B
Rationale:
Optical detectors sense strobe signals from emergency vehicles to interrupt normal
timing and provide green for emergency response. Optical preemption systems use
infrared or visible light strobe emitters mounted on emergency vehicles. The detectors
receive these signals and communicate with the controller to grant priority. This
technology ensures rapid emergency response while maintaining safety for other
roadway users.
Option A is incorrect because inductive loop detectors sense metallic vehicles, not
optical signals. Option C is incorrect because sidefire radar detects vehicle presence and
speed, not preemption signals. Option D is incorrect because pedestrian pushbuttons
are for pedestrian calls.
A signal head is not illuminating even though the load switch tests OK and the MMU is
normal. Which is the next component to check?
a. Cabinet fan
b. Signal wiring and connectors
c. Rectifier power supply
d. Controller CPU
✔️ Correct Answer: B
Rationale:
After verifying load switches and MMU, a break or corrosion in wiring to the head is the
most common cause. The wiring from the cabinet to the signal head can be damaged
by weather, rodents, or construction activities. Connectors may corrode, causing
intermittent or complete loss of illumination. A continuity test from the load switch
output to the signal head will identify breaks or high-resistance connections.
