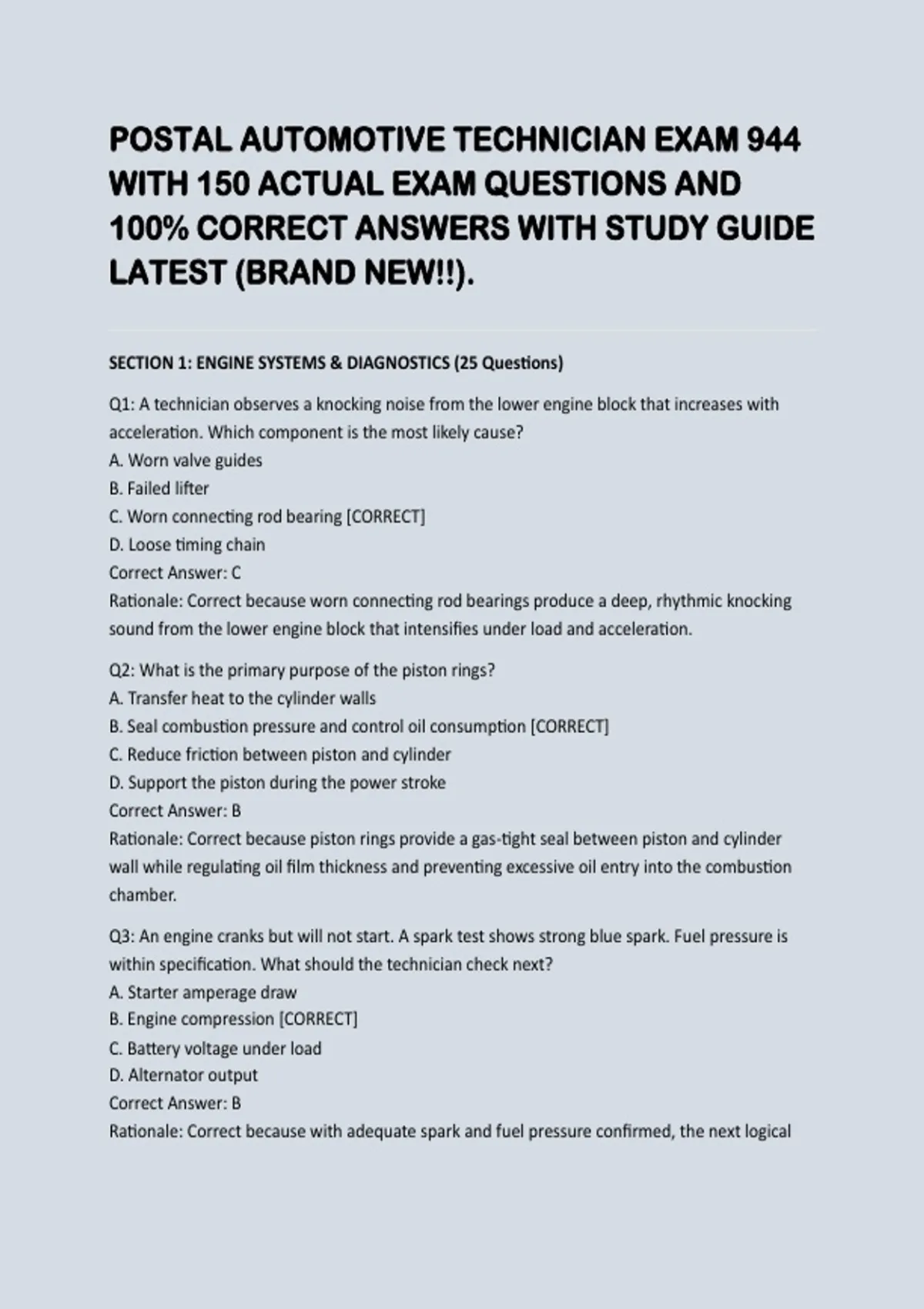

POSTAL AUTOMOTIVE TECHNICIAN EXAM 944
WITH 150 ACTUAL EXAM QUESTIONS AND
100% CORRECT ANSWERS WITH STUDY GUIDE
LATEST (BRAND NEW!!).
SECTION 1: ENGINE SYSTEMS & DIAGNOSTICS (25 Questions)
Q1: A technician observes a knocking noise from the lower engine block that increases with
acceleration. Which component is the most likely cause?
A. Worn valve guides
B. Failed lifter
C. Worn connecting rod bearing [CORRECT]
D. Loose timing chain
Correct Answer: C
Rationale: Correct because worn connecting rod bearings produce a deep, rhythmic knocking
sound from the lower engine block that intensifies under load and acceleration.
Q2: What is the primary purpose of the piston rings?
A. Transfer heat to the cylinder walls
B. Seal combustion pressure and control oil consumption [CORRECT]
C. Reduce friction between piston and cylinder
D. Support the piston during the power stroke
Correct Answer: B
Rationale: Correct because piston rings provide a gas-tight seal between piston and cylinder
wall while regulating oil film thickness and preventing excessive oil entry into the combustion
chamber.
Q3: An engine cranks but will not start. A spark test shows strong blue spark. Fuel pressure is
within specification. What should the technician check next?
A. Starter amperage draw
B. Engine compression [CORRECT]
C. Battery voltage under load
D. Alternator output
Correct Answer: B
Rationale: Correct because with adequate spark and fuel pressure confirmed, the next logical
,diagnostic step is to verify mechanical integrity through compression testing to identify valve,
piston ring, or head gasket issues.
Q4: What is the correct firing order for a standard small-block V8 engine?
A. 1-8-4-3-6-5-7-2
B. 1-8-4-3-6-5-7-2 (GM) / 1-3-7-2-6-5-4-8 (Ford) [CORRECT]
C. 1-5-3-6-2-4-7-8
D. 1-2-7-4-3-6-5-8
Correct Answer: B
Rationale: Correct because firing order varies by manufacturer; the listed sequences represent
common GM and Ford small-block patterns that technicians must identify for proper ignition
timing and injector sequencing.
Q5: A technician performs a cylinder leakage test and finds 25% leakage on cylinder #3 with air
escaping from the oil fill cap. This indicates:
A. Intake valve leakage
B. Exhaust valve leakage
C. Piston ring or cylinder wall wear [CORRECT]
D. Head gasket failure
Correct Answer: C
Rationale: Correct because air escaping from the crankcase (oil fill cap) during a leakage test
indicates blow-by past the piston rings, confirming ring or cylinder wall wear.
Q6: What is the purpose of the engine oil pressure relief valve?
A. Regulate oil flow to the filter
B. Maintain oil pressure within safe limits [CORRECT]
C. Direct oil to the cylinder head
D. Bypass the oil cooler
Correct Answer: B
Rationale: Correct because the pressure relief valve opens when oil pressure exceeds
specification, diverting oil back to the sump to prevent damage to bearings and seals.
Q7: The PCM uses the crankshaft position sensor signal primarily for:
A. Fuel trim adjustments
B. Ignition timing and injector firing [CORRECT]
C. EGR operation
D. Evaporative purge control
Correct Answer: B
Rationale: Correct because the CKP sensor provides the base timing signal for ignition and fuel
injection synchronization, enabling precise spark advance and injector pulse timing.
,Q8: A technician notices coolant bubbling in the overflow reservoir immediately after engine
shutdown. This is a symptom of:
A. Sticking thermostat
B. Combustion gas entering the cooling system [CORRECT]
C. Low coolant level
D. Faulty radiator cap
Correct Answer: B
Rationale: Correct because bubbling in the coolant reservoir after shutdown indicates
combustion gases are escaping into the cooling system, typically from a head gasket breach or
cracked cylinder head.
Q9: What is the recommended procedure for testing a faulty MAP sensor?
A. Check resistance across terminals
B. Compare voltage output with known vacuum values [CORRECT]
C. Measure temperature with an infrared thermometer
D. Perform a continuity test to ground
Correct Answer: B
Rationale: Correct because MAP sensor function is verified by applying varying vacuum levels
and comparing the voltage or frequency output to manufacturer-specified values for accurate
atmospheric and manifold pressure correlation.
Q10: An engine overheats at highway speeds but runs cool at idle. The most likely cause is:
A. Inoperative cooling fan
B. Stuck closed thermostat
C. Restricted radiator airflow or coolant flow [CORRECT]
D. Low coolant level
Correct Answer: C
Rationale: Correct because overheating at high speeds with normal idle temperature points to
insufficient airflow through the radiator or restricted coolant circulation, reducing heat rejection
capacity under load.
Q11: When performing a compression test, a cylinder reads 90 PSI while all others read 150 PSI.
Adding oil to the cylinder raises it to 145 PSI. This indicates:
A. Burned exhaust valve
B. Leaking head gasket
C. Worn piston rings [CORRECT]
D. Incorrect valve timing
Correct Answer: C
, Rationale: Correct because oil temporarily seals worn rings, increasing compression; this
confirmed improvement indicates ring wear rather than valve or gasket issues.
Q12: What is the function of the engine flywheel/flexplate?
A. Dampen torsional vibrations
B. Provide starter ring gear and transfer torque to transmission [CORRECT]
C. Balance the rotating assembly
D. Drive the camshaft
Correct Answer: B
Rationale: Correct because the flywheel provides the ring gear for starter engagement and
transmits engine torque through the clutch (manual) or torque converter (automatic) to the
driveline.
Q13: A technician diagnoses a rough idle that smooths out above 1,500 RPM. What is the most
likely cause?
A. Ignition coil failure
B. Vacuum leak [CORRECT]
C. Fuel pump voltage drop
D. Worn spark plugs
Correct Answer: B
Rationale: Correct because vacuum leaks disproportionately affect idle quality due to low air
volume; at higher RPM the leak becomes a smaller percentage of total airflow, diminishing its
effect.
Q14: Which sensor provides the PCM with engine load information?
A. IAT sensor
B. ECT sensor
C. MAF or MAP sensor [CORRECT]
D. Knock sensor
Correct Answer: C
Rationale: Correct because the Mass Air Flow or Manifold Absolute Pressure sensor measures
incoming air mass or pressure, enabling the PCM to calculate engine load and adjust fuel
accordingly.
Q15: A timing belt inspection reveals cracks and fraying on a 90,000-mile engine. The technician
should:
A. Replace only the belt
B. Replace the belt, tensioner, and idler pulleys [CORRECT]
C. Adjust the tensioner and continue use
D. Replace the belt and water pump only
