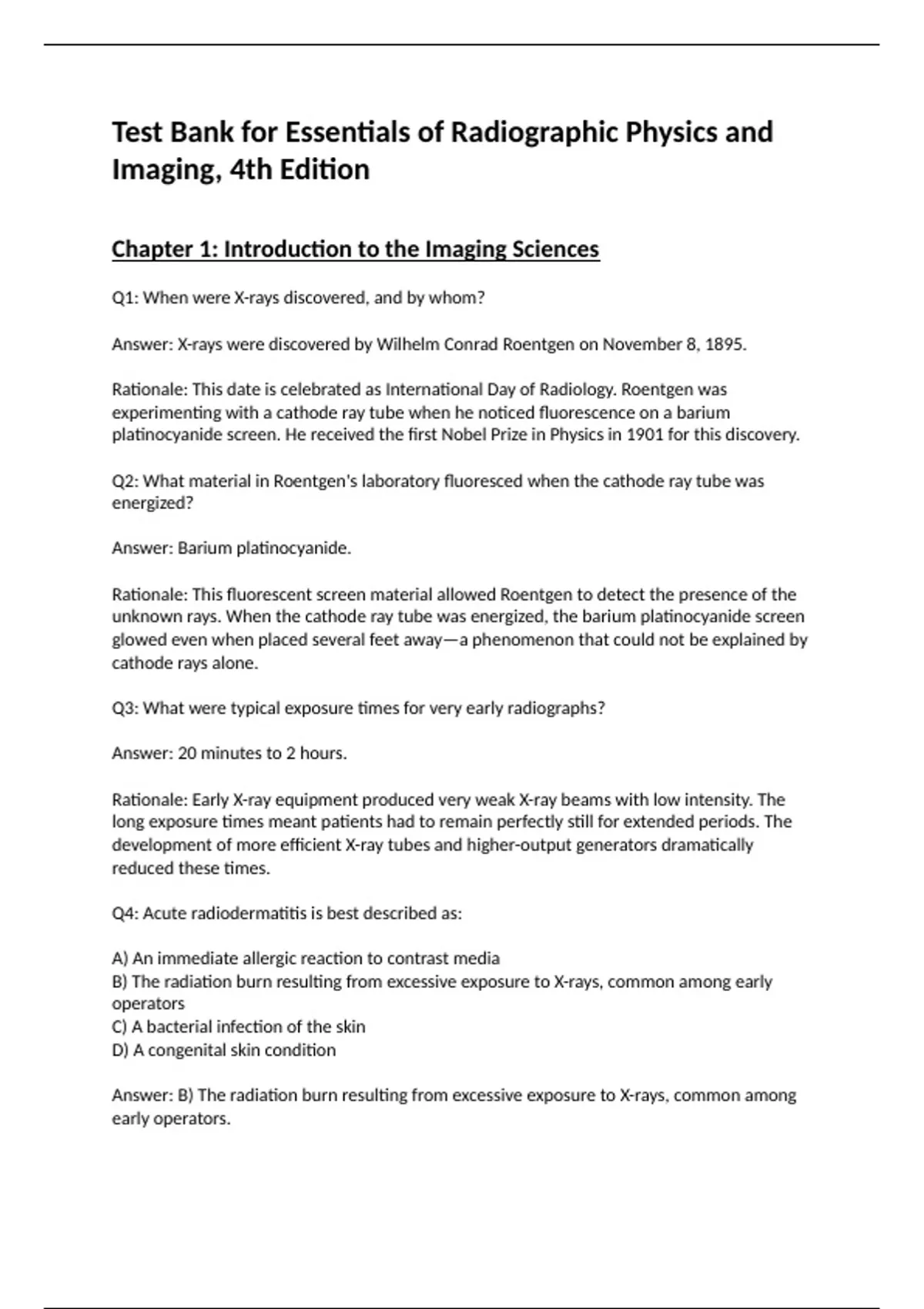

Test Bank for Essentials of Radiographic Physics and
Imaging, 4th Edition
Chapter 1: Introduction to the Imaging Sciences
Q1: When were X-rays discovered, and by whom?
Answer: X-rays were discovered by Wilhelm Conrad Roentgen on November 8, 1895.
Rationale: This date is celebrated as International Day of Radiology. Roentgen was
experimenting with a cathode ray tube when he noticed fluorescence on a barium
platinocyanide screen. He received the first Nobel Prize in Physics in 1901 for this discovery.
Q2: What material in Roentgen's laboratory fluoresced when the cathode ray tube was
energized?
Answer: Barium platinocyanide.
Rationale: This fluorescent screen material allowed Roentgen to detect the presence of the
unknown rays. When the cathode ray tube was energized, the barium platinocyanide screen
glowed even when placed several feet away—a phenomenon that could not be explained by
cathode rays alone.
Q3: What were typical exposure times for very early radiographs?
Answer: 20 minutes to 2 hours.
Rationale: Early X-ray equipment produced very weak X-ray beams with low intensity. The
long exposure times meant patients had to remain perfectly still for extended periods. The
development of more efficient X-ray tubes and higher-output generators dramatically
reduced these times.
Q4: Acute radiodermatitis is best described as:
A) An immediate allergic reaction to contrast media
B) The radiation burn resulting from excessive exposure to X-rays, common among early
operators
C) A bacterial infection of the skin
D) A congenital skin condition
Answer: B) The radiation burn resulting from excessive exposure to X-rays, common among
early operators.
,Rationale: Early X-ray operators and patients frequently experienced radiation burns from
repeated or prolonged exposure. This was a delayed response to excessive radiation and
contributed to the early recognition that X-rays could cause biological harm.
Q5: Who brought significant public attention to the dangers of X-rays after suffering a
radiation burn?
Answer: Thomas Edison.
Rationale: The famous American inventor suffered a radiation burn and used his public
platform to bring attention to the dangers of X-rays. While other inventors also experienced
burns, Edison's prominence helped raise awareness about radiation protection.
Q6: Which of the following was an example of X-rays being used for entertainment or
business gain in a dangerous manner?
A) X-ray stove polish
B) Fluoroscopic shoe fitter
C) X-ray headache tablets
D) X-ray golf balls
Answer: B) Fluoroscopic shoe fitter.
Rationale: While products like stove polish and headache tablets used "X-ray" in their names
for marketing, the fluoroscopic shoe fitter actually exposed shoppers to radiation. These
devices were common in shoe stores from the 1920s through the 1950s and exposed feet to
hazardous doses.
Q7: What is the International Day of Radiology?
Answer: November 8th.
Rationale: This date marks the anniversary of Roentgen's discovery of X-rays in 1895. It is
celebrated globally to recognize the contributions of radiology to healthcare.
Q8: What early fluoroscopic device was used in shoe stores to demonstrate shoe fit?
Answer: Fluoroscopic shoe fitter.
Rationale: These devices used X-rays to show the bones of the feet within shoes, exposing
customers and employees to potentially hazardous radiation. They were phased out once
the dangers became widely recognized.
Q9: What organization provides guidelines for radiation protection that are referenced
throughout the 4th edition?
,Answer: NCRP (National Council on Radiation Protection and Measurements), specifically
NCRP Report 116.
Rationale: The NCRP Report No. 116 provides recommendations for limiting radiation
exposure to the public and occupational workers. It establishes dose limits and outlines
radiation protection principles that form the basis for many regulatory requirements.
Q10: What is the ALARA principle?
Answer: As Low As Reasonably Achievable.
Rationale: ALARA is the fundamental radiation protection principle requiring that radiation
doses be kept as low as reasonably achievable, considering economic and social factors. The
4th edition emphasizes this through updated ARRT guidelines.
Q11: The three cardinal principles of radiation protection are:
Answer: Time, Distance, Shielding.
Rationale: These three methods minimize exposure: minimizing time near radiation sources,
maximizing distance from the source, and using appropriate shielding. The text reinforces
these as "core principles of ethical obligations" for radiographers.
Q12: Which campaign aims to reduce pediatric radiation exposure?
Answer: Image Gently campaign.
Rationale: This campaign raises awareness about the need to use lower radiation doses for
pediatric patients. Children are more radiosensitive than adults, and the campaign
emphasizes ALARA specifically for pediatric imaging.
Q13: What does the Image Gently campaign emphasize for pediatric CT imaging?
Answer: Lower doses and proper immobilization.
Rationale: Pediatric patients are significantly more sensitive to radiation than adults because
their tissues are more rapidly dividing and they have a longer lifetime ahead for potential
radiation-induced cancers. Proper immobilization avoids repeat scans that would increase
dose.
Q14: What is the purpose of gonadal shielding?
Answer: To protect reproductive organs and reduce hereditary risk.
Rationale: Gonadal shielding reduces dose to reproductive organs because radiation-induced
mutations in germ cells can be heritable. The ARRT guidelines reflected in the 4th edition
include up-to-date shielding recommendations.
, Q15: What organization developed the "Image Gently" campaign?
Answer: The Alliance for Radiation Safety in Pediatric Imaging.
Rationale: This organization, now part of the American College of Radiology, developed the
campaign to promote radiation safety in pediatric imaging. It is endorsed by multiple
professional societies.
Q16: What is the shift in focus regarding units emphasized in the 4th edition?
Answer: A shift to SI units.
Rationale: The 4th edition places greater focus on SI units (gray, sievert, coulombs per
kilogram) rather than traditional units (rad, rem, roentgen). This reflects current educational
standards and international practice.
Q17: What is the SI unit equivalent to the rad?
Answer: Gray (Gy).
Rationale: The gray is the SI unit of absorbed dose, equivalent to 1 joule of energy absorbed
per kilogram of matter. It replaces the traditional rad (1 Gy = 100 rad).
Q18: What is the SI unit equivalent to the rem?
Answer: Sievert (Sv).
Rationale: The sievert is the SI unit of dose equivalent that accounts for the biological
effectiveness of different radiation types. It replaces the traditional rem (1 Sv = 100 rem).
Q19: What is the SI unit of exposure in air?
Answer: Coulombs per kilogram (C/kg).
Rationale: This unit replaces the traditional roentgen (R). It measures the ionization
produced by X-rays or gamma rays in air. It is the SI equivalent for radiation intensity in air.
Q20: What does "acute radiation syndrome" refer to?
Answer: Symptoms resulting from high-dose radiation exposure.
Rationale: Acute radiation syndrome has prodromal, latent, and manifest stages. Symptoms
include nausea, vomiting, and potentially death depending on dose. Early X-ray operators
experienced this from excessive exposure.
Q21: What is the "erythema dose"?
