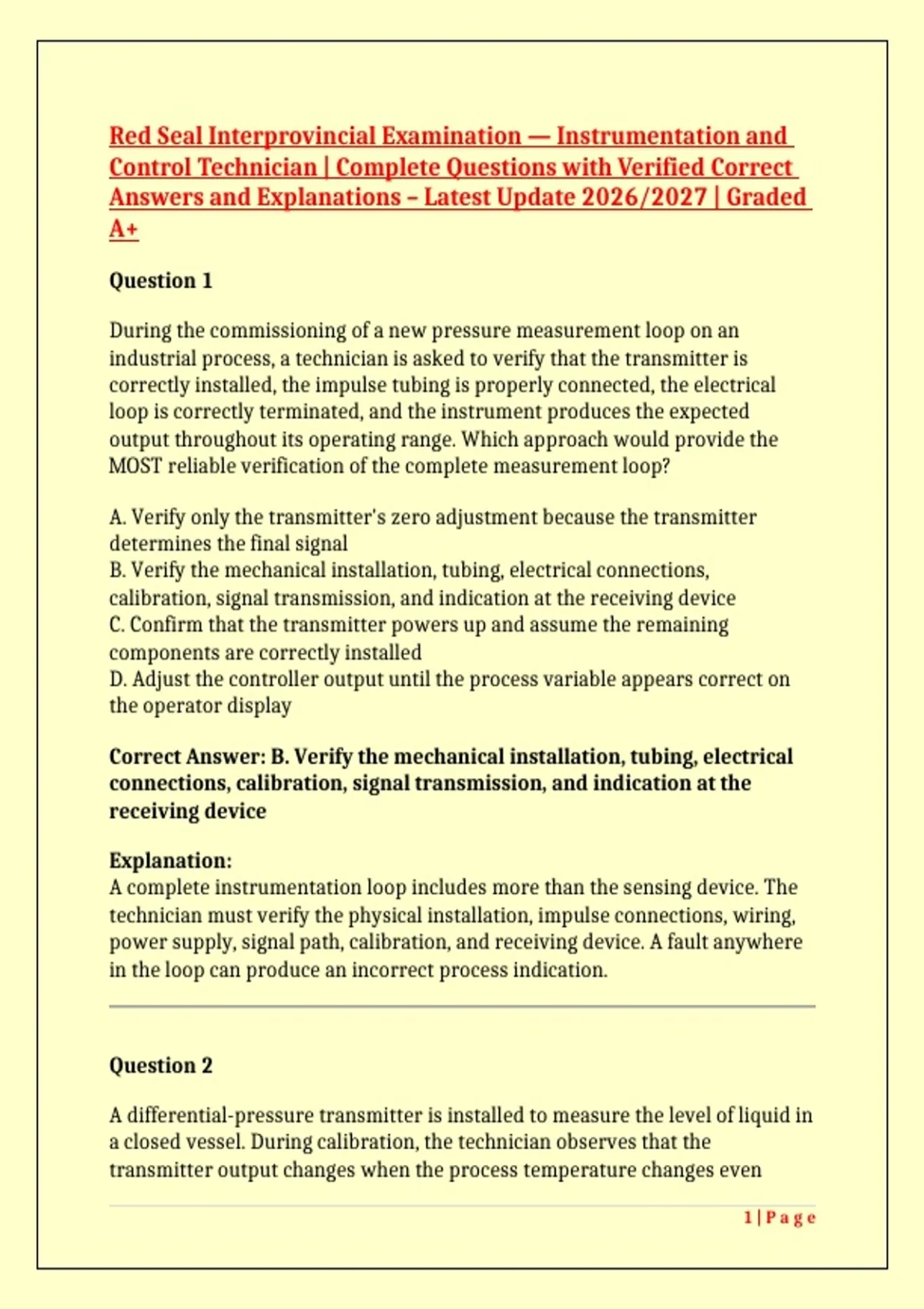

Red Seal Interprovincial Examination — Instrumentation and
Control Technician | Complete Questions with Verified Correct
Answers and Explanations – Latest Update 2026/2027 | Graded
A+
Question 1
During the commissioning of a new pressure measurement loop on an
industrial process, a technician is asked to verify that the transmitter is
correctly installed, the impulse tubing is properly connected, the electrical
loop is correctly terminated, and the instrument produces the expected
output throughout its operating range. Which approach would provide the
MOST reliable verification of the complete measurement loop?
A. Verify only the transmitter's zero adjustment because the transmitter
determines the final signal
B. Verify the mechanical installation, tubing, electrical connections,
calibration, signal transmission, and indication at the receiving device
C. Confirm that the transmitter powers up and assume the remaining
components are correctly installed
D. Adjust the controller output until the process variable appears correct on
the operator display
Correct Answer: B. Verify the mechanical installation, tubing, electrical
connections, calibration, signal transmission, and indication at the
receiving device
Explanation:
A complete instrumentation loop includes more than the sensing device. The
technician must verify the physical installation, impulse connections, wiring,
power supply, signal path, calibration, and receiving device. A fault anywhere
in the loop can produce an incorrect process indication.
Question 2
A differential-pressure transmitter is installed to measure the level of liquid in
a closed vessel. During calibration, the technician observes that the
transmitter output changes when the process temperature changes even
1|Page
,though the actual liquid level remains constant. Which condition should the
technician investigate FIRST?
A. Whether temperature is affecting the transmitter or the process impulse
system
B. Whether the control valve is oversized
C. Whether the controller has excessive derivative action
D. Whether the transmitter output should be changed from current to voltage
Correct Answer: A. Whether temperature is affecting the transmitter or
the process impulse system
Explanation:
Temperature changes can affect transmitter performance, process fluid
density, impulse lines, seals, and other components. For a differential-
pressure level measurement, changes in fluid density or the measurement
system can create an apparent level change even when the physical level has
not changed.
Question 3
A technician is troubleshooting a 4–20 mA temperature transmitter that
normally produces 12 mA at the process operating condition. The transmitter
is currently producing 0 mA, and the receiving controller indicates a low-input
fault. Which condition should be investigated FIRST?
A. Whether the controller's proportional gain is too high
B. Whether the current loop has lost power or has an open circuit
C. Whether the process temperature is slightly above normal
D. Whether the final control element requires lubrication
Correct Answer: B. Whether the current loop has lost power or has an
open circuit
Explanation:
A 4–20 mA loop requires a complete electrical path and an appropriate power
source. A reading of 0 mA commonly indicates an open circuit, loss of loop
power, wiring problem, transmitter failure, or another interruption. The
2|Page
,technician should verify the loop systematically rather than immediately
adjusting the controller.
Question 4
A technician is calibrating a pressure transmitter with a range of 0 to 1000
kPa. The transmitter is expected to produce a linear 4–20 mA signal. What
current should ideally be produced when the applied pressure is 750 kPa?
A. 8 mA
B. 12 mA
C. 16 mA
D. 20 mA
Correct Answer: C. 16 mA
Explanation:
The transmitter span is 16 mA because the output changes from 4 to 20 mA. A
pressure of 750 kPa represents 75% of the measurement range.
Output:
4 mA + (0.75 × 16 mA) = 16 mA
Therefore, the expected output is 16 mA.
Question 5
A flow transmitter is producing a signal that fluctuates rapidly even though
the process appears stable. The technician confirms that the transmitter is
correctly powered and the process connection is intact. Which additional
condition should be investigated as a possible source of the unstable signal?
A. Electrical noise, grounding problems, process pulsation, or an unstable
sensing condition
B. Whether the instrument nameplate is mounted vertically
3|Page
, C. Whether the transmitter enclosure has a manufacturer's logo
D. Whether the process pipe is painted
Correct Answer: A. Electrical noise, grounding problems, process
pulsation, or an unstable sensing condition
Explanation:
An unstable measurement can originate from the process, sensing element,
signal wiring, grounding, electrical interference, or transmitter electronics.
Troubleshooting should identify whether the instability exists at the process,
transmitter output, or receiving system.
Question 6
A technician is installing a thermocouple in an industrial furnace. The
technician notices that the extension wiring has been connected using the
wrong thermocouple type. The temperature indication is significantly
different from the expected value. Why can the incorrect extension wire cause
this problem?
A. Thermocouple circuits depend on appropriate thermoelectric
characteristics throughout the measurement circuit
B. Extension wire affects only the physical strength of the installation
C. Any copper wire produces the same thermocouple signal
D. Extension wire determines the controller's proportional band
Correct Answer: A. Thermocouple circuits depend on appropriate
thermoelectric characteristics throughout the measurement circuit
Explanation:
Thermocouple systems depend on thermoelectric voltage relationships. Using
inappropriate extension or compensating wire can introduce unwanted
junctions and measurement errors. Correct wire type and polarity are
essential for accurate temperature measurement.
Question 7
