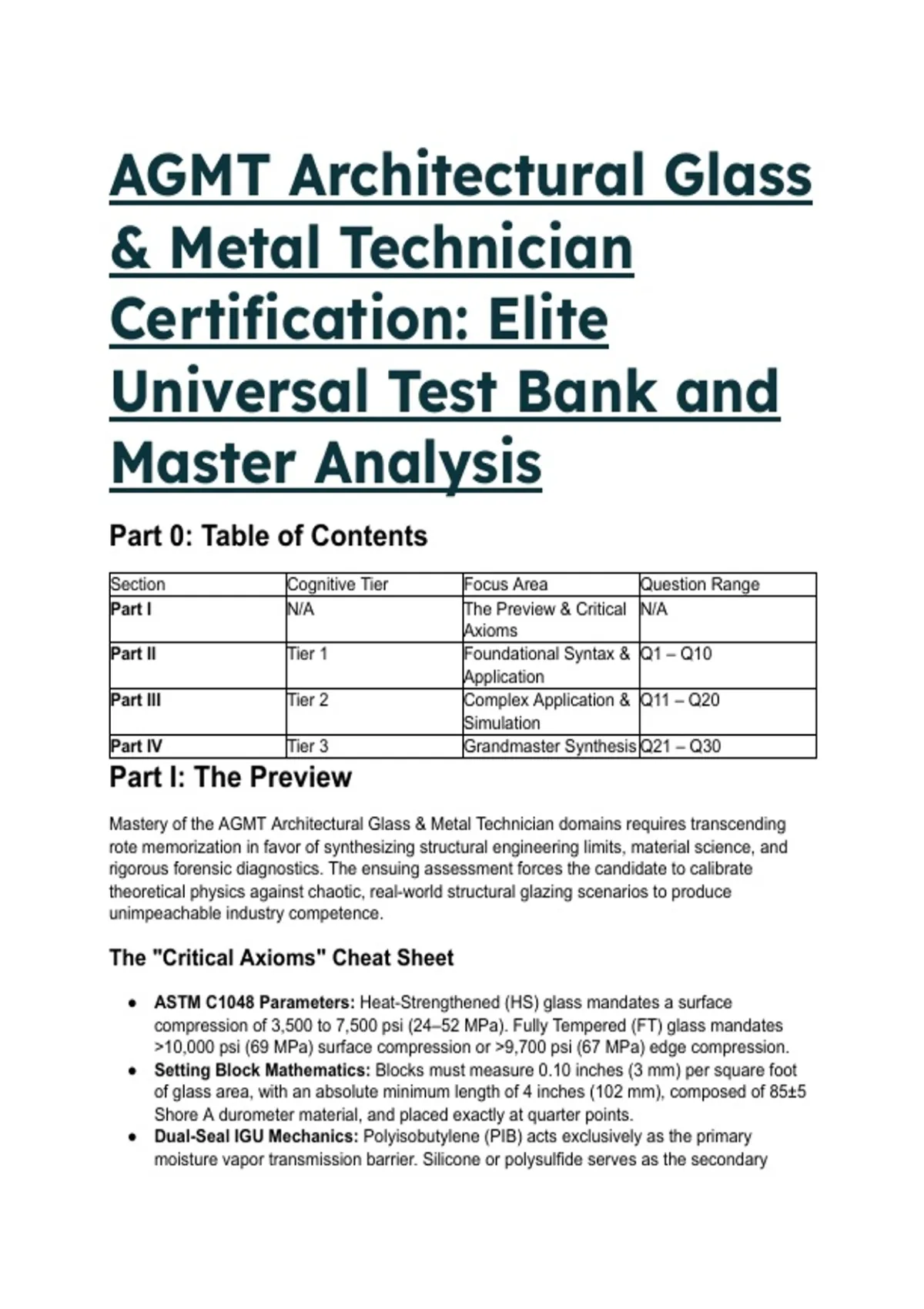

AGMT Architectural Glass
& Metal Technician
Certification: Elite
Universal Test Bank and
Master Analysis
Part 0: Table of Contents
Section Cognitive Tier Focus Area Question Range
Part I N/A The Preview & Critical N/A
Axioms
Part II Tier 1 Foundational Syntax & Q1 – Q10
Application
Part III Tier 2 Complex Application & Q11 – Q20
Simulation
Part IV Tier 3 Grandmaster Synthesis Q21 – Q30
Part I: The Preview
Mastery of the AGMT Architectural Glass & Metal Technician domains requires transcending
rote memorization in favor of synthesizing structural engineering limits, material science, and
rigorous forensic diagnostics. The ensuing assessment forces the candidate to calibrate
theoretical physics against chaotic, real-world structural glazing scenarios to produce
unimpeachable industry competence.
The "Critical Axioms" Cheat Sheet
● ASTM C1048 Parameters: Heat-Strengthened (HS) glass mandates a surface
compression of 3,500 to 7,500 psi (24–52 MPa). Fully Tempered (FT) glass mandates
>10,000 psi (69 MPa) surface compression or >9,700 psi (67 MPa) edge compression.
● Setting Block Mathematics: Blocks must measure 0.10 inches (3 mm) per square foot
of glass area, with an absolute minimum length of 4 inches (102 mm), composed of 85±5
Shore A durometer material, and placed exactly at quarter points.
● Dual-Seal IGU Mechanics: Polyisobutylene (PIB) acts exclusively as the primary
moisture vapor transmission barrier. Silicone or polysulfide serves as the secondary
, structural bond.
● Nickel Sulfide (NiS) Pathogenesis: Endemic only to tempered glass. Nickel and sulfur
contaminants trapped during the rapid quenching process undergo a delayed
alpha-to-beta phase transformation, yielding a 2.5% to 4% volumetric expansion that
induces spontaneous center-tension failure.
● ASTM C1087 Compatibility: Assesses liquid-applied sealants against accessories
(gaskets, spacers). EPDM and neoprene plasticizers frequently migrate under UV/heat,
inducing catastrophic silicone discoloration or adhesion loss.
Part II: The Elite Test Bank
Tier 1: Foundational Syntax & Application
Q1: During the specification of a high-rise curtain wall, a glazing technician must obscure the
floor slabs and interstitial mechanical spaces between vision glass zones while providing a
contrasting visual appearance. Based on structural glass fundamentals, which product is the
MOST APPROPRIATE choice? A) Monolithic float glass treated with a low-emissivity coating B)
Fully tempered laminated safety glass C) Spandrel glass D) Heat-strengthened borosilicate
glass
● Answer: C (Spandrel glass)
● Distractor Analysis:
○ A is incorrect: Monolithic float glass with a Low-E coating remains highly
transparent, reflecting thermal energy but completely failing the primary aesthetic
requirement of concealing structural and mechanical interstitial spaces.
○ B is incorrect: While fully tempered laminated glass provides excellent impact
resistance and structural integrity, its inherent transparency fails the architectural
requirement for slab concealment unless it is specifically opacified with a ceramic
frit or film.
○ D is incorrect: Borosilicate glass is highly resistant to extreme thermal shock, but it
does not inherently possess the opaque qualities required for architectural masking
applications.
The Mentor's Analysis: The primary function of spandrel glazing is architectural concealment
in non-vision areas. When facing the requirement to mask structural elements between building
floors, the immediate priority is selecting an inherently opaque or heavily fritted product. By
utilizing Spandrel glass, you bypass the common trap of relying on vision glass coatings to
provide structural masking. Professional/Academic Intuition: Spandrel glass is the
universal standard for non-vision architectural concealment zones, requiring careful
thermal stress management.
Q2: A commercial building specification mandates the installation of exterior glass with a
surface compression specifically engineered to resist moderate thermal stress while breaking
into large, engaged fragments if fractured. According to ASTM C1048 standards, which
compression range MOST ACCURATELY identifies the required heat-strengthened glass? A)
Greater than 10,000 psi (69 MPa) B) 3,500 psi to 7,500 psi (24–52 MPa) C) Less than 3,500 psi
(24 MPa) D) Exactly 9,700 psi (67 MPa) edge compression
● Answer: B (3,500 psi to 7,500 psi (24–52 MPa))
● Distractor Analysis:
○ A is incorrect: Greater than 10,000 psi is the mandated surface compression
, threshold for fully tempered safety glass, which fractures into small, diced pieces
rather than remaining engaged in the frame.
○ C is incorrect: Surface compression below 3,500 psi defines standard annealed
glass, which offers no enhanced resistance to thermal or wind-load stresses.
○ D is incorrect: 9,700 psi represents the absolute minimum edge compression
threshold required to classify a lite as fully tempered glass, failing the mandate for
large-fragment breakage.
The Mentor's Analysis: Heat-strengthened glass occupies the critical structural median
between annealed fragility and tempered safety standards. When facing high thermal stress
without the strict legal requirement for human-impact safety glazing, the immediate priority is
specifying a product that remains in the framing pocket upon breakage. By utilizing
Heat-Strengthened (HS) limits per ASTM C1048, you bypass the common trap of
over-engineering with tempered glass, which vacates the frame entirely upon failure.
Professional/Academic Intuition: Heat-strengthened glass (3,500–7,500 psi) intentionally
sacrifices safety dicing to ensure post-breakage barrier retention.
Q3: When supporting a heavy, large-format monolithic glass pane within an aluminum framing
system, the technician must appropriately distribute the dead load to prevent glass-to-metal
contact and edge shear. According to the Glass Association of North America (GANA) Glazing
Manual, which placement and sizing strategy is the MOST ACCURATE? A) Placed at the
extreme bottom corners; 2 inches in length B) Placed at quarter points; minimum 4 inches in
length, 85±5 Shore A durometer C) Placed at the center of the sill; equal to the thickness of the
glass D) Placed continuously along the entire bottom sill; 60 Shore A durometer
● Answer: B (Placed at quarter points; minimum 4 inches in length, 85±5 Shore A
durometer)
● Distractor Analysis:
○ A is incorrect: Placing blocks at the extreme corners concentrates massive
dead-load stress at the weakest points of the glass, causing edge shear and
immediate thermal stress fracturing.
○ C is incorrect: Center placement creates a dangerous fulcrum effect, subjecting the
glass to extreme bending moments under negative and positive wind loads.
○ D is incorrect: Continuous blocking ruthlessly restricts drainage pathways in the
glazing pocket, leading to water accumulation and premature edge seal failure.
Furthermore, 60 Shore A is too soft to support heavy dead loads without deforming.
The Mentor's Analysis: Proper dead load transfer is the absolute foundation of glazing
mechanics. When facing the installation of massive glass lites, the immediate priority is
achieving balanced stress distribution without obstructing the weep system. By utilizing quarter
point setting blocks (85 Shore A), you bypass the common trap of inducing localized edge
stress and perimeter water entrapment. Professional/Academic Intuition: Setting blocks
must always reside at quarter points and measure at least 0.10 inches per square foot of
glass area, with a hard minimum of 4 inches.
Q4: A structural dual-seal Insulating Glass Unit (IGU) relies on two distinct chemical barriers to
maintain performance over a 25-year lifespan. Based on industry standards, which configuration
correctly identifies the primary seal and its PRIMARY function? A) Silicone; structural bonding
and UV resistance B) Polysulfide; inert gas retention and structural support C) Polyisobutylene
(PIB); moisture vapor transmission resistance (MVTR) D) Polyurethane; thermal break
insulation
● Answer: C (Polyisobutylene (PIB); moisture vapor transmission resistance (MVTR))
● Distractor Analysis:
