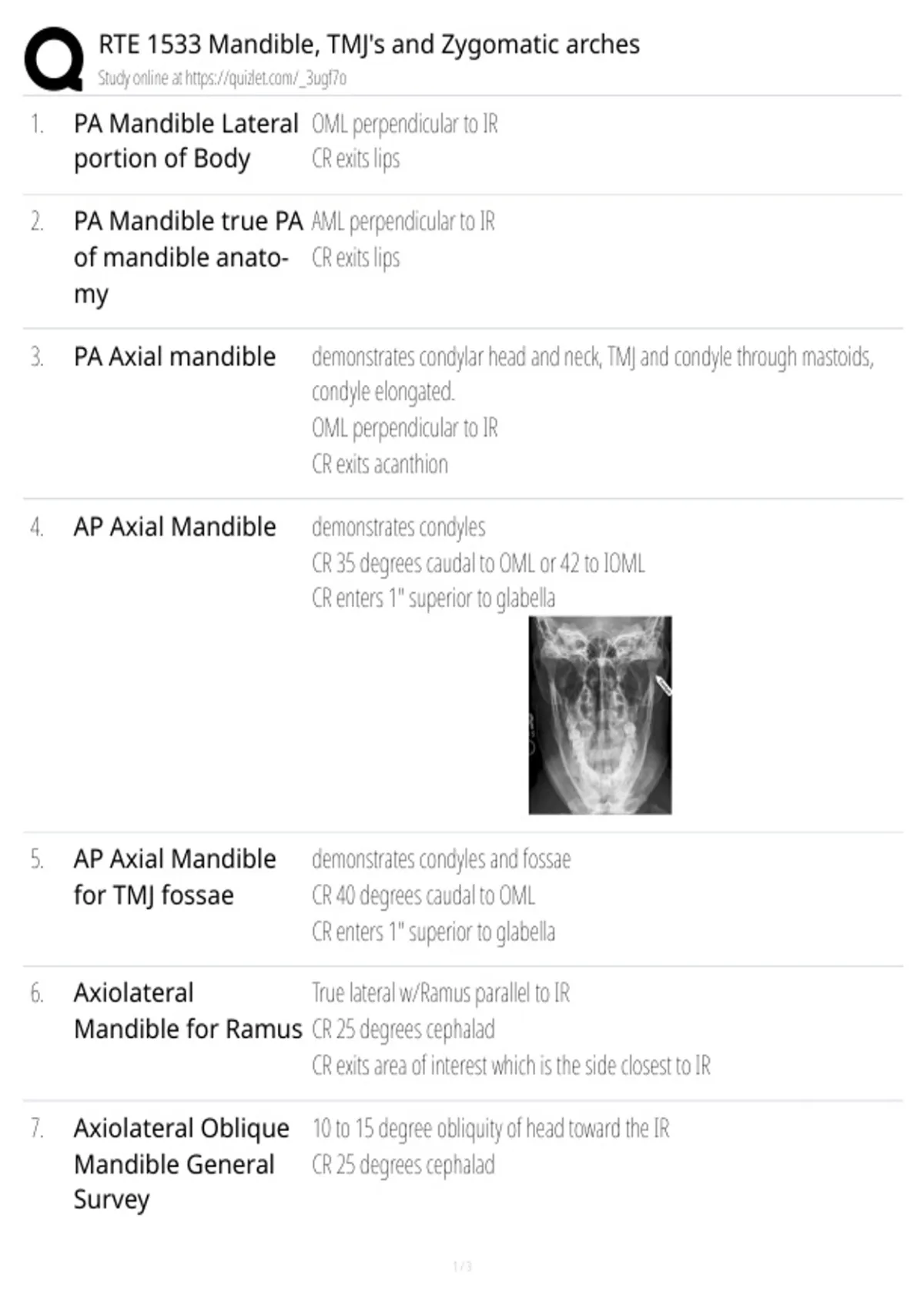

RTE 1533 Mandible, TMJ's and Zygomatic arches
Study online at https://quizlet.com/_3ugf7o
1. PA Mandible Lateral OML perpendicular to IR
portion of Body CR exits lips
2. PA Mandible true PA AML perpendicular to IR
of mandible anato- CR exits lips
my
3. PA Axial mandible demonstrates condylar head and neck, TMJ and condyle through mastoids,
condyle elongated.
OML perpendicular to IR
CR exits acanthion
4. AP Axial Mandible demonstrates condyles
CR 35 degrees caudal to OML or 42 to IOML
CR enters 1" superior to glabella
5. AP Axial Mandible demonstrates condyles and fossae
for TMJ fossae CR 40 degrees caudal to OML
CR enters 1" superior to glabella
6. Axiolateral True lateral w/Ramus parallel to IR
Mandible for Ramus CR 25 degrees cephalad
CR exits area of interest which is the side closest to IR
7. Axiolateral Oblique 10 to 15 degree obliquity of head toward the IR
Mandible General CR 25 degrees cephalad
Survey
1/3
