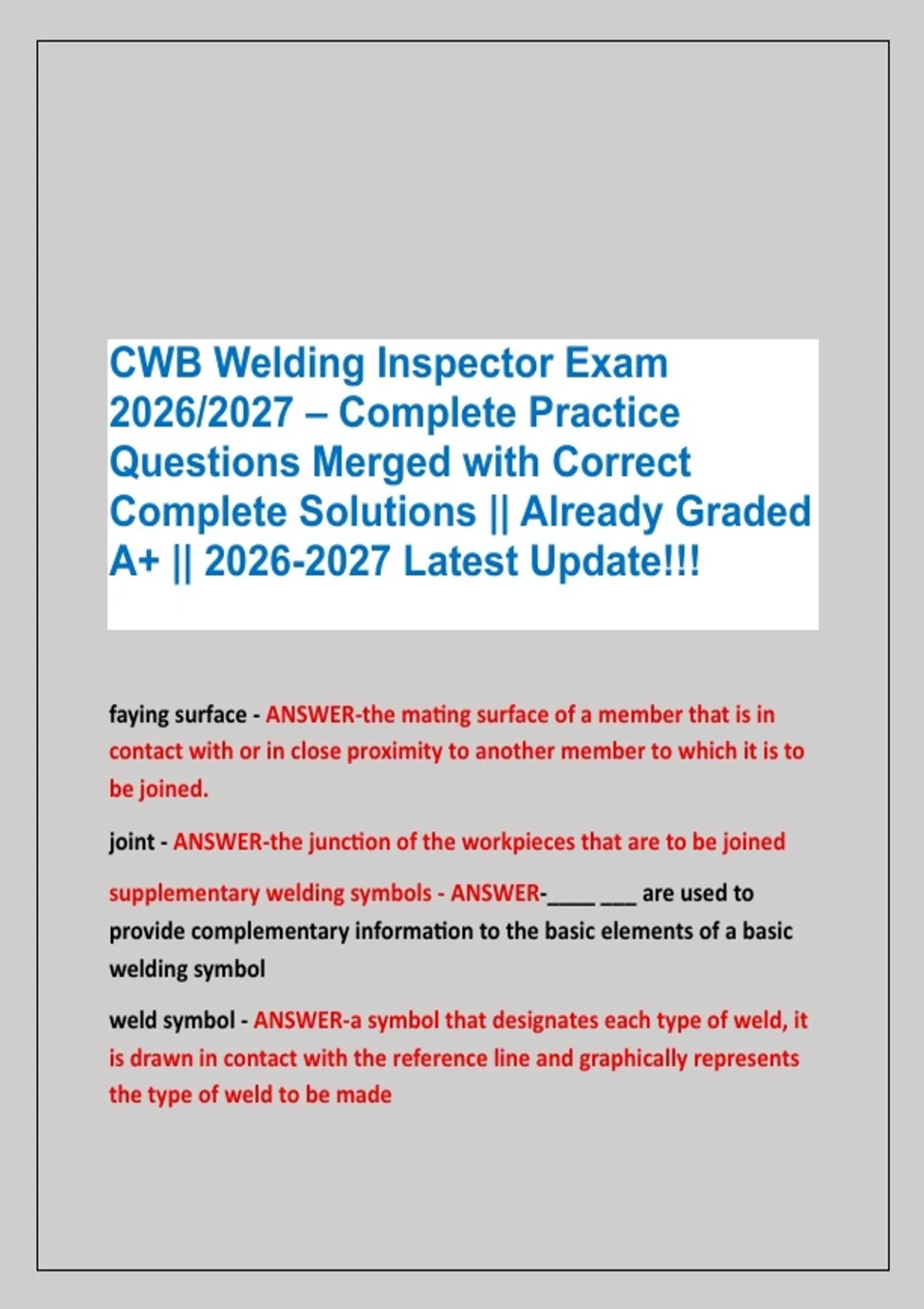

CWB Welding Inspector Exam
2026/2027 – Complete Practice
Questions Merged with Correct
Complete Solutions || Already Graded
A+ || 2026-2027 Latest Update!!!
faying surface - ANSWER-the mating surface of a member that is in
contact with or in close proximity to another member to which it is to
be joined.
joint - ANSWER-the junction of the workpieces that are to be joined
supplementary welding symbols - ANSWER-____ ___ are used to
provide complementary information to the basic elements of a basic
welding symbol
weld symbol - ANSWER-a symbol that designates each type of weld, it
is drawn in contact with the reference line and graphically represents
the type of weld to be made
, left side - ANSWER-the vertical line of a weld symbol must always be
on the ___ ____ in the weld symbol
arrow side - ANSWER-a weld symbol placed below the reference line
of a welding symbol is the be made on the ___ ___
plate to be beveled - ANSWER-for bevel and groove welds, if an arrow
has a break, then the arrow is pointing toward the ____
closest - ANSWER-in a welding symbol with multiple reference line the
sequence of operations starts with the line _____ to the arrow
to be removed - ANSWER-if an R printed in the rectangle of a backing
bar designation for a welding symbol, the backing bar is _____ after
welding
consumable insert - ANSWER-a ____ ____ is a piece of filler metal
placed at the root of a weld that is completely fused into the root of
the joint
square - ANSWER-the symbol for a consumable insert in a welding
symbol is a ____ placed on the opposite side of the reference line
from the weld
Gouge to sound metal - ANSWER-GTSM in the tail of a welding symbol
means ____
dotted lines - ANSWER-the designation of joint to be prepared after
assembly of two members is showed using ___ ___ to draw the weld
symbol
seal weld - ANSWER-welds intended to provide a water tight seal are
have ___ ___ printed in the tail of the welding symbol
