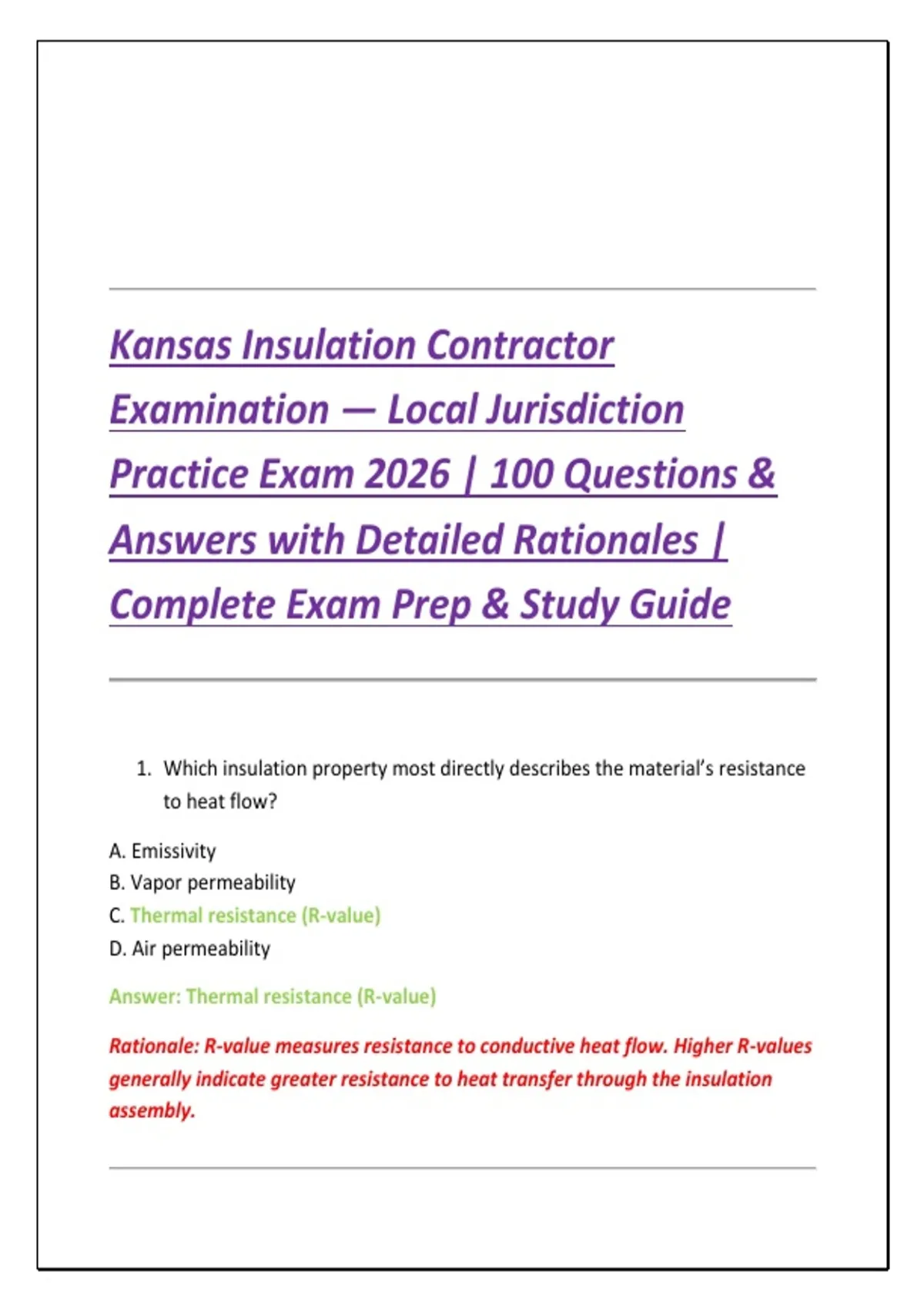

Kansas Insulation Contractor
Examination — Local Jurisdiction
Practice Exam 2026 | 100 Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. Which insulation property most directly describes the material’s resistance
to heat flow?
A. Emissivity
B. Vapor permeability
C. Thermal resistance (R-value)
D. Air permeability
Answer: Thermal resistance (R-value)
Rationale: R-value measures resistance to conductive heat flow. Higher R-values
generally indicate greater resistance to heat transfer through the insulation
assembly.
, 2. A contractor installs batt insulation in a wall cavity but compresses the batt
substantially to fit around obstructions. What is the primary concern?
A. Increased vapor permeability
B. Increased emissivity
C. Reduced effective thermal performance
D. Increased fire resistance
Answer: Reduced effective thermal performance
Rationale: Compressing insulation can alter its intended thickness and density
and may reduce the thermal resistance for which the product was designed.
3. What is the principal purpose of an air barrier in a building enclosure?
A. Prevent all vapor diffusion
B. Increase solar reflectance
C. Control uncontrolled air movement through the building enclosure
D. Replace mechanical ventilation
Answer: Control uncontrolled air movement through the building enclosure
Rationale: Air barriers limit air leakage through the enclosure. They are not
necessarily vapor barriers and do not replace required mechanical ventilation.
4. Which condition most commonly creates a thermal bridge in an insulated
wall?
A. Continuous insulation
B. Properly sealed penetrations
C. Wood or metal framing members interrupting insulation
D. An air-sealed electrical box
Answer: Wood or metal framing members interrupting insulation
,Rationale: Framing members typically conduct heat more readily than insulation
and create paths of increased heat transfer through the enclosure.
5. When installing insulation around recessed lighting, what should the
contractor verify before covering the fixture?
A. Paint color
B. Ceiling height only
C. The fixture’s listing and required insulation-clearance conditions
D. The manufacturer’s recommended drywall thickness
Answer: The fixture’s listing and required insulation-clearance conditions
Rationale: Recessed luminaires have specific installation requirements.
Insulation must not be installed in a manner prohibited by the fixture listing or
applicable code.
6. What is the primary purpose of a vapor retarder?
A. Stop all heat transfer
B. Eliminate structural movement
C. Limit moisture movement by vapor diffusion through the assembly
D. Increase air leakage
Answer: Limit moisture movement by vapor diffusion through the assembly
Rationale: Vapor retarders control vapor diffusion. They should not
automatically be treated as substitutes for an air barrier because air leakage
and vapor diffusion are different moisture-transport mechanisms.
7. A contractor is insulating an exterior wall with a steel-stud framing system.
Why can the nominal cavity R-value overstate actual wall performance?
, A. Steel has high vapor resistance
B. Steel framing provides significant thermal bridging
C. Steel absorbs insulation
D. Steel increases insulation thickness
Answer: Steel framing provides significant thermal bridging
Rationale: Highly conductive metal framing can bypass much of the cavity
insulation, making whole-wall thermal performance substantially lower than
the nominal cavity insulation value.
8. What is the best approach when fiberglass batt insulation is too wide for a
cavity?
A. Fold it repeatedly
B. Compress it as much as possible
C. Use a properly sized product or cut it accurately to fit
D. Leave a gap on both sides
Answer: Use a properly sized product or cut it accurately to fit
Rationale: Insulation should fit cavities without excessive compression or gaps.
Proper fitting helps maintain the intended thermal performance.
9. Why are gaps around insulation penetrations a significant concern?
A. They increase paint adhesion
B. They reduce structural loads
C. They can create air leakage paths and thermal bypasses
D. They eliminate vapor diffusion
Answer: They can create air leakage paths and thermal bypasses
Examination — Local Jurisdiction
Practice Exam 2026 | 100 Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. Which insulation property most directly describes the material’s resistance
to heat flow?
A. Emissivity
B. Vapor permeability
C. Thermal resistance (R-value)
D. Air permeability
Answer: Thermal resistance (R-value)
Rationale: R-value measures resistance to conductive heat flow. Higher R-values
generally indicate greater resistance to heat transfer through the insulation
assembly.
, 2. A contractor installs batt insulation in a wall cavity but compresses the batt
substantially to fit around obstructions. What is the primary concern?
A. Increased vapor permeability
B. Increased emissivity
C. Reduced effective thermal performance
D. Increased fire resistance
Answer: Reduced effective thermal performance
Rationale: Compressing insulation can alter its intended thickness and density
and may reduce the thermal resistance for which the product was designed.
3. What is the principal purpose of an air barrier in a building enclosure?
A. Prevent all vapor diffusion
B. Increase solar reflectance
C. Control uncontrolled air movement through the building enclosure
D. Replace mechanical ventilation
Answer: Control uncontrolled air movement through the building enclosure
Rationale: Air barriers limit air leakage through the enclosure. They are not
necessarily vapor barriers and do not replace required mechanical ventilation.
4. Which condition most commonly creates a thermal bridge in an insulated
wall?
A. Continuous insulation
B. Properly sealed penetrations
C. Wood or metal framing members interrupting insulation
D. An air-sealed electrical box
Answer: Wood or metal framing members interrupting insulation
,Rationale: Framing members typically conduct heat more readily than insulation
and create paths of increased heat transfer through the enclosure.
5. When installing insulation around recessed lighting, what should the
contractor verify before covering the fixture?
A. Paint color
B. Ceiling height only
C. The fixture’s listing and required insulation-clearance conditions
D. The manufacturer’s recommended drywall thickness
Answer: The fixture’s listing and required insulation-clearance conditions
Rationale: Recessed luminaires have specific installation requirements.
Insulation must not be installed in a manner prohibited by the fixture listing or
applicable code.
6. What is the primary purpose of a vapor retarder?
A. Stop all heat transfer
B. Eliminate structural movement
C. Limit moisture movement by vapor diffusion through the assembly
D. Increase air leakage
Answer: Limit moisture movement by vapor diffusion through the assembly
Rationale: Vapor retarders control vapor diffusion. They should not
automatically be treated as substitutes for an air barrier because air leakage
and vapor diffusion are different moisture-transport mechanisms.
7. A contractor is insulating an exterior wall with a steel-stud framing system.
Why can the nominal cavity R-value overstate actual wall performance?
, A. Steel has high vapor resistance
B. Steel framing provides significant thermal bridging
C. Steel absorbs insulation
D. Steel increases insulation thickness
Answer: Steel framing provides significant thermal bridging
Rationale: Highly conductive metal framing can bypass much of the cavity
insulation, making whole-wall thermal performance substantially lower than
the nominal cavity insulation value.
8. What is the best approach when fiberglass batt insulation is too wide for a
cavity?
A. Fold it repeatedly
B. Compress it as much as possible
C. Use a properly sized product or cut it accurately to fit
D. Leave a gap on both sides
Answer: Use a properly sized product or cut it accurately to fit
Rationale: Insulation should fit cavities without excessive compression or gaps.
Proper fitting helps maintain the intended thermal performance.
9. Why are gaps around insulation penetrations a significant concern?
A. They increase paint adhesion
B. They reduce structural loads
C. They can create air leakage paths and thermal bypasses
D. They eliminate vapor diffusion
Answer: They can create air leakage paths and thermal bypasses
