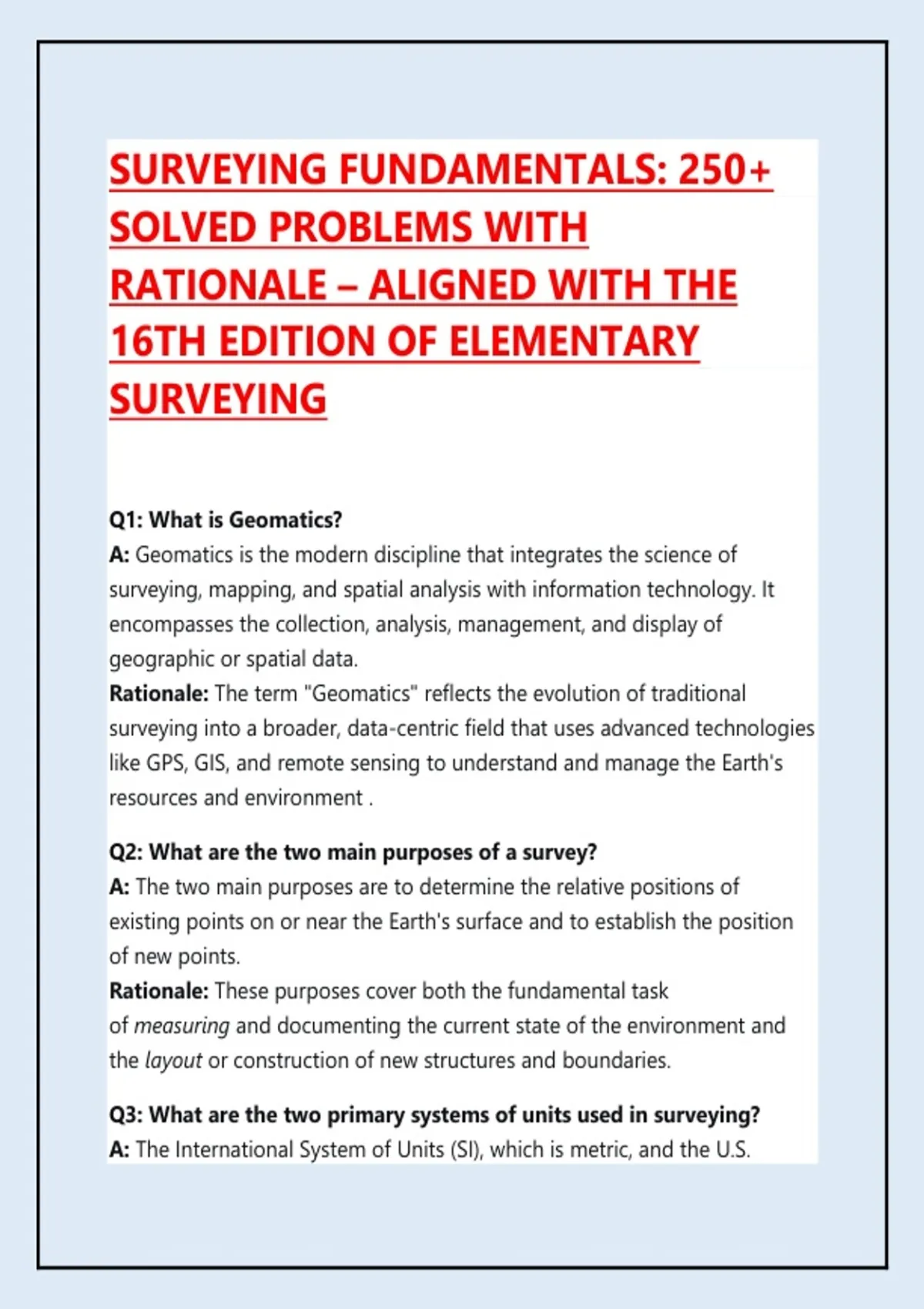

SURVEYING FUNDAMENTALS: 250+
SOLVED PROBLEMS WITH
RATIONALE – ALIGNED WITH THE
16TH EDITION OF ELEMENTARY
SURVEYING
Q1: What is Geomatics?
A: Geomatics is the modern discipline that integrates the science of
surveying, mapping, and spatial analysis with information technology. It
encompasses the collection, analysis, management, and display of
geographic or spatial data.
Rationale: The term "Geomatics" reflects the evolution of traditional
surveying into a broader, data-centric field that uses advanced technologies
like GPS, GIS, and remote sensing to understand and manage the Earth's
resources and environment .
Q2: What are the two main purposes of a survey?
A: The two main purposes are to determine the relative positions of
existing points on or near the Earth's surface and to establish the position
of new points.
Rationale: These purposes cover both the fundamental task
of measuring and documenting the current state of the environment and
the layout or construction of new structures and boundaries.
Q3: What are the two primary systems of units used in surveying?
A: The International System of Units (SI), which is metric, and the U.S.
,Customary System.
Rationale: The SI system (meters, millimeters) is used globally and in
scientific work, while the U.S. Customary System (feet, inches) remains
common in the United States for many types of surveys.
Q4: How many significant figures should be kept in a final survey
result?
A: The number of significant figures should reflect the precision of the
original measurements. Generally, you should avoid carrying more decimal
places than your least precise measurement.
Rationale: Carrying an excessive number of significant figures can imply a
false level of precision. For example, a distance measured to the nearest
0.01 m should not be reported to the nearest 0.0001 m.
Q5: Why are field notes so important?
A: Field notes are the only permanent, legal record of the surveyor's work
in the field. They provide the evidence for all subsequent computations,
maps, and legal descriptions.
Rationale: Proper field notes ensure that a survey can be recreated or
verified, forming the legal basis for boundary decisions and property
ownership .
Q6: What is the difference between systematic and random errors?
A: Systematic errors follow a physical law and can be corrected (e.g.,
temperature effects on a steel tape), while random errors are non-
systematic and follow the laws of probability (e.g., a surveyor's inability to
center a rod perfectly every time) .
Rationale: Understanding the source of error is crucial. Systematic errors
can be eliminated or reduced through mathematical corrections or careful
procedures, while random errors are managed through statistical analysis
and redundancy in measurements.
,Q7: What is the most probable value (MPV) for a set of repeated
measurements?
A: The most probable value is the arithmetic mean or average.
Rationale: The method of least squares demonstrates that the sum of the
squares of the residuals is minimized about the mean, making it the best
estimate of the true value.
Q8: What is the Standard Deviation?
A: The standard deviation is a measure of the precision of a set of
measurements. It indicates how much the individual measurements deviate
from the average.
Rationale: A small standard deviation indicates that the measurements are
clustered closely together (high precision), while a large standard deviation
indicates they are spread out (low precision).
Q9: Define elevation.
A: Elevation is the vertical distance of a point above or below a reference
surface, usually mean sea level (the vertical datum) .
Rationale: Establishing accurate elevations is fundamental to leveling. The
reference datum provides a consistent starting point for all elevation
measurements.
Q10: What is the fundamental principle of differential leveling?
A: It determines the difference in elevation between two points by
measuring the vertical distance from a horizontal line of sight to a level rod
held on each point .
Rationale: A level instrument is used to establish a horizontal plane of
sight. The difference in readings on rods at each point provides the
difference in elevation.
Q11: What are the two main effects that must be considered for very
precise leveling?
, A: The effects of Earth's curvature and atmospheric refraction .
Rationale: For long sights (over 100m), the Earth's curvature causes the line
of sight to be higher than the horizontal plane, and refraction causes it to
bend downward. These systematic errors must be corrected, often by
making foresight and backsight distances equal.
Q12: What is a turning point in leveling?
A: A turning point (TP) is a temporary, stable point used to transfer an
elevation from one instrument setup to the next .
Rationale: It acts as a "bridge" between two instrument positions. It must
hold a constant elevation while the instrument is moved, allowing the level
line to continue over long distances.
Q13: What are the three fundamental methods of measuring distance?
A: Direct (using a tape), electronic (using EDM), and optical (using a stadia).
Rationale: These methods cover the historical and modern approaches to
measurement. EDM has largely replaced taping for precise work, but taping
and optical methods are still used for some applications.
Q14: How does an Electronic Distance Measuring (EDM) instrument
work?
A: It emits a modulated electromagnetic wave (light or microwaves) to a
reflector. The instrument measures the time it takes for the wave to travel
to the reflector and back, calculating the distance based on the speed of
light .
Rationale: This is the most common method for precise distance
measurement in modern surveying. Total stations integrate EDM with angle
measurement capabilities .
Q15: What is the difference between an azimuth and a bearing?
A: An azimuth is a horizontal angle measured clockwise from a reference
meridian (usually north), ranging from 0° to 360°. A bearing is the acute
