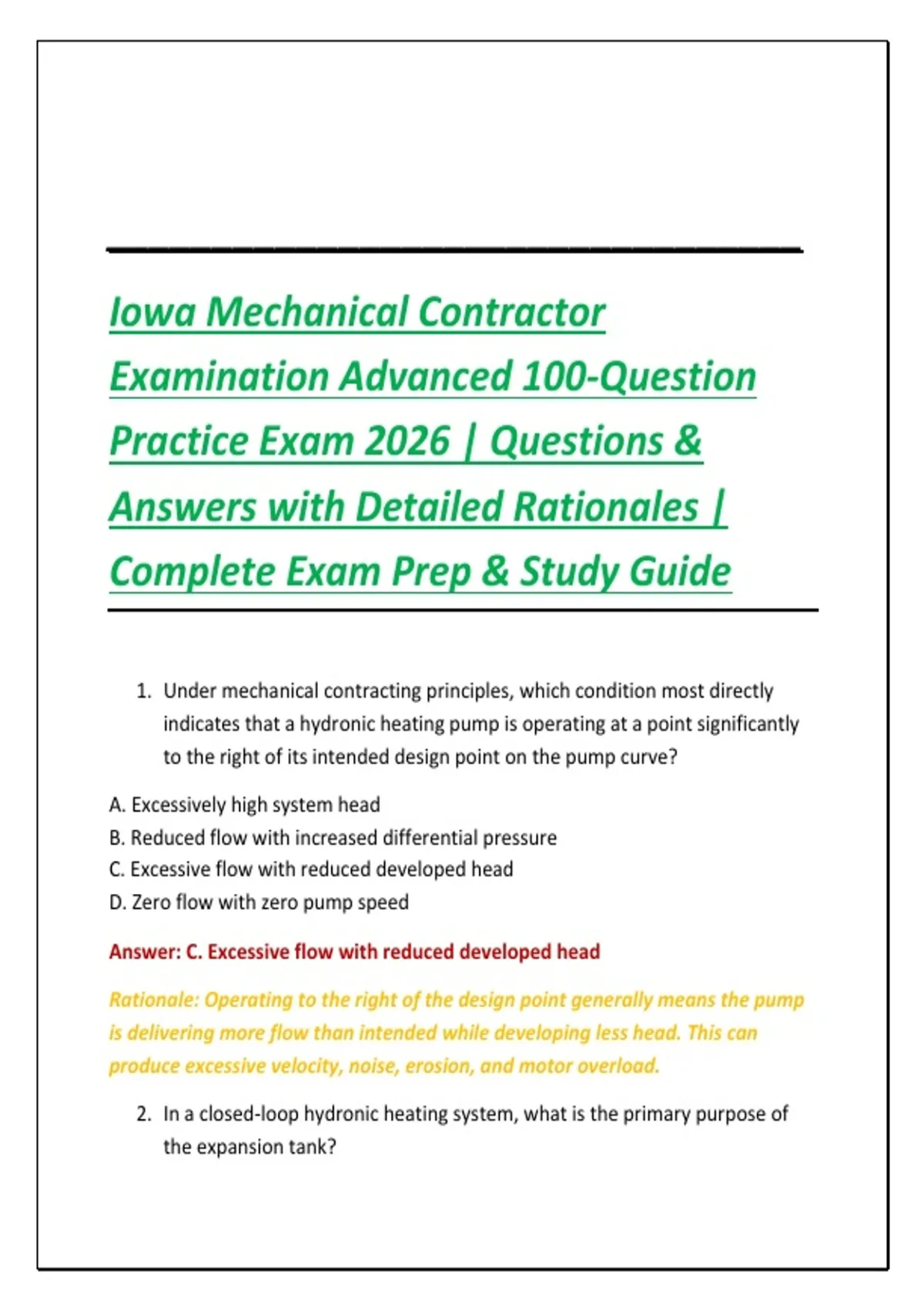

Iowa Mechanical Contractor
Examination Advanced 100-Question
Practice Exam 2026 | Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. Under mechanical contracting principles, which condition most directly
indicates that a hydronic heating pump is operating at a point significantly
to the right of its intended design point on the pump curve?
A. Excessively high system head
B. Reduced flow with increased differential pressure
C. Excessive flow with reduced developed head
D. Zero flow with zero pump speed
Answer: C. Excessive flow with reduced developed head
Rationale: Operating to the right of the design point generally means the pump
is delivering more flow than intended while developing less head. This can
produce excessive velocity, noise, erosion, and motor overload.
2. In a closed-loop hydronic heating system, what is the primary purpose of
the expansion tank?
,A. Increase pump discharge pressure
B. Absorb thermal expansion of the system fluid
C. Remove dissolved oxygen from the water
D. Increase boiler firing rate
Answer: B. Absorb thermal expansion of the system fluid
Rationale: As water temperature rises, its volume increases. The expansion tank
provides a controlled space for this additional volume and helps prevent
excessive system pressure.
3. A steam boiler has a waterline that repeatedly drops below the low-water
cutoff during operation. Which condition should be investigated first?
A. Excessive burner turndown
B. Incorrect thermostat differential
C. System water loss or condensate-return problems
D. Oversized expansion tank
Answer: C. System water loss or condensate-return problems
Rationale: Repeated low-water conditions commonly indicate water leaving the
system, condensate failing to return, or a malfunction in the condensate-return
arrangement. The low-water cutoff is a critical safety device and should never
be bypassed.
4. When sizing a combustion-air opening for a mechanical room, the
contractor should primarily consider:
A. The color of the equipment
B. The combustion-air requirements of the appliances and applicable code
provisions
C. The number of thermostats in the building
D. The size of the condensate drain
Answer: B. The combustion-air requirements of the appliances and applicable
code provisions
,Rationale: Fuel-burning equipment requires sufficient air for safe combustion
and proper draft. Combustion-air sizing must account for appliance input and
the applicable mechanical and fuel-gas requirements.
5. A centrifugal hydronic pump produces a rattling or gravel-like sound during
operation, and the suction pressure is unusually low. What condition is
most likely?
A. Water hammer
B. Cavitation
C. Thermal expansion
D. Air-free operation
Answer: B. Cavitation
Rationale: Cavitation occurs when local pressure falls below the liquid's vapor
pressure, causing vapor bubbles to form and collapse. It can cause noise,
vibration, loss of performance, and impeller damage.
6. In a variable-air-volume HVAC system, a terminal unit damper is
commanded nearly closed while the supply fan continues operating at high
speed. Which control strategy can reduce unnecessary fan energy?
A. Increase fan speed continuously
B. Use static-pressure reset or variable fan-speed control
C. Eliminate all balancing dampers
D. Increase duct leakage
Answer: B. Use static-pressure reset or variable fan-speed control
Rationale: Variable-speed fan control allows the fan to reduce output as
terminal demand decreases. Static-pressure reset can further reduce fan energy
by maintaining only the pressure required by the system.
7. A chilled-water coil is receiving adequate water flow, but the leaving-air
temperature remains higher than expected. Which condition should be
investigated?
, A. Excessive coil fouling or insufficient airside heat transfer
B. Excessive expansion-tank volume
C. High boiler-water temperature
D. Oversized condensate trap
Answer: A. Excessive coil fouling or insufficient airside heat transfer
Rationale: If water flow is adequate, poor heat transfer may result from fouled
coil surfaces, improper airflow, air bypass, incorrect entering-water
temperature, or other airside conditions.
8. What is the principal purpose of an air separator in a closed hydronic
system?
A. Increase boiler capacity
B. Remove entrained air from circulating fluid
C. Reduce pipe diameter
D. Increase water hardness
Answer: B. Remove entrained air from circulating fluid
Rationale: Air separators collect and remove entrained air from hydronic fluid.
Proper air removal helps prevent corrosion, noise, poor circulation, and pump
performance problems.
9. When installing a hydronic circulator, why is proper pump orientation
important?
A. It determines the boiler's fuel type
B. It ensures the motor and bearings operate as intended and supports proper
lubrication
C. It determines the expansion-tank pressure
D. It eliminates the need for system balancing
Answer: B. It ensures the motor and bearings operate as intended and supports
proper lubrication
