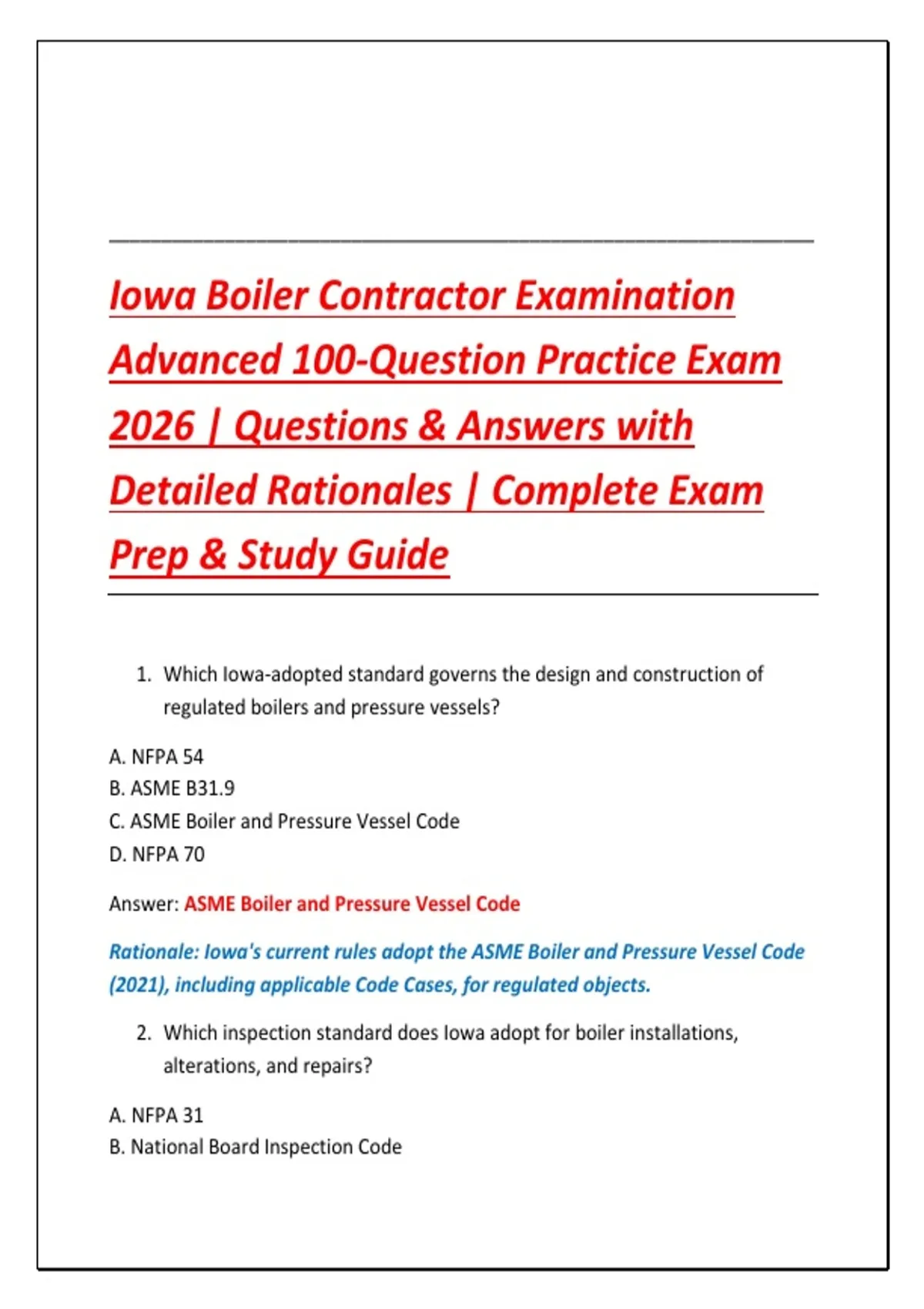

Iowa Boiler Contractor Examination
Advanced 100-Question Practice Exam
2026 | Questions & Answers with
Detailed Rationales | Complete Exam
Prep & Study Guide
1. Which Iowa-adopted standard governs the design and construction of
regulated boilers and pressure vessels?
A. NFPA 54
B. ASME B31.9
C. ASME Boiler and Pressure Vessel Code
D. NFPA 70
Answer: ASME Boiler and Pressure Vessel Code
Rationale: Iowa's current rules adopt the ASME Boiler and Pressure Vessel Code
(2021), including applicable Code Cases, for regulated objects.
2. Which inspection standard does Iowa adopt for boiler installations,
alterations, and repairs?
A. NFPA 31
B. National Board Inspection Code
,C. ASME B31.9
D. IMC Chapter 7
Answer: National Board Inspection Code
Rationale: Iowa adopts the National Board Inspection Code (2021), and
installations, alterations, and repairs after February 16, 2022, must comply with
it.
3. A contractor is installing a new commercial boiler in Iowa. Which piping
code generally applies to power piping?
A. ASME B31.1
B. ASME B31.3
C. ASME B31.5
D. ASME B31.8
Answer: ASME B31.1
Rationale: Iowa specifically adopts ASME B31.1 for power piping and ASME
B31.9 for building services piping, with the state rule applying them up to and
including the first valve.
4. Which code addresses controls and safety devices for automatically fired
boilers under Iowa's adopted requirements?
A. NFPA 70
B. ASME B31.9
C. ASME CSD-1
D. NFPA 31
Answer: ASME CSD-1
Rationale: Iowa adopts Controls and Safety Devices for Automatically Fired
Boilers, CSD-1 (2021), for applicable installations.
5. Which organization is primarily associated with the National Board
Inspection Code?
,A. ICC
B. National Board of Boiler and Pressure Vessel Inspectors
C. NFPA
D. OSHA
Answer: National Board of Boiler and Pressure Vessel Inspectors
Rationale: The National Board develops inspection and repair guidance used by
jurisdictions for boiler and pressure-vessel safety.
6. What is the primary purpose of a boiler safety valve?
A. Regulate feedwater temperature
B. Prevent excessive pressure from developing
C. Maintain combustion efficiency
D. Control return-water flow
Answer: Prevent excessive pressure from developing
Rationale: A safety valve protects the pressure vessel by automatically relieving
pressure when the set pressure is reached.
7. A steam boiler safety valve is set too high relative to the boiler's allowable
working pressure. What is the principal concern?
A. Reduced thermal efficiency
B. Excessive fuel consumption
C. Inadequate overpressure protection
D. Increased condensate return
Answer: Inadequate overpressure protection
Rationale: A safety valve must provide protection within the limits established
for the boiler. An improperly high setting can allow dangerous overpressure.
8. What does MAWP mean?
, A. Maximum Allowable Water Pressure
B. Maximum Automatic Working Pressure
C. Maximum Allowable Working Pressure
D. Minimum Allowable Working Pressure
Answer: Maximum Allowable Working Pressure
Rationale: MAWP is the maximum pressure permissible at a designated location
under specified operating conditions, based on the vessel's construction and
applicable code requirements.
9. Which condition is most likely to cause boiler waterside corrosion?
A. Proper chemical treatment
B. Excess dissolved oxygen
C. Adequate deaeration
D. Proper alkalinity control
Answer: Excess dissolved oxygen
Rationale: Dissolved oxygen promotes corrosion of boiler metal, particularly
when water treatment and deaeration are inadequate.
10.Why is low-water protection critical on a steam boiler?
A. It increases steam temperature
B. It prevents excessive burner cycling only
C. It helps prevent overheating and damage to pressure-boundary components
D. It increases feedwater pressure
Answer: It helps prevent overheating and damage to pressure-boundary
components
Rationale: If water level falls too low, heat-transfer surfaces can become
excessively hot, potentially causing tube failure or severe boiler damage.
11.Which device normally detects an unsafe low-water condition?
