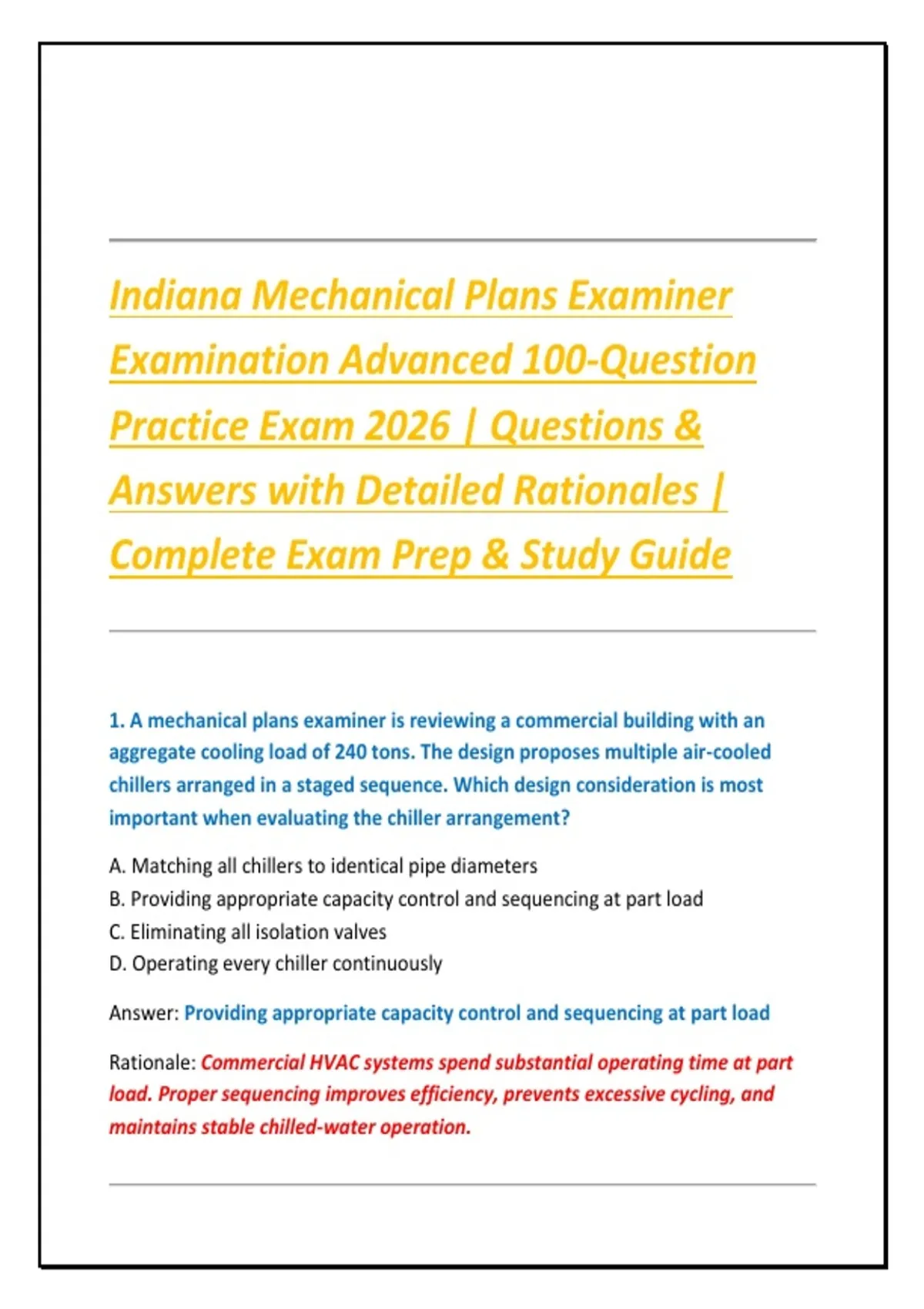

Indiana Mechanical Plans Examiner
Examination Advanced 100-Question
Practice Exam 2026 | Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. A mechanical plans examiner is reviewing a commercial building with an
aggregate cooling load of 240 tons. The design proposes multiple air-cooled
chillers arranged in a staged sequence. Which design consideration is most
important when evaluating the chiller arrangement?
A. Matching all chillers to identical pipe diameters
B. Providing appropriate capacity control and sequencing at part load
C. Eliminating all isolation valves
D. Operating every chiller continuously
Answer: Providing appropriate capacity control and sequencing at part load
Rationale: Commercial HVAC systems spend substantial operating time at part
load. Proper sequencing improves efficiency, prevents excessive cycling, and
maintains stable chilled-water operation.
,2. A mechanical plan specifies a gas-fired furnace installed in a mechanical
room. The room has combustion air openings but also contains a large exhaust
fan. What should the plans examiner evaluate first?
A. Ceiling finish
B. Combustion-air adequacy and potential negative pressure
C. Lighting power density
D. Floor covering
Answer: Combustion-air adequacy and potential negative pressure
Rationale: Exhaust equipment can depressurize a mechanical room and interfere
with combustion-air delivery or cause combustion products to spill into occupied
spaces.
3. A duct system has a calculated design airflow of 18,000 cfm. The designer
proposes a main supply duct velocity of 2,800 fpm. Which concern is most
appropriate?
A. The velocity is necessarily too low
B. High pressure loss and increased noise may result
C. The airflow will automatically decrease to zero
D. Velocity has no effect on duct design
Answer: High pressure loss and increased noise may result
Rationale: Higher duct velocities generally increase friction losses and can
increase generated noise. A plans examiner should evaluate velocity together
with available fan static pressure, acoustics, and system requirements.
4. A return-air plenum contains combustible electrical cables and other building
services. What is a key plans-examination issue?
,A. Paint color
B. Compatibility of materials and restrictions on combustible materials in plenums
C. Number of thermostats
D. Roof slope
Answer: Compatibility of materials and restrictions on combustible materials in
plenums
Rationale: Air plenums can distribute smoke and fire rapidly, so materials and
penetrations within plenums require careful review for applicable fire, smoke,
and material restrictions.
5. A hydronic heating system is designed for 180°F supply water and 160°F
return water at peak load. What does the 20°F difference represent?
A. Pump head
B. Temperature differential
C. Boiler efficiency
D. Pipe roughness
Answer: Temperature differential
Rationale: The difference between supply and return water temperature is the
hydronic ΔT, which is used in calculating heat-transfer capacity and required
flow.
6. A pump must circulate 240 gpm through a system with 65 ft of calculated
total dynamic head. Which pump characteristic should the examiner verify?
A. Pump can operate near the specified duty point
B. Pump horsepower must equal 65 hp
C. Pump must operate at zero flow
D. Pump must always be oversized by 100%
, Answer: Pump can operate near the specified duty point
Rationale: Pump selection should be based on the required flow and total
dynamic head, with the operating point appropriately located on the pump
curve.
7. A mechanical room contains a large boiler and an exhaust fan. The designer
provides only a single combustion-air opening. What should the examiner
question?
A. Whether the combustion-air arrangement complies with the applicable
requirements for the equipment and room
B. Whether the room has carpet
C. Whether the boiler is painted
D. Whether the thermostat is digital
Answer: Whether the combustion-air arrangement complies with the applicable
requirements for the equipment and room
Rationale: Combustion appliances require adequate air for safe operation. The
required arrangement depends on equipment type, room configuration, and
applicable code provisions.
8. A duct smoke detector is shown on a supply duct downstream of the air-
handling unit. What is the principal purpose of such a detector?
A. Measure humidity
B. Detect smoke in the airstream and initiate required protective actions
C. Control chilled-water temperature
D. Measure duct velocity
Answer: Detect smoke in the airstream and initiate required protective actions
