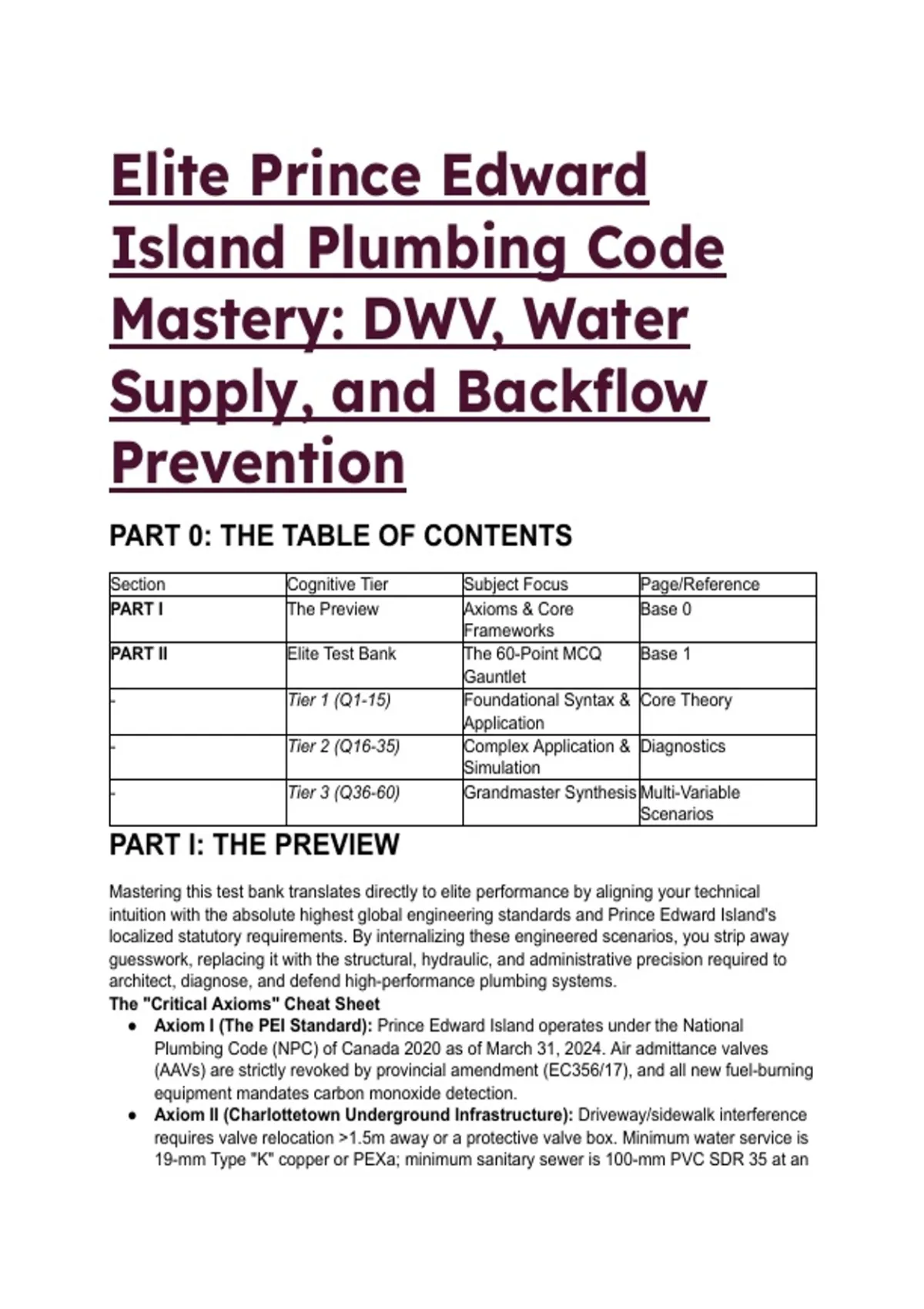

Elite Prince Edward
Island Plumbing Code
Mastery: DWV, Water
Supply, and Backflow
Prevention
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus Page/Reference
PART I The Preview Axioms & Core Base 0
Frameworks
PART II Elite Test Bank The 60-Point MCQ Base 1
Gauntlet
- Tier 1 (Q1-15) Foundational Syntax & Core Theory
Application
- Tier 2 (Q16-35) Complex Application & Diagnostics
Simulation
- Tier 3 (Q36-60) Grandmaster Synthesis Multi-Variable
Scenarios
PART I: THE PREVIEW
Mastering this test bank translates directly to elite performance by aligning your technical
intuition with the absolute highest global engineering standards and Prince Edward Island's
localized statutory requirements. By internalizing these engineered scenarios, you strip away
guesswork, replacing it with the structural, hydraulic, and administrative precision required to
architect, diagnose, and defend high-performance plumbing systems.
The "Critical Axioms" Cheat Sheet
● Axiom I (The PEI Standard): Prince Edward Island operates under the National
Plumbing Code (NPC) of Canada 2020 as of March 31, 2024. Air admittance valves
(AAVs) are strictly revoked by provincial amendment (EC356/17), and all new fuel-burning
equipment mandates carbon monoxide detection.
● Axiom II (Charlottetown Underground Infrastructure): Driveway/sidewalk interference
requires valve relocation >1.5m away or a protective valve box. Minimum water service is
19-mm Type "K" copper or PEXa; minimum sanitary sewer is 100-mm PVC SDR 35 at an
, optimum 2% grade.
● Axiom III (Hydraulic Load & Wet Venting): When designing water distribution utilizing a
detailed engineering method, fixtures supplied with both hot and cold water carry a
hydraulic load of exactly 75% of the separate demands. Wet vent sizing inherently
excludes the hydraulic load of the most downstream fixture.
● Axiom IV (NPC 2020 Backwater Doctrine): The manual intervention paradigm is
obsolete. Gate valves and screw caps have been structurally removed as acceptable
backflow protection options for floor drains in basements to mitigate flooding risks from
human error.
● Axiom V (Premise Isolation & Hazard Classification): Under CSA B64.10, "Severe"
hazard environments (e.g., hospitals, morgues, chemical plants) mandate a Reduced
Pressure (RP) principle backflow preventer, tested every 6 months. Fire protection system
crossover protocols no longer permit DCVAF (Double Check Valve for Fire Systems).
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A plumbing contractor in Charlottetown is installing a new underground water service to a
residential property where the pressure from the municipal main registers at 600 kPa (87 psi).
Based on the standards established by the Charlottetown Water and Sewer Utility, which action
is IMMEDIATELY required? A) The utility must throttle the corporation stop to reduce delivery
pressure prior to the meter. B) The contractor must install a pressure-reducing valve (PRV) on
the service line and a pressure relief valve on the hot water boiler. C) The homeowner must sign
a utility waiver accepting liability for high-pressure fixture damage. D) The installation can
proceed without alteration, as the pressure remains below the 689 kPa (100 psi) maximum
threshold.
● The Answer: B (The contractor must install a pressure-reducing valve (PRV) on the
service line and a pressure relief valve on the hot water boiler)
● Distractor Analysis:
○ A is incorrect: Corporation stops function as isolation valves, not
pressure-regulating devices, and cannot dynamically throttle supply pressure.
○ C is incorrect: Waivers do not circumvent statutory mechanical code requirements
for system safety.
○ D is incorrect: The Charlottetown minimum standard dictates that any water
pressure exceeding 552 kPa (80 psi) requires the mandatory installation of a PRV
and subsequent relief valve on the boiler.
The Mentor's Analysis: High-pressure municipal lines introduce severe hydraulic stress to
domestic internal piping. When facing incoming pressure over 80 psi, the immediate priority is
mechanical pressure reduction to prevent fixture failure and uncontrolled water damage. By
utilizing a Pressure-Reducing Valve (PRV) paired with a boiler relief valve, you bypass the
common trap of isolated thermal expansion failures. Professional/Academic Intuition: Always
pair a PRV with thermal expansion protection; reducing incoming pressure creates a
closed system that traps expanding hot water.
Q2: A journeyman plumber in Prince Edward Island is executing a bathroom remodel. To save
space in an island sink configuration, the apprentice suggests installing an air admittance valve
(AAV) as the primary vent. According to the PEI Environmental Protection Act A Code for
,Plumbing Services Regulations, which conclusion is the MOST ACCURATE? A) The AAV is
permitted provided it is sized according to NPC Table 2.5.8.1 and remains accessible for
maintenance. B) The AAV is strictly prohibited as this provision was explicitly revoked by
provincial amendment (EC356/17). C) The AAV is only permitted if the system passes a
subsequent 5 psi pneumatic pressure test. D) The AAV is acceptable under NPC 2020 provided
it serves fewer than 3 fixture units.
● The Answer: B (The AAV is strictly prohibited as this provision was explicitly revoked by
provincial amendment (EC356/17))
● Distractor Analysis:
○ A is incorrect: While AAVs are conditionally allowed in the unamended NPC model
code, PEI provincial law strictly overrides the model code.
○ C is incorrect: Testing protocols do not validate the use of statutorily banned
components.
○ D is incorrect: This is a legacy misinterpretation of unamended model codes; the
PEI amendment strictly removes Section 4 (Air admittance valves) entirely.
The Mentor's Analysis: Provincial statutory amendments universally supersede national model
codes. When facing localized system design, the immediate priority is verifying provincial
exemptions and revocations. By utilizing traditional atmospheric venting, you bypass the
common trap of relying on mechanical valves in a jurisdiction that strictly prohibits them.
Professional/Academic Intuition: Never apply a National Model Code blindly; local
statutory amendments define the absolute legal boundaries of your installation.
Q3: During the construction of a dental surgery facility in Charlottetown, a cross-connection
control surveyor is determining the required backflow prevention assembly. Under CSA B64.10,
what is the degree of hazard and the MOST APPROPRIATE containment device? A) Moderate
Hazard requiring a Double Check Valve Assembly (DCVA). B) Moderate-to-Severe Hazard
requiring a Pressure Vacuum Breaker (PVB). C) Severe Hazard requiring a Reduced Pressure
Principle (RP) backflow preventer. D) Severe Hazard requiring an air gap or a Dual Check Valve
with Intermediate Vent (DuCV).
● The Answer: C (Severe Hazard requiring a Reduced Pressure Principle (RP) backflow
preventer)
● Distractor Analysis:
○ A is incorrect: Dental surgeries involve human blood and biological contaminants,
elevating them beyond "Moderate" hazard.
○ B is incorrect: PVBs protect against back-siphonage only and are legally insufficient
for severe biohazards.
○ D is incorrect: A DuCV is insufficient for severe hazards; an RP or air gap is
required, making the combination in D technically flawed for commercial facility
containment.
The Mentor's Analysis: Medical and dental facilities present acute biological and chemical
cross-connection risks. When facing blood clinics or dental surgeries, the immediate priority is
securing the municipal supply against both back-pressure and back-siphonage of lethal
contaminants. By utilizing an RP assembly, you bypass the common trap of under-classifying
biological hazards. Professional/Academic Intuition: Any facility processing biological
fluids, chemicals, or pharmaceuticals defaults immediately to a "Severe" hazard
classification requiring Reduced Pressure (RP) protection.
Q4: A plumbing system design utilizes a detailed engineering method for water supply sizing. A
bathroom group flush tank connects to both hot and cold water supplies. According to the NPC
2020, what is the MOST ACCURATE method for determining the hydraulic loads for maximum
, separate demands? A) Calculate the combined load from Table 2.6.3.2.A and add 20% to
account for thermal expansion. B) Utilize 100% of the cold water demand and 50% of the hot
water demand. C) Utilize exactly 75% of the hydraulic load of the fixture units given in Tables
2.6.3.2.A and 2.6.3.2.D. D) Assign an arbitrary base fixture unit weight of 10 to simulate
Hunter's probability curve peak demand.
● The Answer: C (Utilize exactly 75% of the hydraulic load of the fixture units given in
Tables 2.6.3.2.A and 2.6.3.2.D)
● Distractor Analysis:
○ A is incorrect: Thermal expansion factors into pressure protection, not hydraulic
load sizing for flow rates.
○ B is incorrect: This is an outdated, uncodified rule of thumb used by novices.
○ D is incorrect: Hunter's original assignment of 10 was for flush valves, not flush
tanks, and is an underlying historical principle, not the literal coded engineering
method.
The Mentor's Analysis: Sizing parallel water distribution systems requires accounting for
simultaneous, but divided, usage. When facing dual-supply fixtures in detailed engineering
designs, the immediate priority is preventing grossly oversized piping. By utilizing the 75%
separate demand multiplier, you bypass the common trap of doubling the combined fixture load.
Professional/Academic Intuition: When calculating separate hot and cold branches for
dual-supply fixtures, the 75% rule accounts for the improbability of maximum flow
occurring simultaneously on both lines.
Q5: A plumbing contractor receives a shipment of components for a new residential DWV
system in Prince Edward Island. The invoice includes a batch of gate valves and removable
screw caps intended for installation in basement floor drains to prevent sewer surcharge.
According to the NPC 2020, why is this an engineering failure? A) Floor drains in basements
must drain to the storm system, rendering the valves unnecessary. B) Gate valves and screw
caps require manual intervention and have been explicitly removed from the Code to reduce
basement flooding risks. C) Subsoil drainage pipes must pass through a dilution tank before
reaching a screw cap. D) Removable screw caps are now mandated exclusively for emergency
floor drains, not standard floor drains.
● The Answer: B (Gate valves and screw caps require manual intervention and have been
explicitly removed from the Code to reduce basement flooding risks)
● Distractor Analysis:
○ A is incorrect: Floor drains may connect to sanitary systems; storm connections are
only permitted for clear-water waste.
○ C is incorrect: Dilution tanks process corrosive waste, not subsoil drainage.
○ D is incorrect: The NPC 2020 entirely removed screw caps and gate valves as
acceptable backwater protection due to their reliance on human action during a
surcharge event.
The Mentor's Analysis: Mechanical safeguards that rely on human intervention during an
emergency universally fail. When facing basement surcharge risks, the immediate priority is
autonomous, automatic isolation. By utilizing a normally open automatic backwater valve, you
bypass the common trap of relying on a homeowner to manually twist a screw cap during a
flood. Professional/Academic Intuition: Passive safety systems always supersede active
human intervention in modern plumbing engineering.
Q6: According to the Charlottetown Water and Sewer Utility standards, an applicant requires a
new domestic water service. The contractor plans to use a 12-mm (1/2-inch) PEX pipe to reduce
installation costs and increase velocity. Which statement is MOST ACCURATE regarding this
Island Plumbing Code
Mastery: DWV, Water
Supply, and Backflow
Prevention
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus Page/Reference
PART I The Preview Axioms & Core Base 0
Frameworks
PART II Elite Test Bank The 60-Point MCQ Base 1
Gauntlet
- Tier 1 (Q1-15) Foundational Syntax & Core Theory
Application
- Tier 2 (Q16-35) Complex Application & Diagnostics
Simulation
- Tier 3 (Q36-60) Grandmaster Synthesis Multi-Variable
Scenarios
PART I: THE PREVIEW
Mastering this test bank translates directly to elite performance by aligning your technical
intuition with the absolute highest global engineering standards and Prince Edward Island's
localized statutory requirements. By internalizing these engineered scenarios, you strip away
guesswork, replacing it with the structural, hydraulic, and administrative precision required to
architect, diagnose, and defend high-performance plumbing systems.
The "Critical Axioms" Cheat Sheet
● Axiom I (The PEI Standard): Prince Edward Island operates under the National
Plumbing Code (NPC) of Canada 2020 as of March 31, 2024. Air admittance valves
(AAVs) are strictly revoked by provincial amendment (EC356/17), and all new fuel-burning
equipment mandates carbon monoxide detection.
● Axiom II (Charlottetown Underground Infrastructure): Driveway/sidewalk interference
requires valve relocation >1.5m away or a protective valve box. Minimum water service is
19-mm Type "K" copper or PEXa; minimum sanitary sewer is 100-mm PVC SDR 35 at an
, optimum 2% grade.
● Axiom III (Hydraulic Load & Wet Venting): When designing water distribution utilizing a
detailed engineering method, fixtures supplied with both hot and cold water carry a
hydraulic load of exactly 75% of the separate demands. Wet vent sizing inherently
excludes the hydraulic load of the most downstream fixture.
● Axiom IV (NPC 2020 Backwater Doctrine): The manual intervention paradigm is
obsolete. Gate valves and screw caps have been structurally removed as acceptable
backflow protection options for floor drains in basements to mitigate flooding risks from
human error.
● Axiom V (Premise Isolation & Hazard Classification): Under CSA B64.10, "Severe"
hazard environments (e.g., hospitals, morgues, chemical plants) mandate a Reduced
Pressure (RP) principle backflow preventer, tested every 6 months. Fire protection system
crossover protocols no longer permit DCVAF (Double Check Valve for Fire Systems).
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A plumbing contractor in Charlottetown is installing a new underground water service to a
residential property where the pressure from the municipal main registers at 600 kPa (87 psi).
Based on the standards established by the Charlottetown Water and Sewer Utility, which action
is IMMEDIATELY required? A) The utility must throttle the corporation stop to reduce delivery
pressure prior to the meter. B) The contractor must install a pressure-reducing valve (PRV) on
the service line and a pressure relief valve on the hot water boiler. C) The homeowner must sign
a utility waiver accepting liability for high-pressure fixture damage. D) The installation can
proceed without alteration, as the pressure remains below the 689 kPa (100 psi) maximum
threshold.
● The Answer: B (The contractor must install a pressure-reducing valve (PRV) on the
service line and a pressure relief valve on the hot water boiler)
● Distractor Analysis:
○ A is incorrect: Corporation stops function as isolation valves, not
pressure-regulating devices, and cannot dynamically throttle supply pressure.
○ C is incorrect: Waivers do not circumvent statutory mechanical code requirements
for system safety.
○ D is incorrect: The Charlottetown minimum standard dictates that any water
pressure exceeding 552 kPa (80 psi) requires the mandatory installation of a PRV
and subsequent relief valve on the boiler.
The Mentor's Analysis: High-pressure municipal lines introduce severe hydraulic stress to
domestic internal piping. When facing incoming pressure over 80 psi, the immediate priority is
mechanical pressure reduction to prevent fixture failure and uncontrolled water damage. By
utilizing a Pressure-Reducing Valve (PRV) paired with a boiler relief valve, you bypass the
common trap of isolated thermal expansion failures. Professional/Academic Intuition: Always
pair a PRV with thermal expansion protection; reducing incoming pressure creates a
closed system that traps expanding hot water.
Q2: A journeyman plumber in Prince Edward Island is executing a bathroom remodel. To save
space in an island sink configuration, the apprentice suggests installing an air admittance valve
(AAV) as the primary vent. According to the PEI Environmental Protection Act A Code for
,Plumbing Services Regulations, which conclusion is the MOST ACCURATE? A) The AAV is
permitted provided it is sized according to NPC Table 2.5.8.1 and remains accessible for
maintenance. B) The AAV is strictly prohibited as this provision was explicitly revoked by
provincial amendment (EC356/17). C) The AAV is only permitted if the system passes a
subsequent 5 psi pneumatic pressure test. D) The AAV is acceptable under NPC 2020 provided
it serves fewer than 3 fixture units.
● The Answer: B (The AAV is strictly prohibited as this provision was explicitly revoked by
provincial amendment (EC356/17))
● Distractor Analysis:
○ A is incorrect: While AAVs are conditionally allowed in the unamended NPC model
code, PEI provincial law strictly overrides the model code.
○ C is incorrect: Testing protocols do not validate the use of statutorily banned
components.
○ D is incorrect: This is a legacy misinterpretation of unamended model codes; the
PEI amendment strictly removes Section 4 (Air admittance valves) entirely.
The Mentor's Analysis: Provincial statutory amendments universally supersede national model
codes. When facing localized system design, the immediate priority is verifying provincial
exemptions and revocations. By utilizing traditional atmospheric venting, you bypass the
common trap of relying on mechanical valves in a jurisdiction that strictly prohibits them.
Professional/Academic Intuition: Never apply a National Model Code blindly; local
statutory amendments define the absolute legal boundaries of your installation.
Q3: During the construction of a dental surgery facility in Charlottetown, a cross-connection
control surveyor is determining the required backflow prevention assembly. Under CSA B64.10,
what is the degree of hazard and the MOST APPROPRIATE containment device? A) Moderate
Hazard requiring a Double Check Valve Assembly (DCVA). B) Moderate-to-Severe Hazard
requiring a Pressure Vacuum Breaker (PVB). C) Severe Hazard requiring a Reduced Pressure
Principle (RP) backflow preventer. D) Severe Hazard requiring an air gap or a Dual Check Valve
with Intermediate Vent (DuCV).
● The Answer: C (Severe Hazard requiring a Reduced Pressure Principle (RP) backflow
preventer)
● Distractor Analysis:
○ A is incorrect: Dental surgeries involve human blood and biological contaminants,
elevating them beyond "Moderate" hazard.
○ B is incorrect: PVBs protect against back-siphonage only and are legally insufficient
for severe biohazards.
○ D is incorrect: A DuCV is insufficient for severe hazards; an RP or air gap is
required, making the combination in D technically flawed for commercial facility
containment.
The Mentor's Analysis: Medical and dental facilities present acute biological and chemical
cross-connection risks. When facing blood clinics or dental surgeries, the immediate priority is
securing the municipal supply against both back-pressure and back-siphonage of lethal
contaminants. By utilizing an RP assembly, you bypass the common trap of under-classifying
biological hazards. Professional/Academic Intuition: Any facility processing biological
fluids, chemicals, or pharmaceuticals defaults immediately to a "Severe" hazard
classification requiring Reduced Pressure (RP) protection.
Q4: A plumbing system design utilizes a detailed engineering method for water supply sizing. A
bathroom group flush tank connects to both hot and cold water supplies. According to the NPC
2020, what is the MOST ACCURATE method for determining the hydraulic loads for maximum
, separate demands? A) Calculate the combined load from Table 2.6.3.2.A and add 20% to
account for thermal expansion. B) Utilize 100% of the cold water demand and 50% of the hot
water demand. C) Utilize exactly 75% of the hydraulic load of the fixture units given in Tables
2.6.3.2.A and 2.6.3.2.D. D) Assign an arbitrary base fixture unit weight of 10 to simulate
Hunter's probability curve peak demand.
● The Answer: C (Utilize exactly 75% of the hydraulic load of the fixture units given in
Tables 2.6.3.2.A and 2.6.3.2.D)
● Distractor Analysis:
○ A is incorrect: Thermal expansion factors into pressure protection, not hydraulic
load sizing for flow rates.
○ B is incorrect: This is an outdated, uncodified rule of thumb used by novices.
○ D is incorrect: Hunter's original assignment of 10 was for flush valves, not flush
tanks, and is an underlying historical principle, not the literal coded engineering
method.
The Mentor's Analysis: Sizing parallel water distribution systems requires accounting for
simultaneous, but divided, usage. When facing dual-supply fixtures in detailed engineering
designs, the immediate priority is preventing grossly oversized piping. By utilizing the 75%
separate demand multiplier, you bypass the common trap of doubling the combined fixture load.
Professional/Academic Intuition: When calculating separate hot and cold branches for
dual-supply fixtures, the 75% rule accounts for the improbability of maximum flow
occurring simultaneously on both lines.
Q5: A plumbing contractor receives a shipment of components for a new residential DWV
system in Prince Edward Island. The invoice includes a batch of gate valves and removable
screw caps intended for installation in basement floor drains to prevent sewer surcharge.
According to the NPC 2020, why is this an engineering failure? A) Floor drains in basements
must drain to the storm system, rendering the valves unnecessary. B) Gate valves and screw
caps require manual intervention and have been explicitly removed from the Code to reduce
basement flooding risks. C) Subsoil drainage pipes must pass through a dilution tank before
reaching a screw cap. D) Removable screw caps are now mandated exclusively for emergency
floor drains, not standard floor drains.
● The Answer: B (Gate valves and screw caps require manual intervention and have been
explicitly removed from the Code to reduce basement flooding risks)
● Distractor Analysis:
○ A is incorrect: Floor drains may connect to sanitary systems; storm connections are
only permitted for clear-water waste.
○ C is incorrect: Dilution tanks process corrosive waste, not subsoil drainage.
○ D is incorrect: The NPC 2020 entirely removed screw caps and gate valves as
acceptable backwater protection due to their reliance on human action during a
surcharge event.
The Mentor's Analysis: Mechanical safeguards that rely on human intervention during an
emergency universally fail. When facing basement surcharge risks, the immediate priority is
autonomous, automatic isolation. By utilizing a normally open automatic backwater valve, you
bypass the common trap of relying on a homeowner to manually twist a screw cap during a
flood. Professional/Academic Intuition: Passive safety systems always supersede active
human intervention in modern plumbing engineering.
Q6: According to the Charlottetown Water and Sewer Utility standards, an applicant requires a
new domestic water service. The contractor plans to use a 12-mm (1/2-inch) PEX pipe to reduce
installation costs and increase velocity. Which statement is MOST ACCURATE regarding this
