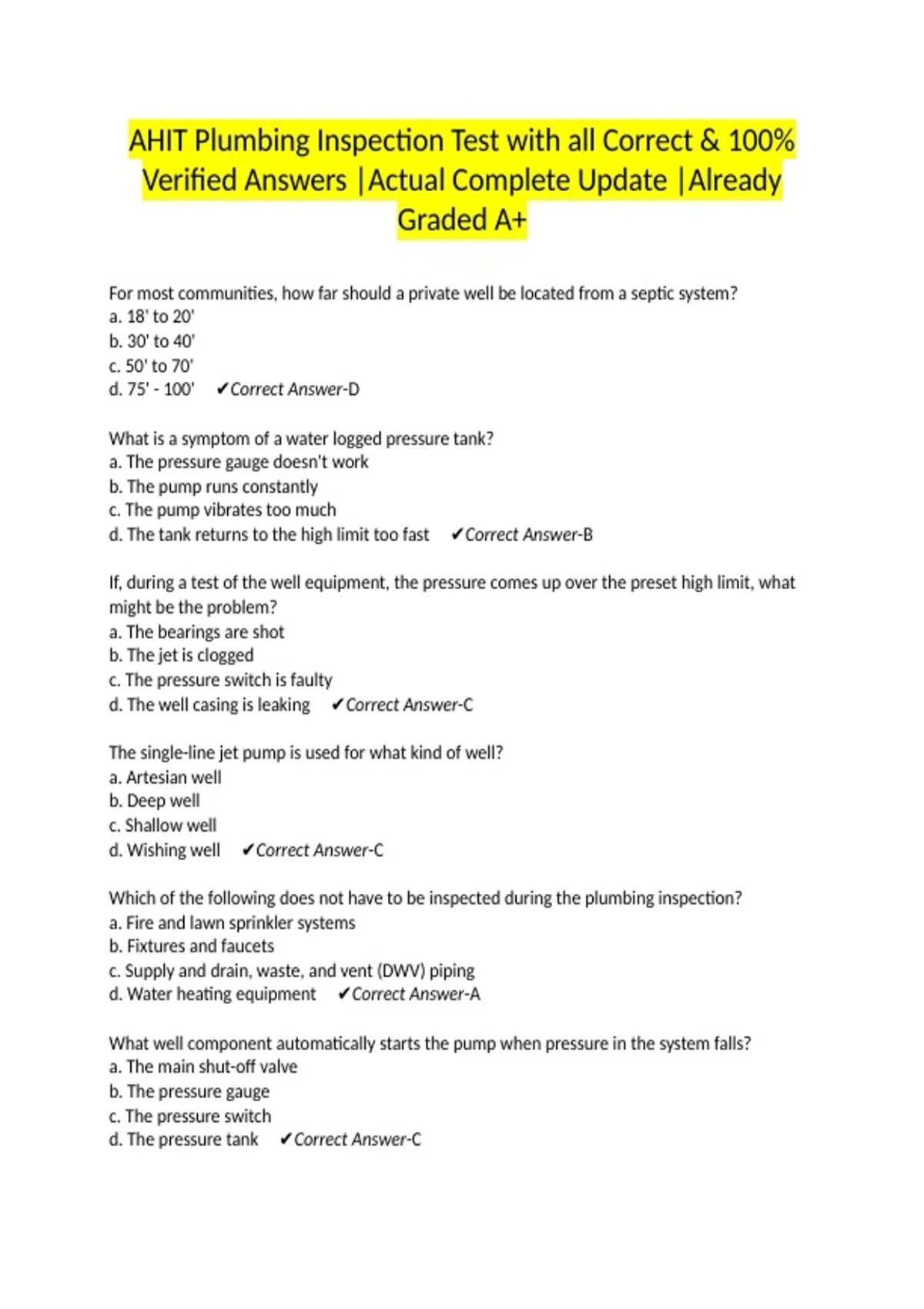

AHIT Plumbing Inspection Test with all Correct & 100%
Verified Answers |Actual Complete Update |Already
Graded A+
For most communities, how far should a private well be located from a septic system?
a. 18' to 20'
b. 30' to 40'
c. 50' to 70'
d. 75' - 100' ✔Correct Answer-D
What is a symptom of a water logged pressure tank?
a. The pressure gauge doesn't work
b. The pump runs constantly
c. The pump vibrates too much
d. The tank returns to the high limit too fast ✔Correct Answer-B
If, during a test of the well equipment, the pressure comes up over the preset high limit, what
might be the problem?
a. The bearings are shot
b. The jet is clogged
c. The pressure switch is faulty
d. The well casing is leaking ✔Correct Answer-C
The single-line jet pump is used for what kind of well?
a. Artesian well
b. Deep well
c. Shallow well
d. Wishing well ✔Correct Answer-C
Which of the following does not have to be inspected during the plumbing inspection?
a. Fire and lawn sprinkler systems
b. Fixtures and faucets
c. Supply and drain, waste, and vent (DWV) piping
d. Water heating equipment ✔Correct Answer-A
What well component automatically starts the pump when pressure in the system falls?
a. The main shut-off valve
b. The pressure gauge
c. The pressure switch
d. The pressure tank ✔Correct Answer-C
, What type of supply pipe will rust from the inside out?
a. Copper
b. Galvanized steel
c. Lead
d. Red brass ✔Correct Answer-B
A pressure tank is used in conjunction with a(n) _________?
a. Air-cooling system
b. Compressor
c. Septic system
d. Well ✔Correct Answer-D
What does it mean for a well pressure tank to be waterlogged?
a. There's water in the tank
b. The tank is full of air
c. The tank is full of water with no air space
d. The tank is leaking ✔Correct Answer-C
A type of pipe that is no longer installed in plumbing application is _____?
a. Brass
b. Cast iron
c. Copper
d. Galvanized steel ✔Correct Answer-A
When should the inspector recommend a well technician be called to examine the well
equipment?
a. All of the answers shown
b. If the main shut-off valve is missing
c. If the pressure tank is leaking
d. If the pump is overly noisy ✔Correct Answer-A
One way of telling whether a property is serviced by municipal water is if ______.
a. Lead pipe is not used in the water supply service pipe
b. The property has adequate water pressure
c. There is a water meter present
d. The water is potable ✔Correct Answer-C
Identify the following components of a private well system.
a. Gauge, expansion tank, filter
b. Main shut-off, pressure switch, pressure tank, gauge
c. Switch, tank, gauge, meter
d. Switch, tank, shut-off, booster pump ✔Correct Answer-B
What is the depth that marks the difference between a shallow well and a deep well?
