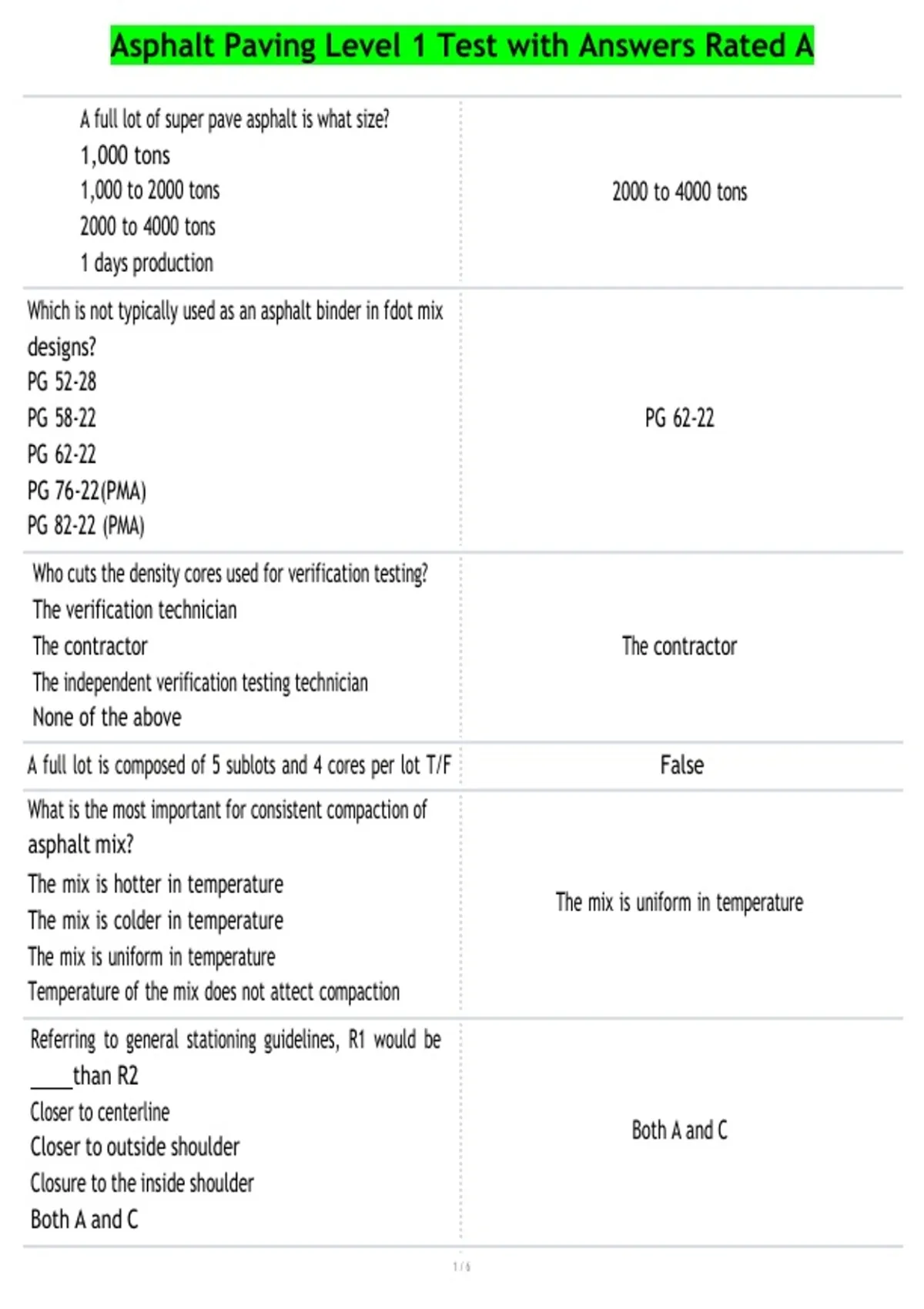

Asphalt Paving Level 1 Test with Answers Rated A
A full lot of super pave asphalt is what size?
1,000 tons
1,000 to 2000 tons 2000 to 4000 tons
2000 to 4000 tons
1 days production
Which is not typically used as an asphalt binder in fdot mix
designs?
PG 52-28
PG 58-22 PG 62-22
PG 62-22
PG 76-22(PMA)
PG 82-22 (PMA)
Who cuts the density cores used for verification testing?
The verification technician
The contractor The contractor
The independent verification testing technician
None of the above
A full lot is composed of 5 sublots and 4 cores per lot T/F False
What is the most important for consistent compaction of
asphalt mix?
The mix is hotter in temperature
The mix is uniform in temperature
The mix is colder in temperature
The mix is uniform in temperature
Temperature of the mix does not attect compaction
Referring to general stationing guidelines, R1 would be
than R2
Closer to centerline
Both A and C
Closer to outside shoulder
Closure to the inside shoulder
Both A and C
1/6
, Asphalt Paving Level 1 Test with Answers Rated A
While using the rolling straightedge, if the needle goes in Mark the pavement where the needle first goes into the
the red zone indicating an unacceptable high spot in the red zone and place another mark where the needle leaves
section, you then the red zone and continue
For bridge approach slabs, the 15 foot manual straight-
edge should be set so is on the bridge deck.
1 inch
1 inch
Exactly 1/2 of the straightedge
The entire straightedge
None of the above
For the first transverse joint on a project place the on
the new pavement while overlapping the transverse joint
by one inch.
4 foot level 15 foot manual straight edge
15 foot manual straight edge
Rolling straightedge
All the above
When calibrating to check the low side of the rolling
straight edge:
Place shims under the outer wheels
Place a 3/16 inch shin under each outside wheel, the
Place the rolling straight edge on a surface that looks flat
gauge should read zero on both sides of the gauge
Place a 3/16 inch shin under each outside wheel, the
gauge should read zero on both sides of the gauge
Place shims under the center wheel
When calibrating to check the high side of the rolling
straight edge:
Place shims under the outer wheels
Place a 3/16 inch shim under the center wheel. The gauge
Place shims under the center wheel
should read zero on both sides of the gauge.
Place the rolling straight edge on a surface that looks flat
Place a 3/16 inch shin under the center wheel. The gauge
should read zero on both sides of the gauge.
2/6
A full lot of super pave asphalt is what size?
1,000 tons
1,000 to 2000 tons 2000 to 4000 tons
2000 to 4000 tons
1 days production
Which is not typically used as an asphalt binder in fdot mix
designs?
PG 52-28
PG 58-22 PG 62-22
PG 62-22
PG 76-22(PMA)
PG 82-22 (PMA)
Who cuts the density cores used for verification testing?
The verification technician
The contractor The contractor
The independent verification testing technician
None of the above
A full lot is composed of 5 sublots and 4 cores per lot T/F False
What is the most important for consistent compaction of
asphalt mix?
The mix is hotter in temperature
The mix is uniform in temperature
The mix is colder in temperature
The mix is uniform in temperature
Temperature of the mix does not attect compaction
Referring to general stationing guidelines, R1 would be
than R2
Closer to centerline
Both A and C
Closer to outside shoulder
Closure to the inside shoulder
Both A and C
1/6
, Asphalt Paving Level 1 Test with Answers Rated A
While using the rolling straightedge, if the needle goes in Mark the pavement where the needle first goes into the
the red zone indicating an unacceptable high spot in the red zone and place another mark where the needle leaves
section, you then the red zone and continue
For bridge approach slabs, the 15 foot manual straight-
edge should be set so is on the bridge deck.
1 inch
1 inch
Exactly 1/2 of the straightedge
The entire straightedge
None of the above
For the first transverse joint on a project place the on
the new pavement while overlapping the transverse joint
by one inch.
4 foot level 15 foot manual straight edge
15 foot manual straight edge
Rolling straightedge
All the above
When calibrating to check the low side of the rolling
straight edge:
Place shims under the outer wheels
Place a 3/16 inch shin under each outside wheel, the
Place the rolling straight edge on a surface that looks flat
gauge should read zero on both sides of the gauge
Place a 3/16 inch shin under each outside wheel, the
gauge should read zero on both sides of the gauge
Place shims under the center wheel
When calibrating to check the high side of the rolling
straight edge:
Place shims under the outer wheels
Place a 3/16 inch shim under the center wheel. The gauge
Place shims under the center wheel
should read zero on both sides of the gauge.
Place the rolling straight edge on a surface that looks flat
Place a 3/16 inch shin under the center wheel. The gauge
should read zero on both sides of the gauge.
2/6
