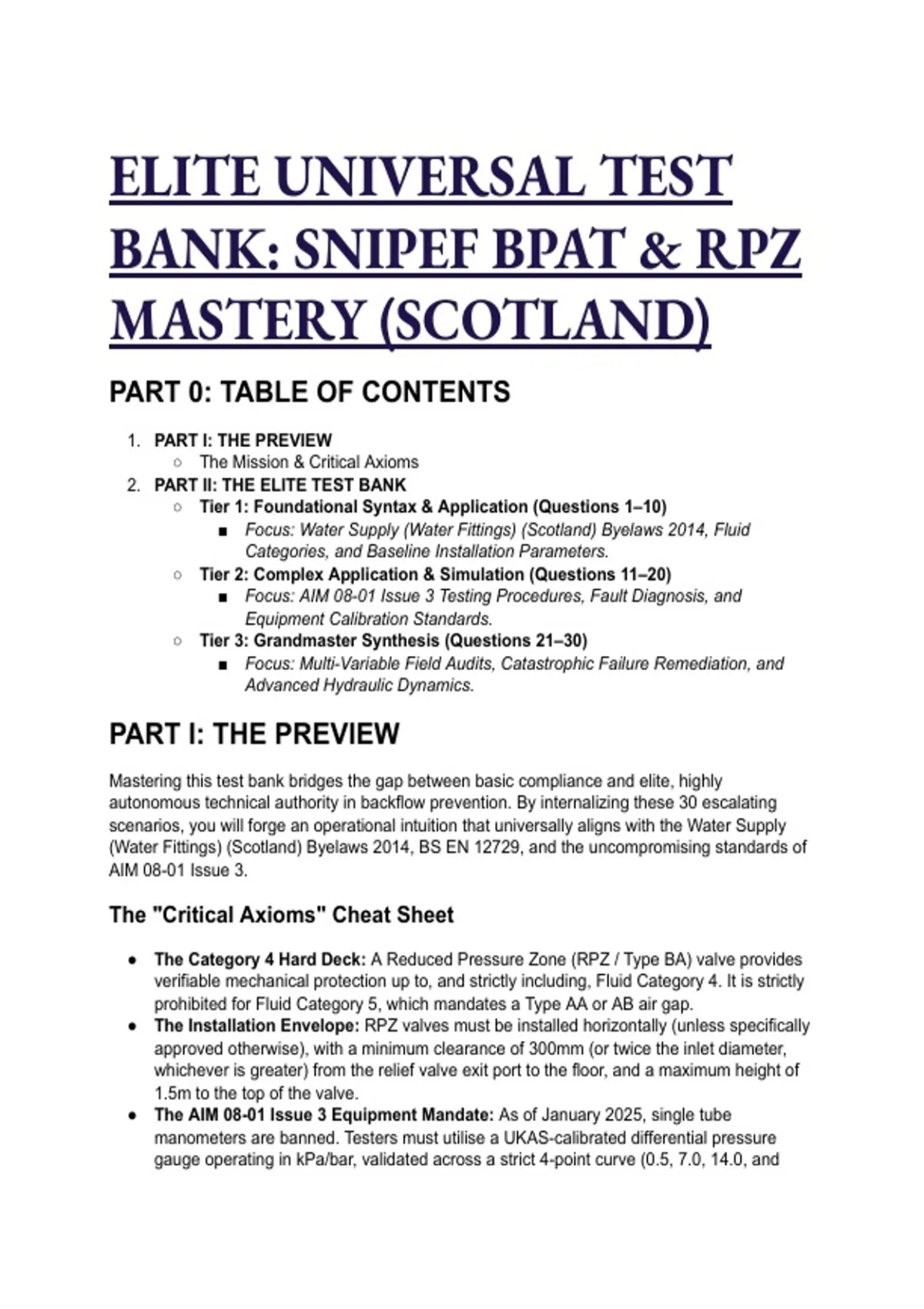

ELITE UNIVERSAL TEST
BANK: SNIPEF BPAT & RPZ
MASTERY (SCOTLAND)
PART 0: TABLE OF CONTENTS
1. PART I: THE PREVIEW
○ The Mission & Critical Axioms
2. PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
■ Focus: Water Supply (Water Fittings) (Scotland) Byelaws 2014, Fluid
Categories, and Baseline Installation Parameters.
○ Tier 2: Complex Application & Simulation (Questions 11–20)
■ Focus: AIM 08-01 Issue 3 Testing Procedures, Fault Diagnosis, and
Equipment Calibration Standards.
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
■ Focus: Multi-Variable Field Audits, Catastrophic Failure Remediation, and
Advanced Hydraulic Dynamics.
PART I: THE PREVIEW
Mastering this test bank bridges the gap between basic compliance and elite, highly
autonomous technical authority in backflow prevention. By internalizing these 30 escalating
scenarios, you will forge an operational intuition that universally aligns with the Water Supply
(Water Fittings) (Scotland) Byelaws 2014, BS EN 12729, and the uncompromising standards of
AIM 08-01 Issue 3.
The "Critical Axioms" Cheat Sheet
● The Category 4 Hard Deck: A Reduced Pressure Zone (RPZ / Type BA) valve provides
verifiable mechanical protection up to, and strictly including, Fluid Category 4. It is strictly
prohibited for Fluid Category 5, which mandates a Type AA or AB air gap.
● The Installation Envelope: RPZ valves must be installed horizontally (unless specifically
approved otherwise), with a minimum clearance of 300mm (or twice the inlet diameter,
whichever is greater) from the relief valve exit port to the floor, and a maximum height of
1.5m to the top of the valve.
● The AIM 08-01 Issue 3 Equipment Mandate: As of January 2025, single tube
manometers are banned. Testers must utilise a UKAS-calibrated differential pressure
gauge operating in kPa/bar, validated across a strict 4-point curve (0.5, 7.0, 14.0, and
, 34.0 kPa).
● Relief Valve Discharge Dynamics: Continuous discharge typically indicates a fouled first
check valve (CV1) or a leaking relief valve diaphragm. Intermittent discharge usually
signifies line pressure fluctuations.
● The Notification Imperative: Under Byelaw 5 of the Water Supply (Water Fittings)
(Scotland) Byelaws 2014, the installation of any RPZ valve requires advanced notification
and written consent from Scottish Water.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A commercial facility manager requests the installation of an RPZ valve to protect the public
mains from a new greywater harvesting system processing washing machine and bath
wastewater. Based on the principles of the Water Supply (Water Fittings) (Scotland) Byelaws
2014, which action/conclusion is the MOST ACCURATE? A) Proceed with the RPZ installation,
provided it is tested annually and installed with a minimum 300mm floor clearance. B)
Downgrade the protection to a Double Check Valve (DCV), as greywater is classified as a Fluid
Category 3 risk. C) Refuse the RPZ installation, as greywater harvesting poses a Fluid Category
5 risk and requires a Type AA or AB air gap. D) Install the RPZ valve but require a secondary
atmospheric vacuum breaker downstream to mitigate back-siphonage.
● Answer: C (Refuse the RPZ installation, as greywater harvesting poses a Fluid Category
5 risk and requires a Type AA or AB air gap.)
● Distractor Analysis:
○ A is incorrect: Greywater (containing potential faecal matter from bathing) is
classified as a Fluid Category 5 risk. An RPZ (Type BA) device is only legally
approved up to Fluid Category 4.
○ B is incorrect: Greywater is not Category 3. Category 3 represents a slight health
hazard (e.g., low toxicity chemicals). Greywater contains biological pathogens,
firmly placing it in Category 5.
○ D is incorrect: Adding an atmospheric vacuum breaker downstream does not
mathematically or legally upgrade an RPZ to Category 5 protection. Only an
appropriate air gap satisfies the legal requirement for this fluid category.
The Mentor's Analysis: The fundamental limitation of any Type BA device is its legal ceiling:
Fluid Category 4. When dealing with human waste, reclaimed water, or greywater, the biological
hazard automatically triggers a Category 5 classification, demanding physical disconnection (an
air gap). By universally applying this rule, you prevent catastrophic pathogenic contamination of
the public supply.
Fluid Category Hazard Level Acceptable Protection
Category 3 Slight hazard (Low toxicity) Double Check Valve (DCV)
Category 4 Significant hazard (Toxic) Reduced Pressure Zone (RPZ)
Category 5 Serious hazard (Pathogenic) Type AA/AB Air Gap
Professional/Academic Intuition: Never negotiate with Fluid Category 5; an air gap is the
only acceptable engineering control.
Q2: When installing an RPZ valve in a dedicated plant room, an engineer determines the most
space-efficient location is 150mm above the finished floor level, directly above a grated drainage
sump. Based on WRAS AIM 08-01 Issue 3, what is the MOST ACCURATE assessment of this
, installation? A) It is compliant, provided the grated drainage sump is sized to accommodate a
catastrophic failure of the relief valve. B) It is non-compliant; the assembly must be installed a
minimum of 300mm above the floor to prevent submersion and allow testing access. C) It is
compliant, as plant rooms are exempt from standard clearance rules if supervised by a
competent person. D) It is non-compliant; RPZ valves must be installed a minimum of 1.5m
above the floor to ensure gravity drainage of the relief valve.
● Answer: B (It is non-compliant; the assembly must be installed a minimum of 300mm
above the floor to prevent submersion and allow testing access.)
● Distractor Analysis:
○ A is incorrect: While drainage is critical for accommodating maximum discharge
rates, the physical clearance requirement is absolute. A 150mm clearance violates
the 300mm minimum regardless of drainage capacity.
○ C is incorrect: There are no exemptions for plant rooms regarding minimum
clearance heights under AIM 08-01 Issue 3. Submersion risks exist in all
environments.
○ D is incorrect: 1.5m is the maximum permitted height to the top of the valve to
ensure accessibility for maintenance and testing, not the minimum boundary.
The Mentor's Analysis: Clearances are not mere architectural suggestions; they are hydraulic
and operational necessities. A minimum 300mm clearance ensures that even during a
catastrophic relief valve discharge or localized plant room flooding, the exit port cannot become
submerged. Submersion would instantly turn the relief port into a siphon point, drawing
contaminated water into the intermediate zone. Professional/Academic Intuition: Clearance
equals protection; 300mm is the absolute floor, 1.5m is the absolute ceiling.
Q3: Under the updated requirements of AIM 08-01 Issue 3 (effective 2025), a SNIPEF Backflow
Prevention Assembly Tester (BPAT) prepares for their annual equipment recalibration. Based on
the new UKAS standards, which calibration parameter is STRICTLY REQUIRED for the
differential pressure gauge? A) The gauge must be verified exclusively at its Full Scale
Deflection (FSD) limit to ensure maximum stress tolerance. B) The gauge must be verified
across a specific 4-point curve: 0.5, 7.0, 14.0, and 34.0 kPa. C) The gauge must be converted
to read in pounds per square inch differential (psid) for alignment with legacy US standards. D)
The gauge must be calibrated using a single tube manometer to verify analogue accuracy
against digital drift.
● Answer: B (The gauge must be verified across a specific 4-point curve: 0.5, 7.0, 14.0,
and 34.0 kPa.)
● Distractor Analysis:
○ A is incorrect: Full Scale Deflection (%FSD) or percentage-based accuracy
reporting is strictly prohibited under the new AIM 3 transition because it allows
unacceptably large margins of error at the lower end of the pressure scale.
○ C is incorrect: The new regulations mandate a complete shift to SI units (kPa and
bar) for all reporting and calibration, abandoning imperial measurements like psid.
○ D is incorrect: Single tube manometers are explicitly banned under AIM 08-01 Issue
3 from Jan 1, 2025, due to inherent inaccuracies and the inability to measure
precise micro-differentials safely.
The Mentor's Analysis: The integrity of any compliance test relies entirely on the precision of
the telemetry. The 4-point rule (0.5, 7.0, 14.0, 34.0 kPa) ensures the gauge is hyper-accurate
across the precise micro-differentials required to test both soft (BS EN 13959) and firm (BS EN
12729) springs. Without this traceable UKAS calibration, the gauge cannot be legally trusted to
verify a life-safety device. Professional/Academic Intuition: Without a 4-point UKAS
