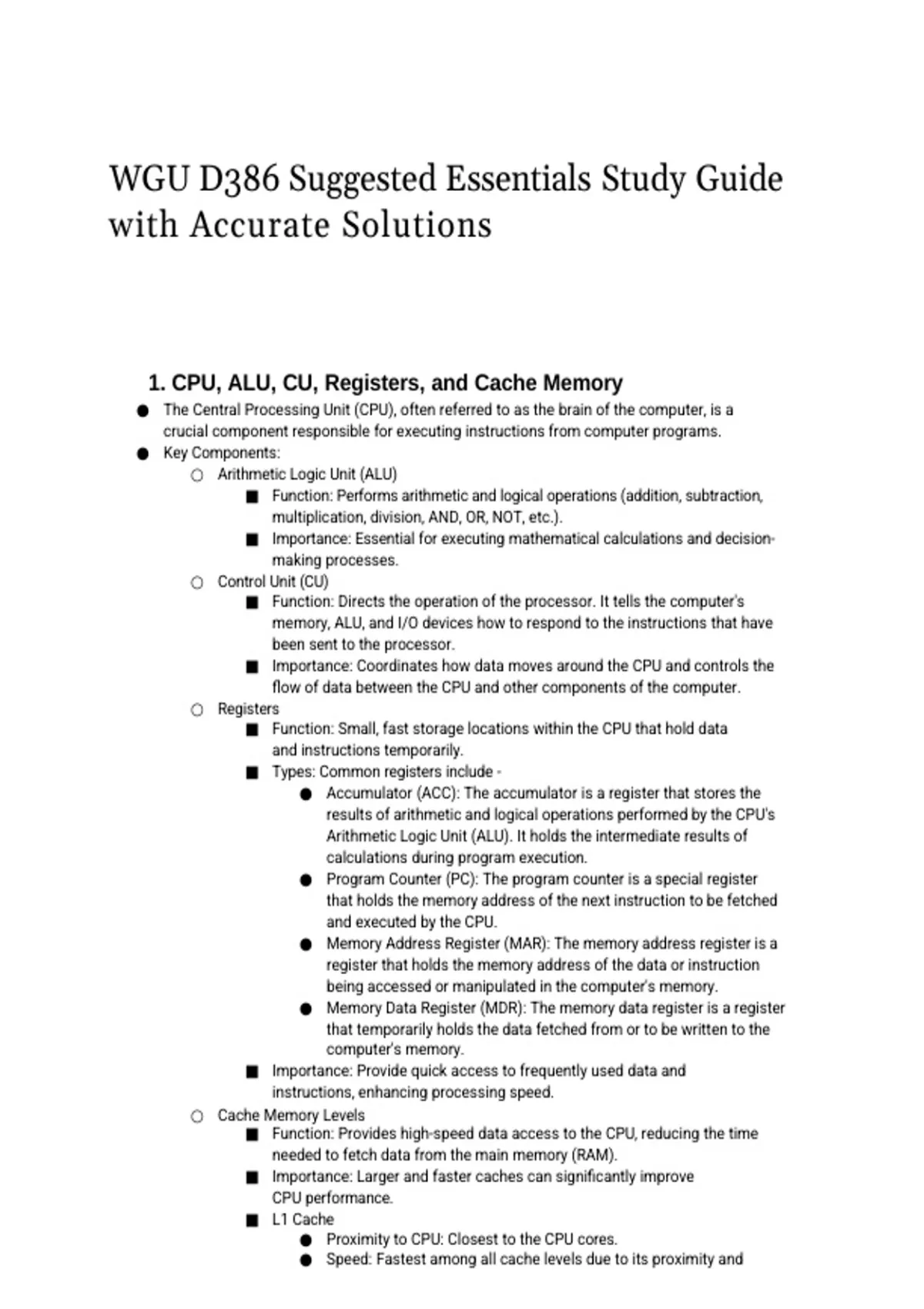

WGU D386 Suggested Essentials Study Guide
with Accurate Solutions
✅ 1. CPU, ALU, CU, Registers, and Cache Memory
● The Central Processing Unit (CPU), often referred to as the brain of the computer, is a
crucial component responsible for executing instructions from computer programs.
● Key Components:
○ Arithmetic Logic Unit (ALU)
■ Function: Performs arithmetic and logical operations (addition, subtraction,
multiplication, division, AND, OR, NOT, etc.).
■ Importance: Essential for executing mathematical calculations and decision-
making processes.
○ Control Unit (CU)
■ Function: Directs the operation of the processor. It tells the computer's
memory, ALU, and I/O devices how to respond to the instructions that have
been sent to the processor.
■ Importance: Coordinates how data moves around the CPU and controls the
flow of data between the CPU and other components of the computer.
○ Registers
■ Function: Small, fast storage locations within the CPU that hold data
and instructions temporarily.
■ Types: Common registers include -
● Accumulator (ACC): The accumulator is a register that stores the
results of arithmetic and logical operations performed by the CPU's
Arithmetic Logic Unit (ALU). It holds the intermediate results of
calculations during program execution.
● Program Counter (PC): The program counter is a special register
that holds the memory address of the next instruction to be fetched
and executed by the CPU.
● Memory Address Register (MAR): The memory address register is a
register that holds the memory address of the data or instruction
being accessed or manipulated in the computer's memory.
● Memory Data Register (MDR): The memory data register is a register
that temporarily holds the data fetched from or to be written to the
computer's memory.
■ Importance: Provide quick access to frequently used data and
instructions, enhancing processing speed.
○ Cache Memory Levels
■ Function: Provides high-speed data access to the CPU, reducing the time
needed to fetch data from the main memory (RAM).
■ Importance: Larger and faster caches can significantly improve
CPU performance.
■ L1 Cache
● Proximity to CPU: Closest to the CPU cores.
● Speed: Fastest among all cache levels due to its proximity and
,high-speed SRAM technology.
, ● Size: Smallest in size, typically ranging from 16KB to 128KB per core.
● Purpose: Primarily stores frequently accessed data and instructions to
reduce latency and improve the CPU's processing speed.
● Structure: Often split into two separate caches: one for instructions
(L1i) and one for data (L1d).
■ L2 Cache
● Proximity to CPU: Sits between the L1 cache and the main
memory (RAM).
● Speed: Slower than L1 but faster than L3 cache and main memory.
● Size: Larger than L1, typically ranging from 256KB to several
megabytes per core.
● Purpose: Acts as an intermediary store between L1 and L3, holding
data and instructions that are less frequently accessed than those in L1
but more frequently than those in RAM.
● Structure: Can be either unified (storing both data and instructions)
or split, similar to L1.
■ L3 Cache
● Proximity to CPU: Shared among multiple CPU cores within the
same processor.
● Speed: Slower than L2 but faster than main memory.
● Size: Larger than L2, typically ranging from a few megabytes to tens
of megabytes, depending on the CPU architecture.
● Purpose: Provides a larger, shared cache that can store data and
instructions accessible by all cores, reducing the need to fetch
from slower main memory.
● Structure: Typically unified, storing both data and instructions.
✅ 2. Pipelining vs. Multithreading vs. Multitasking
○ Pipelining (CPU function) is a hardware technique to increase the instruction throughput
of a CPU by overlapping instruction execution stages.
■ Stages of Pipelining
● Fetch: Retrieving the instruction from memory.
● Decode: Interpreting the instruction and preparing the necessary control
signals.
● Execute: Performing the operation specified by the instruction
(e.g., arithmetic or logic operations).
● Memory Access: Reading from or writing to memory, if required by
the instruction.
● Write Back: Writing the result back to the register file.
○ Multithreading (Application function) involves executing multiple threads within a single
process concurrently, improving CPU utilization and performance for multithreaded
applications.
■ Thread: A thread is the smallest unit of execution within a process. A process
can contain multiple threads, each running independently but sharing the same
resources, such as memory and file handles.
with Accurate Solutions
✅ 1. CPU, ALU, CU, Registers, and Cache Memory
● The Central Processing Unit (CPU), often referred to as the brain of the computer, is a
crucial component responsible for executing instructions from computer programs.
● Key Components:
○ Arithmetic Logic Unit (ALU)
■ Function: Performs arithmetic and logical operations (addition, subtraction,
multiplication, division, AND, OR, NOT, etc.).
■ Importance: Essential for executing mathematical calculations and decision-
making processes.
○ Control Unit (CU)
■ Function: Directs the operation of the processor. It tells the computer's
memory, ALU, and I/O devices how to respond to the instructions that have
been sent to the processor.
■ Importance: Coordinates how data moves around the CPU and controls the
flow of data between the CPU and other components of the computer.
○ Registers
■ Function: Small, fast storage locations within the CPU that hold data
and instructions temporarily.
■ Types: Common registers include -
● Accumulator (ACC): The accumulator is a register that stores the
results of arithmetic and logical operations performed by the CPU's
Arithmetic Logic Unit (ALU). It holds the intermediate results of
calculations during program execution.
● Program Counter (PC): The program counter is a special register
that holds the memory address of the next instruction to be fetched
and executed by the CPU.
● Memory Address Register (MAR): The memory address register is a
register that holds the memory address of the data or instruction
being accessed or manipulated in the computer's memory.
● Memory Data Register (MDR): The memory data register is a register
that temporarily holds the data fetched from or to be written to the
computer's memory.
■ Importance: Provide quick access to frequently used data and
instructions, enhancing processing speed.
○ Cache Memory Levels
■ Function: Provides high-speed data access to the CPU, reducing the time
needed to fetch data from the main memory (RAM).
■ Importance: Larger and faster caches can significantly improve
CPU performance.
■ L1 Cache
● Proximity to CPU: Closest to the CPU cores.
● Speed: Fastest among all cache levels due to its proximity and
,high-speed SRAM technology.
, ● Size: Smallest in size, typically ranging from 16KB to 128KB per core.
● Purpose: Primarily stores frequently accessed data and instructions to
reduce latency and improve the CPU's processing speed.
● Structure: Often split into two separate caches: one for instructions
(L1i) and one for data (L1d).
■ L2 Cache
● Proximity to CPU: Sits between the L1 cache and the main
memory (RAM).
● Speed: Slower than L1 but faster than L3 cache and main memory.
● Size: Larger than L1, typically ranging from 256KB to several
megabytes per core.
● Purpose: Acts as an intermediary store between L1 and L3, holding
data and instructions that are less frequently accessed than those in L1
but more frequently than those in RAM.
● Structure: Can be either unified (storing both data and instructions)
or split, similar to L1.
■ L3 Cache
● Proximity to CPU: Shared among multiple CPU cores within the
same processor.
● Speed: Slower than L2 but faster than main memory.
● Size: Larger than L2, typically ranging from a few megabytes to tens
of megabytes, depending on the CPU architecture.
● Purpose: Provides a larger, shared cache that can store data and
instructions accessible by all cores, reducing the need to fetch
from slower main memory.
● Structure: Typically unified, storing both data and instructions.
✅ 2. Pipelining vs. Multithreading vs. Multitasking
○ Pipelining (CPU function) is a hardware technique to increase the instruction throughput
of a CPU by overlapping instruction execution stages.
■ Stages of Pipelining
● Fetch: Retrieving the instruction from memory.
● Decode: Interpreting the instruction and preparing the necessary control
signals.
● Execute: Performing the operation specified by the instruction
(e.g., arithmetic or logic operations).
● Memory Access: Reading from or writing to memory, if required by
the instruction.
● Write Back: Writing the result back to the register file.
○ Multithreading (Application function) involves executing multiple threads within a single
process concurrently, improving CPU utilization and performance for multithreaded
applications.
■ Thread: A thread is the smallest unit of execution within a process. A process
can contain multiple threads, each running independently but sharing the same
resources, such as memory and file handles.
