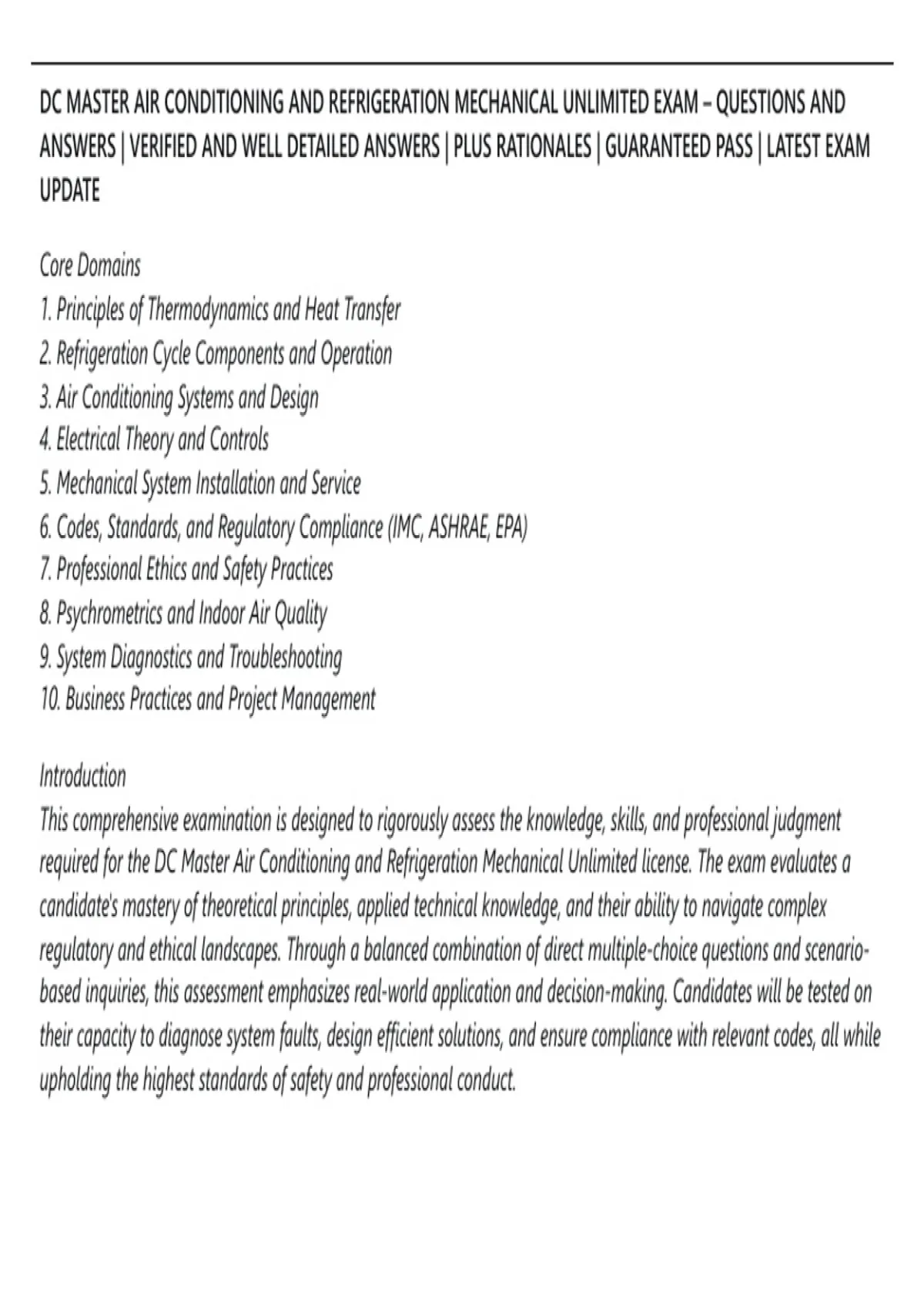

DC MASTER AIR CONDITIONING AND REFRIGERATION MECHANICAL UNLIMITED EXAM – QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM
UPDATE
Core Domains
1. Principles of Thermodynamics and Heat Transfer
2. Refrigeration Cycle Components and Operation
3. Air Conditioning Systems and Design
4. Electrical Theory and Controls
5. Mechanical System Installation and Service
6. Codes, Standards, and Regulatory Compliance (IMC, ASHRAE, EPA)
7. Professional Ethics and Safety Practices
8. Psychrometrics and Indoor Air Quality
9. System Diagnostics and Troubleshooting
10. Business Practices and Project Management
Introduction
This comprehensive examination is designed to rigorously assess the knowledge, skills, and professional judgment
required for the DC Master Air Conditioning and Refrigeration Mechanical Unlimited license. The exam evaluates a
candidate's mastery of theoretical principles, applied technical knowledge, and their ability to navigate complex
regulatory and ethical landscapes. Through a balanced combination of direct multiple-choice questions and scenario-
based inquiries, this assessment emphasizes real-world application and decision-making. Candidates will be tested on
their capacity to diagnose system faults, design efficient solutions, and ensure compliance with relevant codes, all while
upholding the highest standards of safety and professional conduct.
,SECTION ONE: QUESTIONS 1–100
1. A refrigeration system's condenser is rejecting 150,000 BTU/hr of heat. If the compressor is doing 20,000
BTU/hr of work, what is the refrigeration effect (cooling capacity) of the system?
A. 170,000 BTU/hr
B. 150,000 BTU/hr
C. 130,000 BTU/hr
D. 7.5 BTU/hr
🟢C
🔴 Explanation: The total heat rejected by the condenser is equal to the heat absorbed by the evaporator
(refrigeration effect) plus the heat of compression (work done by the compressor). Therefore, the refrigeration effect
is 150,000 BTU/hr - 20,000 BTU/hr = 130,000 BTU/hr.
2. Which of the following refrigerants has the highest ozone depletion potential (ODP)?
A. R-134a
B. R-410A
C. R-22
D. R-123
🟢C
🔴 Explanation: R-22 is a hydrochlorofluorocarbon (HCFC) and, while lower than CFCs, it has a significant ODP
compared to HFCs like R-134a and R-410A, which have an ODP of zero. R-123 is an HCFC with a lower ODP than R-
22 but it is still a factor.
3. A low-pressure control on a commercial refrigeration system is set to cut in at 40 PSIG and cut out at 10 PSIG
for an R-134a system. This control is primarily used to:
A. Control the temperature of the refrigerated space.
B. Protect the compressor from a loss of charge.
C. Regulate the flow of refrigerant to the evaporator.
,D. Cycle the condenser fan on and off.
🟢B
🔴 Explanation: A low-pressure control is a safety device that cycles the compressor off when the suction pressure
drops too low, preventing the compressor from running in a vacuum and protecting it from damage due to loss of
refrigerant charge or a restricted suction line.
4. In a psychrometric chart, the process of cooling and dehumidifying air is represented by a line that:
A. Moves horizontally to the left.
B. Moves diagonally down and to the left.
C. Moves vertically downward.
D. Moves diagonally up and to the right.
🟢B
🔴 Explanation: Cooling and dehumidification involves removing both sensible and latent heat. On a psychrometric
chart, this process is shown as a line that moves downward (reducing dry-bulb temperature) and to the left
(reducing humidity ratio), following a path determined by the apparatus dew point.
5. A technician is installing a new split-system air conditioner. The maximum recommended vertical lift for a
suction line with R-410A is approximately:
A. 10 feet
B. 25 feet
C. 50 feet
D. 75 feet
🟢C
🔴 Explanation: For R-410A systems, while specific manufacturer guidelines vary, the industry standard maximum
suction line vertical lift is generally around 50 feet to maintain proper oil return and prevent excessive pressure drop.
6. What is the primary function of an expansion valve in a vapor-compression refrigeration cycle?
A. To compress the refrigerant vapor.
, B. To condense the refrigerant liquid.
C. To meter the flow of refrigerant into the evaporator and cause a pressure drop.
D. To absorb heat from the refrigerated space.
🟢C
🔴 Explanation: The expansion valve reduces the pressure of the liquid refrigerant, causing it to flash into a mixture
of liquid and vapor at a low temperature. This pressure drop is essential for the refrigeration effect to occur in the
evaporator.
7. According to the EPA's Section 608 regulations, which of the following is NOT a requirement for technicians
servicing high-pressure appliances?
A. Using recovery equipment certified by an EPA-approved laboratory.
B. Recovering refrigerant to a specific vacuum level.
C. Keeping records of recovered refrigerant quantities.
D. Installing a sight glass in the liquid line before charging.
🟢D
🔴 Explanation: Installing a sight glass is a common industry practice for charging and system observation, but it is
not a requirement of EPA Section 608 regulations. The regulations focus on proper recovery, recycling, and record-
keeping to prevent ozone depletion.
8. A customer complains that their walk-in cooler is not maintaining the required 38°F temperature. The
technician finds the evaporator coil is heavily iced. The most likely cause of this issue is:
A. Low refrigerant charge.
B. High ambient temperature.
C. Oversized expansion valve.
D. A malfunctioning defrost timer or termination switch.
🟢D
🔴 Explanation: An iced evaporator is a classic symptom of a defrost system problem. If the defrost timer fails to
