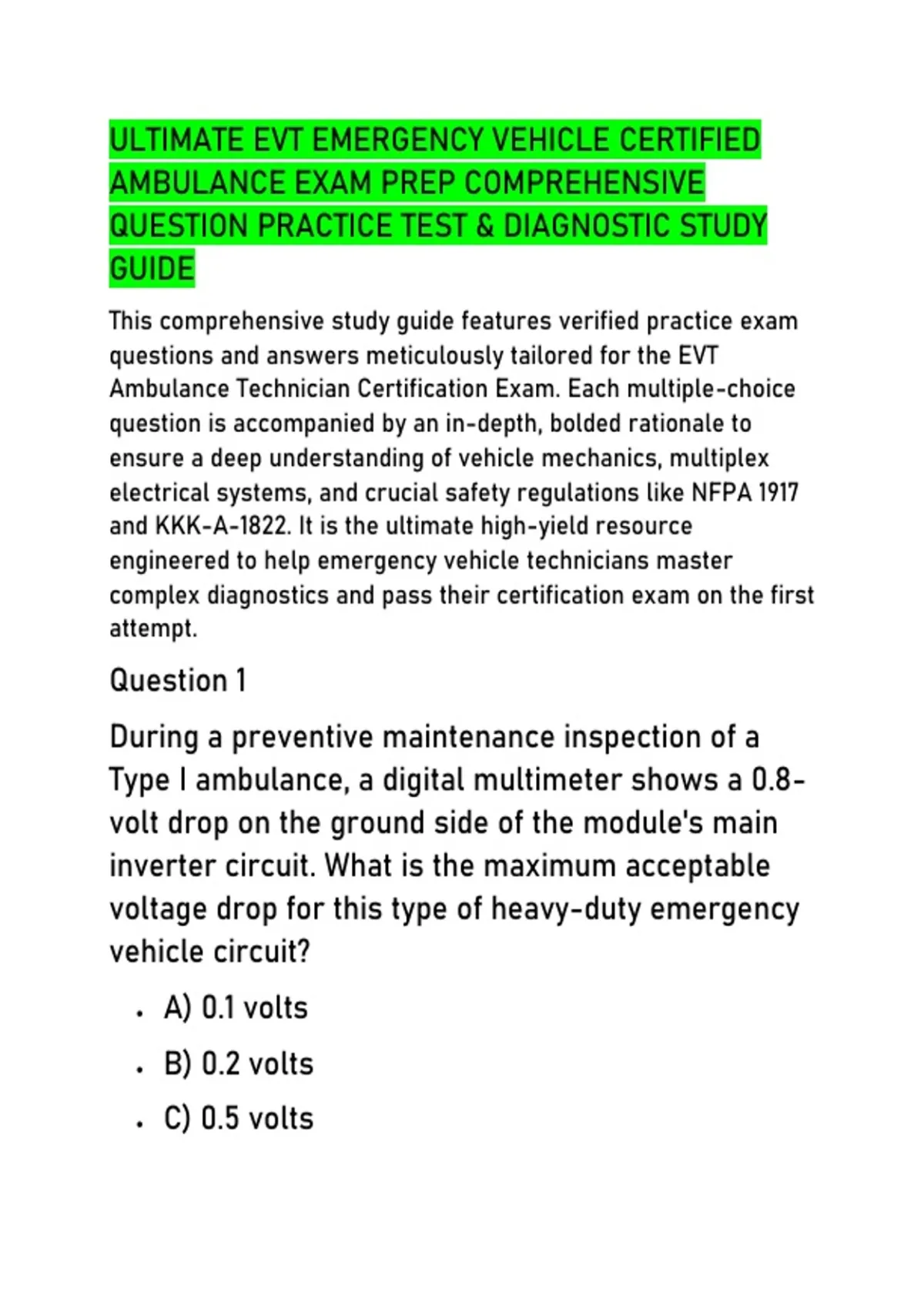

ULTIMATE EVT EMERGENCY VEHICLE CERTIFIED
AMBULANCE EXAM PREP COMPREHENSIVE
QUESTION PRACTICE TEST & DIAGNOSTIC STUDY
GUIDE
This comprehensive study guide features verified practice exam
questions and answers meticulously tailored for the EVT
Ambulance Technician Certification Exam. Each multiple-choice
question is accompanied by an in-depth, bolded rationale to
ensure a deep understanding of vehicle mechanics, multiplex
electrical systems, and crucial safety regulations like NFPA 1917
and KKK-A-1822. It is the ultimate high-yield resource
engineered to help emergency vehicle technicians master
complex diagnostics and pass their certification exam on the first
attempt.
Question 1
During a preventive maintenance inspection of a
Type I ambulance, a digital multimeter shows a 0.8-
volt drop on the ground side of the module's main
inverter circuit. What is the maximum acceptable
voltage drop for this type of heavy-duty emergency
vehicle circuit?
A) 0.1 volts
B) 0.2 volts
C) 0.5 volts
, D) 1.0 volts
Correct Answer: B) 0.2 volts
Rationale: According to standard emergency
vehicle electrical practices, the maximum
acceptable voltage drop across a critical ground
circuit or heavy-duty power circuit is 0.2 volts.
A reading of 0.8 volts indicates excessive
resistance, which can cause erratic operation of
high-draw medical and conversion equipment.
Question 2
The digital load management system (sequential
wrapper/priority splicer) on an ambulance is
designed to protect the electrical system. When the
system detects a low-voltage condition (below 11.8V
for more than a minute), which action will it execute
first?
A) Shut down the primary patient compartment
HVAC system.
B) De-energize non-essential emergency
warning lights.
C) Raise the engine idle speed via the electronic
throttle control.
, D) Disconnect power to the main suction pump
and medical outlets.
Correct Answer: C) Raise the engine idle speed
via the electronic throttle control.
Rationale: Automatic load management systems
prioritize maintaining battery charge. When a
low-voltage threshold is crossed, the controller
first triggers the fast-idle system to increase
alternator output. If voltage remains low, it will
then shed non-essential loads sequentially.
Question 3
An ambulance equipped with a air-brake system
fails the static leakage test. The pressure drops by
4 psi within 1 minute with the engine off and brakes
released. What does this measurement indicate?
A) The system is operating within safe
compliance limits.
B) The primary brake chamber diaphragm is
ruptured.
C) The system has an unacceptable leak that
fails safety standards.
, D) The air compressor governor is out of
adjustment.
Correct Answer: C) The system has an
unacceptable leak that fails safety standards.
Rationale: For single vehicles with air brakes,
the maximum allowable static air leakage rate
is 2 psi per minute with the engine off and
brakes released. A drop of 4 psi indicates a
severe leak that makes the emergency vehicle
unsafe for service.
Question 4
When inspecting the high-pressure medical oxygen
delivery system, a technician notes that the line
pressure regulator is delivering 75 psi to the patient
compartment wall outlets. What is the standard
operational delivery pressure mandated by federal
ambulance specifications?
A) 30 to 40 psi
B) 50 to 55 psi
C) 80 to 90 psi
D) 100 to 110 psi
Correct Answer: B) 50 to 55 psi
