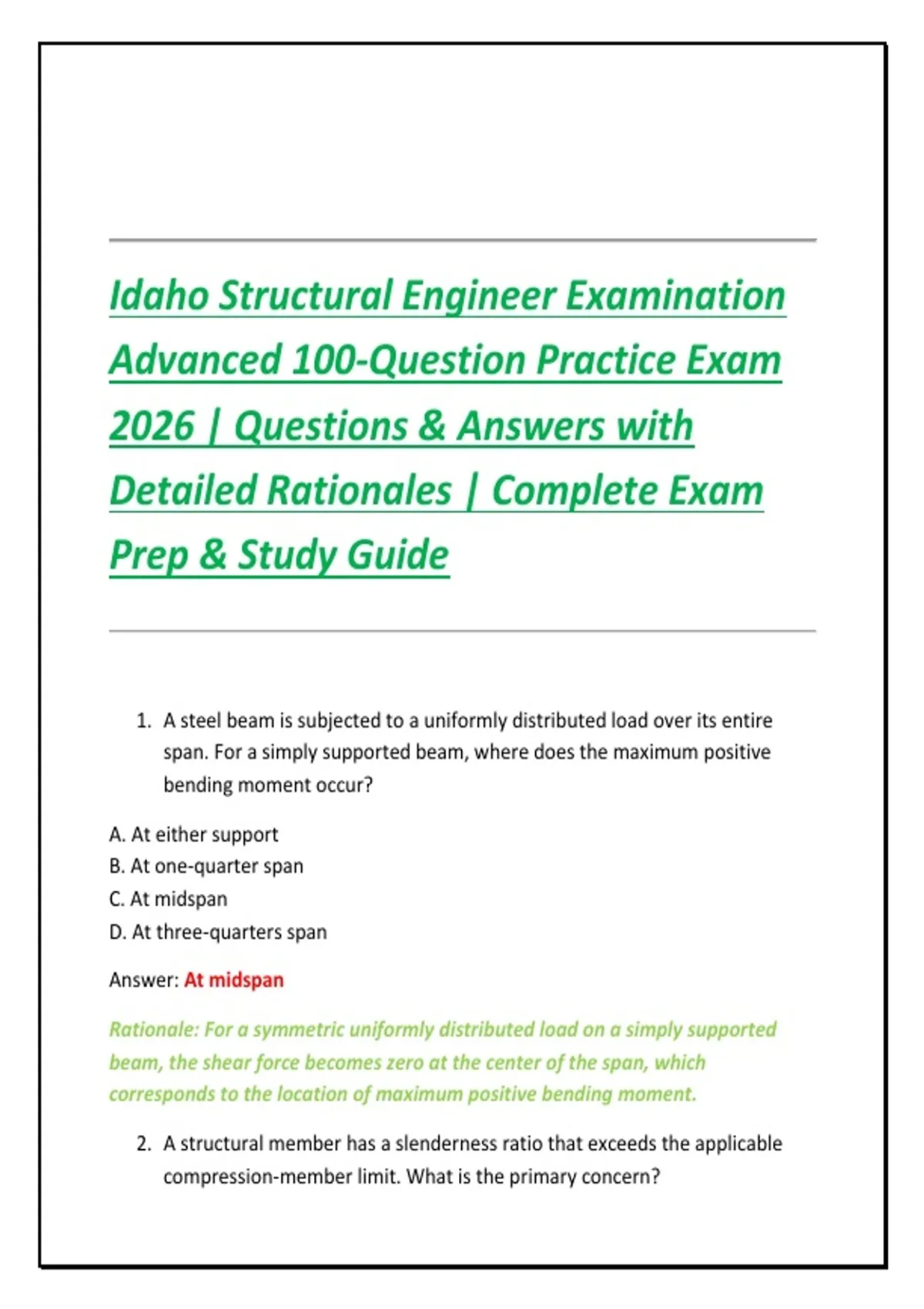

Idaho Structural Engineer Examination
Advanced 100-Question Practice Exam
2026 | Questions & Answers with
Detailed Rationales | Complete Exam
Prep & Study Guide
1. A steel beam is subjected to a uniformly distributed load over its entire
span. For a simply supported beam, where does the maximum positive
bending moment occur?
A. At either support
B. At one-quarter span
C. At midspan
D. At three-quarters span
Answer: At midspan
Rationale: For a symmetric uniformly distributed load on a simply supported
beam, the shear force becomes zero at the center of the span, which
corresponds to the location of maximum positive bending moment.
2. A structural member has a slenderness ratio that exceeds the applicable
compression-member limit. What is the primary concern?
,A. Excessive tensile yielding
B. Elastic or inelastic buckling
C. Concrete shrinkage
D. Fatigue cracking only
Answer: Elastic or inelastic buckling
Rationale: Slender compression members can become unstable before reaching
their nominal squash load. The governing failure mode depends on the member
slenderness and material properties.
3. A rectangular reinforced-concrete beam is designed as a tension-controlled
flexural member. Which reinforcement primarily resists positive bending
tension?
A. Compression reinforcement
B. Transverse reinforcement
C. Bottom longitudinal reinforcement
D. Concrete cover
Answer: Bottom longitudinal reinforcement
Rationale: For a conventional simply supported beam under gravity loading, the
bottom fibers are in tension near midspan, so longitudinal reinforcement is
placed near the bottom face to resist tensile flexural forces.
4. In an indeterminate frame, a temperature increase can generate significant
internal forces primarily because:
A. Steel loses all stiffness
B. Thermal expansion is restrained
C. Gravity loads increase automatically
D. Concrete becomes weightless
Answer: Thermal expansion is restrained
,Rationale: Free thermal expansion produces little or no stress, but restraint
prevents the associated deformation and produces axial forces, bending, or
both.
5. For a beam-column subjected to significant axial compression and bending,
which interaction is most important?
A. Axial force and flexural strength
B. Shear and concrete creep only
C. Torsion and temperature only
D. Bearing and corrosion only
Answer: Axial force and flexural strength
Rationale: Beam-columns must be checked for combined axial and flexural
effects, including second-order behavior when applicable.
6. A structure has a fundamental period significantly longer than that of a stiff
structure of the same height. Generally, what does this indicate?
A. Greater structural stiffness
B. Greater structural flexibility
C. Zero seismic response
D. No lateral displacement
Answer: Greater structural flexibility
Rationale: Fundamental period generally increases as structural stiffness
decreases relative to mass. Flexible structures typically have longer vibration
periods.
7. Which failure mode is particularly important for a laterally unsupported
steel beam subjected to major-axis bending?
A. Lateral-torsional buckling
B. Punching shear
C. Concrete crushing
D. Soil liquefaction
, Answer: Lateral-torsional buckling
Rationale: A beam with inadequate lateral bracing can twist and deflect
laterally while bending, reducing its available flexural strength.
8. The effective length factor, K, is used in steel column design primarily to
account for:
A. Concrete strength
B. End restraint and frame stability conditions
C. Beam dead load
D. Weld electrode classification
Answer: End restraint and frame stability conditions
Rationale: The effective length concept represents the influence of boundary
conditions and structural framing on the buckling length of a compression
member.
9. A structural engineer discovers that a proposed column has inadequate
axial capacity. Which modification generally increases its elastic buckling
resistance most directly?
A. Increasing unsupported length
B. Reducing its moment of inertia
C. Increasing its radius of gyration
D. Removing lateral bracing
Answer: Increasing its radius of gyration
Rationale: Euler buckling strength depends strongly on slenderness, which is
reduced when the radius of gyration increases, assuming other variables remain
constant.
10.In a steel tension member with a bolted connection, the net section is
important because:
