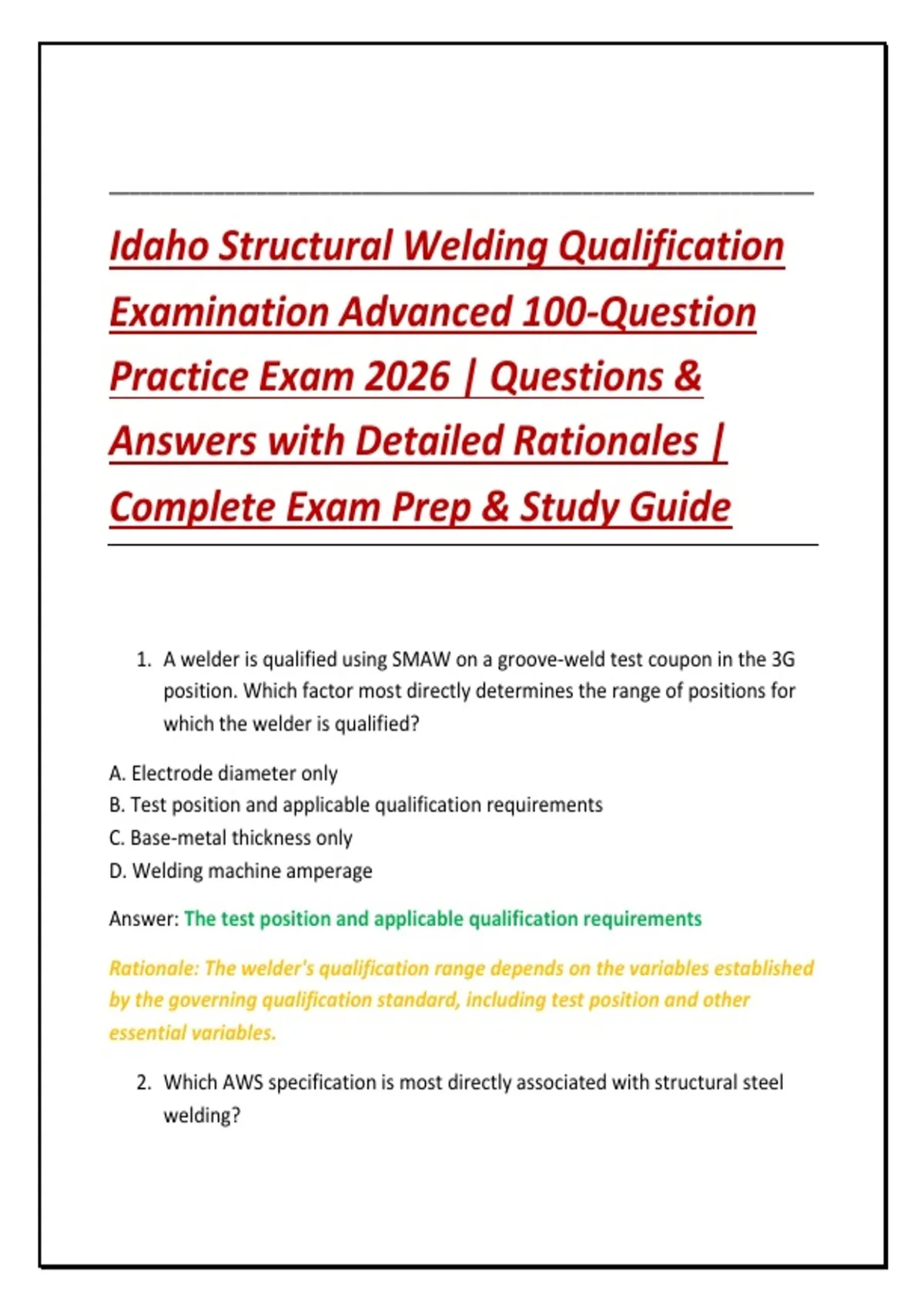

Idaho Structural Welding Qualification
Examination Advanced 100-Question
Practice Exam 2026 | Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. A welder is qualified using SMAW on a groove-weld test coupon in the 3G
position. Which factor most directly determines the range of positions for
which the welder is qualified?
A. Electrode diameter only
B. Test position and applicable qualification requirements
C. Base-metal thickness only
D. Welding machine amperage
Answer: The test position and applicable qualification requirements
Rationale: The welder's qualification range depends on the variables established
by the governing qualification standard, including test position and other
essential variables.
2. Which AWS specification is most directly associated with structural steel
welding?
,A. AWS D1.2
B. AWS D1.4
C. AWS D1.1/D1.1M
D. AWS D9.1
Answer: AWS D1.1/D1.1M
Rationale: AWS D1.1/D1.1M is the primary AWS structural welding code for
steel and is widely specified for structural steel work.
3. What is the primary purpose of a Welding Procedure Specification (WPS)?
A. To document the welder's employment history
B. To define the variables and practices required to produce an acceptable weld
C. To establish the structural engineer's license
D. To replace welder qualification testing
Answer: To define the variables and practices required to produce an acceptable
weld
Rationale: A WPS provides controlled welding variables such as process, filler
metal, preheat, interpass temperature, current, voltage, travel speed, and
technique.
4. A welder produces excessive undercut along the toe of a fillet weld. Which
adjustment is most likely to reduce the problem?
A. Increase travel speed substantially
B. Improve electrode manipulation and reduce excessive current
C. Increase arc length dramatically
D. Remove all preheat
Answer: Improve electrode manipulation and reduce excessive current
Rationale: Excessive current and poor manipulation can cause undercut. Proper
amperage and controlled electrode movement help maintain adequate fusion at
the toes.
, 5. What is the principal purpose of preheating carbon steel before welding?
A. Increase electrical resistance
B. Reduce cooling rate and help minimize hydrogen cracking
C. Eliminate the need for filler metal
D. Increase weld porosity
Answer: Reduce cooling rate and help minimize hydrogen cracking
Rationale: Preheat slows cooling, reduces thermal gradients, and helps
hydrogen diffuse from the weld area, reducing susceptibility to cracking.
6. Which electrode classification is commonly associated with a 70-ksi
minimum tensile-strength SMAW electrode?
A. E6010
B. E6013
C. E7018
D. E8018
Answer: E7018
Rationale: The “70” indicates a nominal minimum tensile strength of 70 ksi for
the deposited weld metal under the classification system.
7. What is the primary concern with using moisture-contaminated low-
hydrogen electrodes?
A. Reduced electrical conductivity only
B. Increased diffusible hydrogen and potential cracking
C. Excessive tungsten inclusion
D. Increased shielding-gas pressure
Answer: Increased diffusible hydrogen and potential cracking
Rationale: Moisture can introduce hydrogen into the weld deposit, increasing
the risk of hydrogen-assisted cracking, particularly in susceptible steels and
restrained joints.
, 8. What is a major advantage of FCAW in structural fabrication?
A. It cannot be used outdoors
B. It can provide high deposition rates and productivity
C. It always eliminates shielding gas
D. It requires no operator skill
Answer: It can provide high deposition rates and productivity
Rationale: Flux-cored arc welding can produce high deposition rates and is
widely used for structural fabrication because of its productivity and versatility.
9. In GMAW, what protects the molten weld pool from atmospheric
contamination?
A. Flux coating exclusively
B. Shielding gas
C. Electrode insulation
D. Backing bar
Answer: Shielding gas
Rationale: GMAW uses externally supplied shielding gas to protect the arc and
molten metal from oxygen, nitrogen, and other atmospheric contaminants.
10.What is the primary function of a backing bar in a complete-joint-
penetration groove weld?
A. Reduce electrode diameter
B. Support molten metal and help achieve the required root geometry
C. Eliminate preheat
D. Increase hydrogen content
Answer: Support molten metal and help achieve the required root geometry
Rationale: Backing provides support at the root and helps control penetration
and weld profile during welding.
