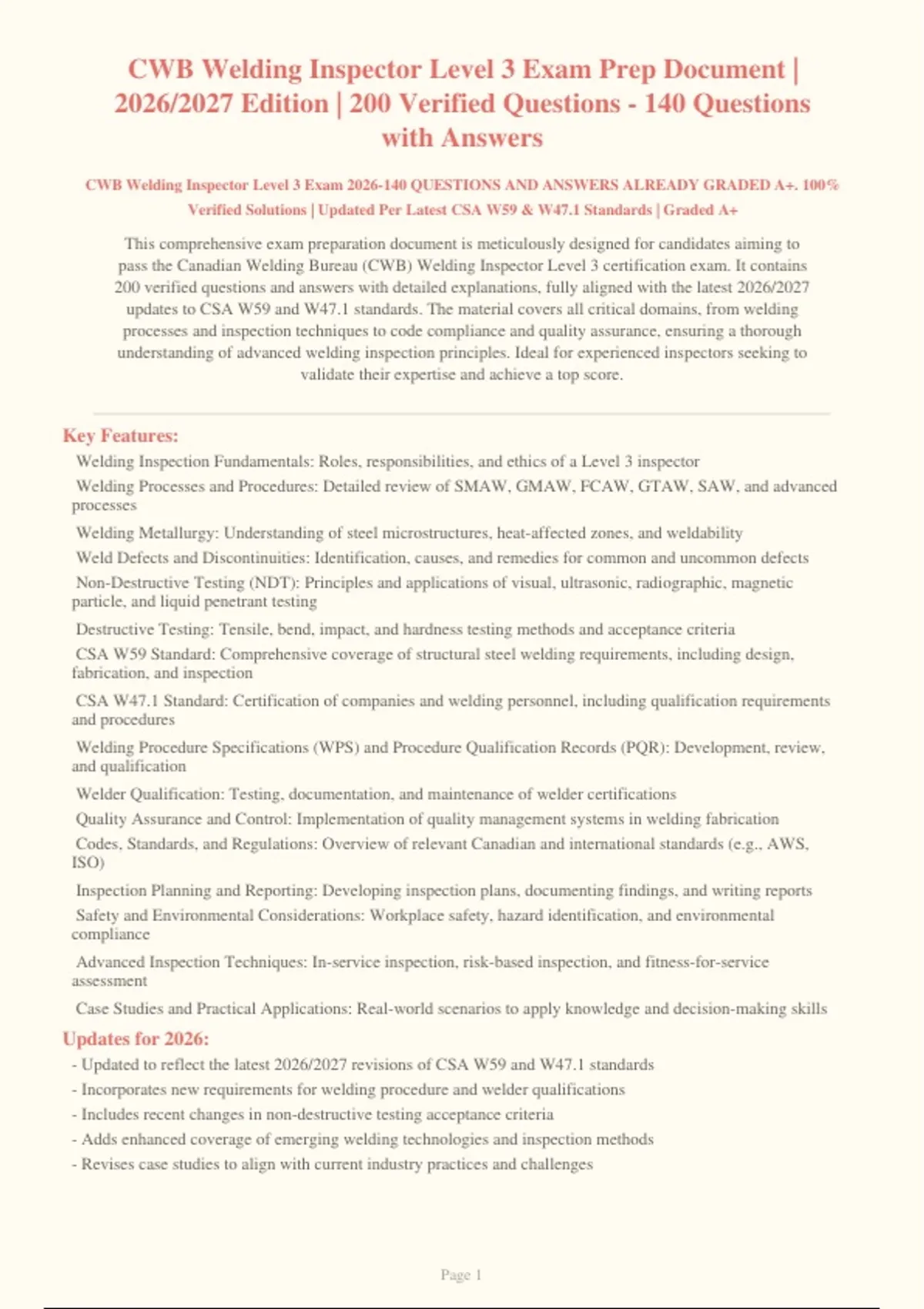

CWB Welding Inspector Level 3 Exam Prep Document |
2026/2027 Edition | 200 Verified Questions - 140 Questions
with Answers
CWB Welding Inspector Level 3 Exam 2026-140 QUESTIONS AND ANSWERS ALREADY GRADED A+. 100%
Verified Solutions | Updated Per Latest CSA W59 & W47.1 Standards | Graded A+
This comprehensive exam preparation document is meticulously designed for candidates aiming to
pass the Canadian Welding Bureau (CWB) Welding Inspector Level 3 certification exam. It contains
200 verified questions and answers with detailed explanations, fully aligned with the latest 2026/2027
updates to CSA W59 and W47.1 standards. The material covers all critical domains, from welding
processes and inspection techniques to code compliance and quality assurance, ensuring a thorough
understanding of advanced welding inspection principles. Ideal for experienced inspectors seeking to
validate their expertise and achieve a top score.
Key Features:
Welding Inspection Fundamentals: Roles, responsibilities, and ethics of a Level 3 inspector
Welding Processes and Procedures: Detailed review of SMAW, GMAW, FCAW, GTAW, SAW, and advanced
processes
Welding Metallurgy: Understanding of steel microstructures, heat-affected zones, and weldability
Weld Defects and Discontinuities: Identification, causes, and remedies for common and uncommon defects
Non-Destructive Testing (NDT): Principles and applications of visual, ultrasonic, radiographic, magnetic
particle, and liquid penetrant testing
Destructive Testing: Tensile, bend, impact, and hardness testing methods and acceptance criteria
CSA W59 Standard: Comprehensive coverage of structural steel welding requirements, including design,
fabrication, and inspection
CSA W47.1 Standard: Certification of companies and welding personnel, including qualification requirements
and procedures
Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR): Development, review,
and qualification
Welder Qualification: Testing, documentation, and maintenance of welder certifications
Quality Assurance and Control: Implementation of quality management systems in welding fabrication
Codes, Standards, and Regulations: Overview of relevant Canadian and international standards (e.g., AWS,
ISO)
Inspection Planning and Reporting: Developing inspection plans, documenting findings, and writing reports
Safety and Environmental Considerations: Workplace safety, hazard identification, and environmental
compliance
Advanced Inspection Techniques: In-service inspection, risk-based inspection, and fitness-for-service
assessment
Case Studies and Practical Applications: Real-world scenarios to apply knowledge and decision-making skills
Updates for 2026:
- Updated to reflect the latest 2026/2027 revisions of CSA W59 and W47.1 standards
- Incorporates new requirements for welding procedure and welder qualifications
- Includes recent changes in non-destructive testing acceptance criteria
- Adds enhanced coverage of emerging welding technologies and inspection methods
- Revises case studies to align with current industry practices and challenges
Page 1
,Abstract:
This exam preparation guide is an authoritative resource for the CWB Welding Inspector Level 3 certification,
offering a rigorous compilation of 200 questions and answers that mirror the exam's complexity and scope. The
content is systematically organized to cover all essential topics, from foundational welding principles to advanced
inspection methodologies, with a strong emphasis on the latest CSA W59 and W47.1 standards. Each question is
accompanied by a detailed explanation that not only justifies the correct answer but also clarifies why the
distractors are incorrect, thereby reinforcing conceptual understanding. The guide is designed to facilitate active
learning and retention, making it an indispensable tool for candidates seeking to achieve a high score and
demonstrate professional competence. By integrating theoretical knowledge with practical application, this
document ensures that inspectors are well-prepared to handle the challenges of modern welding inspection and
quality assurance.
Keywords:
CWB Level 3, Welding Inspector, CSA W59, CSA W47.1, Exam Prep, Welding Inspection, NDT, Quality Assurance
Answer Format:
Each question is presented in multiple-choice format with four options (A, B, C, D). The correct answer is clearly
indicated, followed by a comprehensive explanation that details the reasoning behind the answer and references
relevant clauses from CSA W59 or W47.1 where applicable. Incorrect options are also analyzed to highlight
common misconceptions and reinforce learning.
Compliance Checklist:
All questions are 100% verified and aligned with the latest CWB Level 3 exam blueprint
Updated to reflect the 2026/2027 CSA W59 and W47.1 standards
Detailed explanations for every answer, including rationale for incorrect options
Coverage of all major domains and sub-topics as per the official syllabus
Designed to simulate the actual exam difficulty and format
Content Area Overview:
Content Area Questions Key Topics Weight
Welding Inspection 1-20 Role of inspector, ethics, communication, 10%
Fundamentals documentation
Welding Processes and 21-50 SMAW, GMAW, FCAW, GTAW, SAW, 15%
Procedures process selection
Welding Metallurgy 51-70 Steel microstructures, HAZ, weldability, 10%
preheat, post-weld heat treatment
Weld Defects and 71-90 Types, causes, detection, prevention 10%
Discontinuities
Non-Destructive Testing (NDT) 91-120 Visual, ultrasonic, radiographic, magnetic 15%
particle, liquid penetrant
Destructive Testing 121-140 Tensile, bend, impact, hardness, acceptance 10%
criteria
CSA W59 and W47.1 Standards 141-170 Structural steel welding, company 15%
certification, welder qualification
Quality Assurance and Control 171-190 Quality management, inspection planning, 10%
reporting, corrective actions
Advanced Topics and Case 191-200 In-service inspection, risk-based inspection, 5%
Studies fitness-for-service, case studies
Page 2
,Q1. During a preheat verification for a 25 mm thick quenched and tempered steel
(ASTM A514) welded with a matching filler metal, the interpass temperature is
measured at 95°C. The WPS requires a minimum preheat of 24°C and a maximum
interpass of 205°C. Which of the following is the most correct action for the CWB
Level 3 Inspector?
A. Accept the joint, as the temperature is within the required range.
B. Reject the joint, because the interpass temperature must not exceed 150°C for
quenched and tempered steels.
C. Reject the joint, because the interpass temperature must be at least 100°C to prevent
hydrogen cracking.
D. Accept the joint, but require immediate post-weld heat treatment to prevent
cracking.
Correct Answer: A. Accept the joint, as the temperature is within the required range.
Rationale: The interpass temperature of 95°C is above the minimum preheat of 24°C and
below the maximum of 205°C, so it complies with the WPS. There is no code requirement
for a mandatory 100°C minimum or a 150°C maximum for this steel class; the WPS
governs. No PWHT is required solely based on this temperature.
Why Wrong:
B - Incorrectly imposes a 150°C cap that is not a universal requirement; the WPS
specifies 205°C.
C - Incorrectly imposes a 100°C minimum that is not in the WPS or code.
D - PWHT is not triggered by interpass temperature alone; the WPS and code dictate
PWHT requirements.
Reference: CSA W59-18, Clause 7.2.2; CSA W47.1-19, Clause 12.2.3
Q2. A welder has been qualified for a 3G (vertical-up) position on 12 mm thick plate
using SMAW. According to CSA W47.1, which of the following production welds is
the welder NOT automatically qualified to perform?
A. A 10 mm thick plate groove weld in the 3G position.
B. A 20 mm thick plate groove weld in the 3G position.
C. A 12 mm thick plate fillet weld in the 3G position.
D. A 12 mm thick pipe groove weld in the 3G position.
Correct Answer: D. A 12 mm thick pipe groove weld in the 3G position.
Rationale: CSA W47.1 restricts a plate qualification to plate production; pipe
qualifications are separate. The thickness range for a 12 mm plate qualification typically
covers 5 mm to 24 mm (or 2T), so 10 mm and 20 mm are within range. Fillet welds are
covered by a groove weld qualification. Pipe is not covered by a plate test.
Why Wrong:
A - 10 mm is within the thickness range for a 12 mm qualification.
Page 3
, B - 20 mm is within the thickness range (up to 2T).
C - A groove weld qualification covers fillet welds in the same position and thickness
range.
Reference: CSA W47.1-19, Clause 12.2.1 and Table 1
Q3. During a radiographic examination of a butt weld, a film interpreter notes a
dark, straight line running parallel to the weld centerline at the root. The line has a
width of 1.5 mm and a length of 30 mm. The weld is 12 mm thick and the acceptance
criteria are per CSA W59. What is the most likely interpretation and disposition?
A. Acceptable, as it is likely a root undercut that is within the 1 mm depth limit.
B. Rejectable, as it is likely a crack and any crack is unacceptable.
C. Acceptable, as it is likely a slag line that is less than 40 mm in length.
D. Rejectable, as it is likely incomplete fusion and any incomplete fusion is
unacceptable.
Correct Answer: B. Rejectable, as it is likely a crack and any crack is unacceptable.
Rationale: A straight, dark line running parallel to the weld centerline at the root is
characteristic of a root crack (typically centerline cracking). CSA W59 prohibits any crack
regardless of size. Undercut, slag lines, and incomplete fusion have different radiographic
appearances and acceptance criteria.
Why Wrong:
A - Undercut appears as a dark line at the toe, not at the root centerline, and has
different acceptance limits.
C - Slag lines are usually irregular, not straight and continuous like a crack.
D - Incomplete fusion appears as a dark line but often at the fusion line, not centerline,
and is rejectable but the question asks for the most likely interpretation.
Reference: CSA W59-18, Clause 12.5.2.2; ASTM E390
Q4. A CWB Level 3 Inspector is auditing a fabrication shop that uses a flux-cored arc
welding (FCAW) process with an E71T-1 electrode. The manufacturer's certificate
indicates a diffusible hydrogen level of 12 mL/100g. Which of the following is the
correct classification and potential impact?
A. H12, acceptable for most applications but may require preheat for high-strength
steels.
B. H16, requires immediate post-weld hydrogen baking.
C. H8, acceptable for all applications without preheat.
D. H5, requires special low-hydrogen handling procedures.
Correct Answer: A. H12, acceptable for most applications but may require preheat
for high-strength steels.
Page 4
