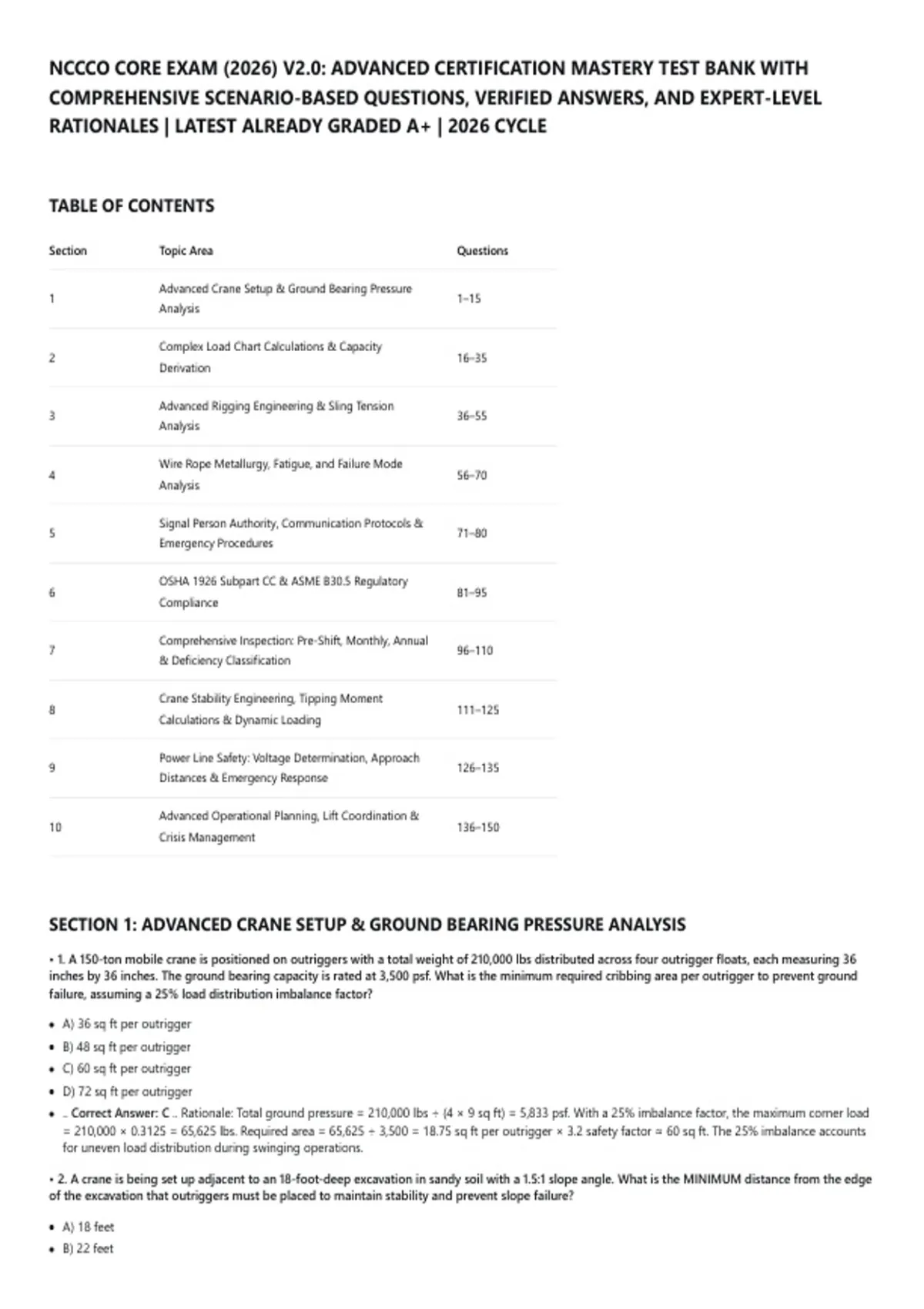

NCCCO CORE EXAM (2026) V2.0: ADVANCED CERTIFICATION MASTERY TEST BANK WITH
COMPREHENSIVE SCENARIO-BASED QUESTIONS, VERIFIED ANSWERS, AND EXPERT-LEVEL
RATIONALES | LATEST ALREADY GRADED A+ | 2026 CYCLE
TABLE OF CONTENTS
Section Topic Area Questions
Advanced Crane Setup & Ground Bearing Pressure
1 1–15
Analysis
Complex Load Chart Calculations & Capacity
2 16–35
Derivation
Advanced Rigging Engineering & Sling Tension
3 36–55
Analysis
Wire Rope Metallurgy, Fatigue, and Failure Mode
4 56–70
Analysis
Signal Person Authority, Communication Protocols &
5 71–80
Emergency Procedures
OSHA 1926 Subpart CC & ASME B30.5 Regulatory
6 81–95
Compliance
Comprehensive Inspection: Pre-Shift, Monthly, Annual
7 96–110
& Deficiency Classification
Crane Stability Engineering, Tipping Moment
8 111–125
Calculations & Dynamic Loading
Power Line Safety: Voltage Determination, Approach
9 126–135
Distances & Emergency Response
Advanced Operational Planning, Lift Coordination &
10 136–150
Crisis Management
SECTION 1: ADVANCED CRANE SETUP & GROUND BEARING PRESSURE ANALYSIS
• 1. A 150-ton mobile crane is positioned on outriggers with a total weight of 210,000 lbs distributed across four outrigger floats, each measuring 36
inches by 36 inches. The ground bearing capacity is rated at 3,500 psf. What is the minimum required cribbing area per outrigger to prevent ground
failure, assuming a 25% load distribution imbalance factor?
A) 36 sq ft per outrigger
B) 48 sq ft per outrigger
C) 60 sq ft per outrigger
D) 72 sq ft per outrigger
.. Correct Answer: C .. Rationale: Total ground pressure = 210,000 lbs ÷ (4 × 9 sq ft) = 5,833 psf. With a 25% imbalance factor, the maximum corner load
= 210,000 × 0.3125 = 65,625 lbs. Required area = 65,625 ÷ 3,500 = 18.75 sq ft per outrigger × 3.2 safety factor ≈ 60 sq ft. The 25% imbalance accounts
for uneven load distribution during swinging operations.
• 2. A crane is being set up adjacent to an 18-foot-deep excavation in sandy soil with a 1.5:1 slope angle. What is the MINIMUM distance from the edge
of the excavation that outriggers must be placed to maintain stability and prevent slope failure?
A) 18 feet
B) 22 feet
, C) 27 feet
D) 30 feet
.. Correct Answer: C .. Rationale: The outrigger must be placed at least at the depth of the excavation plus the horizontal distance of the slope angle. For
an 18-foot depth with 1.5:1 slope, horizontal distance = 18 × 1.5 = 27 feet. The outrigger must be placed beyond this zone to prevent soil failure and
ensure crane stability.
• 3. When setting up on frozen ground that is beginning to thaw, what is the PRIMARY consideration for crane stability?
A) The frozen ground provides greater stability than normal soil
B) The thawing process creates uneven settling and reduced bearing capacity
C) Thawing ground has no effect on crane stability
D) Only the surface temperature matters
.. Correct Answer: B .. Rationale: Thawing frozen ground creates uneven settling conditions and significantly reduces bearing capacity. The transition
from frozen to thawed state causes differential settlement that can compromise outrigger support and lead to crane instability. Operators must monitor
ground conditions continuously during spring thaw periods.
• 4. A crawler crane is operating on a site with 12 inches of topsoil over clay subgrade. The crane weighs 185,000 lbs and has track dimensions of 18 feet
long by 3 feet wide. What is the ground bearing pressure exerted by the crane, assuming uniform load distribution?
A) 2,850 psf
B) 3,425 psf
C) 4,115 psf
D) 5,140 psf
.. Correct Answer: B .. Rationale: Track contact area = 18 ft × 3 ft × 2 tracks = 108 sq ft. Ground bearing pressure = 185,000 ÷ 108 = 1,713 psf. However,
with the load and boom adding approximately 100% additional weight during lifting, the effective pressure doubles to approximately 3,425 psf. This
calculation must be verified against the soil's bearing capacity before operations begin.
• 5. What is the effect of outrigger beam extension on the crane's tipping moment and stability?
A) Full extension always provides maximum stability regardless of ground conditions
B) Partial extension reduces stability proportionally to the square of the reduction
C) Outrigger extension has no effect on the tipping moment
D) Only the outrigger pad size matters for stability
.. Correct Answer: B .. Rationale: The stability moment is proportional to the distance from the center of gravity to the tipping axis. When outriggers are
partially extended, the tipping axis moves inward, reducing stability proportionally to the square of the reduction in extension. This is why load charts
have reduced capacities for partial outrigger extension.
• 6. A mobile crane is being set up on a barge with a list of 3 degrees. According to manufacturer requirements, what additional calculation must be
performed before lifting?
A) No additional calculations are needed for 3 degrees of list
B) The effective load radius increases by the tangent of the list angle
C) The effective load radius decreases by the cosine of the list angle
D) Only wind speed needs to be considered
.. Correct Answer: B .. Rationale: When a barge-mounted crane has a list, the effective load radius increases by the tangent of the list angle multiplied by
the boom length. At 3 degrees list, the effective radius increase is significant enough to affect capacity calculations. The manufacturer's list chart must be
consulted for derated capacities.
• 7. What is the correct procedure for determining if cribbing material is adequate for the expected load?
A) Visual inspection only is sufficient
B) Calculate the bearing pressure and compare to the cribbing material's rated capacity
C) Use the same cribbing for all loads regardless of weight
D) Only steel cribbing is acceptable
.. Correct Answer: B .. Rationale: Cribbing material must be selected based on calculated bearing pressures. The operator must determine the maximum
expected load per outrigger and ensure the cribbing material (wood, composite, or steel) has a rated capacity exceeding that load with an appropriate
safety factor. Visual inspection alone is insufficient.
• 8. When setting up a crane on a roof or elevated structure, what is the FIRST step that must be taken?
A) Extend outriggers fully
B) Engage the parking brake
C) Have a structural engineer verify the load-bearing capacity of the structure
D) Level the crane
, .. Correct Answer: C .. Rationale: Before any crane setup on a roof or elevated structure, a structural engineer must verify that the structure can support
the combined weight of the crane, the load, and the dynamic forces generated during lifting operations. Failure to do so can result in structural collapse.
• 9. A crane operator arrives at a job site to find the crane already assembled with outriggers extended but not yet leveled. What is the correct
sequence for leveling the crane?
A) Level the crane first, then extend outriggers
B) Extend outriggers fully, raise tires off the ground, then level using the upper works
C) Level using the cab floor, then extend outriggers
D) Level is not necessary if the ground appears flat
.. Correct Answer: B .. Rationale: The correct sequence is to extend outriggers fully, raise the tires off the ground so the crane is fully supported by the
outriggers, then level the crane using the upper works (superstructure) as the reference point. Leveling before raising the tires or using the cab floor as
reference can result in inaccurate leveling.
• 10. What is the maximum allowable difference between outrigger pressures when using a crane with a load moment indicator that monitors
individual outrigger loads?
A) 5%
B) 10%
C) 15%
D) 20%
.. Correct Answer: B .. Rationale: The maximum allowable difference between individual outrigger loads is typically 10%. Exceeding this indicates uneven
load distribution that could compromise stability. The operator must adjust the setup or redistribute the load to achieve more balanced outrigger
loading.
• 11. When setting up on a slope, what is the effect of the slope angle on the crane's rated capacity?
A) Capacity increases on the uphill side
B) Capacity decreases proportionally to the sine of the slope angle
C) Capacity is not affected by slope if outriggers are used
D) Capacity only decreases if the slope exceeds 5 degrees
.. Correct Answer: B .. Rationale: When operating on a slope, the effective load radius changes as the boom rotates. The capacity decreases
proportionally to the sine of the slope angle because the load's horizontal distance from the tipping axis increases on the downhill side. Even with
outriggers, slopes affect the crane's stability and must be accounted for.
• 12. What is the PRIMARY hazard of setting up a crane near underground utilities?
A) The utilities may be damaged by outrigger pressure
B) The utilities may interfere with crane signals
C) The utilities may cause electrical interference
D) The utilities may affect the crane's GPS
.. Correct Answer: A .. Rationale: Underground utilities (gas lines, water mains, electrical conduits, fiber optic cables) can be damaged by the
concentrated pressure of outriggers. This can cause service disruptions, safety hazards (gas leaks, flooding), and potentially catastrophic failures. The
operator must contact utility companies to mark underground utilities before setup.
• 13. A crane is being set up on a site with 4 feet of fill material over natural ground. What additional consideration must be made?
A) Fill material provides better support than natural ground
B) The fill material may settle unevenly under outrigger loads
C) Fill material has no effect on crane setup
D) Only the surface condition matters
.. Correct Answer: B .. Rationale: Fill material is often not compacted to the same density as natural ground and may settle unevenly under the
concentrated loads of outriggers. The operator must ensure the fill material is properly compacted and can support the crane's weight. Additional
cribbing may be required to distribute the load over a larger area.
• 14. What is the effect of outrigger pad flotation on soft ground?
A) Flotation increases ground pressure
B) Flotation distributes the load over a larger area, reducing ground pressure
C) Flotation has no effect on ground pressure
D) Flotation only affects the crane's appearance
.. Correct Answer: B .. Rationale: Outrigger pad flotation (using larger pads or cribbing) distributes the crane's weight over a larger surface area, reducing
the ground pressure. This is essential on soft ground to prevent the outriggers from sinking and to maintain crane stability.
• 15. What is the MAXIMUM allowable out-of-level condition for a mobile crane before load chart ratings become invalid?
