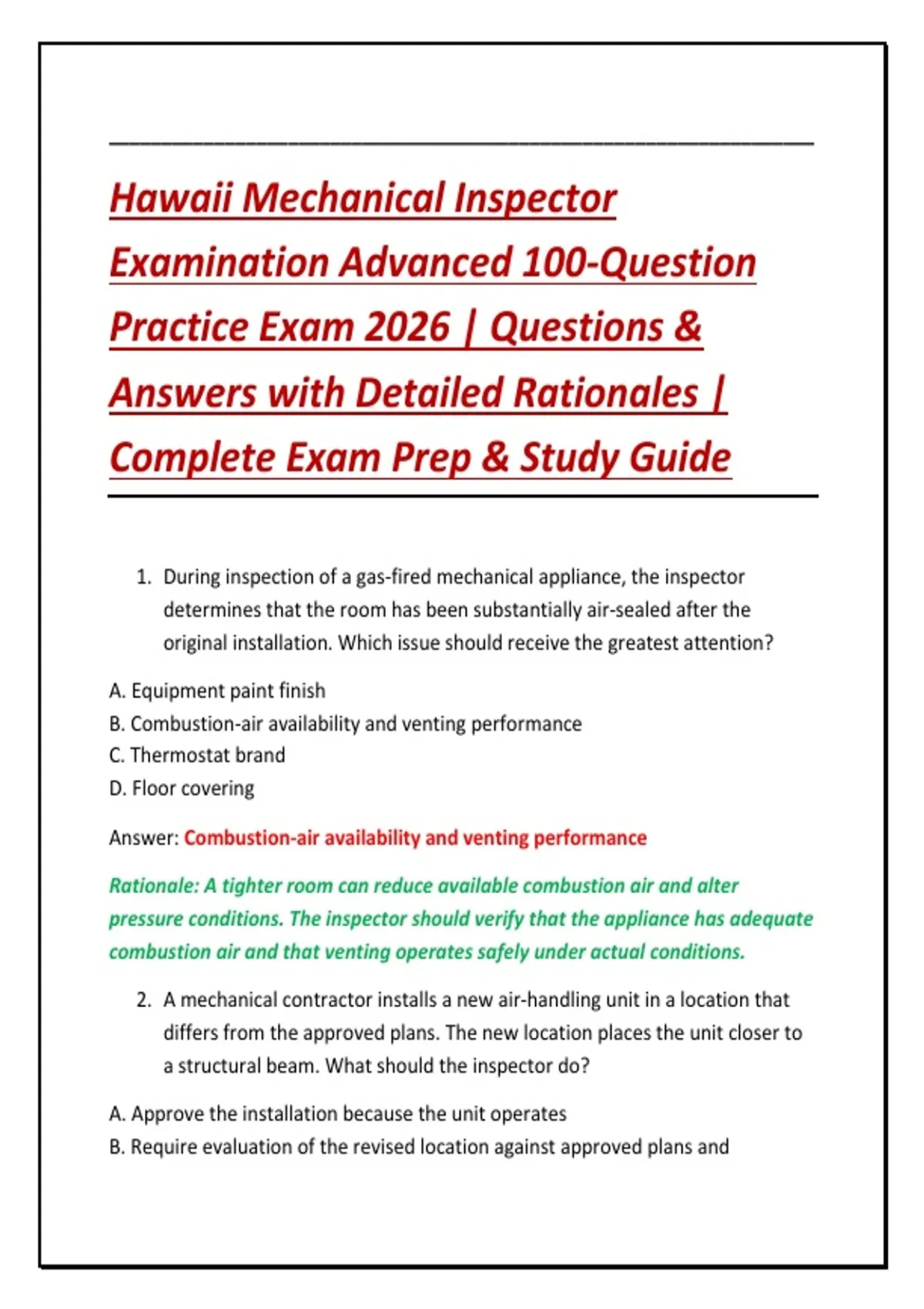

Hawaii Mechanical Inspector
Examination Advanced 100-Question
Practice Exam 2026 | Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. During inspection of a gas-fired mechanical appliance, the inspector
determines that the room has been substantially air-sealed after the
original installation. Which issue should receive the greatest attention?
A. Equipment paint finish
B. Combustion-air availability and venting performance
C. Thermostat brand
D. Floor covering
Answer: Combustion-air availability and venting performance
Rationale: A tighter room can reduce available combustion air and alter
pressure conditions. The inspector should verify that the appliance has adequate
combustion air and that venting operates safely under actual conditions.
2. A mechanical contractor installs a new air-handling unit in a location that
differs from the approved plans. The new location places the unit closer to
a structural beam. What should the inspector do?
A. Approve the installation because the unit operates
B. Require evaluation of the revised location against approved plans and
,applicable requirements
C. Require the contractor to remove the unit immediately without documentation
D. Ignore the location because mechanical equipment is movable
Answer: Require evaluation of the revised location against approved plans and
applicable requirements
Rationale: A change in equipment location can affect structural support, access,
duct routing, clearances, fire protection, condensate disposal, and serviceability.
3. A rooftop mechanical unit is properly anchored, but the anchorage does
not match the approved structural details. What is the inspector's primary
concern?
A. Equipment color
B. Whether the anchorage provides the required structural resistance
C. Thermostat location
D. Filter size
Answer: Whether the anchorage provides the required structural resistance
Rationale: Mechanical equipment on roofs can be subjected to significant
environmental forces. The installed anchorage must be structurally adequate
and consistent with the approved design.
4. An inspector discovers that a required fire damper has been installed but
cannot be accessed for inspection because permanent construction has
concealed the access location. What is the most appropriate response?
A. Approve because the damper is physically present
B. Require accessible inspection and service provisions
C. Remove the damper
D. Increase the duct size
Answer: Require accessible inspection and service provisions
,Rationale: Life-safety dampers must be accessible for inspection, maintenance,
testing, and replacement as required. A concealed damper that cannot be
serviced defeats part of its intended function.
5. A duct penetrates a fire-resistance-rated wall. The contractor fills the
opening with ordinary expanding foam. What should the inspector
determine?
A. Whether the material is specifically approved for the required fire-rated
penetration
B. Whether the foam is painted
C. Whether the duct is rectangular
D. Whether the air velocity is high enough
Answer: Whether the material is specifically approved for the required fire-
rated penetration
Rationale: Ordinary construction foam does not automatically provide the
required fire-resistance rating. Penetrations through rated assemblies require
approved protection appropriate to the assembly.
6. A mechanical shaft contains multiple ducts and piping systems. One duct
penetrates the shaft wall without approved firestopping. What is the
primary concern?
A. Increased cooling capacity
B. Loss of the required fire-resistance or smoke-control function of the shaft
C. Reduced compressor oil
D. Increased water pressure
Answer: Loss of the required fire-resistance or smoke-control function of the
shaft
Rationale: Shaft enclosures are intended to limit fire and smoke spread.
Unprotected mechanical penetrations can compromise that protection.
, 7. During commissioning, a combustion appliance produces excessive carbon
monoxide. Which group of conditions should the inspector investigate?
A. Combustion air, burner operation, fuel pressure, and venting
B. Paint color, ceiling height, and thermostat type
C. Condensate pipe diameter only
D. Filter brand only
Answer: Combustion air, burner operation, fuel pressure, and venting
Rationale: Excessive carbon monoxide can indicate incomplete combustion or
improper removal of combustion products. These conditions require immediate
investigation.
8. A natural-draft appliance is installed in a room served by a large exhaust
fan. When the exhaust fan operates, combustion products spill from the
appliance draft hood. What is the most likely cause?
A. Excessive positive pressure in the room
B. Negative pressure interfering with appliance draft
C. Excessive refrigerant charge
D. Oversized condensate piping
Answer: Negative pressure interfering with appliance draft
Rationale: Exhaust fans can depressurize a mechanical room and interfere with
natural draft, causing combustion products to spill into the occupied or
mechanical space.
9. A mechanical inspector finds a vent connector installed with a long
horizontal run and insufficient slope. What should be evaluated?
A. Whether condensate and combustion products can drain and flow properly
B. Whether the thermostat is programmable
C. Whether the boiler has enough insulation
D. Whether the duct is painted
