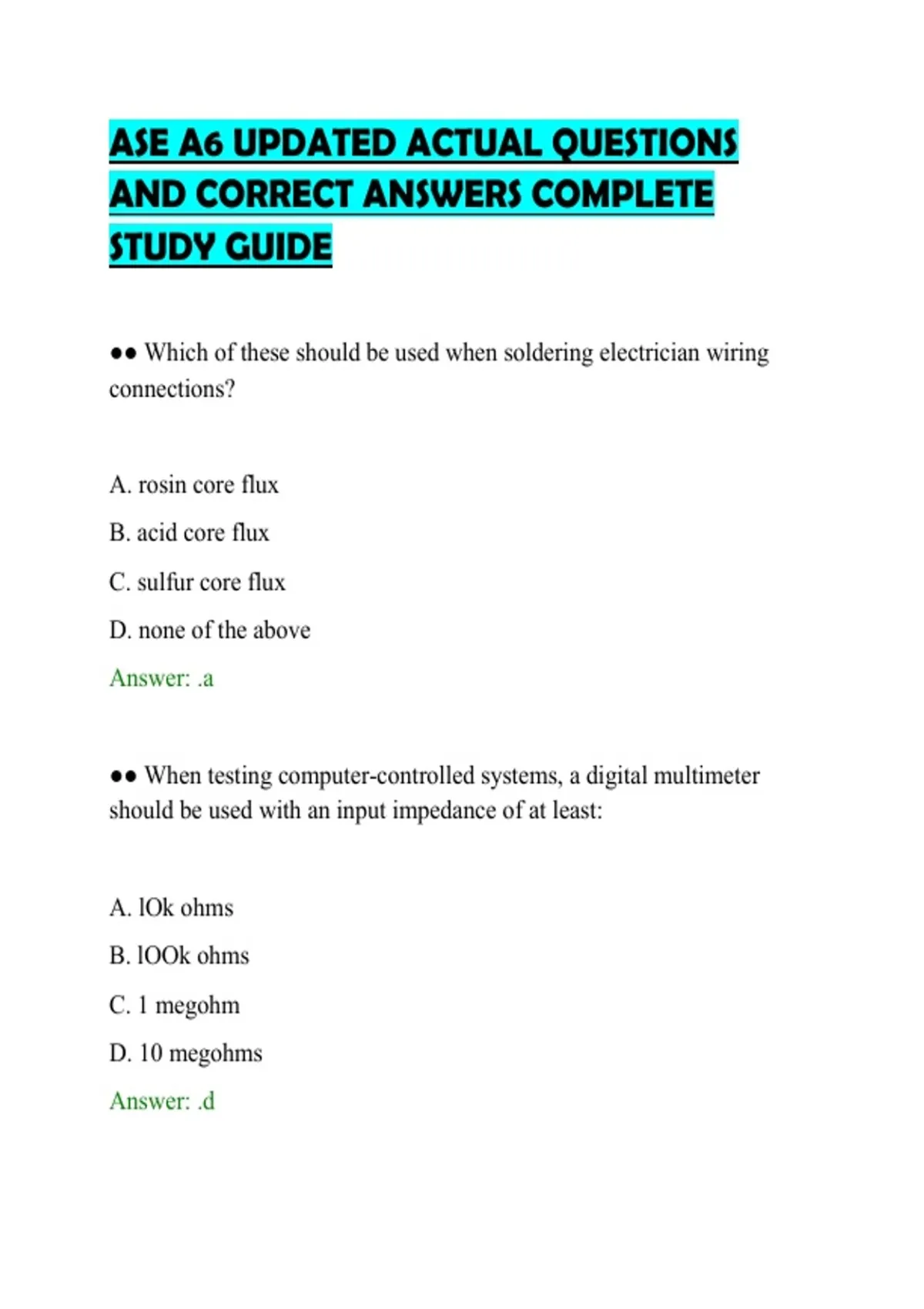

ASE A6 UPDATED ACTUAL QUESTIONS
AND CORRECT ANSWERS COMPLETE
STUDY GUIDE
●● Which of these should be used when soldering electrician wiring
connections?
A. rosin core flux
B. acid core flux
C. sulfur core flux
D. none of the above
Answer: .a
●● When testing computer-controlled systems, a digital multimeter
should be used with an input impedance of at least:
A. lOk ohms
B. lOOk ohms
C. 1 megohm
D. 10 megohms
Answer: .d
,●● When troubleshooting a slow drain on the battery, which if these
diagnostic tools should be used?
A. Ohmmeter
B. Ammeter
C. Voltmeter
D. Test fight
Answer: .b
●● The condition of a lead-acid battery is being checked. Technician A
says to use a galvanometer. Technician B says to use a capacitive battery
tester.
Who is right?
A. Technician A only
B. Technician B only
C. Both A and B
D. Neither A or B
Answer: .b
●● While testing a starting circuit on a 5.7L V8 engine, the technician
finds that the engine cranks slowly. The
,starter current draw is 90 amps, and the battery voltage while cranking is
11 volts. What should the technician do next?
A. Check for voltage drop of the starter motor circuit.
B. Test the battery capacity.
C. Replace the starter motor, as a short Is indicated.
D. Determine the condition of the engine.
Answer: .a
●● Technician A says that a noisy alternator could be caused by a bad
diode. Technician B says that a noisy alternator could be caused by a
worn bearing.
Who is right?
A. Technician A only
B. Technician B only
C. Both A and B
D. Neither A or B
Answer: .c
●● The analog ohmmeter needle does not move when connected as
shown above. (pg 82) This indicates that the rotor winding is:
, A. shorted
B. grounded
C. complete
D. open
Answer: .d
●● A vehicle's tum signals flash too slowly. Technician A claims that the
condition could be caused by a faulty flasher. Technician B says that a
bulb may be the wrong type.
Who is right?
A. Technician A only
B. Technician B only
C. Both A and B
D. Neither A or B
Answer: .c
●● Technician A says a short circuit to ground in a circuit will decrease
resistance. Technician B says a short circuit will Increase current flow.
Who is right?
A. Technician A only
B. Technician B only
