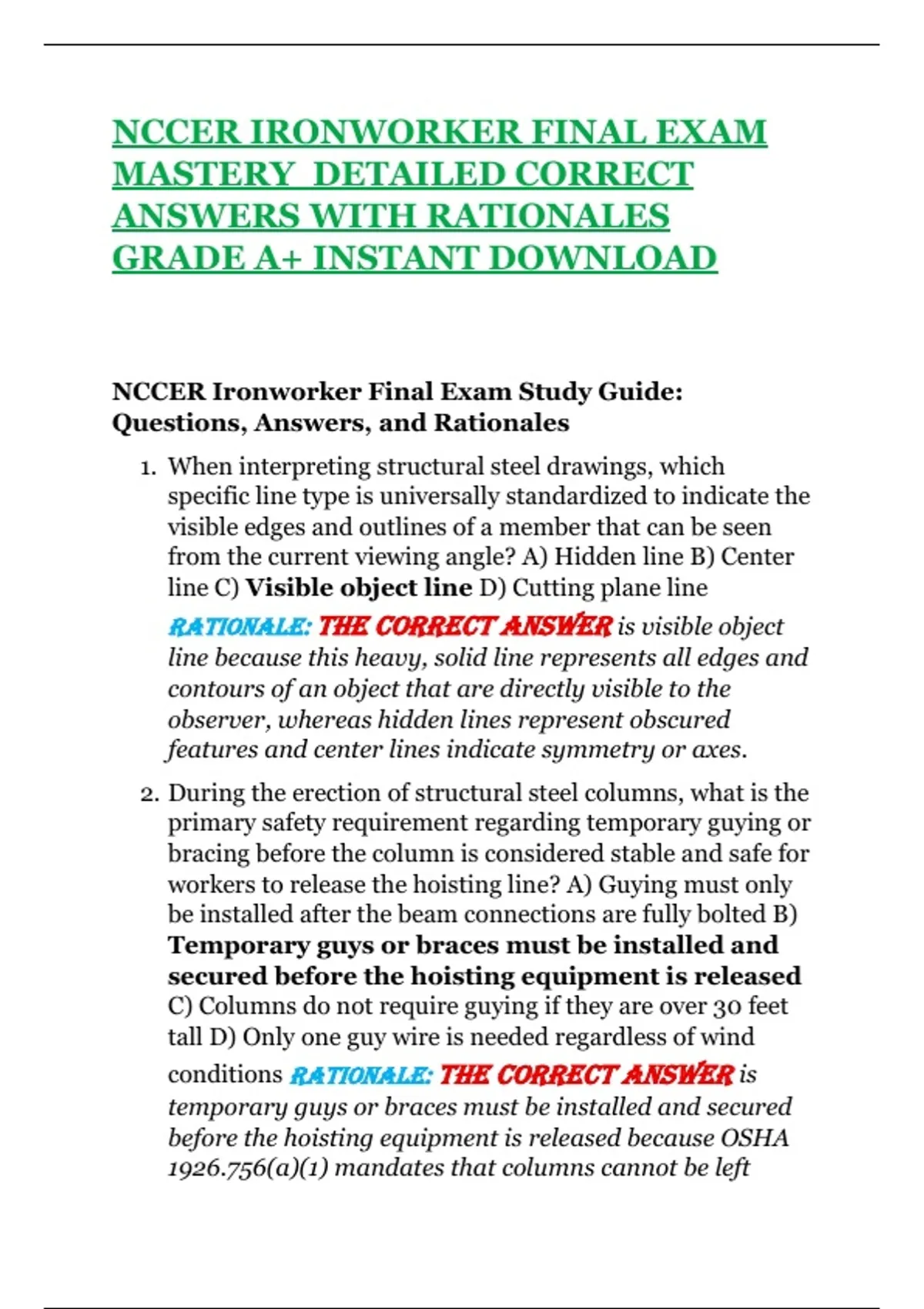

NCCER IRONWORKER FINAL EXAM
MASTERY DETAILED CORRECT
ANSWERS WITH RATIONALES
GRADE A+ INSTANT DOWNLOAD
NCCER Ironworker Final Exam Study Guide:
Questions, Answers, and Rationales
1. When interpreting structural steel drawings, which
specific line type is universally standardized to indicate the
visible edges and outlines of a member that can be seen
from the current viewing angle? A) Hidden line B) Center
line C) Visible object line D) Cutting plane line
Rationale: The correct answer is visible object
line because this heavy, solid line represents all edges and
contours of an object that are directly visible to the
observer, whereas hidden lines represent obscured
features and center lines indicate symmetry or axes.
2. During the erection of structural steel columns, what is the
primary safety requirement regarding temporary guying or
bracing before the column is considered stable and safe for
workers to release the hoisting line? A) Guying must only
be installed after the beam connections are fully bolted B)
Temporary guys or braces must be installed and
secured before the hoisting equipment is released
C) Columns do not require guying if they are over 30 feet
tall D) Only one guy wire is needed regardless of wind
conditions Rationale: The correct answer is
temporary guys or braces must be installed and secured
before the hoisting equipment is released because OSHA
1926.756(a)(1) mandates that columns cannot be left
, unbraced; stability must be achieved through positive
connection or guying prior to releasing the load to
prevent catastrophic collapse.
3. Which type of high-strength bolt is specifically designed
with a rounded head and no external drive mechanism,
requiring installation using a direct tension indicator or
turn-of-nut method rather than an impact wrench on the
head side? A) A325 hex head bolt B) A490 round head
tension control bolt C) Standard machine bolt D)
Anchor bolt Rationale: The correct answer is
A490 round head tension control bolt because these
fasteners (often referred to as TC bolts) have a smooth,
round head with no wrench flats, meaning torque can
only be applied to the nut side, and they include a splined
end that shears off when proper tension is achieved.
4. When performing oxy-fuel cutting on structural steel,
what is the critical function of the preheat flames in
relation to the cutting oxygen stream? A) To melt the steel
completely so the oxygen can blow it away B) To clean rust
and paint from the surface before cutting begins C) To
raise the temperature of the steel to its kindling
point so it will oxidize rapidly when exposed to
pure oxygen D) To provide shielding gas to prevent
atmospheric contamination Rationale: The correct
answer is to raise the temperature of the steel to its
kindling point so it will oxidize rapidly when exposed to
pure oxygen because oxy-fuel cutting is a chemical
oxidation process, not a melting process; the preheat
merely initiates the exothermic reaction between iron and
oxygen at approximately 1,600°F to 1,800°F.
5. In rigging operations, when calculating the load on each
leg of a multi-leg sling assembly, how does decreasing the
angle between the sling leg and the horizontal plane affect
, the tension in each individual sling leg? A) Tension
decreases as the angle gets smaller B) Tension remains
constant regardless of angle C) Tension increases
significantly as the angle approaches zero degrees
(horizontal) D) Tension is only affected by the weight of
the sling itself Rationale: The correct answer is
tension increases significantly as the angle approaches
zero degrees (horizontal) because the vertical component
of force must still support the load, requiring
exponentially greater total tension in the sling as the
angle flattens; at 30 degrees from horizontal, tension
doubles compared to a vertical lift.
6. According to NCCER and OSHA standards, what is the
minimum required overlap distance for lap splices in
reinforcing bar (rebar) placement when specific
engineering specifications are not provided on the
drawings? A) 12 inches regardless of bar size B) 24 inches
for all vertical bars C) As specified by the project
engineer or applicable building code tables based
on bar size, concrete strength, and development
length D) 6 inches for #4 bar and smaller Rationale:
The correct answer is as specified by the project
engineer or applicable building code tables based on bar
size, concrete strength, and development length because
rebar splice lengths are structural calculations dependent
on yield strength, concrete compressive strength, cover
depth, and bar spacing; there is no universal fixed
overlap dimension.
7. When installing metal decking, what is the standard
industry practice regarding the orientation of deck flutes
in relation to the supporting structural members? A)
Flutes should always run parallel to the main girders B)
Deck orientation does not matter structurally C) Flutes
typically run perpendicular to the supporting
, beams or joists to maximize span capacity and
diaphragm action D) Flutes should alternate direction
every 10 feet Rationale: The correct answer is
flutes typically run perpendicular to the supporting
beams or joists to maximize span capacity and
diaphragm action because the deep ribs of the deck act as
mini-beams spanning between supports; running them
parallel would eliminate their structural spanning
capability and compromise floor diaphragm stiffness.
8. Which personal protective equipment (PPE) is mandatory
for ironworkers performing welding operations to protect
against both ultraviolet/infrared radiation and flying
sparks? A) Safety glasses with side shields only B) Face
shield attached to hard hat C) Filter lens helmet or
goggles with appropriate shade number plus
flame-resistant clothing D) Respirator with P100
filters Rationale: The correct answer is filter
lens helmet or goggles with appropriate shade number
plus flame-resistant clothing because welding produces
intense UV/IR radiation that causes arc flash burns to
eyes and skin, requiring shaded lenses (typically shade
10-14) and FR garments to prevent ignition and thermal
burns beyond just impact protection.
9. In post-tensioned concrete construction, what is the
primary hazard associated with stressing tendons, and
what safety zone must be established during this
operation? A) Noise exposure requiring hearing protection
within 50 feet B) Chemical burns from grout requiring
rubber gloves C) Catastrophic tendon failure or
anchor blowout requiring a cleared exclusion
zone behind and in front of the jack D) Electrical
shock from hydraulic pump motors Rationale: The
correct answer is catastrophic tendon failure or
