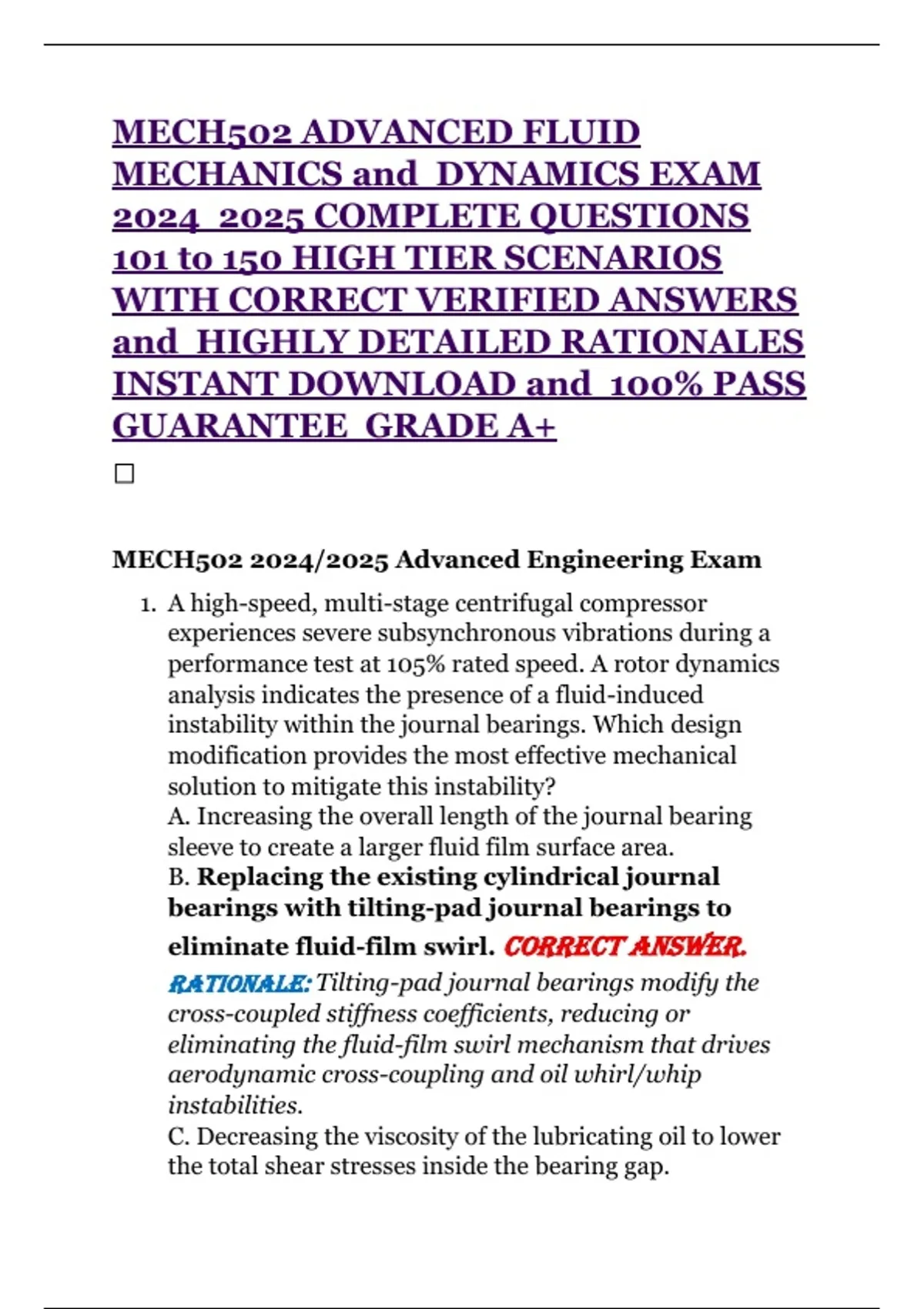

MECH502 ADVANCED FLUID
MECHANICS and DYNAMICS EXAM
2024 2025 COMPLETE QUESTIONS
101 to 150 HIGH TIER SCENARIOS
WITH CORRECT VERIFIED ANSWERS
and HIGHLY DETAILED RATIONALES
INSTANT DOWNLOAD and 100% PASS
GUARANTEE GRADE A+
MECH502 2024/2025 Advanced Engineering Exam
1. A high-speed, multi-stage centrifugal compressor
experiences severe subsynchronous vibrations during a
performance test at 105% rated speed. A rotor dynamics
analysis indicates the presence of a fluid-induced
instability within the journal bearings. Which design
modification provides the most effective mechanical
solution to mitigate this instability?
A. Increasing the overall length of the journal bearing
sleeve to create a larger fluid film surface area.
B. Replacing the existing cylindrical journal
bearings with tilting-pad journal bearings to
eliminate fluid-film swirl. Correct Answer.
Rationale: Tilting-pad journal bearings modify the
cross-coupled stiffness coefficients, reducing or
eliminating the fluid-film swirl mechanism that drives
aerodynamic cross-coupling and oil whirl/whip
instabilities.
C. Decreasing the viscosity of the lubricating oil to lower
the total shear stresses inside the bearing gap.
, D. Adding an unbalance mass to the mid-span of the rotor
shaft to force a higher synchronous excitation response.
2. An aerospace engineer is optimizing a transonic wing
profile for a commercial airliner operating at Mach 0.82.
The design goal is to minimize wave drag while delaying
the onset of boundary layer separation caused by shock-
wave/boundary-layer interaction. Which aerodynamic
modification best satisfies these constraints?
A. Increasing the leading-edge radius to promote an
immediate, strong normal shock wave on the forward
upper surface.
B. Implementing a supercritical airfoil profile to
create a shock-free or weak-shock compression
over a flat upper surface. Correct Answer.
Rationale: Supercritical airfoils feature a flattened
upper surface that creates a more uniform supersonic
region, terminating in a much weaker shock wave
located further aft, significantly reducing wave drag and
avoiding shock-induced separation.
C. Maximizing the camber near the mid-chord region to
accelerate the flow past Mach 2.0 abruptly.
D. Applying a deep concave surface to the lower section of
the leading edge to stall the stagnation point.
3. During the modal testing of a carbon-fiber composite
satellite antenna reflector, engineers observe a high
density of overlapping structural modes in the 200–300
Hz frequency range. Which advanced vibration analysis
method is best suited to quantify the energy distribution
and response levels under random acoustic loading?
A. Classical deterministic single-degree-of-freedom
Duhamel integration routines.
B. Statistical Energy Analysis (SEA) to model the
structural systems as coupled energy subsystems.
Correct Answer. Rationale: Statistical Energy
, Analysis (SEA) is specifically designed for high-frequency
vibration problems where high modal density makes
deterministic modeling methods like finite element
analysis computationally impractical and sensitive to
small uncertainties.
C. Linear static stress distribution mapping using
generalized Hooke's law parameters.
D. Rigid body kinematic chain analysis assuming
completely inelastic structural joints.
4. A boundary layer fluid flow passes over a flat plate under a
strong adverse pressure gradient (dP/dx > 0). At a certain
downstream distance, the velocity gradient at the solid
wall drops to zero (\(\partial u/\partial y\vert{}_{y=0} =
0\)). What physical phenomenon is occurring at this
precise location?
A. The flow transitions instantaneously from fully
turbulent back to a stable laminar state.
B. Flow separation occurs, initiating a region of
localized recirculation immediately downstream.
Correct Answer. Rationale: When the wall
velocity gradient becomes zero under an adverse
pressure gradient, the forward momentum of the fluid
near the wall is entirely depleted, causing the boundary
layer to detach from the surface and reverse direction.
C. The local skin friction coefficient approaches infinity
due to heightened shear stresses.
D. The thermal boundary layer thickness contracts to zero,
maximizing the localized convective heat flux.
5. A non-Newtonian fluid behaves such that its apparent
viscosity decreases continuously as the applied shear rate
increases over time under steady shear stress conditions.
How is this time-dependent fluid rheology classified?
A. Rheopectic fluid behavior.
B. Thixotropic fluid behavior. Correct Answer.
, Rationale: Thixotropic fluids exhibit a time-dependent
decrease in viscosity under a constant shear rate,
meaning their internal microstructure breaks down
under sustained shear and recovers slowly when the
stress is removed.
C. Dilatant or shear-thickening fluid behavior.
D. Bingham plastic behavior with an invariant yield stress
threshold.
6. A long, slender robotic manipulator arm operating in a
manufacturing plant is modeled as a continuous Euler-
Bernoulli beam with one clamped end and one free end. If
the arm's mass distribution is uniform, what is the exact
mathematical relationship governing its fundamental
natural frequency relative to its structural length (L)?
A. The fundamental natural frequency is directly
proportional to the cube of the length (L³).
B. The fundamental natural frequency is inversely
proportional to the square of the length (1/L²).
Correct Answer. Rationale: According to
continuous beam vibration theory, the natural
frequencies of a uniform cantilever beam are
proportional to \(\sqrt{EI/\rho A} \cdot (\beta_n L)^2 /
L^2\), demonstrating an inverse-square relationship
with length.
C. The fundamental natural frequency increases linearly as
the physical length increases.
D. The fundamental natural frequency is completely
independent of the beam's geometric length scale.
7. In a turbulent pipe flow operating at a high Reynolds
number, the friction factor becomes completely
independent of the Reynolds number and varies solely as a
function of the relative pipe roughness (ε/D). Which
region of the Moody diagram describes this fluid dynamic
state?
