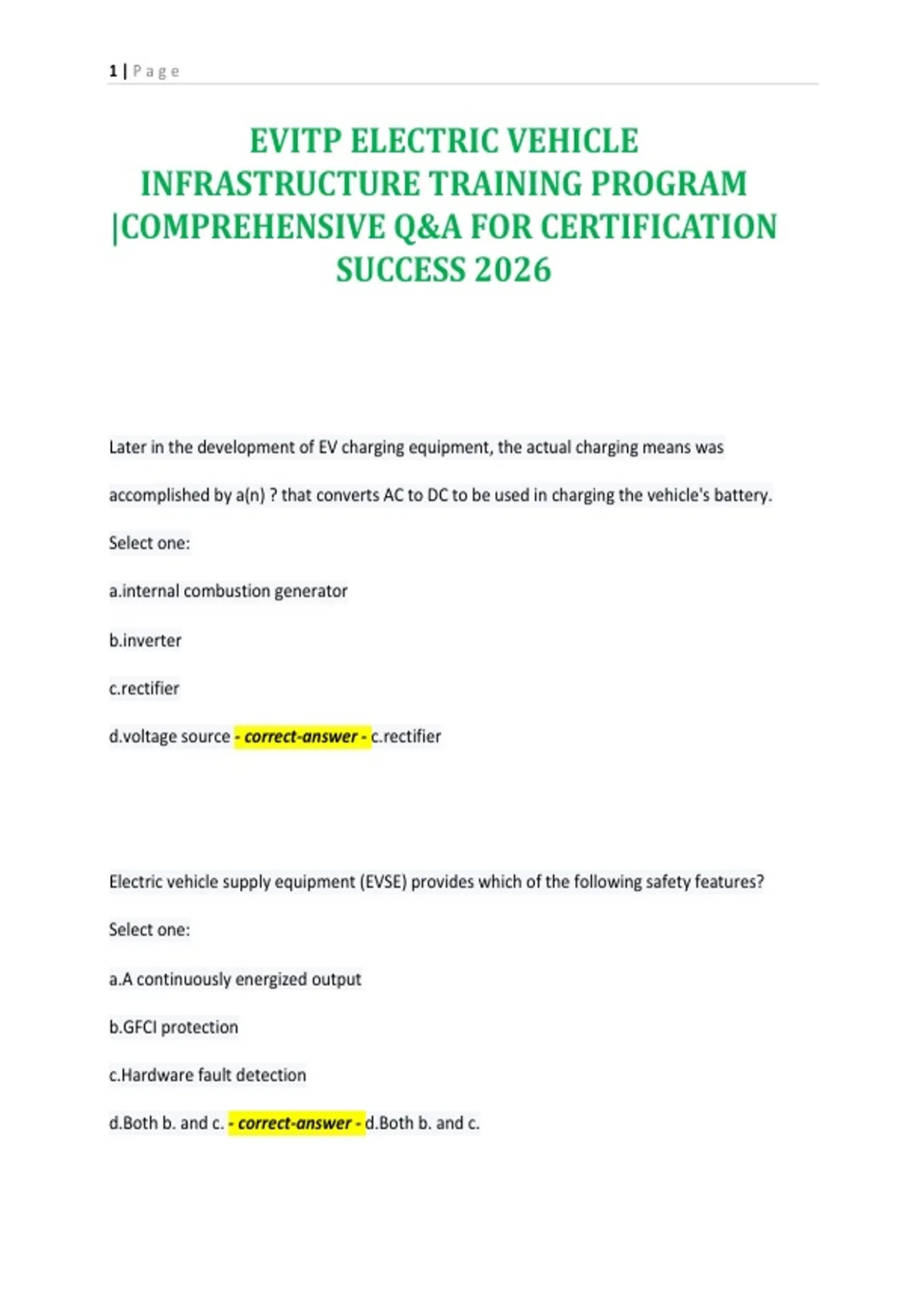

EVITP ELECTRIC VEHICLE
INFRASTRUCTURE TRAINING PROGRAM
|COMPREHENSIVE Q&A FOR CERTIFICATION
SUCCESS 2026
Later in the development of EV charging equipment, the actual charging means was
accomplished by a(n) ? that converts AC to DC to be used in charging the vehicle's battery.
Select one:
a.internal combustion generator
b.inverter
c.rectifier
d.voltage source - correct-answer - c.rectifier
Electric vehicle supply equipment (EVSE) provides which of the following safety features?
Select one:
a.A continuously energized output
b.GFCI protection
c.Hardware fault detection
d.Both b. and c. - correct-answer - d.Both b. and c.
,2|Page
EVSE provides DC power to the electric vehicle charging port.
Select one:
True
False - correct-answer - False
DC charging equipment provides DC directly to ? in an EV.
Select one:
a.battery management systems
b.battery monitoring devices
c.charge multiplier systems
d.current management systems - correct-answer - a.battery management systems
An AC charger with a single-phase 120-volt connection and 14-16 amperes of continuous
current output is classified as a ? charger.
Select one:
a.Level 1
b.Level 2
c.low-voltage
d.SAE standard - correct-answer - a.Level 1
,3|Page
The purpose of the J1772 connector pins is to provide ? .
Select one:
a.a charging interface that is safe for consumers to use
b.a means to signal the EVSE to stop charging based on the pin contact state
c.signals to the EVSE that the connector is properly seated on the vehicle
d.all of the above - correct-answer - d.all of the above
Which of the following is true about the J1772 standard control pilot terminal pin's function?
Select one:
a.It changes the state of the EVSE according to the voltage present.
b.It defines the state of the EVSE.
c.It uses a +12V to -12V AC square wave signal.
d.All of the above - correct-answer - d.All of the above
Which of the following is not a variable that determines the charging time of an EV?
a.Connector configuration
b.Max power capacity of the EV's converter
c.Size of the electrical feeder/service supplying the EVSE
, 4|Page
d.All of the above - correct-answer - a.Connector configuration
The EV's power acceptance rate should not be considered when making EVSE purchasing
decisions.
Select one:
True
False - correct-answer - False
Which of the following is the Japanese DC quick charging standard?
Select one:
a.CHAdeMO
b.JARI
c.SAE
d.TEPCO - correct-answer - a.CHAdeMO
The CHAdeMO V1.0 Standard has charging power up to ? at ? , up to ? .
Select one:
a.62.5 kW / 500 VDC / 125 A
b.350 kW / 480 VDC / 80 A
