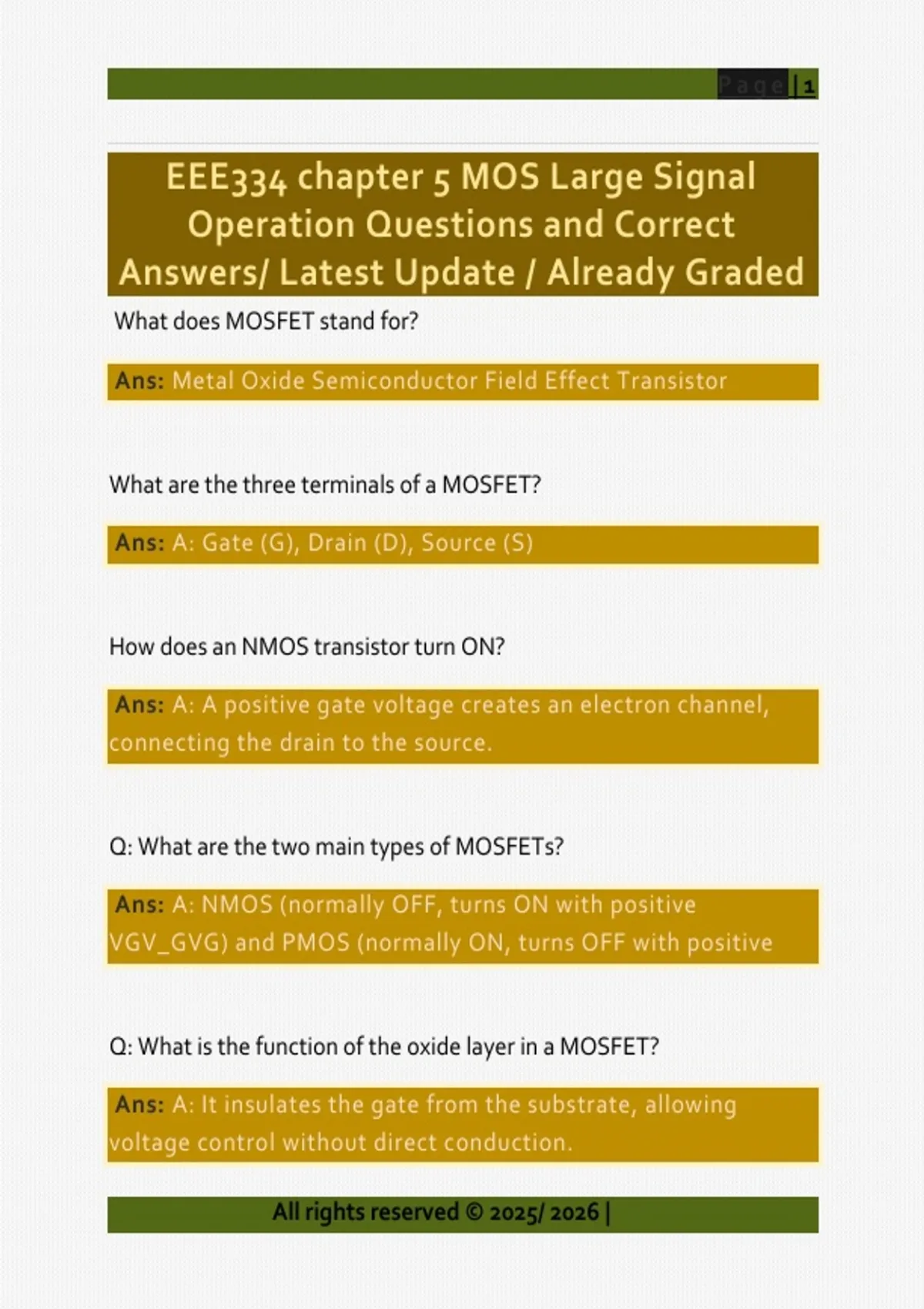

Page |1

EEE334 chapter 5 MOS Large Signal
Operation Questions and Correct
Answers/ Latest Update / Already Graded
What does MOSFET stand for?

Ans: Metal Oxide Semiconductor Field Effect Transistor

What are the three terminals of a MOSFET?

Ans: A: Gate (G), Drain (D), Source (S)

How does an NMOS transistor turn ON?

Ans: A: A positive gate voltage creates an electron channel,
connecting the drain to the source.

Q: What are the two main types of MOSFETs?

Ans: A: NMOS (normally OFF, turns ON with positive
VGV_GVG) and PMOS (normally ON, turns OFF with positive

Q: What is the function of the oxide layer in a MOSFET?

Ans: A: It insulates the gate from the substrate, allowing
voltage control without direct conduction.

All rights reserved © 2025/ 2026 |
