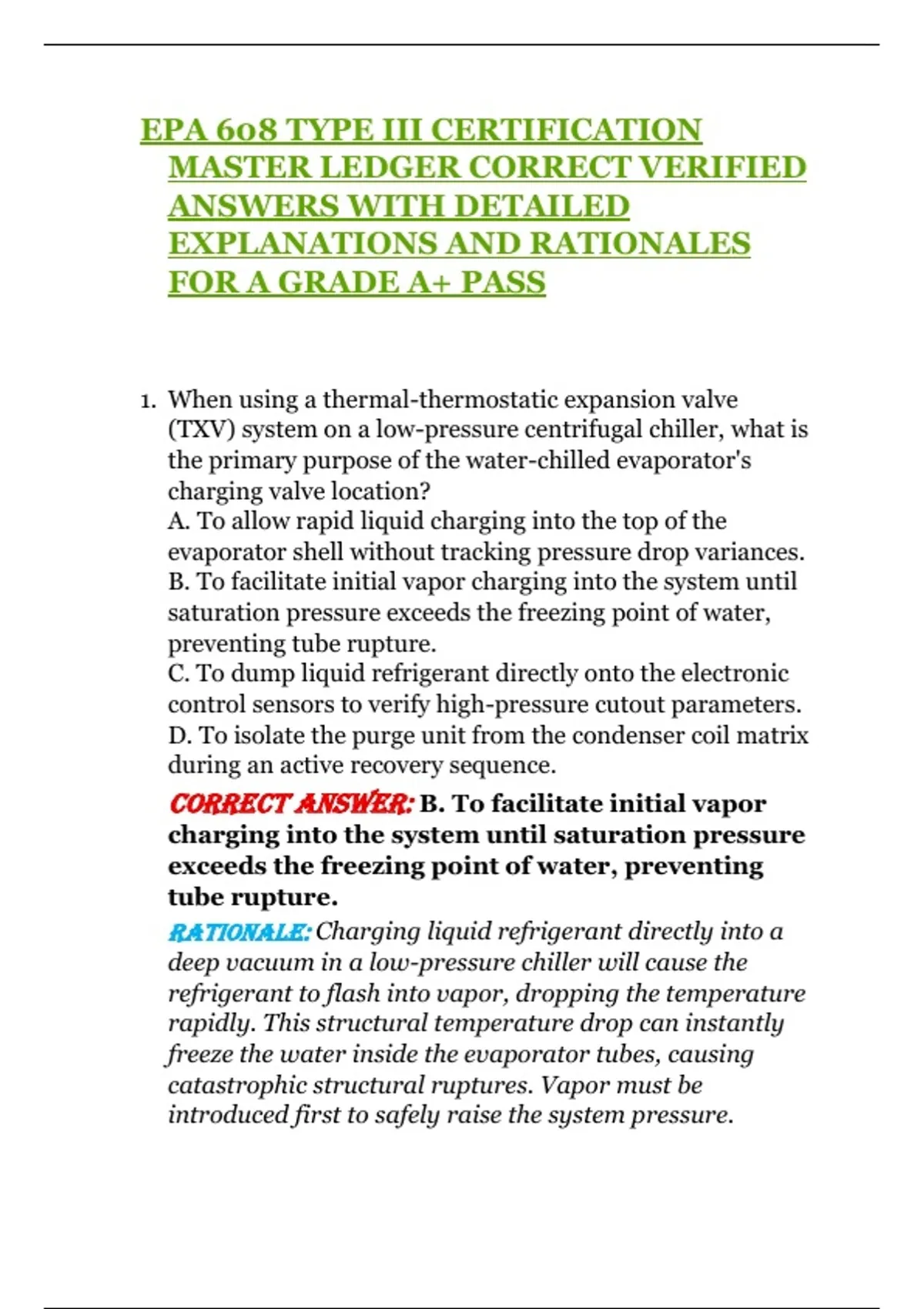

EPA 608 TYPE III CERTIFICATION
MASTER LEDGER CORRECT VERIFIED
ANSWERS WITH DETAILED
EXPLANATIONS AND RATIONALES
FOR A GRADE A+ PASS
1. When using a thermal-thermostatic expansion valve
(TXV) system on a low-pressure centrifugal chiller, what is
the primary purpose of the water-chilled evaporator's
charging valve location?
A. To allow rapid liquid charging into the top of the
evaporator shell without tracking pressure drop variances.
B. To facilitate initial vapor charging into the system until
saturation pressure exceeds the freezing point of water,
preventing tube rupture.
C. To dump liquid refrigerant directly onto the electronic
control sensors to verify high-pressure cutout parameters.
D. To isolate the purge unit from the condenser coil matrix
during an active recovery sequence.
Correct Answer: B. To facilitate initial vapor
charging into the system until saturation pressure
exceeds the freezing point of water, preventing
tube rupture.
Rationale: Charging liquid refrigerant directly into a
deep vacuum in a low-pressure chiller will cause the
refrigerant to flash into vapor, dropping the temperature
rapidly. This structural temperature drop can instantly
freeze the water inside the evaporator tubes, causing
catastrophic structural ruptures. Vapor must be
introduced first to safely raise the system pressure.
,2. Under Section 608 of the Clean Air Act, which type of
equipment is classified as a Type III appliance?
A. High-pressure small appliances containing less than
five pounds of a class I or class II substance.
B. High-pressure commercial refrigeration systems
featuring a total charge mass exceeding fifty pounds.
C. Low-pressure appliances, such as centrifugal chillers
that typically utilize refrigerants like CFC-11, HCFC-123, or
HFO-1233zd.
D. Mobile automotive air conditioning networks operating
with open-drive compressor configurations.
Correct Answer: C. Low-pressure appliances,
such as centrifugal chillers that typically utilize
refrigerants like CFC-11, HCFC-123, or HFO-
1233zd.
Rationale: The EPA categorizes technicians who
service, maintain, repair, or dispose of low-pressure
appliances (appliances operating with a low-pressure
refrigerant whose saturation pressure is below 45 psia at
a liquid temperature of 104°F) under the Type III
classification.
3. A technician is executing a leak repair on a commercial
low-pressure centrifugal chiller containing 200 pounds of
HCFC-123. According to current EPA regulations, what is
the mandatory leak rate threshold that triggers a formal
repair requirement for industrial process refrigeration
(IPR) equipment?
A. 10% of the total charge volume per operational fiscal
year.
B. 20% of the total charge volume per operational fiscal
year.
C. 30% of the total charge volume per operational fiscal
year.
D. 15% of the total charge volume per operational fiscal
, year.
Correct Answer: C. 30% of the total charge
volume per operational fiscal year.
Rationale: The EPA sets specific leak rate limits based
on appliance category: Industrial Process Refrigeration
(IPR) triggers at 30%, Commercial Refrigeration triggers
at 20%, and Comfort Cooling/Other Appliances trigger at
10% for systems holding 50 or more pounds of regulated
refrigerant.
4. What is the standard evacuation level required by the EPA
for a low-pressure appliance when using recovery or
recycling equipment manufactured after November 15,
1993, prior to opening the system for a major repair?
A. 25 inches of Hg vacuum.
B. 25 mm Hg absolute.
C. 10 psig positive pressure.
D. 15 inches of Hg vacuum.
Correct Answer: B. 25 mm Hg absolute.
Rationale: For low-pressure appliances, recovery
equipment produced after November 15, 1993, must
achieve an absolute vacuum level of 25 mm Hg absolute.
This ensures minimal trace refrigerant is emitted into the
atmosphere prior to structural component service.
5. A low-pressure centrifugal chiller’s purge unit handles a
vital operational function. What is the primary source and
entry path of the non-condensable gases that a purge unit
is designed to extract from the system?
A. High-velocity friction wear on the internal mechanical
copper compressor bearings.
B. Leaks through structural gaskets, fittings, or O-rings
because the chiller operates in a deep vacuum below
atmospheric pressure.
C. Thermal breakdown of the ester-based synthetic
, compressor lubricants generating methane gas.
D. Moisture entering exclusively during the high-pressure
recovery cylinder liquid transfer process.
Correct Answer: B. Leaks through structural
gaskets, fittings, or O-rings because the chiller
operates in a deep vacuum below atmospheric
pressure.
Rationale: Because low-pressure chillers maintain an
operating pressure below atmospheric pressure on their
low side, any structural tiny leak allows ambient air and
moisture to be sucked into the system rather than
blowing refrigerant out. The purge unit removes these
non-condensables.
6. Where does the purge unit on a low-pressure centrifugal
chiller typically take its suction from within the
refrigeration cycle loop?
A. The bottom of the evaporator shell near the oil sump
drainage port.
B. The top of the condenser shell, where non-condensable
gases naturally accumulate.
C. Directly from the high-velocity discharge line prior to
entering the expansion orifice.
D. The suction line immediately following the filter-drier
core expansion screen.
Correct Answer: B. The top of the condenser
shell, where non-condensable gases naturally
accumulate.
Rationale: Non-condensable gases like air do not
condense into liquid at standard operating pressures
inside the condenser. As a result, they rise and gather at
the highest point of the condenser shell, which is where
the purge system draws its suction.
