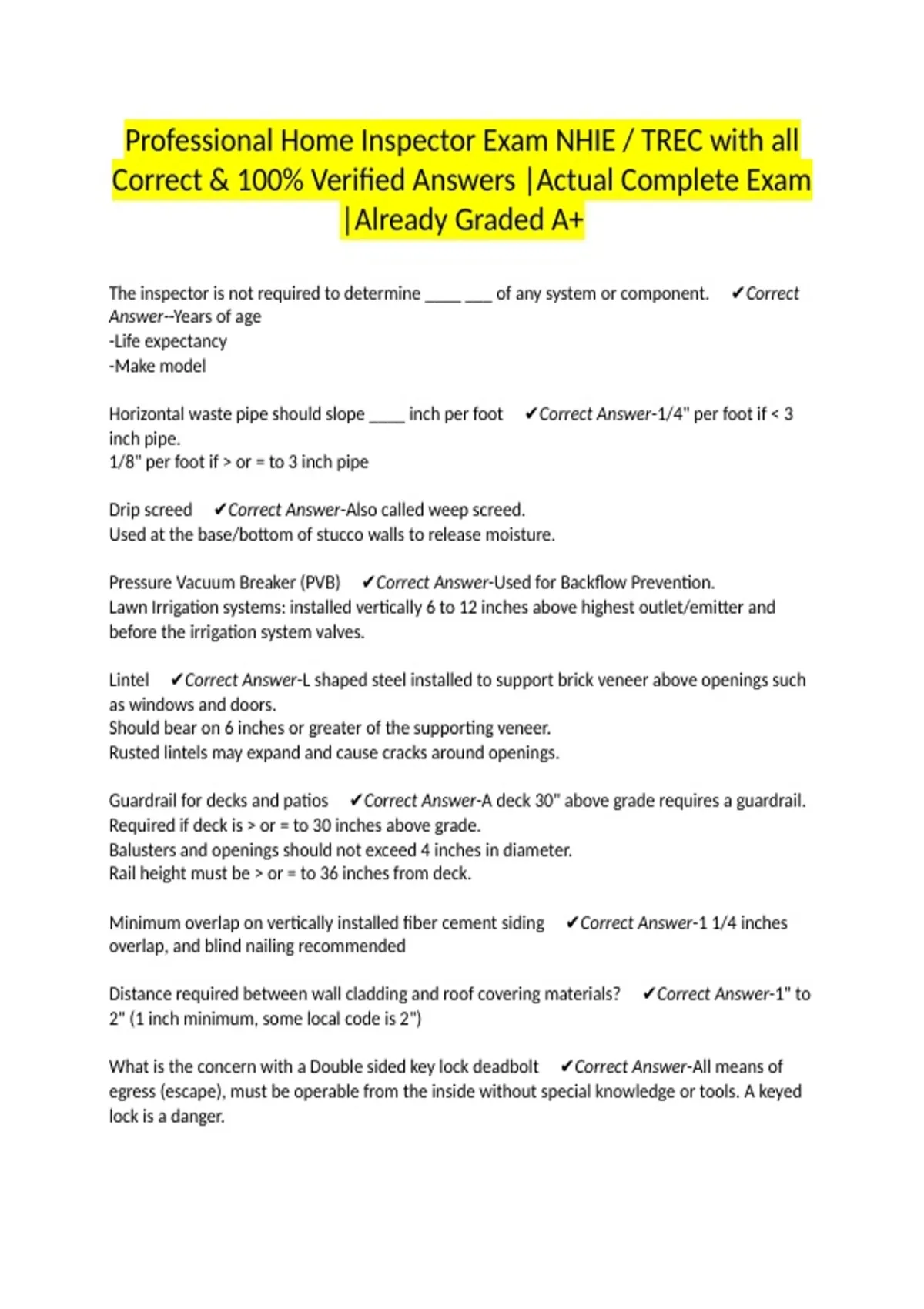

Professional Home Inspector Exam NHIE / TREC with all
Correct & 100% Verified Answers |Actual Complete Exam
|Already Graded A+
The inspector is not required to determine ____ ___ of any system or component. ✔Correct
Answer--Years of age
-Life expectancy
-Make model
Horizontal waste pipe should slope ____ inch per foot ✔Correct Answer-1/4" per foot if < 3
inch pipe.
1/8" per foot if > or = to 3 inch pipe
Drip screed ✔Correct Answer-Also called weep screed.
Used at the base/bottom of stucco walls to release moisture.
Pressure Vacuum Breaker (PVB) ✔Correct Answer-Used for Backflow Prevention.
Lawn Irrigation systems: installed vertically 6 to 12 inches above highest outlet/emitter and
before the irrigation system valves.
Lintel ✔Correct Answer-L shaped steel installed to support brick veneer above openings such
as windows and doors.
Should bear on 6 inches or greater of the supporting veneer.
Rusted lintels may expand and cause cracks around openings.
Guardrail for decks and patios ✔Correct Answer-A deck 30" above grade requires a guardrail.
Required if deck is > or = to 30 inches above grade.
Balusters and openings should not exceed 4 inches in diameter.
Rail height must be > or = to 36 inches from deck.
Minimum overlap on vertically installed fiber cement siding ✔Correct Answer-1 1/4 inches
overlap, and blind nailing recommended
Distance required between wall cladding and roof covering materials? ✔Correct Answer-1" to
2" (1 inch minimum, some local code is 2")
What is the concern with a Double sided key lock deadbolt ✔Correct Answer-All means of
egress (escape), must be operable from the inside without special knowledge or tools. A keyed
lock is a danger.
,Fiberglass shingle roof that is 5 years old is losing granular and cupping. Attic insulation and
venting is adequate. What is the most reasonable explanation? ✔Correct Answer-Improper
installation. Sealing strip or nailing was not done properly.
What is the last part to fail in a slate roof system? ✔Correct Answer-The slate itself. Flashings
eventually wear out, but long before the slate.
Metal roof has minor rust in spots. What is the corrective action? ✔Correct Answer-Removing
the rust, priming and painting.
What type of flashing is found on a gable edge? ✔Correct Answer-Rake edge or edge flashing.
A gable Edge is called a rake.
Which construction framing provides fire blocking? ✔Correct Answer-a platform-framed
structure
The Bottom chords of trusses were cut to fit other construction. What is the recommendation?
✔Correct Answer-Recommend a structural engineer .
What purpose does a barometric damper serve? ✔Correct Answer-To control the draft
Water is dripping from discharge piping coming from a hydronic heating system. What is most
likely the cause? ✔Correct Answer-A leak
Masonry Chimney is required to be _____ inches from wood framing in the attic? ✔Correct
Answer-2"
When new insulation is placed directly over old in the attic, what is the correct way to place /
handle Kraft paper on new insulation? ✔Correct Answer-Score or remove the vapor paper
What two structural components would be tied together with hurricane ties? ✔Correct
Answer-Truss/rafter to the top of walls
What type of piping is used for a pool circulation system? ✔Correct Answer-Schedule 40 PVC
Does the main water supply shutoff have to be above grade, below grade, or accessible?
✔Correct Answer-Accessible ?
Distance between interior electrical receptacles? ✔Correct Answer-12'
A wood burning furnace should be how far away from combustibles ✔Correct Answer-18"
Dishwasher drain line is installed where in reference to the trap? ✔Correct Answer-Above
,stairs, staircase tread depth ✔Correct Answer-Tread depth should be a minimum of 10 inches.
11 inches if there is no nosing.
The difference between any two riser heights, treads or nosing in a flight of stairs should be no
more than 3/8ths of an inch
Staircase Nosing projection ✔Correct Answer-Nosing should project between 3/4th inch and
1 1/4th inch
The difference between any two riser heights, treads or nosing in a flight of stairs should be no
more than 3/8ths of an inch
Staircase Riser height ✔Correct Answer-Riser height should be 7 3/4th inches maximum
The difference between any two riser heights, treads or nosing in a flight of stairs should be no
more than 3/8ths of an inch
Stair stringers and width ✔Correct Answer-Stairs wider than 36 inches should have at least
three stringers
Spiral staircase ✔Correct Answer-Tread depth should be a minimum of 7 1/2 inches,
measured 12 inches from the narrow side.
Riser height should be 9 1/2 inches maximum.
Minimum width is 26 inches at / below the handrail
Hearth size requirements for greater than and smaller than 6 square feet ✔Correct Answer-6'
opening - 16" in front and 8" sides
Over 6' - 20" and 12"
What is a cricket or saddle? ✔Correct Answer-A ridge structure designed to divert water on a
roof around the high side of a chimney or the transition from one roof area to another
Deadman ✔Correct Answer-any type of anchor embedded in the supported soil and tied to
the retaining wall
Egress window ✔Correct Answer-A window large enough, as defined by local building codes,
for exit or entry in case of an emergency. Typically required in bedrooms.
Size:
Height above floor:
Which roof covering would be best for a slope of 2 inches per foot? ✔Correct Answer-2:12 is
minimum for asphalt. Recommend metal roof.
Foundation anchor bolts shall be at least ___ inch in diameter and shall extend a minimum of
___ inches into the concrete or grouted cells of concrete masonry units. ✔Correct Answer-1/2
and 7 inches
, Foundation anchors should be ___ from ends and ___ apart/between. ✔Correct Answer-4-12
inches and 6 feet
Floor joists are installed with the crown facing which direction? ✔Correct Answer-Up
Grounding electrode should be a minimum of ___ feet below grade ✔Correct Answer-8'
A window in a shower requires safety glazing if the bottom is ___ inches above the shower pan.
✔Correct Answer-Less than 60" in any bathing/swimming area
Safety glazing is required where ✔Correct Answer-Panes larger than 9 square feet if all the
following are true:
Bottom less than 18" from floor
Top edge over 36" from floor
Walkway within 36" of glazing
The shower opening (or access and egress opening) should be at least _____ finish-width and
___ inches unobstructed in front of the door. ✔Correct Answer-22 inches wide opening, and
24 horizontal inches in front of door
Also, the door should always open outward or OK if it opens both in and out.
Swale ✔Correct Answer-A graded flow path used in open drainage systems.
Non-Metallic Sheathed Cable (NM) ✔Correct Answer-_________ is a factory assembly of two
or more insulated conductors having an outer sheath of moisture resistant flame-retardant,
non-metallic material.
Commonly called Romex.
Should be supported every 4 1/2 feet, and within 1 foot of boxes and terminations.
Should have a nail guard when run closer than 1 1/4 inches from framing members.
What is the Temperature on the large refrigerant line when AC is in cool mode? ✔Correct
Answer-Cool. The large (Suction) line should be cool, low pressure, returning to the condenser
outside.
Underground feeder (UF) ✔Correct Answer-Similar to Nonmetallic sheathed cable (NM), but
UF is Designed for wet locations and may be buried.
Compressor does what? ✔Correct Answer-Compresses cool gas to superheated high pressure
gas to send through the condenser.
Condenser does what? ✔Correct Answer-The condenser takes high pressure heated gas from
the compressor, and runs the gas through coils where the fan helps remove heat from the gas,
and resulting in a warm, high pressure liquid to return to the evaporator.
