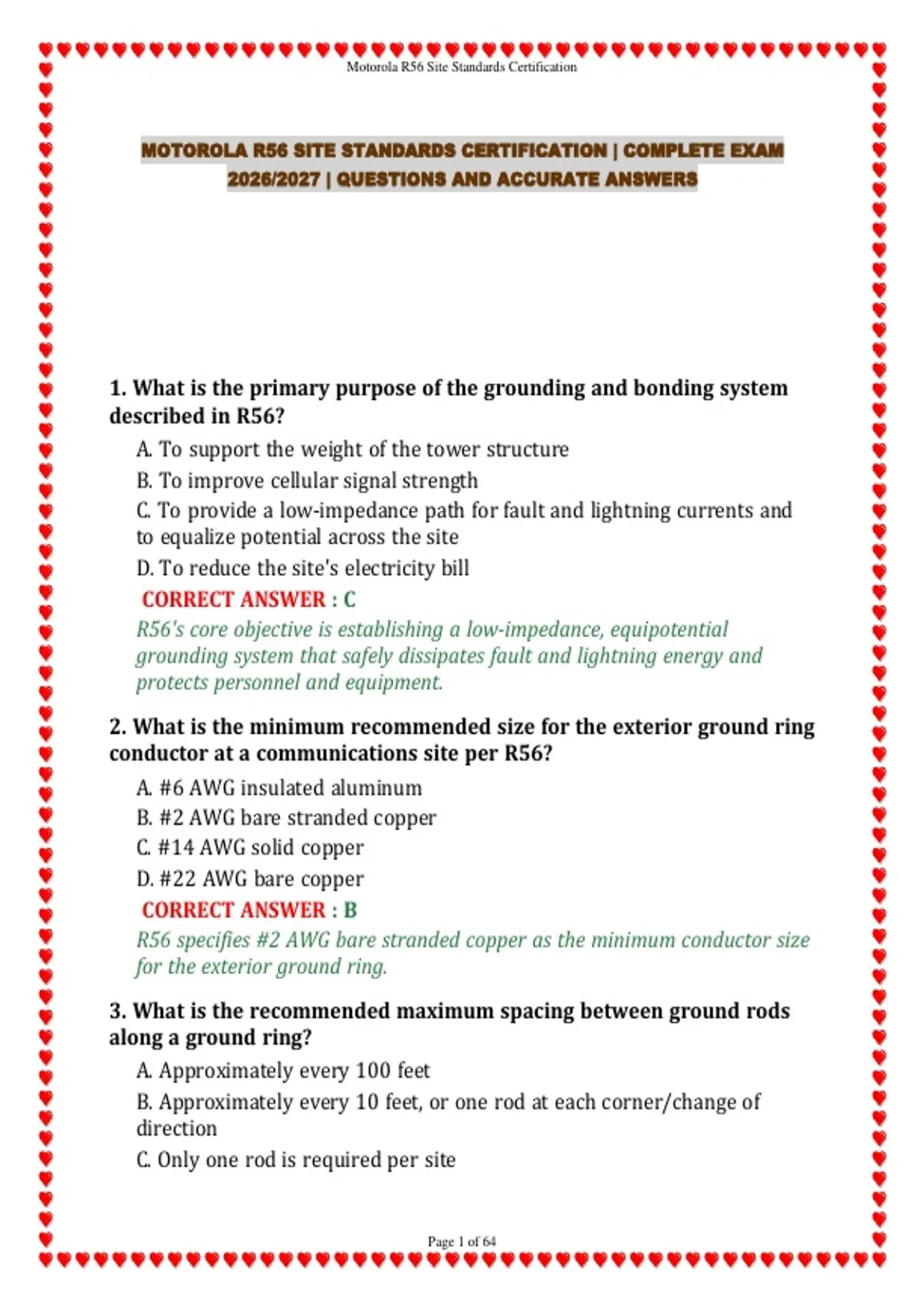

Motorola R56 Site Standards Certification
MOTOROLA R56 SITE STANDARDS CERTIFICATION | COMPLETE EXAM
2026/2027 | QUESTIONS AND ACCURATE ANSWERS
1. What is the primary purpose of the grounding and bonding system
described in R56?
A. To support the weight of the tower structure
B. To improve cellular signal strength
C. To provide a low-impedance path for fault and lightning currents and
to equalize potential across the site
D. To reduce the site's electricity bill
CORRECT ANSWER : C
R56's core objective is establishing a low-impedance, equipotential
grounding system that safely dissipates fault and lightning energy and
protects personnel and equipment.
2. What is the minimum recommended size for the exterior ground ring
conductor at a communications site per R56?
A. #6 AWG insulated aluminum
B. #2 AWG bare stranded copper
C. #14 AWG solid copper
D. #22 AWG bare copper
CORRECT ANSWER : B
R56 specifies #2 AWG bare stranded copper as the minimum conductor size
for the exterior ground ring.
3. What is the recommended maximum spacing between ground rods
along a ground ring?
A. Approximately every 100 feet
B. Approximately every 10 feet, or one rod at each corner/change of
direction
C. Only one rod is required per site
Page 1 of 64
, Motorola R56 Site Standards Certification
D. Approximately every 3 feet
CORRECT ANSWER : B
Ground rods are typically spaced at roughly 10-foot intervals and placed at
bends, corners, and equipment connection points along the ring.
4. What is the standard minimum length of a driven ground rod under
R56 guidance?
A. 50 feet
B. 1 foot
C. 3 feet
D. 8 feet (10 feet in some applications)
CORRECT ANSWER : D
An 8-foot rod is the common minimum, with 10-foot rods frequently
specified for improved contact and lower resistance.
5. What connection method is preferred over mechanical connectors
for below-grade or critical grounding connections?
A. Exothermic (thermite) welding
B. Solder-only joints
C. Wire nuts
D. Duct tape splices
CORRECT ANSWER : A
Exothermic welding creates a molecular bond that is more durable,
corrosion-resistant, and reliable underground than mechanical clamps.
6. Why are mechanical (bolted) connectors generally discouraged
below grade?
A. They conduct too much current
B. They are too expensive compared to welding
C. They are not UL listed for any use
D. They are prone to corrosion and loosening over time, increasing
resistance
CORRECT ANSWER : D
Bolted/mechanical connectors can loosen and corrode underground,
degrading the connection over time; exothermic welds avoid this failure
mode.
7. What is a Master Ground Bar (MGB)?
Page 2 of 64
, Motorola R56 Site Standards Certification
A. A backup battery rack
B. The primary ground busbar where the external ground system bonds
to the building's internal grounding system
C. A tower foundation component
D. A type of lightning rod
CORRECT ANSWER : B
The MGB is the central bonding point inside the equipment building/shelter
that ties together the external ground ring, internal ground bus, and
grounded equipment.
8. What is the purpose of a Halo (perimeter) ground conductor inside
an equipment shelter?
A. To decorate the ceiling
B. To provide a common bonding point around the room perimeter that
equipment and racks bond to
C. To carry AC power to outlets
D. To serve as an antenna
CORRECT ANSWER : B
The interior halo ring is mounted near the ceiling or on walls and provides
convenient, consistent bonding points for equipment racks and cable
ladders.
9. What is the target soil resistance goal commonly referenced for
communication site grounding systems?
A. As low as practically achievable, often 5 ohms or less where feasible
B. Exactly 1000 ohms
C. 100,000 ohms minimum
D. Resistance is irrelevant if rods are installed
CORRECT ANSWER : A
Lower resistance-to-earth improves fault current dissipation; R56
encourages achieving the lowest practical resistance, commonly citing 5
ohms as a desirable target where soil conditions allow.
10. What is 'single-point ground' philosophy intended to prevent?
A. Unauthorized site access
B. Excessive antenna gain
Page 3 of 64
, Motorola R56 Site Standards Certification
C. Ground loops and differences in potential between separately grounded
systems
D. Overheating of batteries
CORRECT ANSWER : C
By tying all grounding systems to one common reference point, single-point
grounding minimizes potential differences that can create damaging
ground loops.
11. Which materials should generally be avoided in direct contact with
copper grounding conductors due to galvanic corrosion?
A. PVC conduit
B. Stainless steel exothermic molds
C. Dissimilar metals such as untreated aluminum or steel without proper
transition connectors
D. Other copper conductors
CORRECT ANSWER : C
Dissimilar metal contact (e.g., copper to aluminum) promotes galvanic
corrosion; bimetallic connectors or approved transition lugs are required.
12. What is an 'Ufer ground' (concrete-encased electrode)?
A. A grounding electrode formed by conductor encased in the concrete
footing/foundation
B. A type of grounding rod driven into asphalt
C. A wireless grounding sensor
D. A ground system used only for generators
CORRECT ANSWER : A
A Ufer ground uses rebar or a conductor encased in concrete footings,
leveraging the concrete's moisture retention for a low-resistance electrode.
13. What is the purpose of bonding all metallic conduits, cable trays,
and ladder racks entering the shelter?
A. To secure cables aesthetically
B. To eliminate potential differences and provide a continuous path to
ground for fault/surge currents
C. To increase signal bandwidth
D. To meet fire code only
CORRECT ANSWER : B
Page 4 of 64
