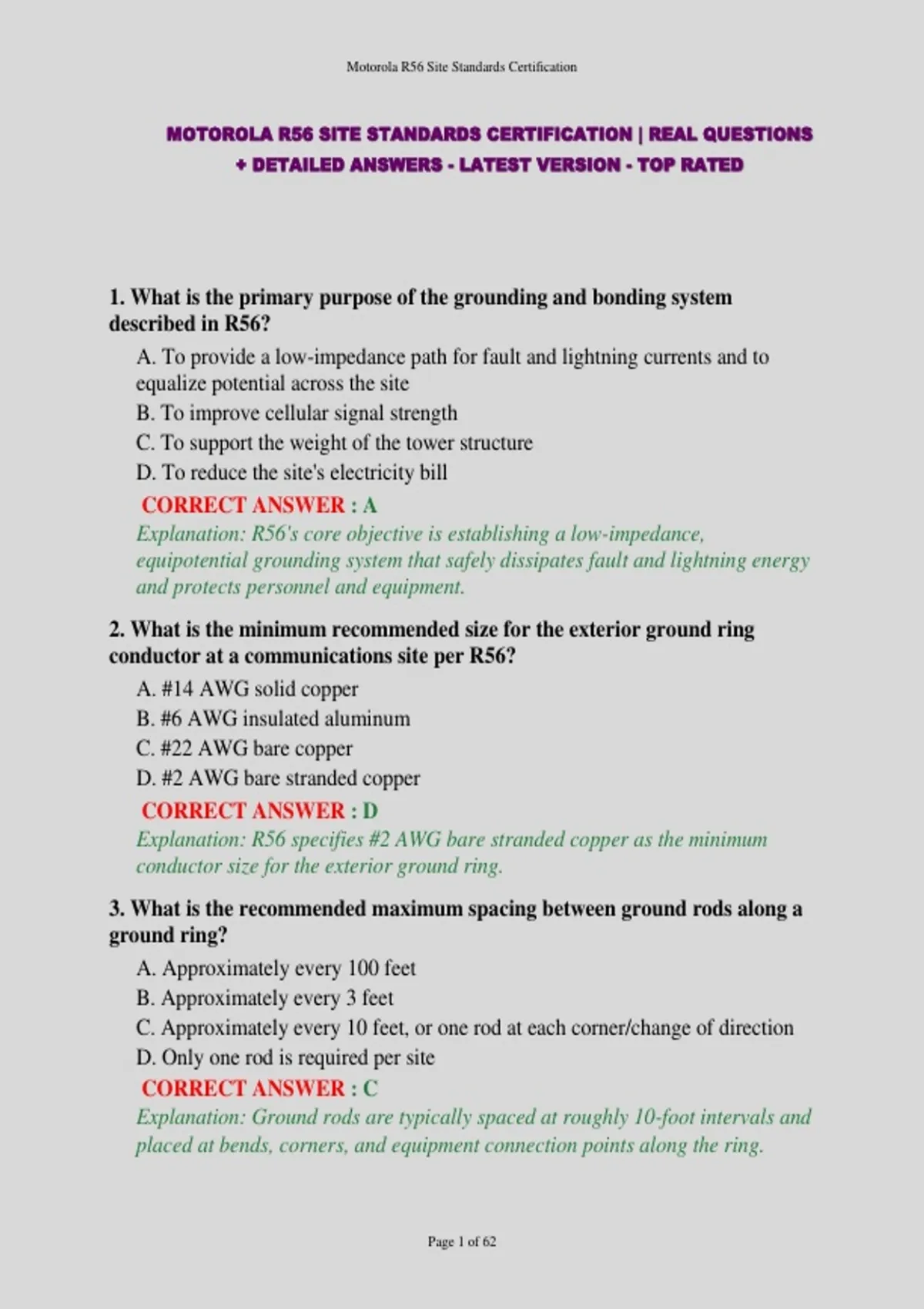

Motorola R56 Site Standards Certification
MOTOROLA R56 SITE STANDARDS CERTIFICATION | REAL QUESTIONS
+ DETAILED ANSWERS - LATEST VERSION - TOP RATED
1. What is the primary purpose of the grounding and bonding system
described in R56?
A. To provide a low-impedance path for fault and lightning currents and to
equalize potential across the site
B. To improve cellular signal strength
C. To support the weight of the tower structure
D. To reduce the site's electricity bill
CORRECT ANSWER : A
Explanation: R56's core objective is establishing a low-impedance,
equipotential grounding system that safely dissipates fault and lightning energy
and protects personnel and equipment.
2. What is the minimum recommended size for the exterior ground ring
conductor at a communications site per R56?
A. #14 AWG solid copper
B. #6 AWG insulated aluminum
C. #22 AWG bare copper
D. #2 AWG bare stranded copper
CORRECT ANSWER : D
Explanation: R56 specifies #2 AWG bare stranded copper as the minimum
conductor size for the exterior ground ring.
3. What is the recommended maximum spacing between ground rods along a
ground ring?
A. Approximately every 100 feet
B. Approximately every 3 feet
C. Approximately every 10 feet, or one rod at each corner/change of direction
D. Only one rod is required per site
CORRECT ANSWER : C
Explanation: Ground rods are typically spaced at roughly 10-foot intervals and
placed at bends, corners, and equipment connection points along the ring.
Page 1 of 62
, Motorola R56 Site Standards Certification
4. What is the standard minimum length of a driven ground rod under R56
guidance?
A. 3 feet
B. 8 feet (10 feet in some applications)
C. 50 feet
D. 1 foot
CORRECT ANSWER : B
Explanation: An 8-foot rod is the common minimum, with 10-foot rods
frequently specified for improved contact and lower resistance.
5. What connection method is preferred over mechanical connectors for
below-grade or critical grounding connections?
A. Exothermic (thermite) welding
B. Wire nuts
C. Solder-only joints
D. Duct tape splices
CORRECT ANSWER : A
Explanation: Exothermic welding creates a molecular bond that is more
durable, corrosion-resistant, and reliable underground than mechanical
clamps.
6. Why are mechanical (bolted) connectors generally discouraged below
grade?
A. They are prone to corrosion and loosening over time, increasing resistance
B. They conduct too much current
C. They are not UL listed for any use
D. They are too expensive compared to welding
CORRECT ANSWER : A
Explanation: Bolted/mechanical connectors can loosen and corrode
underground, degrading the connection over time; exothermic welds avoid this
failure mode.
7. What is a Master Ground Bar (MGB)?
A. A backup battery rack
B. A type of lightning rod
C. The primary ground busbar where the external ground system bonds to the
building's internal grounding system
D. A tower foundation component
Page 2 of 62
, Motorola R56 Site Standards Certification
CORRECT ANSWER : C
Explanation: The MGB is the central bonding point inside the equipment
building/shelter that ties together the external ground ring, internal ground bus,
and grounded equipment.
8. What is the purpose of a Halo (perimeter) ground conductor inside an
equipment shelter?
A. To decorate the ceiling
B. To provide a common bonding point around the room perimeter that
equipment and racks bond to
C. To serve as an antenna
D. To carry AC power to outlets
CORRECT ANSWER : B
Explanation: The interior halo ring is mounted near the ceiling or on walls and
provides convenient, consistent bonding points for equipment racks and cable
ladders.
9. What is the target soil resistance goal commonly referenced for
communication site grounding systems?
A. Resistance is irrelevant if rods are installed
B. As low as practically achievable, often 5 ohms or less where feasible
C. 100,000 ohms minimum
D. Exactly 1000 ohms
CORRECT ANSWER : B
Explanation: Lower resistance-to-earth improves fault current dissipation; R56
encourages achieving the lowest practical resistance, commonly citing 5 ohms
as a desirable target where soil conditions allow.
10. What is 'single-point ground' philosophy intended to prevent?
A. Excessive antenna gain
B. Overheating of batteries
C. Ground loops and differences in potential between separately grounded
systems
D. Unauthorized site access
CORRECT ANSWER : C
Explanation: By tying all grounding systems to one common reference point,
single-point grounding minimizes potential differences that can create
damaging ground loops.
Page 3 of 62
, Motorola R56 Site Standards Certification
11. Which materials should generally be avoided in direct contact with copper
grounding conductors due to galvanic corrosion?
A. Other copper conductors
B. Stainless steel exothermic molds
C. Dissimilar metals such as untreated aluminum or steel without proper
transition connectors
D. PVC conduit
CORRECT ANSWER : C
Explanation: Dissimilar metal contact (e.g., copper to aluminum) promotes
galvanic corrosion; bimetallic connectors or approved transition lugs are
required.
12. What is an 'Ufer ground' (concrete-encased electrode)?
A. A ground system used only for generators
B. A wireless grounding sensor
C. A grounding electrode formed by conductor encased in the concrete
footing/foundation
D. A type of grounding rod driven into asphalt
CORRECT ANSWER : C
Explanation: A Ufer ground uses rebar or a conductor encased in concrete
footings, leveraging the concrete's moisture retention for a low-resistance
electrode.
13. What is the purpose of bonding all metallic conduits, cable trays, and
ladder racks entering the shelter?
A. To increase signal bandwidth
B. To eliminate potential differences and provide a continuous path to ground
for fault/surge currents
C. To meet fire code only
D. To secure cables aesthetically
CORRECT ANSWER : B
Explanation: All metallic pathways must be bonded to prevent them from
becoming energized relative to other grounded equipment during a fault or
lightning event.
14. What is the function of an exothermic weld mold?
A. It insulates the conductor
Page 4 of 62
