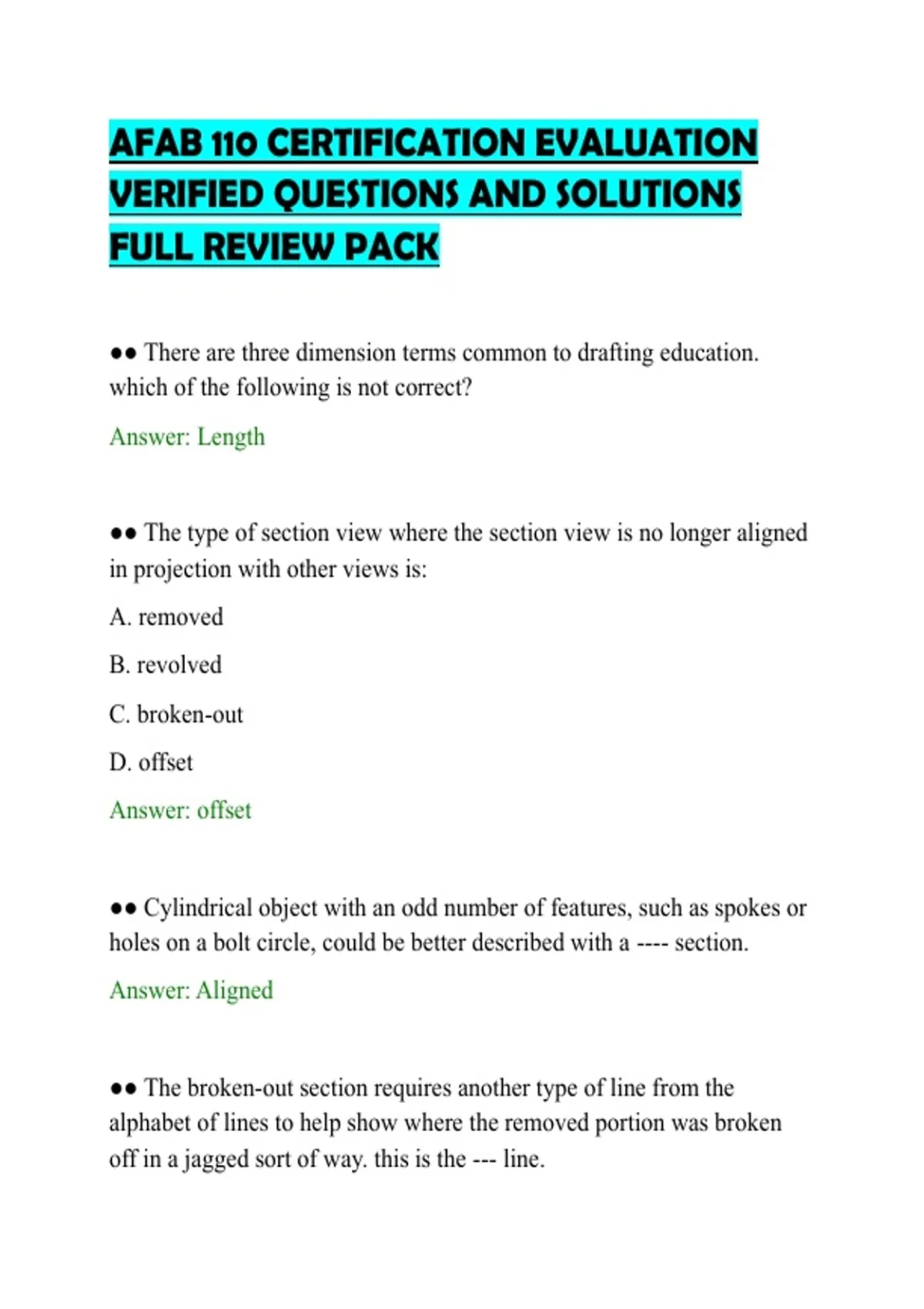

●● There are three dimension terms common to drafting education.
which of the following is not correct?
Answer: Length
●● The type of section view where the section view is no longer aligned
in projection with other views is:
A. removed
B. revolved
C. broken-out
D. offset
Answer: offset
●● Cylindrical object with an odd number of features, such as spokes or
holes on a bolt circle, could be better described with a ---- section.
Answer: Aligned
●● The broken-out section requires another type of line from the
alphabet of lines to help show where the removed portion was broken
off in a jagged sort of way. this is the --- line.
, Answer: Short break
●● When a --- section is created, it can be overlaid on the view or short
break lines can be used on each side of th e view to seperate it from the
other visible lines.
Answer: Revolved
●● Type of section wherein the section view is probably located out of
projection with the other regular or auxiliary views is a --- section.
Answer: Removed
●● There is a conventional practice that allows the drafter to leave a
feature unhatched, even though the cutting-plane line passes through it.
Which of the following is not relevent to this conventional practice?
Answer: Hole
●● If there is a large area that needs to receive section lines, the ____
section allows for the section lines to only be applied around the
perimeter.
Answer: outline
●● In assembly drawings, there may be some parts that do not receive
section lines, but rather the area cut by the cutting-plane line is filled-in
solid. Which of the following is not relevant to this conventional
practice?
