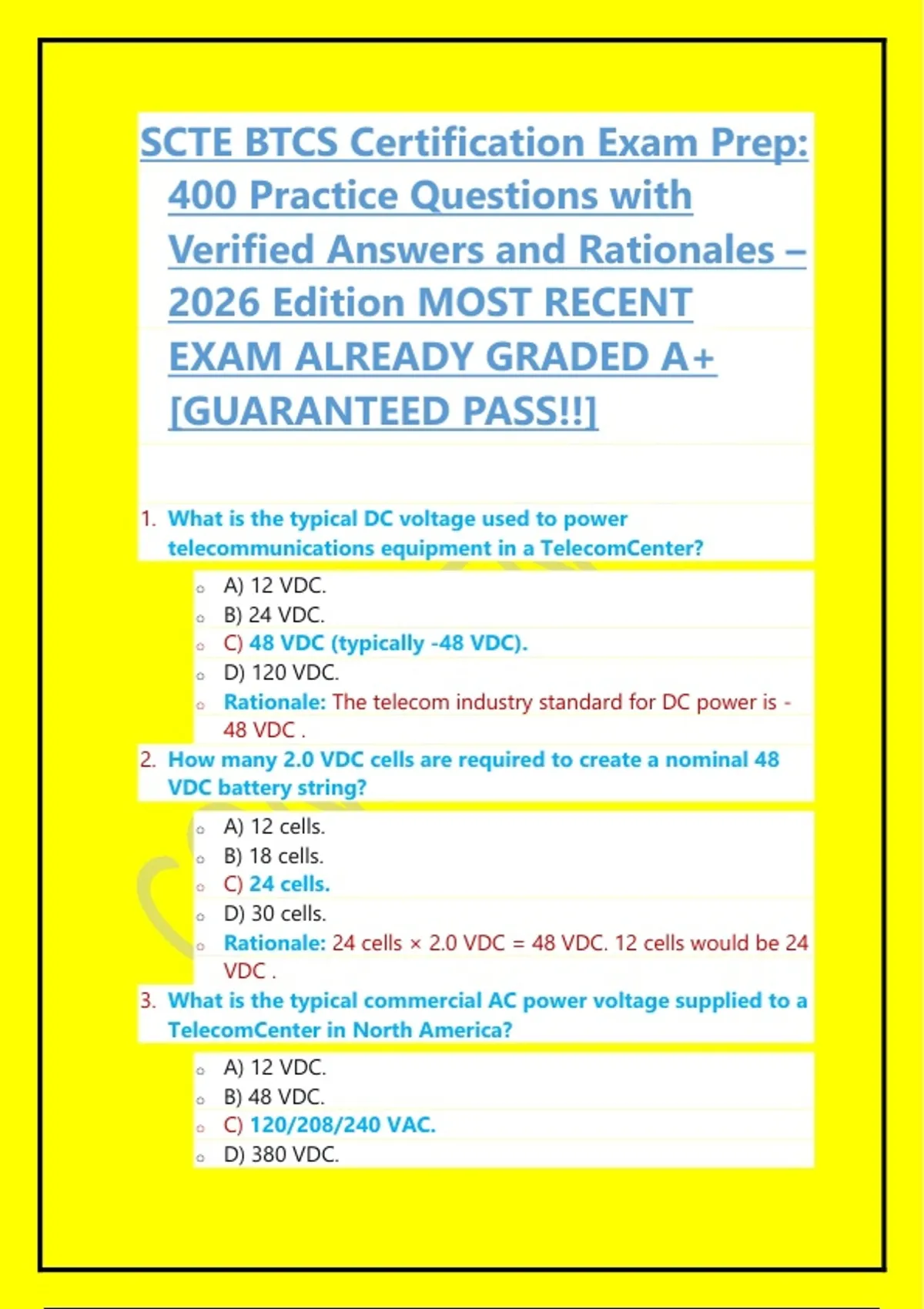

SCTE BTCS Certification Exam Prep:
400 Practice Questions with
Verified Answers and Rationales –
2026 Edition MOST RECENT
EXAM ALREADY GRADED A+
[GUARANTEED PASS!!]
1. What is the typical DC voltage used to power
telecommunications equipment in a TelecomCenter?
o A) 12 VDC.
o B) 24 VDC.
o C) 48 VDC (typically -48 VDC).
o D) 120 VDC.
o Rationale: The telecom industry standard for DC power is -
48 VDC .
2. How many 2.0 VDC cells are required to create a nominal 48
VDC battery string?
o A) 12 cells.
o B) 18 cells.
o C) 24 cells.
o D) 30 cells.
o Rationale: 24 cells × 2.0 VDC = 48 VDC. 12 cells would be 24
VDC .
3. What is the typical commercial AC power voltage supplied to a
TelecomCenter in North America?
o A) 12 VDC.
o B) 48 VDC.
o C) 120/208/240 VAC.
o D) 380 VDC.
, o Rationale: North American commercial power is typically
120/208/240 VAC .
4. What is the purpose of a "backup generator" in a
TelecomCenter?
o A) To provide power during normal operations.
o B) To provide extended backup power during prolonged
AC power outages.
o C) To power the facility's cooling systems only.
o D) To charge employee devices.
o Rationale: Generators provide extended backup power when
utility power fails .
5. What is the operational characteristic of an "Open Transition"
automatic transfer switch (ATS)?
o A) The transfer switch makes contact with the new source
before disconnecting from the old source.
o B) The transfer switch disconnects from the old source
before making contact with the new source.
o C) The transfer switch continuously monitors both sources for
synchronization.
o D) The transfer switch operates only during scheduled
maintenance events.
o Rationale: An open transition ATS breaks the connection to
the original source before establishing a connection to the
new source, causing a momentary power interruption .
6. What is the maximum acceptable resistance value for a
standard grounding electrode system connection, according to
NEC and SCTE practices?
o A) 1.0 ohm or less.
o B) 25.0 ohms or less.
o C) 10.0 ohms.
o D) 100.0 ohms.
o Rationale: The NEC typically requires a grounding electrode
system resistance of 25 ohms or less .
7. Which TIA standard addresses cable labeling and
administration?
o A) TIA-942.
, o B) TIA-568.
o C) TIA-606.
o D) TIA-607.
o Rationale: TIA-606 is the Administration Standard for
Telecommunications Infrastructure .
8. What is the primary purpose of a cable tray in a
TelecomCenter?
o A) To serve as shelves for office supplies.
o B) To support, organize, and protect cables.
o C) To display marketing banners.
o D) To act as a walkway for technicians.
o Rationale: Cable trays provide structured cable
management .
9. What is the recommended minimum bend radius for fiber
optic cables to prevent signal loss?
o A) 5 times the cable's outer diameter.
o B) 10 times the cable's outer diameter.
o C) 20 times the cable's outer diameter.
o D) 30 times the cable's outer diameter.
o Rationale: Fiber cables require a bend radius of at least 20x
the outer diameter to prevent damage and attenuation .
10. What does Power Usage Effectiveness (PUE) measure in a
facility?
o A) Signal-to-noise ratio of equipment.
o B) Ratio of total facility power to IT equipment power.
o C) Carbon emissions per kilowatt-hour.
o D) Water usage efficiency.
o Rationale: PUE is the ratio of total facility power used to the
power consumed by the IT equipment .
11. In a headend with a downflow CRAC system, where
should supply air be discharged?
o A) Into the ceiling plenum.
o B) Into the raised floor plenum for distribution through
perforated tiles.
o C) Directly into the equipment racks.
o D) Horizontally across the room at floor level.
, o Rationale: Downflow CRAC units discharge cool air into a
raised floor plenum, which is then distributed through
perforated tiles to cool equipment .
12. Which fire suppression agent is considered safe for use in
environments with sensitive electronics?
o A) CO2.
o B) Water Mist.
o C) Dry Chemical.
o D) FM-200.
o Rationale: FM-200 and Novec 1230 are "clean agents"
suitable for electronics. CO2 poses an asphyxiation risk, water
mist can cause shorting, and dry chemical leaves a corrosive
residue .
13. A -48 VDC power plant with 100 feet of conductor and a
150 A load has a 2% voltage drop limit (0.96 V). What is the
minimum conductor size (in kcmil) required?
o A) 250 kcmil.
o B) 300 kcmil.
o C) 350 kcmil.
o D) 400 kcmil.
o Rationale: Using the voltage drop formula, the calculated
size is approximately 325 kcmil, so the next standard size is
350 kcmil .
14. What is a "2N" redundancy configuration?
o A) Two power supplies in one chassis.
o B) Complete duplication of all systems, allowing full
maintenance without service interruption.
o C) A system with one primary and one backup unit.
o D) A system with no redundancy.
o Rationale: 2N redundancy provides a fully duplicated
infrastructure for mission-critical facilities .
15. What is the primary cause of fiber optic signal loss?
o A) Interference.
o B) Attenuation.
o C) Reflection.
o D) Refraction.
400 Practice Questions with
Verified Answers and Rationales –
2026 Edition MOST RECENT
EXAM ALREADY GRADED A+
[GUARANTEED PASS!!]
1. What is the typical DC voltage used to power
telecommunications equipment in a TelecomCenter?
o A) 12 VDC.
o B) 24 VDC.
o C) 48 VDC (typically -48 VDC).
o D) 120 VDC.
o Rationale: The telecom industry standard for DC power is -
48 VDC .
2. How many 2.0 VDC cells are required to create a nominal 48
VDC battery string?
o A) 12 cells.
o B) 18 cells.
o C) 24 cells.
o D) 30 cells.
o Rationale: 24 cells × 2.0 VDC = 48 VDC. 12 cells would be 24
VDC .
3. What is the typical commercial AC power voltage supplied to a
TelecomCenter in North America?
o A) 12 VDC.
o B) 48 VDC.
o C) 120/208/240 VAC.
o D) 380 VDC.
, o Rationale: North American commercial power is typically
120/208/240 VAC .
4. What is the purpose of a "backup generator" in a
TelecomCenter?
o A) To provide power during normal operations.
o B) To provide extended backup power during prolonged
AC power outages.
o C) To power the facility's cooling systems only.
o D) To charge employee devices.
o Rationale: Generators provide extended backup power when
utility power fails .
5. What is the operational characteristic of an "Open Transition"
automatic transfer switch (ATS)?
o A) The transfer switch makes contact with the new source
before disconnecting from the old source.
o B) The transfer switch disconnects from the old source
before making contact with the new source.
o C) The transfer switch continuously monitors both sources for
synchronization.
o D) The transfer switch operates only during scheduled
maintenance events.
o Rationale: An open transition ATS breaks the connection to
the original source before establishing a connection to the
new source, causing a momentary power interruption .
6. What is the maximum acceptable resistance value for a
standard grounding electrode system connection, according to
NEC and SCTE practices?
o A) 1.0 ohm or less.
o B) 25.0 ohms or less.
o C) 10.0 ohms.
o D) 100.0 ohms.
o Rationale: The NEC typically requires a grounding electrode
system resistance of 25 ohms or less .
7. Which TIA standard addresses cable labeling and
administration?
o A) TIA-942.
, o B) TIA-568.
o C) TIA-606.
o D) TIA-607.
o Rationale: TIA-606 is the Administration Standard for
Telecommunications Infrastructure .
8. What is the primary purpose of a cable tray in a
TelecomCenter?
o A) To serve as shelves for office supplies.
o B) To support, organize, and protect cables.
o C) To display marketing banners.
o D) To act as a walkway for technicians.
o Rationale: Cable trays provide structured cable
management .
9. What is the recommended minimum bend radius for fiber
optic cables to prevent signal loss?
o A) 5 times the cable's outer diameter.
o B) 10 times the cable's outer diameter.
o C) 20 times the cable's outer diameter.
o D) 30 times the cable's outer diameter.
o Rationale: Fiber cables require a bend radius of at least 20x
the outer diameter to prevent damage and attenuation .
10. What does Power Usage Effectiveness (PUE) measure in a
facility?
o A) Signal-to-noise ratio of equipment.
o B) Ratio of total facility power to IT equipment power.
o C) Carbon emissions per kilowatt-hour.
o D) Water usage efficiency.
o Rationale: PUE is the ratio of total facility power used to the
power consumed by the IT equipment .
11. In a headend with a downflow CRAC system, where
should supply air be discharged?
o A) Into the ceiling plenum.
o B) Into the raised floor plenum for distribution through
perforated tiles.
o C) Directly into the equipment racks.
o D) Horizontally across the room at floor level.
, o Rationale: Downflow CRAC units discharge cool air into a
raised floor plenum, which is then distributed through
perforated tiles to cool equipment .
12. Which fire suppression agent is considered safe for use in
environments with sensitive electronics?
o A) CO2.
o B) Water Mist.
o C) Dry Chemical.
o D) FM-200.
o Rationale: FM-200 and Novec 1230 are "clean agents"
suitable for electronics. CO2 poses an asphyxiation risk, water
mist can cause shorting, and dry chemical leaves a corrosive
residue .
13. A -48 VDC power plant with 100 feet of conductor and a
150 A load has a 2% voltage drop limit (0.96 V). What is the
minimum conductor size (in kcmil) required?
o A) 250 kcmil.
o B) 300 kcmil.
o C) 350 kcmil.
o D) 400 kcmil.
o Rationale: Using the voltage drop formula, the calculated
size is approximately 325 kcmil, so the next standard size is
350 kcmil .
14. What is a "2N" redundancy configuration?
o A) Two power supplies in one chassis.
o B) Complete duplication of all systems, allowing full
maintenance without service interruption.
o C) A system with one primary and one backup unit.
o D) A system with no redundancy.
o Rationale: 2N redundancy provides a fully duplicated
infrastructure for mission-critical facilities .
15. What is the primary cause of fiber optic signal loss?
o A) Interference.
o B) Attenuation.
o C) Reflection.
o D) Refraction.
