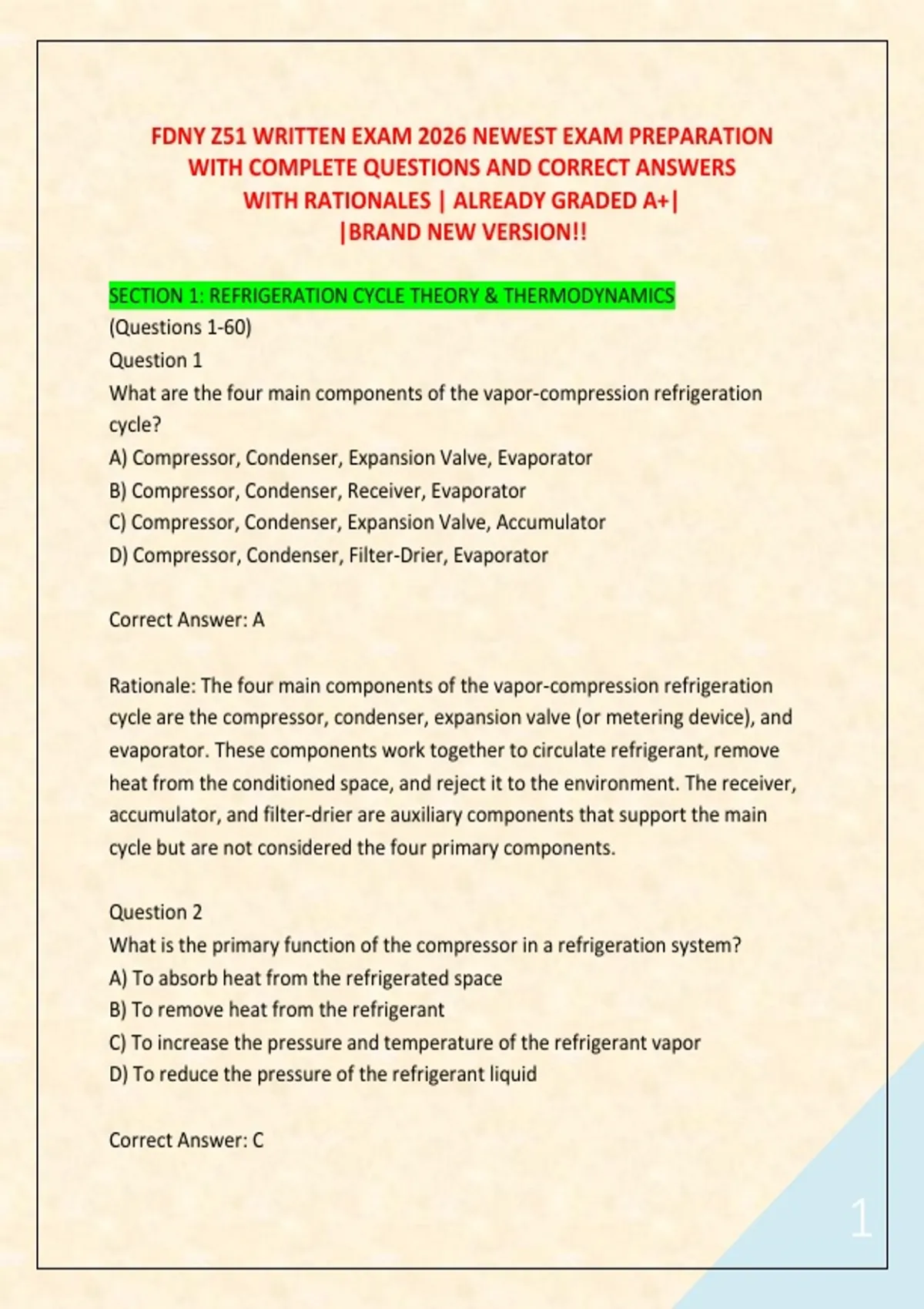

FDNY Z51 WRITTEN EXAM 2026 NEWEST EXAM PREPARATION
WITH COMPLETE QUESTIONS AND CORRECT ANSWERS
WITH RATIONALES | ALREADY GRADED A+|
|BRAND NEW VERSION!!
SECTION 1: REFRIGERATION CYCLE THEORY & THERMODYNAMICS
(Questions 1-60)
Question 1
What are the four main components of the vapor-compression refrigeration
cycle?
A) Compressor, Condenser, Expansion Valve, Evaporator
B) Compressor, Condenser, Receiver, Evaporator
C) Compressor, Condenser, Expansion Valve, Accumulator
D) Compressor, Condenser, Filter-Drier, Evaporator
Correct Answer: A
Rationale: The four main components of the vapor-compression refrigeration
cycle are the compressor, condenser, expansion valve (or metering device), and
evaporator. These components work together to circulate refrigerant, remove
heat from the conditioned space, and reject it to the environment. The receiver,
accumulator, and filter-drier are auxiliary components that support the main
cycle but are not considered the four primary components.
Question 2
What is the primary function of the compressor in a refrigeration system?
A) To absorb heat from the refrigerated space
B) To remove heat from the refrigerant
C) To increase the pressure and temperature of the refrigerant vapor
D) To reduce the pressure of the refrigerant liquid
Correct Answer: C
1
,Rationale: The compressor's primary function is to draw low-pressure, low-
temperature refrigerant vapor from the evaporator and compress it, significantly
increasing both its pressure and temperature. This high-pressure, high-
temperature vapor is then discharged to the condenser where heat is rejected.
Without the compressor, the refrigerant would not circulate through the system.
Question 3
What is the primary function of the condenser in a refrigeration system?
A) To absorb heat from the refrigerated space
B) To remove heat from the high-pressure refrigerant vapor
C) To increase the pressure of the refrigerant
D) To reduce the pressure of the refrigerant liquid
Correct Answer: B
Rationale: The condenser removes heat from the high-pressure, high-
temperature refrigerant vapor discharged by the compressor. As heat is removed,
the refrigerant condenses from a vapor to a liquid state. The heat is rejected to
the surrounding air (air-cooled condenser) or water (water-cooled condenser).
This is the stage where the refrigerant rejects the heat it absorbed in the
evaporator plus the heat of compression.
Question 4
What is the primary function of the expansion valve (metering device)?
A) To increase refrigerant pressure
B) To increase refrigerant temperature
C) To reduce refrigerant pressure and temperature
D) To compress refrigerant vapor
Correct Answer: C
Rationale: The expansion valve (metering device) reduces the pressure and
temperature of the liquid refrigerant as it passes from the high-pressure side
2
,of the system to the low-pressure side. This pressure drop causes a portion of
the liquid refrigerant to flash into vapor, cooling the remaining liquid.
The cooled, low-pressure liquid-vapor mixture then enters the evaporator where
it can absorb heat from the refrigerated space.
Question 5
What is the primary function of the evaporator in a refrigeration system?
A) To compress refrigerant vapor
B) To remove heat from the refrigerant
C) To absorb heat from the refrigerated space
D) To reduce refrigerant pressure
Correct Answer: C
Rationale: The evaporator absorbs heat from the refrigerated space by allowing
the low-pressure, low-temperature liquid refrigerant to boil and vaporize.
As the refrigerant absorbs heat, it changes from a liquid to a vapor state,
cooling the air or liquid that passes over the evaporator coils. The vaporized
refrigerant then returns to the compressor to repeat the cycle.
Question 6
What is "superheat" in a refrigeration system?
A) The temperature of the refrigerant above its saturation temperature
B) The temperature of the refrigerant below its saturation temperature
C) The temperature of the refrigerant at its saturation point
D) The temperature difference between the evaporator and condenser
Correct Answer: A
Rationale: Superheat is the amount of heat added to refrigerant vapor above its
saturation temperature at a given pressure. It is calculated as the difference
between the actual vapor temperature and the saturation temperature.
Superheat ensures that only vapor (not liquid) returns to the compressor,
3
, preventing compressor damage from liquid slugging. Typical superheat values
range from 5°F to 15°F.
Question 7
What is "subcooling" in a refrigeration system?
A) The temperature of the refrigerant above its saturation temperature
B) The temperature of the refrigerant below its saturation temperature
C) The temperature of the refrigerant at its saturation point
D) The temperature difference between the evaporator and condenser
Correct Answer: B
Rationale: Subcooling is the amount of heat removed from liquid refrigerant
below its saturation temperature at a given pressure. It is calculated as the
difference between the saturation temperature and the actual liquid
temperature.
Subcooling ensures that only liquid (not vapor) reaches the expansion valve,
improving system efficiency. Typical subcooling values range from 5°F to 15°F.
Question 8
What is the "Coefficient of Performance" (COP) of a refrigeration system?
A) The ratio of heat removed to work input
B) The ratio of work input to heat removed
C) The ratio of heat rejected to heat removed
D) The ratio of heat removed to heat rejected
Correct Answer: A
Rationale: The Coefficient of Performance (COP) is a measure of refrigeration
system efficiency, calculated as the ratio of heat removed from the refrigerated
space (cooling effect) to the work input required by the compressor.
A higher COP indicates a more efficient system. COP is calculated as:
COP = Cooling Effect (Btu/hr) / Work Input (Btu/hr).
4
