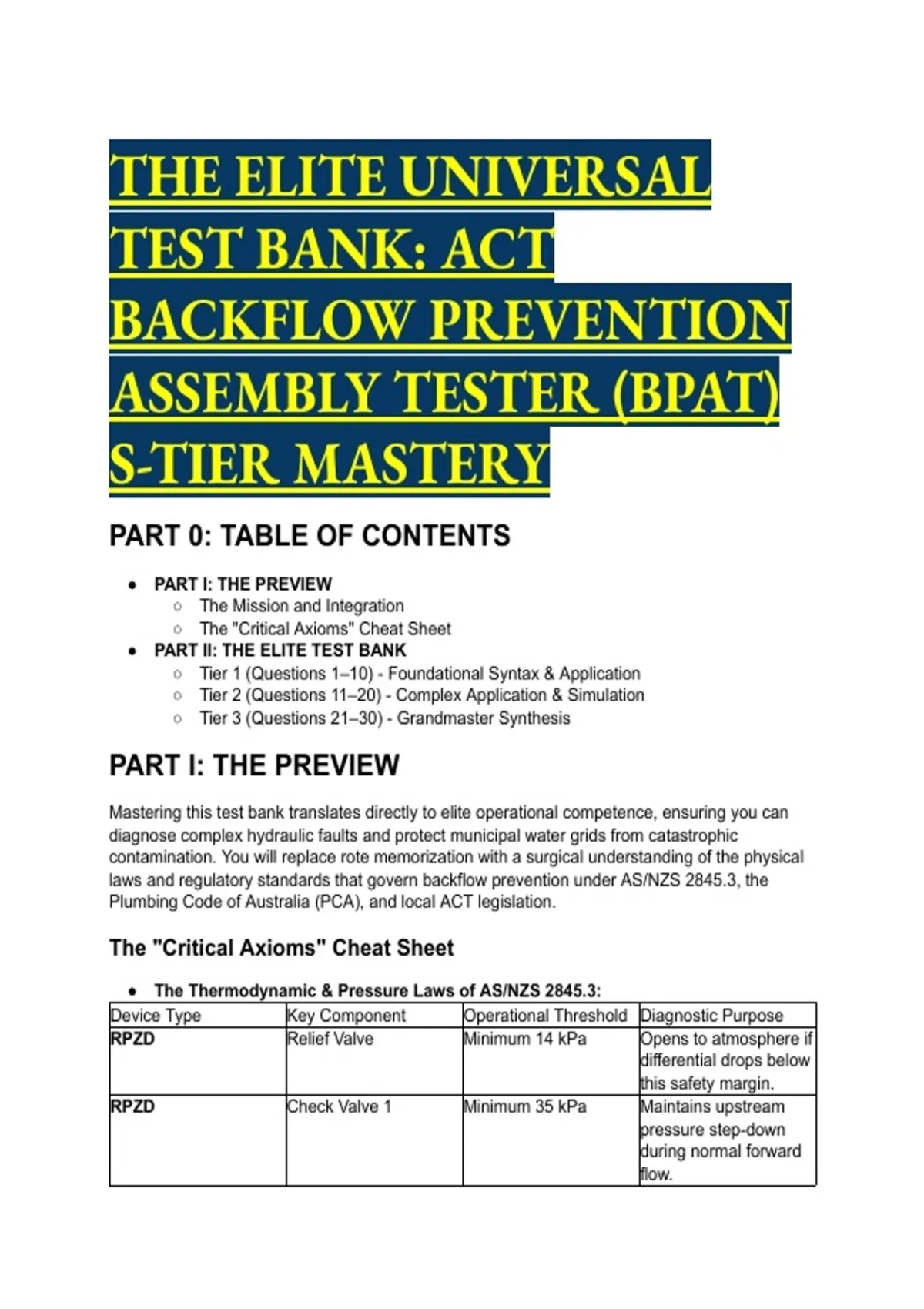

THE ELITE UNIVERSAL
TEST BANK: ACT
BACKFLOW PREVENTION
ASSEMBLY TESTER (BPAT)
S-TIER MASTERY
PART 0: TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission and Integration
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–10) - Foundational Syntax & Application
○ Tier 2 (Questions 11–20) - Complex Application & Simulation
○ Tier 3 (Questions 21–30) - Grandmaster Synthesis
PART I: THE PREVIEW
Mastering this test bank translates directly to elite operational competence, ensuring you can
diagnose complex hydraulic faults and protect municipal water grids from catastrophic
contamination. You will replace rote memorization with a surgical understanding of the physical
laws and regulatory standards that govern backflow prevention under AS/NZS 2845.3, the
Plumbing Code of Australia (PCA), and local ACT legislation.
The "Critical Axioms" Cheat Sheet
● The Thermodynamic & Pressure Laws of AS/NZS 2845.3:
Device Type Key Component Operational Threshold Diagnostic Purpose
RPZD Relief Valve Minimum 14 kPa Opens to atmosphere if
differential drops below
this safety margin.
RPZD Check Valve 1 Minimum 35 kPa Maintains upstream
pressure step-down
during normal forward
flow.
,Device Type Key Component Operational Threshold Diagnostic Purpose
DCV / DCDA Check Valves 1 & 2 Minimum 7 kPa Confirms tight seating
against static
back-pressure.
DCDA Main Valve Bypass Minimum 20 kPa Forces low flow through
the metered bypass to
detect leaks/theft.
● The Hazard Alignment Rule: Devices must strictly match the fluid risk. High Hazard
(e.g., mortuaries, bidets, chemical lines) requires a Reduced Pressure Zone Device
(RPZD), Registered Air Gap (RAG), or Break Tank. Medium Hazard (e.g., rainwater tanks,
caravan parks) requires a Double Check Valve (DCV). Low Hazard utilizes non-testable
dual check valves.
● The Calibration Mandate: Differential pressure test kits must undergo calibration every
12 months by a registered NATA-equivalent laboratory; expired equipment instantly
invalidates all compliance testing, rendering the data legally void.
● The Architectural Isolation Imperative: Containment devices protect the Icon Water
street mains. Zone and Individual devices protect the building's internal occupants.
Boundary containment must always equal or exceed the highest hazard rating present
anywhere on the property.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A licensed plumber in Canberra is assessing a newly constructed residential property. The
owner has installed an underground rainwater tank interconnected with the potable water
supply, and a bidet toilet seat where the outlet is positioned below the 25 mm overflow level of
the pan. Based on the principles of the Plumbing Code of Australia (PCA) and AS/NZS 3500.1,
which containment and individual backflow prevention strategy is the MOST ACCURATE? A) A
non-testable dual check valve at the boundary meter and a Double Check Valve (DCV) at the
bidet. B) A Double Check Valve (DCV) at the boundary meter and no individual protection
required for the bidet. C) An RPZD at the boundary meter for containment and an RPZD at the
bidet for individual protection. D) A Double Check Valve (DCV) at the rainwater tank and a
Registered Air Gap (RAG) at the boundary meter.
● Answer: C (An RPZD at the boundary meter for containment and an RPZD at the bidet
for individual protection.)
● Distractor Analysis:
○ A is incorrect: A bidet with an outlet below the overflow level is classified as a High
Hazard. A non-testable dual check valve only provides Low Hazard protection and
is illegal for this application.
○ B is incorrect: A DCV provides Medium Hazard protection, which covers the
rainwater tank, but fails to mitigate the High Hazard posed by the non-compliant
bidet.
○ D is incorrect: While a DCV at the tank is correct for a Medium Hazard, installing a
RAG at the property boundary is hydraulically impractical for a pressurized main
water service, completely disrupting supply pressure.
The Mentor's Analysis: Property containment must always match the highest hazard level
, present within the boundaries. When facing mixed hazards, the immediate priority is addressing
the highest risk profile. By utilizing an RPZD, you bypass the common trap of under-protecting
the Icon Water mains against biological back-siphonage from the bidet.
Professional/Academic Intuition: Containment scales to the highest localized hazard;
High Hazard individual fixtures mandate High Hazard boundary containment.
Q2: During the annual field testing of a Reduced Pressure Zone Device (RPZD) in accordance
with AS/NZS 2845.3, the technician observes the differential pressure gauge reading as the
relief valve begins to discharge water. To achieve a passing result, the relief valve must FIRST
commence opening at which of the following differential pressure readings? A) A minimum of 7
kPa. B) Exactly 35 kPa. C) A minimum of 14 kPa. D) A maximum of 20 kPa.
● Answer: C (A minimum of 14 kPa.)
● Distractor Analysis:
○ A is incorrect: 7 kPa is the minimum holding pressure for Check Valve 2 (CV2)
under normal operation, not the relief valve opening threshold.
○ B is incorrect: 35 kPa is the operational differential pressure maintained by Check
Valve 1 (CV1) during normal forward flow, not the relief valve set point.
○ D is incorrect: Defining a "maximum" threshold is a critical analytical error; the
standard mandates a minimum differential to ensure the intermediate chamber
drains well before a backflow event can overwhelm the system.
The Mentor's Analysis: The relief valve in an RPZD operates on a mechanical differential
margin. When facing potential back-pressure or back-siphonage, the immediate priority is
draining the zone to atmosphere. By utilizing the 14 kPa minimum threshold, you bypass the
common trap of allowing the intermediate chamber pressure to equalize with the supply
pressure. Professional/Academic Intuition: The relief valve must vent to atmosphere
whenever the supply pressure drops to within 14 kPa of the intermediate chamber
pressure.
Q3: A facility manager in the ACT contacts a backflow assembly tester regarding a Double
Check Valve (DCV) serving a caravan park. To verify the integrity of the non-return valves
according to AS/NZS 2845.3, the technician must ensure each valve does not leak against a
specific applied reverse pressure. Which testing parameter is the MOST APPROPRIATE for a
DCV? A) 35 kPa applied in the direction of reverse flow. B) 14 kPa applied with the downstream
pressure at atmospheric pressure. C) 7 kPa applied in the direction of normal water flow, with
the pressure downstream at atmospheric pressure. D) 20 kPa higher than the bypass valve
pressure.
● Answer: C (7 kPa applied in the direction of normal water flow, with the pressure
downstream at atmospheric pressure.)
● Distractor Analysis:
○ A is incorrect: Applying 35 kPa relates to the RPZD Check Valve 1 operational
differential, which is an irrelevant metric for the baseline sealing integrity of a DCV.
○ B is incorrect: 14 kPa is the RPZD relief valve threshold, not the back-pressure
testing threshold for a DCV non-return valve.
○ D is incorrect: A 20 kPa differential is the operational requirement for a Double
Check Detector Assembly (DCDA) main valve to force low flow through the bypass,
not standard DCV testing.
The Mentor's Analysis: DCVs lack a relief valve, making the mechanical seal of the two check
valves the sole line of defense. When facing a DCV audit, the immediate priority is verifying the
physical seating of the internal springs. By utilizing a 7 kPa static test, you bypass the common
trap of over-pressurizing the valve, which can falsely seat a weak or failing spring.
