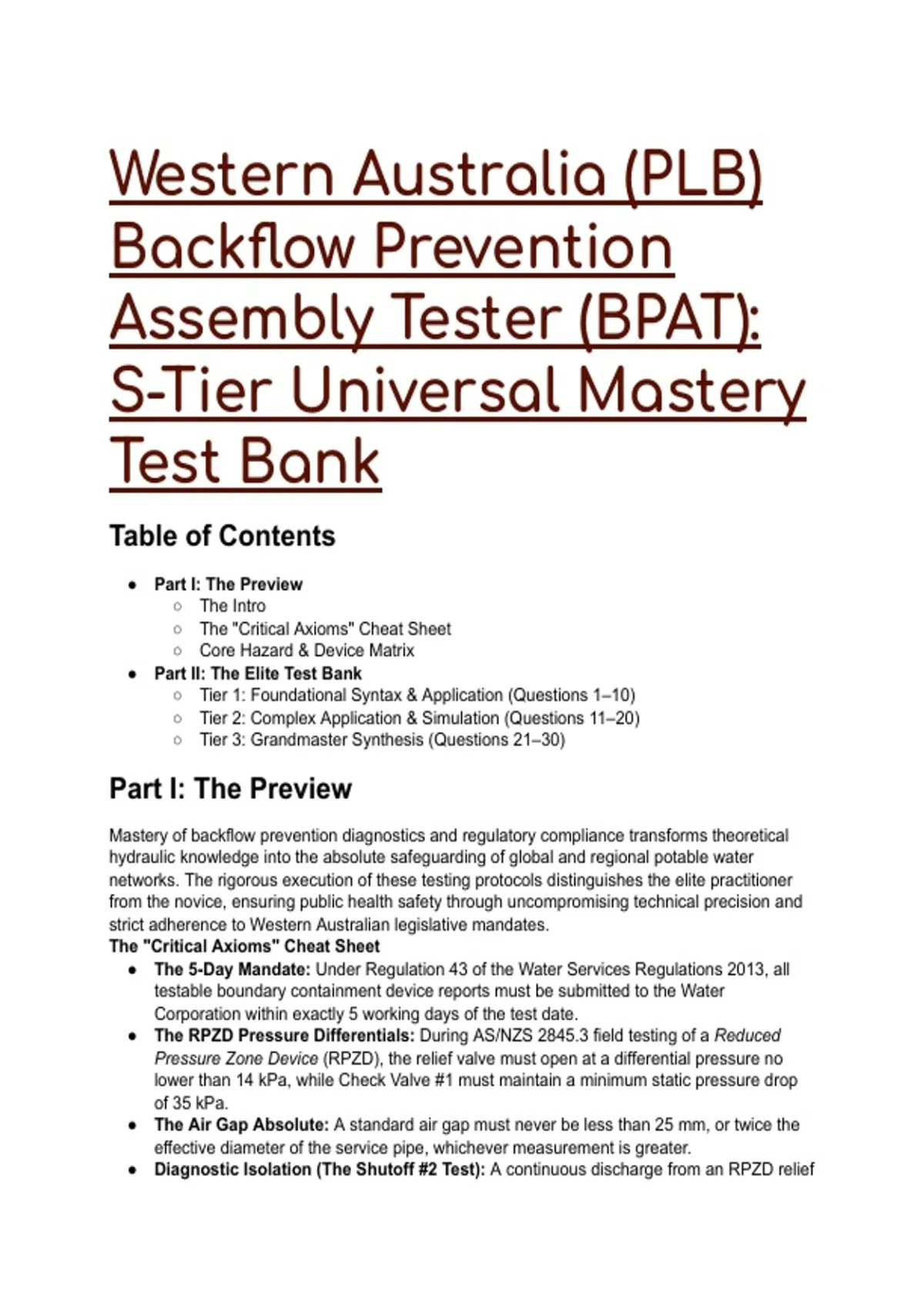

Western Australia (PLB)
Backflow Prevention
Assembly Tester (BPAT):
S-Tier Universal Mastery
Test Bank
Table of Contents
● Part I: The Preview
○ The Intro
○ The "Critical Axioms" Cheat Sheet
○ Core Hazard & Device Matrix
● Part II: The Elite Test Bank
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
Part I: The Preview
Mastery of backflow prevention diagnostics and regulatory compliance transforms theoretical
hydraulic knowledge into the absolute safeguarding of global and regional potable water
networks. The rigorous execution of these testing protocols distinguishes the elite practitioner
from the novice, ensuring public health safety through uncompromising technical precision and
strict adherence to Western Australian legislative mandates.
The "Critical Axioms" Cheat Sheet
● The 5-Day Mandate: Under Regulation 43 of the Water Services Regulations 2013, all
testable boundary containment device reports must be submitted to the Water
Corporation within exactly 5 working days of the test date.
● The RPZD Pressure Differentials: During AS/NZS 2845.3 field testing of a Reduced
Pressure Zone Device (RPZD), the relief valve must open at a differential pressure no
lower than 14 kPa, while Check Valve #1 must maintain a minimum static pressure drop
of 35 kPa.
● The Air Gap Absolute: A standard air gap must never be less than 25 mm, or twice the
effective diameter of the service pipe, whichever measurement is greater.
● Diagnostic Isolation (The Shutoff #2 Test): A continuous discharge from an RPZD relief
, valve that ceases immediately upon closing Shutoff Valve #2 unequivocally indicates a
fouled Check Valve #2 experiencing downstream backpressure.
● Regulatory Non-Negotiables: Installation of testable backflow devices is universally
classified as Major Plumbing Work, strictly forbidding unlicensed DIY tampering and
demanding pre-notification via a Notice of Intention.
Core Hazard & Device Matrix (AS/NZS 3500.1)
Hazard Rating Definition / Approved Containment Typical WA
Consequence Devices Applications
High Potential to cause RPZD, RBT, RAG, Chemical injection,
death or severe toxicity. RPDA cooling towers,
commercial laundries.
Medium Potential to endanger DCV, DCDA Standard fire services,
health (non-lethal). hospital ablutions, wet
bin wash areas.
Low Constitutes a nuisance DuCV, HCVB, AVB Hose taps, residential
but does not endanger irrigation without
health. chemicals.
Part II: The Elite Test Bank
Tier 1: Foundational Syntax & Application
Q1: A commercial facility in Perth installs a new Reduced Pressure Zone Device (RPZD) on a
high-hazard boundary connection. Following the successful commissioning of the assembly
under AS/NZS 2845.3 standards, which regulatory reporting action is the MOST ACCURATE?
A) The licensed plumbing contractor must submit the compliance report to the Plumbers
Licensing Board within 48 hours to avert an automatic suspension of their backflow
endorsement. B) The accredited tester must provide a copy of the test report to the Water
Corporation no later than 5 working days after the day on which the test is carried out. C) The
property owner retains the original test certificate on-site for a period of 6 years, producing it
only during an annual inspection by the Department of Mines, Industry Regulation and Safety.
D) The backflow compliance report is submitted to the Water Corporation exclusively at the end
of the calendar month as part of the minor plumbing work consolidation form.
● Answer: B (The accredited tester must provide a copy of the test report to the Water
Corporation no later than 5 working days after the day on which the test is carried out.)
● Distractor Analysis:
○ A is incorrect: The AS 2845.3 mechanical test report is submitted to the water
service provider (Water Corporation), not the Plumbers Licensing Board, and the
strictly mandated timeframe is 5 working days, not 48 hours.
○ C is incorrect: While plumbing contractors must retain copies of compliance
certificates for 6 years, the immediate statutory obligation for the test report is direct
submission to the Water Corporation, not passive retention.
○ D is incorrect: Backflow installation and testing are explicitly excluded from the
definition of minor plumbing work. They are major plumbing work and cannot be
consolidated into a monthly minor work return.
The Mentor's Analysis: Regulatory compliance in Western Australia is strictly bifurcated
between installation standards and operational reporting. When executing boundary
containment testing, the primary stakeholder is the municipal water authority, which strictly
, enforces a 5-working-day reporting window. By utilizing Regulation 43 of the Water Services
Regulations 2013, the practitioner bypasses the common trap of misclassifying backflow
maintenance as standard monthly minor work. Professional/Academic Intuition: Boundary
containment test reports belong to the Water Corporation within exactly five working
days; they are never treated as consolidated minor plumbing work.
Q2: During a routine site audit, a compliance assessor identifies a chemical dispenser utilized
for high-toxicity weed spraying connected directly to a facility's potable water line. According to
AS/NZS 3500.1, which hazard rating and corresponding device are the MOST APPROPRIATE
for this individual fixture? A) Medium Hazard; Double Check Valve (DCV) assembly. B) Low
Hazard; Dual Check Valve (DuCV). C) High Hazard; Reduced Pressure Zone Device (RPZD) or
Registered Air Gap (RAG). D) High Hazard; Double Check Detector Assembly (DCDA).
● Answer: C (High Hazard; Reduced Pressure Zone Device (RPZD) or Registered Air Gap
(RAG).)
● Distractor Analysis:
○ A is incorrect: High-toxicity chemical dispensers carry the direct potential to cause
death, necessitating a High Hazard rating, not a Medium Hazard rating which only
requires a DCV.
○ B is incorrect: A Dual Check Valve is non-testable and strictly reserved for Low
Hazard (nuisance) applications, fundamentally inadequate for lethal chemical
cross-connections.
○ D is incorrect: While a Double Check Detector Assembly (DCDA) handles Medium
Hazard, it is utilized exclusively for fire service lines to detect unauthorized water
usage, not for toxic chemical containment.
The Mentor's Analysis: Hazard stratification dictates the entire architectural approach to
cross-connection control. Any cross-connection harboring the potential to cause death is
automatically designated as a High Hazard. By utilizing a Reduced Pressure Zone Device or a
Registered Air Gap, the practitioner ensures an uncompromising physical or
pressure-differential barrier equipped with fail-safe atmospheric venting.
Professional/Academic Intuition: High Hazard classifications demand fail-safe
atmospheric venting; a closed system like a Double Check Valve is fundamentally
inadequate for toxic, lethal risks.
Q3: A licensed plumber is fabricating a custom water storage tank that receives potable water
from a 40 mm diameter service pipe. To satisfy the absolute Air Gap separation requirements
under AS/NZS 3500.1, which physical clearance distance from the spill level is the MOST
ACCURATE? A) 25 mm B) 40 mm C) 80 mm D) 120 mm
● Answer: C (80 mm)
● Distractor Analysis:
○ A is incorrect: While 25 mm is the minimum absolute clearance for an air gap on
very small pipes, the standard dictates the gap must be the greater of 25 mm or
twice the service pipe diameter.
○ B is incorrect: 40 mm is merely the diameter of the service pipe, failing to account
for the necessary 2x multiplier required by the code.
○ D is incorrect: 120 mm represents a 3x multiplier, which exceeds the regulatory
requirement and represents an over-engineered, unmandated calculation.
The Mentor's Analysis: The physical air gap remains the most infallible method of
back-siphonage prevention, completely severing the hydraulic link between the potable supply
and the receiving vessel. The standard calculates separation dynamically based on volume
potential. By utilizing the 2x Pipe Diameter Rule, the practitioner accurately scales the safety
