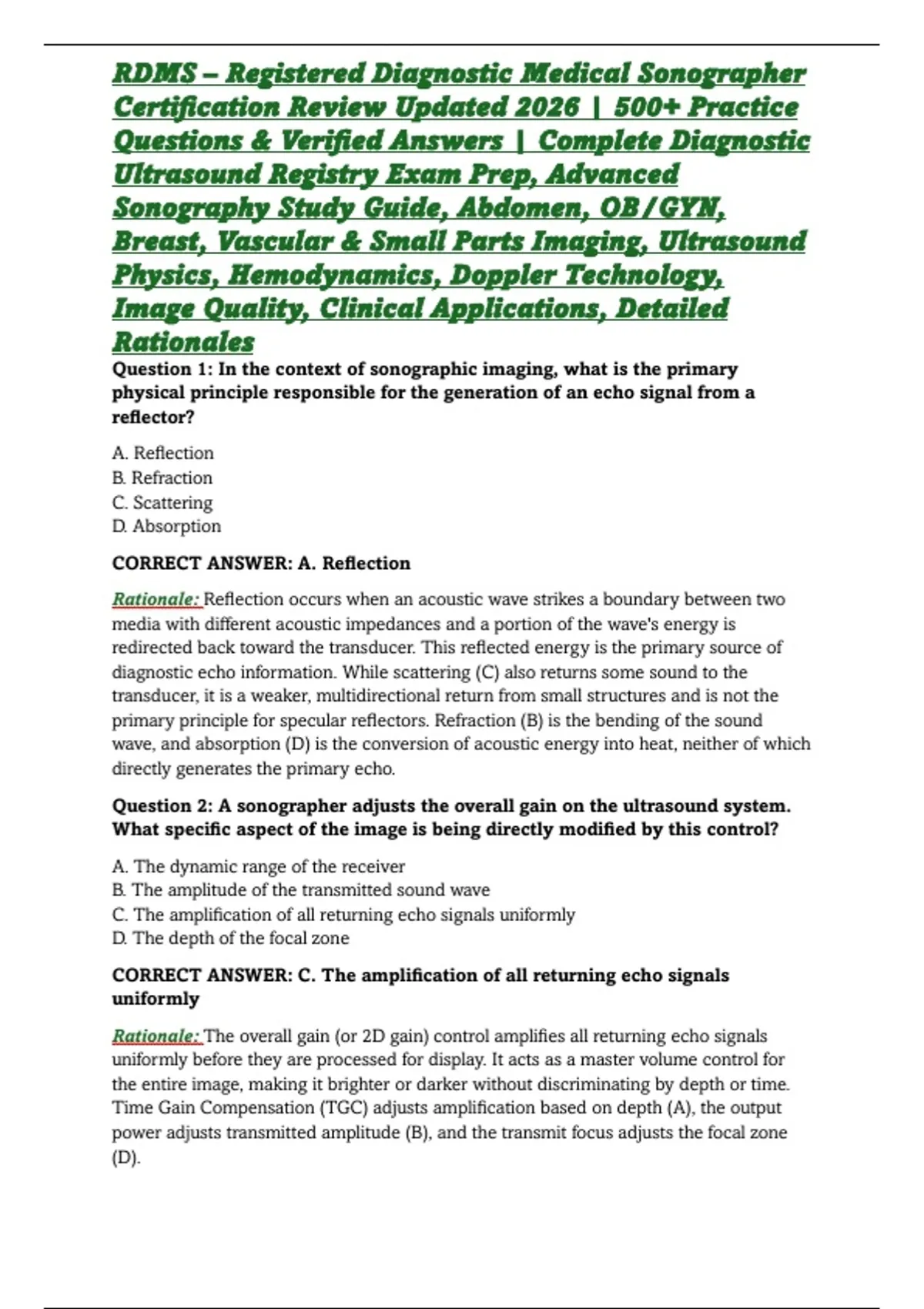

RDMS – Registered Diagnostic Medical Sonographer
Certification Review Updated 2026 | 500+ Practice
Questions & Verified Answers | Complete Diagnostic
Ultrasound Registry Exam Prep, Advanced
Sonography Study Guide, Abdomen, OB/GYN,
Breast, Vascular & Small Parts Imaging, Ultrasound
Physics, Hemodynamics, Doppler Technology,
Image Quality, Clinical Applications, Detailed
Rationales
Question 1: In the context of sonographic imaging, what is the primary
physical principle responsible for the generation of an echo signal from a
reflector?
A. Reflection
B. Refraction
C. Scattering
D. Absorption
CORRECT ANSWER: A. Reflection
Rationale: Reflection occurs when an acoustic wave strikes a boundary between two
media with different acoustic impedances and a portion of the wave's energy is
redirected back toward the transducer. This reflected energy is the primary source of
diagnostic echo information. While scattering (C) also returns some sound to the
transducer, it is a weaker, multidirectional return from small structures and is not the
primary principle for specular reflectors. Refraction (B) is the bending of the sound
wave, and absorption (D) is the conversion of acoustic energy into heat, neither of which
directly generates the primary echo.
Question 2: A sonographer adjusts the overall gain on the ultrasound system.
What specific aspect of the image is being directly modified by this control?
A. The dynamic range of the receiver
B. The amplitude of the transmitted sound wave
C. The amplification of all returning echo signals uniformly
D. The depth of the focal zone
CORRECT ANSWER: C. The amplification of all returning echo signals
uniformly
Rationale: The overall gain (or 2D gain) control amplifies all returning echo signals
uniformly before they are processed for display. It acts as a master volume control for
the entire image, making it brighter or darker without discriminating by depth or time.
Time Gain Compensation (TGC) adjusts amplification based on depth (A), the output
power adjusts transmitted amplitude (B), and the transmit focus adjusts the focal zone
(D).
,Question 3: According to the ALARA principle, which of the following
strategies is most effective for minimizing the potential bioeffects of diagnostic
ultrasound while still obtaining a diagnostic image?
A. Using the highest possible output power to ensure the best signal-to-noise ratio.
B. Minimizing the mechanical index (MI) and thermal index (TI) while maintaining an
acceptable image quality.
C. Extending the examination time to obtain more images for a comprehensive review.
D. Using a higher frequency transducer to improve axial resolution, regardless of
penetration.
CORRECT ANSWER: B. Minimizing the mechanical index (MI) and thermal
index (TI) while maintaining an acceptable image quality.
Rationale: ALARA (As Low As Reasonably Achievable) dictates that ultrasound
exposure should be kept to a minimum. This is practically achieved by using the lowest
possible output power and utilizing the lowest MI and TI values that still yield a
diagnostic image. Increasing output power (A) and extending exam time (C) increase
patient exposure, contradicting ALARA. While higher frequency (D) improves
resolution, it may necessitate higher output power to achieve adequate penetration,
which is not inherently a method of minimizing exposure.
Question 4: In a pulsed-wave Doppler system, the maximum velocity that can
be accurately measured without aliasing is determined by which parameter?
A. The pulse repetition frequency (PRF)
B. The transducer frequency
C. The speed of sound in the medium
D. The wall filter setting
CORRECT ANSWER: A. The pulse repetition frequency (PRF)
Rationale: The Nyquist limit, which is the maximum detectable Doppler shift without
aliasing, is equal to half of the PRF. A higher PRF allows for the measurement of higher
velocities. The Doppler equation shows that transducer frequency (B) and the speed of
sound (C) influence the measured Doppler shift itself, but the PRF sets the sampling rate
and therefore the upper limit of the measurable frequency (velocity). The wall filter (D)
removes low-frequency signals from vessel walls, but does not set the maximum velocity
limit.
Question 5: When imaging a structure that is very close to the transducer's
surface, which technical adjustment is most critical to prevent the near-field
artifacts that obscure this region?
A. Decreasing the depth of field.
B. Placing a water bath or standoff pad between the transducer and the patient.
C. Increasing the overall gain.
D. Adjusting the focal zone to the near field.
,CORRECT ANSWER: B. Placing a water bath or standoff pad between the
transducer and the patient.
Rationale: A standoff pad or water bath increases the distance from the transducer face
to the region of interest. This places the area of interest within the focal zone and avoids
the highly reverberant, high-amplitude near-field region where artifacts like ring-down
and near-field clutter are most problematic. Decreasing depth (A) would worsen the
issue. Increasing gain (C) would amplify near-field noise. Adjusting the focal zone (D) is
helpful but does not solve the physical proximity issue that causes the artifact.
Question 6: A sonographer notices that a large, calcified gallstone creates a
complete shadow posteriorly. This artifact is predominantly the result of
which acoustic phenomenon?
A. High acoustic impedance mismatch leading to strong reflection and refraction.
B. High attenuation and absorption of the ultrasound beam by the calcified structure.
C. The creation of a mirror image of the surrounding tissue.
D. The bending of the sound beam around the edge of the stone.
CORRECT ANSWER: B. High attenuation and absorption of the ultrasound
beam by the calcified structure.
Rationale: Acoustic shadowing occurs when a structure with very high attenuation (like
calcification) absorbs or reflects so much of the ultrasound energy that very little sound
remains to propagate to deeper tissues. This results in an anechoic region (shadow)
deep to the attenuating structure. While reflection (A) is a component of attenuation,
absorption is the dominant factor for dense materials. Refraction (D) can cause edge
shadowing, but a complete central shadow is primarily due to attenuation. Mirror image
(C) is a different artifact entirely.
Question 7: For a continuous wave (CW) Doppler transducer, what is the most
significant limitation that must be considered during its application?
A. It cannot provide high velocity measurements.
B. It lacks range resolution, sampling all moving reflectors along the entire ultrasound
beam path.
C. It is highly susceptible to aliasing.
D. It requires a very low pulse repetition frequency.
CORRECT ANSWER: B. It lacks range resolution, sampling all moving
reflectors along the entire ultrasound beam path.
Rationale: CW Doppler uses two separate crystals: one for continuous transmission and
one for continuous reception. Because it transmits and receives constantly, it has no
"listening" period and therefore cannot gate the returning signal to a specific depth. The
major limitation is the lack of range specificity (range resolution). It is excellent for high-
velocity measurements (A) and does not alias (C) because it samples continuously. Its
PRF is not defined in the same way as in pulsed wave.
, Question 8: The "twinkling artifact" seen behind echogenic renal calculi on
color Doppler is most likely caused by:
A. True, slow flow in the vascularity surrounding the calculus.
B. Random noise from high gain settings.
C. Rapid variations in phase and frequency due to reflection from a rough, highly
reflective surface.
D. Mirror imaging of flow from a deeper vessel.
CORRECT ANSWER: C. Rapid variations in phase and frequency due to
reflection from a rough, highly reflective surface.
Rationale: The twinkling artifact is a rapid, alternating color signal (a mixture of red
and blue) seen deep to a strongly reflecting, rough surface like a calculus. It is caused by
a combination of strong reflection and a rough surface that creates a complex, rapid
phase shift in the returning signal. The system interprets these phase shifts as high-
velocity flow (A), but it is an artifact. Noise (B) is random and not typically associated
with calculi. A mirror image (D) is a different artifact.
Question 9: Which of the following best describes the relationship between
frequency and attenuation in soft tissue?
A. Attenuation is independent of frequency.
B. Attenuation is directly proportional to frequency.
C. Attenuation is inversely proportional to the square of frequency.
D. Attenuation decreases linearly with increasing frequency.
CORRECT ANSWER: B. Attenuation is directly proportional to frequency.
Rationale: In soft tissue, attenuation (the loss of acoustic energy) is directly
proportional to frequency. Higher frequency sound waves are attenuated more rapidly as
they travel through tissue. This is why lower frequency transducers are used for deep
imaging (penetration) and higher frequency transducers are used for superficial imaging
(high resolution). The relationship is approximately linear.
Question 10: What is the primary role of the "logic" or "persistence"
processing in an ultrasound system?
A. To compress the dynamic range of the received signal.
B. To enhance the edges of structures in the image.
C. To average frames over time to reduce speckle and noise.
D. To assign gray-scale values to the echo amplitudes.
CORRECT ANSWER: C. To average frames over time to reduce speckle and
noise.
Rationale: Persistence, sometimes called frame averaging, is a post-processing
technique that averages the information from consecutive frames. This reduces the
appearance of random noise and speckle, resulting in a smoother image. Compression
