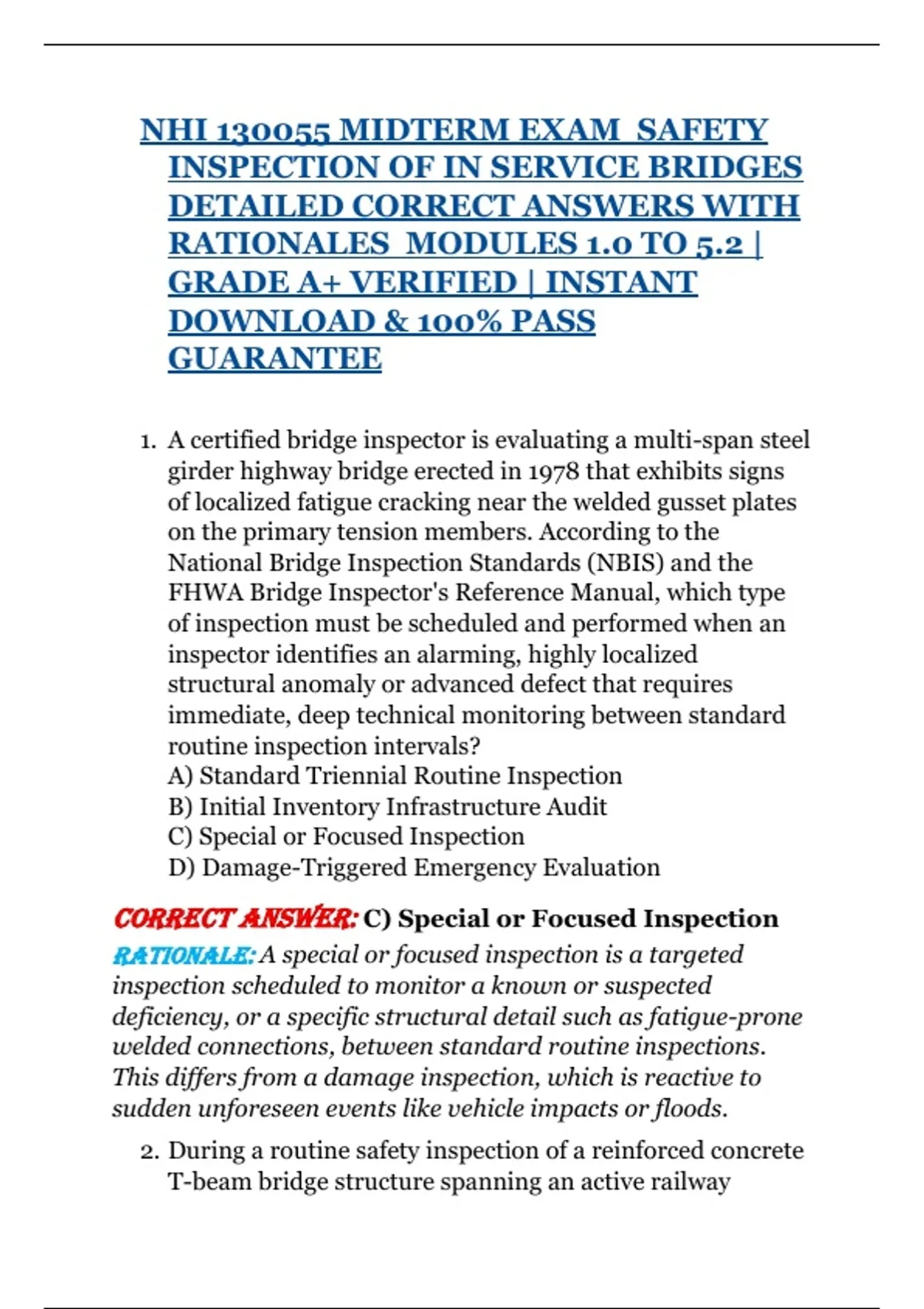

NHI 130055 MIDTERM EXAM SAFETY
INSPECTION OF IN SERVICE BRIDGES
DETAILED CORRECT ANSWERS WITH
RATIONALES MODULES 1.0 TO 5.2 |
GRADE A+ VERIFIED | INSTANT
DOWNLOAD & 100% PASS
GUARANTEE
1. A certified bridge inspector is evaluating a multi-span steel
girder highway bridge erected in 1978 that exhibits signs
of localized fatigue cracking near the welded gusset plates
on the primary tension members. According to the
National Bridge Inspection Standards (NBIS) and the
FHWA Bridge Inspector's Reference Manual, which type
of inspection must be scheduled and performed when an
inspector identifies an alarming, highly localized
structural anomaly or advanced defect that requires
immediate, deep technical monitoring between standard
routine inspection intervals?
A) Standard Triennial Routine Inspection
B) Initial Inventory Infrastructure Audit
C) Special or Focused Inspection
D) Damage-Triggered Emergency Evaluation
Correct Answer: C) Special or Focused Inspection
Rationale: A special or focused inspection is a targeted
inspection scheduled to monitor a known or suspected
deficiency, or a specific structural detail such as fatigue-prone
welded connections, between standard routine inspections.
This differs from a damage inspection, which is reactive to
sudden unforeseen events like vehicle impacts or floods.
2. During a routine safety inspection of a reinforced concrete
T-beam bridge structure spanning an active railway
, corridor, the inspector notes widespread, severe
longitudinal cracking running parallel to the primary
reinforcing steel along the bottom face of the beams,
accompanied by distinct rust-colored staining. What
primary structural degradation mechanism is actively
occurring within these concrete elements?
A) Transverse shrinkage cracking from poor initial curing
protocols
B) Carbonation and moisture-induced corrosion of the
internal reinforcing steel, leading to volumetric expansion
and concrete spalling
C) Reactive alkali-silica chemical aggregate expansion
within the upper compression zones
D) Torsional shear failure driven by excessive high-
velocity wind loads
Correct Answer: B) Carbonation and moisture-
induced corrosion of the internal reinforcing steel,
leading to volumetric expansion and concrete spalling
Rationale: When moisture, oxygen, and chlorides or
carbonation penetrate the concrete cover, they cause corrosion
of the steel reinforcement. The corrosion products occupy up to
six times the volume of the original steel, creating massive
internal tensile stresses that manifest as cracks parallel to the
bars, eventually leading to spalling.
3. A bridge inspection team is utilizing ultrasonic testing
(UT) equipment to audit a fracture-critical pin-and-hanger
connection on a high-volume cantilever truss bridge.
When interpreting the high-frequency acoustic wave
reflections displayed on the diagnostic terminal, what
primary type of structural defect is the ultrasonic non-
destructive testing method best suited to detect inside
these dense steel connection components?
A) Surface-level atmospheric oxidation and minor pitting
rates
, B) Internal volumetric flaws, subsurface fatigue cracks,
and structural discontinuities within the pin geometry
C) The exact chemical percentage of carbon retention
inside the steel alloy matrix
D) The overall structural alignment variation of the bridge
piers relative to true north
Correct Answer: B) Internal volumetric flaws,
subsurface fatigue cracks, and structural
discontinuities within the pin geometry
Rationale: Ultrasonic testing (UT) uses high-frequency
sound waves to penetrate deep into structural steel elements.
It is an exceptional non-destructive method for detecting
subsurface cracks, internal voids, and volumetric defects
within complex components like pins, where visual inspection
is physically impossible.
4. While performing a routine underwater substructure
inspection of a major river crossing using advanced diving
equipment, an inspector documents massive localized loss
of streambed material immediately surrounding the base
of a concrete pier foundation, exposing the underlying
timber piling array. How should this specific
environmental foundation hazard be technically classified
and reported within the bridge management
infrastructure?
A) Atmospheric chemical degradation
B) Localized structural pier settlement
C) Hydraulic pier scour
D) Efflorescence-induced leaching
Correct Answer: C) Hydraulic pier scour
Rationale: Pier scour is the removal of sediment such as
sand and gravel from around bridge piers or abutments
caused by the erosive action of flowing water. It is a leading
cause of bridge failure and must be documented immediately
, as a critical hydraulic hazard when it exposes foundational
elements.
5. A structural engineer is calculating the remaining service
life of a welded steel plate girder bridge subjected to heavy,
repetitive commercial truck traffic volumes. The engineer
evaluates the specific detail categories defined by the
AASHTO specifications to prevent premature fatigue
failure. Which type of structural stress or detail geometry
is most vulnerable to cyclic fatigue crack propagation
under heavy live load distributions?
A) Uniform longitudinal compressive stress along a
smooth, uncut flange plate
B) Welded transverse stiffener terminations and partial-
penetration attachment welds located within high-tensile
stress zones
C) Symmetrical dead load bearing pressure over an
elastomeric pad interface
D) Horizontal boundary friction forces along the concrete
deck expansion joints
Correct Answer: B) Welded transverse stiffener
terminations and partial-penetration attachment
welds located within high-tensile stress zones
Rationale: Structural fatigue cracks initiate at locations of
high localized stress concentrations, known as stress risers.
Welded attachments, partial-penetration welds, and
terminations of stiffeners in tension zones introduce sharp
geometric discontinuities and residual stresses, rendering
them highly susceptible to cyclic fatigue.
6. During a detailed inventory inspection of an aging timber
trestle bridge along a rural access route, the inspector
performs a sounding evaluation by striking the timber
piles with a specialized hammer, noting a dull, hollow thud
across several elements. To accurately quantify the
