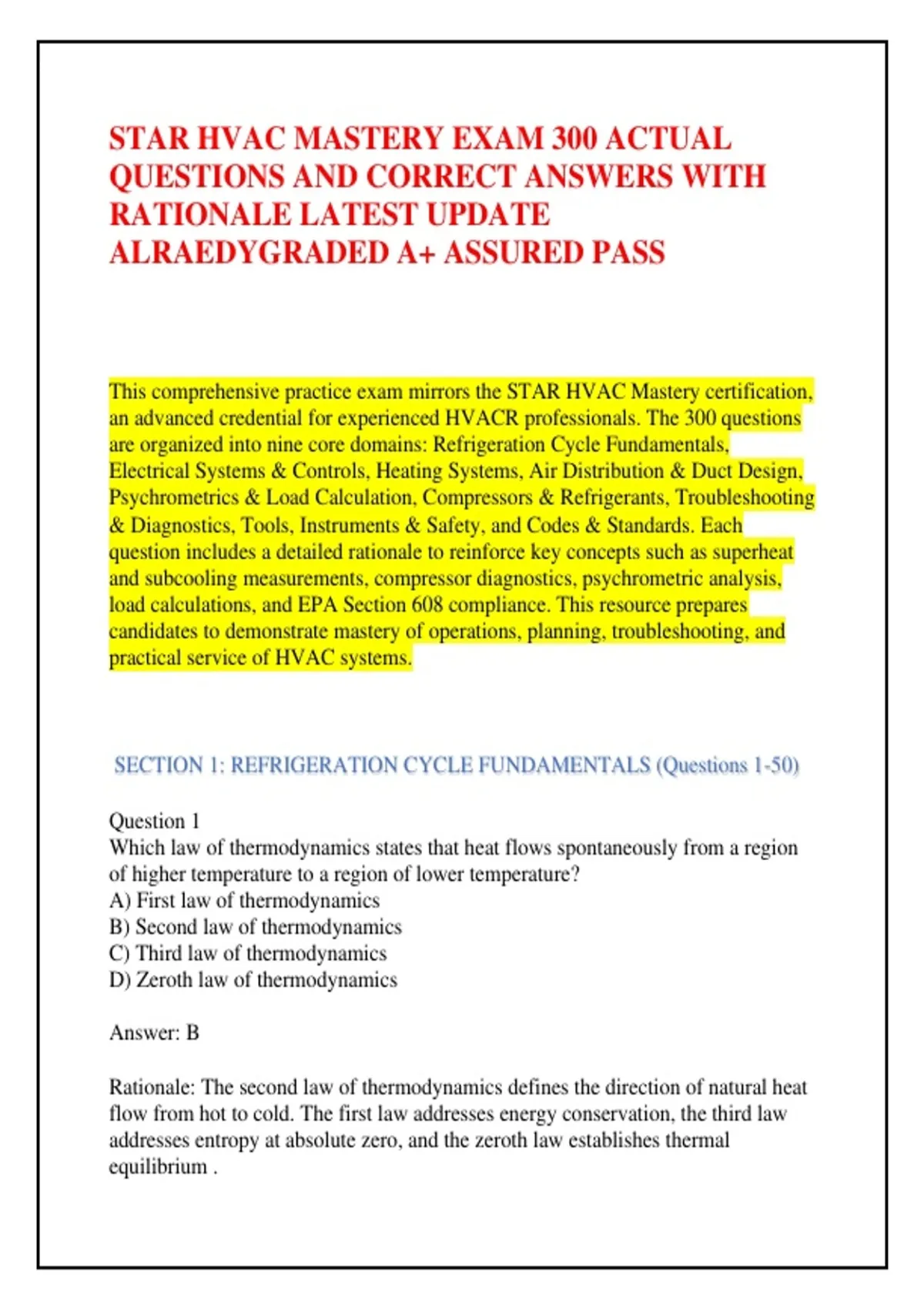

STAR HVAC MASTERY EXAM 300 ACTUAL
QUESTIONS AND CORRECT ANSWERS WITH
RATIONALE LATEST UPDATE
ALRAEDYGRADED A+ ASSURED PASS
This comprehensive practice exam mirrors the STAR HVAC Mastery certification,
an advanced credential for experienced HVACR professionals. The 300 questions
are organized into nine core domains: Refrigeration Cycle Fundamentals,
Electrical Systems & Controls, Heating Systems, Air Distribution & Duct Design,
Psychrometrics & Load Calculation, Compressors & Refrigerants, Troubleshooting
& Diagnostics, Tools, Instruments & Safety, and Codes & Standards. Each
question includes a detailed rationale to reinforce key concepts such as superheat
and subcooling measurements, compressor diagnostics, psychrometric analysis,
load calculations, and EPA Section 608 compliance. This resource prepares
candidates to demonstrate mastery of operations, planning, troubleshooting, and
practical service of HVAC systems.
SECTION 1: REFRIGERATION CYCLE FUNDAMENTALS (Questions 1-50)
Question 1
Which law of thermodynamics states that heat flows spontaneously from a region
of higher temperature to a region of lower temperature?
A) First law of thermodynamics
B) Second law of thermodynamics
C) Third law of thermodynamics
D) Zeroth law of thermodynamics
Answer: B
Rationale: The second law of thermodynamics defines the direction of natural heat
flow from hot to cold. The first law addresses energy conservation, the third law
addresses entropy at absolute zero, and the zeroth law establishes thermal
equilibrium .
,Question 2
The amount of heat required to raise the temperature of 1 kg of water from 20°C to
30°C is called:
A) Latent heat
B) Specific heat
C) Enthalpy change
D) Sensible heat
Answer: D
Rationale: Sensible heat causes a temperature change without a phase change.
Latent heat involves phase change without temperature change. Specific heat is the
heat required to raise 1 kg of a substance by 1°C .
Question 3
Which method of heat transfer occurs when a heated surface radiates energy to a
cooler surface without an intervening medium?
A) Conduction
B) Convection
C) Radiation
D) Sublimation
Answer: C
Rationale: Radiation transfers heat via electromagnetic waves and does not require
a material medium. Conduction requires physical contact; convection requires fluid
movement .
Question 4
What is the state of refrigerant entering the compressor in a properly operating
vapor-compression cycle?
A) Low-pressure, low-temperature liquid
B) Low-pressure, low-temperature superheated vapor
C) High-pressure, high-temperature liquid
D) High-pressure, high-temperature superheated vapor
Answer: B
,Rationale: The compressor receives low-pressure superheated vapor to prevent
liquid slugging, which can cause severe mechanical damage. Suction superheat
should be 5-20°F at the compressor inlet .
Question 5
Subcooling is defined as:
A) The difference between evaporating temperature and suction line temperature
B) The temperature drop below the saturation temperature of liquid refrigerant in
the condenser
C) The temperature rise above saturation temperature in the evaporator
D) The pressure drop across the expansion device
Answer: B
Rationale: Subcooling ensures liquid-only refrigerant enters the metering device.
Typical subcooling is 10-20°F for TXV systems. Subcooling is measured at the
condenser outlet .
Question 6
What is the primary function of the compressor in a vapor-compression cycle?
A) Absorb heat from indoor air
B) Reject heat to the outdoors
C) Increase refrigerant pressure and temperature
D) Meter refrigerant flow
Answer: C
Rationale: The compressor raises refrigerant pressure so heat can be released at the
condenser. The evaporator absorbs heat, and the expansion device meters flow .
Question 7
The component that reduces the high-pressure liquid to a low-pressure mixture in
the vapor-compression refrigeration cycle is the:
A) Compressor
B) Condenser
C) Expansion valve (or capillary tube)
D) Evaporator
Answer: C
, Rationale: The metering device (TXV, piston, or capillary tube) creates a pressure
drop, causing partial vaporization of refrigerant before it enters the evaporator .
Question 8
Superheat in an AC system is measured at which point?
A) Condenser outlet
B) Evaporator outlet (suction line)
C) Compressor discharge
D) Expansion valve outlet
Answer: B
Rationale: Superheat is the temperature of the refrigerant vapor above its saturation
temperature at the evaporator outlet (suction line). It is calculated as suction line
temperature minus evaporator saturation temperature .
Question 9
Subcooling is determined by measuring the temperature difference between:
A) Evaporator outlet and ambient air
B) Condenser outlet and refrigerant saturation temperature
C) Compressor suction and discharge
D) Expansion valve inlet and outlet
Answer: B
Rationale: Subcooling is the temperature of liquid refrigerant below its saturation
temperature at the condenser outlet. It is calculated as condenser saturation
temperature minus liquid line temperature .
Question 10
What are the four main components of a basic refrigeration cycle?
A) Fan, pump, thermostat, duct
B) Compressor, condenser, expansion valve, evaporator
C) Compressor, filter, blower, thermostat
D) Blower, compressor, coil, humidifier
Answer: B
