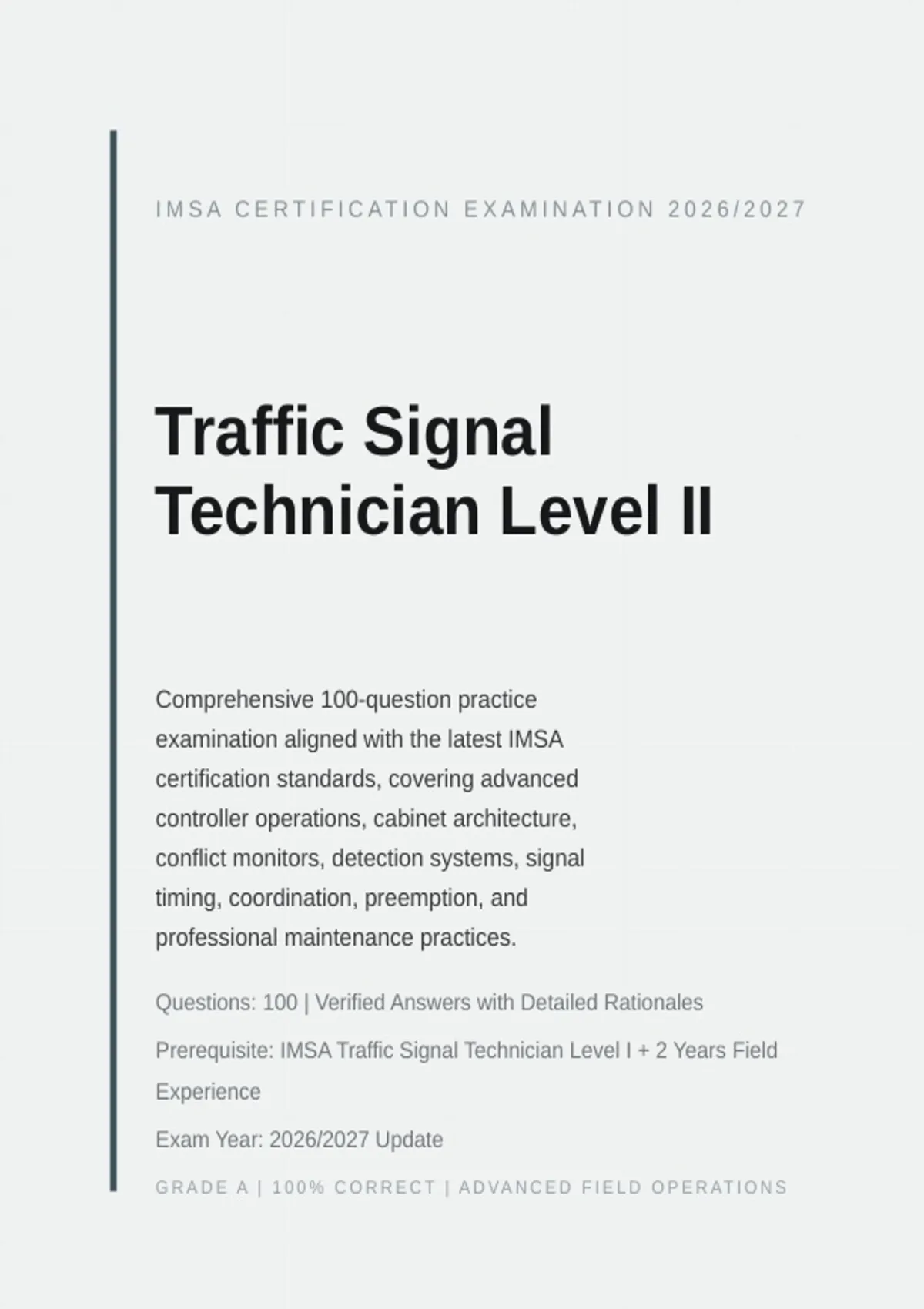

I M S A C E R T I F I C AT I O N E X A M I N AT I O N 2 0 2 0 2 7
Traffic Signal
Technician Level II
Comprehensive 100-question practice
examination aligned with the latest IMSA
certification standards, covering advanced
controller operations, cabinet architecture,
conflict monitors, detection systems, signal
timing, coordination, preemption, and
professional maintenance practices.
Questions: 100 | Verified Answers with Detailed Rationales
Prerequisite: IMSA Traffic Signal Technician Level I + 2 Years Field
Experience
Exam Year: 2026/2027 Update
G R A D E A | 1 0 0 % C O R R E C T | A D VA N C E D F I E L D O P E R AT I O N S
, Traffic Signal Technician Level II Exam | IMSA 2026/2027 | 100 Questions
Traffic Signal Technician Level II
IMSA Certification Examination
Latest 2026/2027 Update
Total Questions: 100 (Multiple Choice)
Format: 4 Options (A-D), One Correct Answer per Question
Cognitive Levels: 25% Recall, 55% Application, 20% Analysis
Question Styles: 70% Scenario-Based, 20% Direct Recall, 10% Diagnostic
Prerequisite: IMSA Traffic Signal Technician Level I + 2 Years Field Experience
Coverage: 7 Sections spanning Controller Operations, Cabinet Architecture,
Conflict Monitors, Detection Systems, Signal Timing,
Maintenance/Documentation, and Integrated Field Scenarios
Exam Section Breakdown
Section Topic Questions
1 Advanced Controller Operations and Phasing Q1 - Q20
2 Cabinet Types, Components, and Architecture Q21 - Q35
3 Conflict Monitors and Malfunction Management Units Q36 - Q50
4 Detection Systems and Troubleshooting Q51 - Q65
5 Signal Timing, Coordination, and Preemption Q66 - Q80
6 Maintenance, Documentation, and Professional Practice Q81 - Q92
7 Integrated Field Scenarios and Diagnostics Q93 - Q100
Page 1
, Traffic Signal Technician Level II Exam | IMSA 2026/2027 | 100 Questions
Section: Advanced Controller Operations and Phasing (Q1 - Q20)
Dual-ring 8-phase structure, barriers, concurrent phases, leading/lagging left turns, protected vs. protected-permitted
operations, and cycle length fundamentals.
Q1: In a NEMA TS-2 dual-ring, 8-phase controller, which phase assignments are correct for through
movements?
A. Phases 1, 3, 5, 7
B. Phases 2, 4, 6, 8 [CORRECT]
C. Phases 1, 2, 5, 6
D. Phases 3, 4, 7, 8
Correct Answer: B
Rationale: In NEMA dual-ring phasing, odd-numbered phases (1, 3, 5, 7) are assigned to left-turn movements, while
even-numbered phases (2, 4, 6, 8) are assigned to through movements. This is a fundamental convention of the NEMA TS-2
controller structure that the technician must memorize for proper configuration and troubleshooting.
Q2: A traffic cycle is defined as which of the following?
A. The time it takes for one vehicle to pass through the intersection
B. The total elapsed time between the start of a specific display until that display comes up again
[CORRECT]
C. The sum of all green times for through movements only
D. The interval between two consecutive pedestrian crossings
Correct Answer: B
Rationale: A traffic cycle is the total elapsed time from the start of a specific phase display until that same display recurs. It
encompasses all phases in sequence, including green, yellow, and red intervals for every movement at the intersection.
Understanding cycle length is essential for calculating capacity, delays, and coordination offsets.
Q3: What is the primary function of a barrier in a dual-ring traffic signal controller?
A. To increase the cycle length by 10 seconds
B. To provide a logical boundary separating conflicting phase groups between major and minor streets
[CORRECT]
C. To prevent the controller from entering flash mode
D. To reduce power consumption in the cabinet
Correct Answer: B
Rationale: Barriers are logical boundaries within a dual-ring controller that separate conflicting phase groups. The first
barrier separates major-street movements from minor-street movements, and the second barrier completes the cycle. Barriers
ensure that conflicting movements (e.g., major-street through and minor-street left turns) cannot operate simultaneously,
which is critical for intersection safety.
Q4: In a dual-ring controller, how many phases can operate simultaneously?
A. One phase per ring, for a total of one
B. One phase per ring, for a total of two [CORRECT]
Page 2
