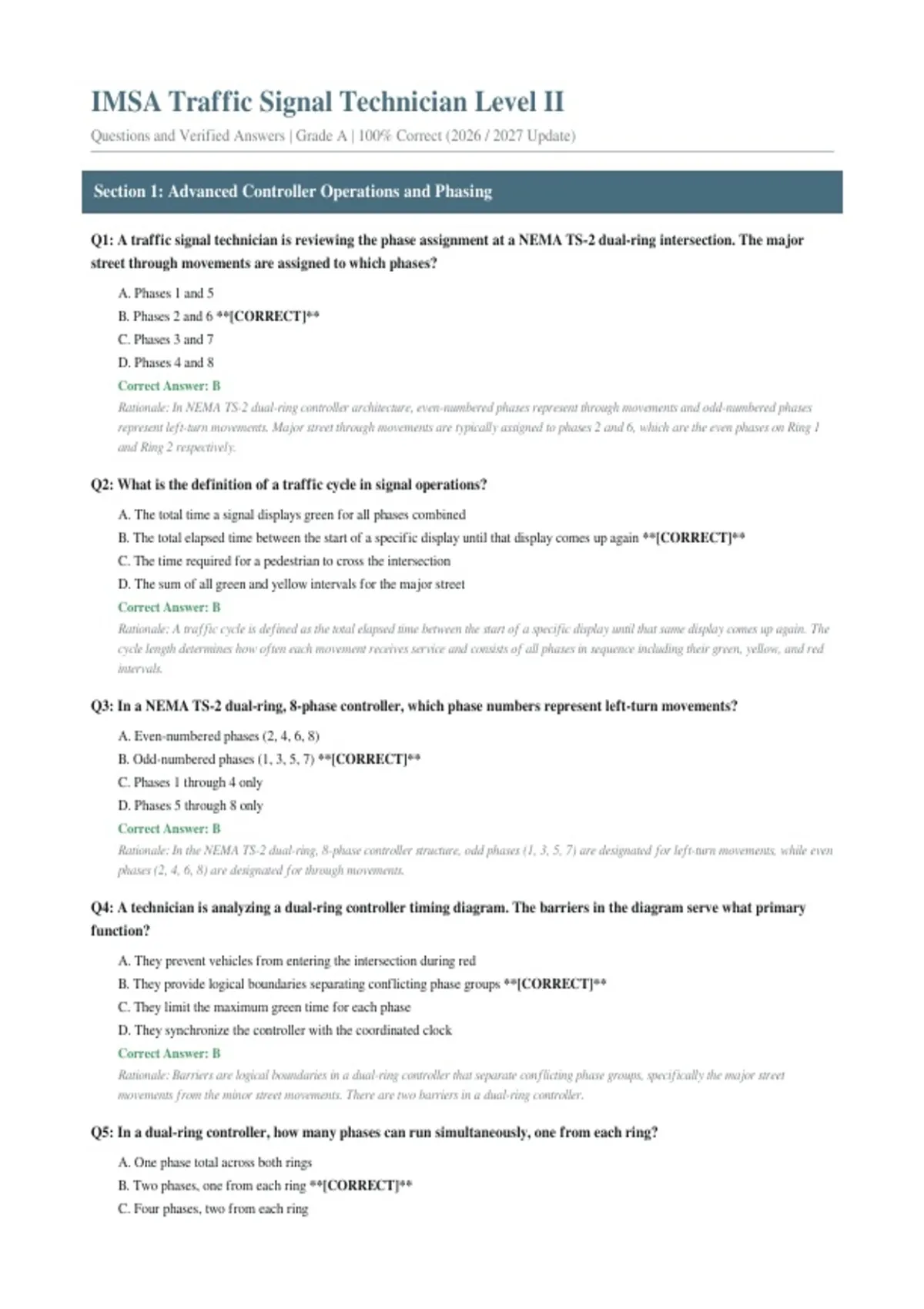

IMSA Traffic Signal Technician Level II
Questions and Verified Answers | Grade A | 100% Correct ( Update)
Section 1: Advanced Controller Operations and Phasing
Q1: A traffic signal technician is reviewing the phase assignment at a NEMA TS-2 dual-ring intersection. The major
street through movements are assigned to which phases?
A. Phases 1 and 5
B. Phases 2 and 6 **[CORRECT]**
C. Phases 3 and 7
D. Phases 4 and 8
Correct Answer: B
Rationale: In NEMA TS-2 dual-ring controller architecture, even-numbered phases represent through movements and odd-numbered phases
represent left-turn movements. Major street through movements are typically assigned to phases 2 and 6, which are the even phases on Ring 1
and Ring 2 respectively.
Q2: What is the definition of a traffic cycle in signal operations?
A. The total time a signal displays green for all phases combined
B. The total elapsed time between the start of a specific display until that display comes up again **[CORRECT]**
C. The time required for a pedestrian to cross the intersection
D. The sum of all green and yellow intervals for the major street
Correct Answer: B
Rationale: A traffic cycle is defined as the total elapsed time between the start of a specific display until that same display comes up again. The
cycle length determines how often each movement receives service and consists of all phases in sequence including their green, yellow, and red
intervals.
Q3: In a NEMA TS-2 dual-ring, 8-phase controller, which phase numbers represent left-turn movements?
A. Even-numbered phases (2, 4, 6, 8)
B. Odd-numbered phases (1, 3, 5, 7) **[CORRECT]**
C. Phases 1 through 4 only
D. Phases 5 through 8 only
Correct Answer: B
Rationale: In the NEMA TS-2 dual-ring, 8-phase controller structure, odd phases (1, 3, 5, 7) are designated for left-turn movements, while even
phases (2, 4, 6, 8) are designated for through movements.
Q4: A technician is analyzing a dual-ring controller timing diagram. The barriers in the diagram serve what primary
function?
A. They prevent vehicles from entering the intersection during red
B. They provide logical boundaries separating conflicting phase groups **[CORRECT]**
C. They limit the maximum green time for each phase
D. They synchronize the controller with the coordinated clock
Correct Answer: B
Rationale: Barriers are logical boundaries in a dual-ring controller that separate conflicting phase groups, specifically the major street
movements from the minor street movements. There are two barriers in a dual-ring controller.
Q5: In a dual-ring controller, how many phases can run simultaneously, one from each ring?
A. One phase total across both rings
B. Two phases, one from each ring **[CORRECT]**
C. Four phases, two from each ring
, D. All eight phases can run at the same time
Correct Answer: B
Rationale: In a dual-ring controller, one phase can run in each ring at the same time, for a total of two concurrent phases. These concurrent
phases must be non-conflicting, such as a through movement on one ring operating simultaneously with a protected left turn on the other ring.
Q6: What is a leading left turn in NEMA phase numbering?
A. A left turn that occurs before the opposing through movement **[CORRECT]**
B. A left turn that occurs after the through movement (lagging)
C. A left turn that occurs simultaneously with the through movement
D. A permissive left turn with a flashing yellow arrow
Correct Answer: A
Rationale: A leading left turn is the first phase serviced once crossing a barrier, meaning the left-turn movement occurs before the adjacent
through movement on the same street. Major street left-turn phases (typically phases 1 and 5) are commonly configured as leading left turns.
Q7: A signal operates with protected-only left turns. Which indication is displayed during the left-turn phase?
A. Flashing yellow arrow
B. Steady green arrow **[CORRECT]**
C. Steady yellow arrow
D. Flashing red arrow
Correct Answer: B
Rationale: During a protected-only left-turn phase, a steady green arrow is displayed, indicating that left-turning vehicles have a protected
movement with no conflicting traffic. A flashing yellow arrow is used for permissive left turns.
Q8: Which type of left-turn phasing allows a flashing yellow arrow for permissive left turns?
A. Protected only
B. Permissive only
C. Protected/Permitted **[CORRECT]**
D. Leading only
Correct Answer: C
Rationale: A protected/permitted left-turn phase allows the flashing yellow arrow indication for the permissive portion of the phase. During the
protected portion, a steady green arrow is displayed, and during the permissive portion, a flashing yellow arrow is shown.
Q9: What are concurrent phases in a dual-ring controller?
A. Phases that run in sequence on the same ring
B. Phases that operate simultaneously without conflict **[CORRECT]**
C. Phases that share the same detector inputs
D. Phases that are programmed with identical timing
Correct Answer: B
Rationale: Concurrent phases are phases that operate simultaneously without conflict, such as a through movement on one ring and an adjacent
protected left turn on the other ring. The dual-ring controller structure allows this concurrency.
Q10: How many barriers exist in a NEMA TS-2 dual-ring controller?
A. One barrier separating Ring 1 from Ring 2
B. Two barriers: one separating major street from minor street, and another completing the cycle **[CORRECT]**
C. Four barriers, one for each side of the intersection
D. Eight barriers, one for each phase
Correct Answer: B
Rationale: There are two barriers in a NEMA TS-2 dual-ring controller. The first barrier separates major street movements from minor street
movements. The second barrier completes the cycle.
Q11: A lagging left turn is characterized by which sequence?
, A. Left turn phase runs before the through movement
B. Left turn phase runs after the through movement **[CORRECT]**
C. Left turn phase runs simultaneously with the through movement
D. Left turn phase runs only during preemption
Correct Answer: B
Rationale: A lagging left turn occurs after the through movement on the same street has completed. This is the opposite of a leading left turn,
where the left turn occurs first.
Q12: Which phases are typically assigned as major street left-turn phases in a standard NEMA 8-phase operation?
A. Phases 2 and 6
B. Phases 3 and 7
C. Phases 1 and 5 **[CORRECT]**
D. Phases 4 and 8
Correct Answer: C
Rationale: In standard NEMA 8-phase dual-ring operation, phases 1 and 5 are typically assigned as the major street left-turn phases. These are
odd-numbered phases, consistent with the NEMA convention.
Q13: A technician needs to determine the cycle length at an intersection. The cycle consists of which intervals?
A. Green intervals only
B. Green and yellow intervals only
C. Green, yellow, and red intervals for all phases in sequence **[CORRECT]**
D. Green, yellow, red, and all-red intervals for the major street only
Correct Answer: C
Rationale: The cycle length consists of all phases in sequence including their green, yellow, and red intervals. This total time determines how
frequently each movement receives service.
Q14: What distinguishes a leading phase from other phases in dual-ring operation?
A. It is always the first phase to receive green time in the cycle
B. It is the first phase serviced once crossing a barrier **[CORRECT]**
C. It always has the longest green time
D. It is the only phase that can be preempted
Correct Answer: B
Rationale: A leading phase is defined as the first phase serviced once crossing a barrier in a dual-ring controller. When the controller crosses a
barrier, the leading phase is the first to receive green time on the new side of the barrier.
Q15: In a dual-ring controller, what prevents conflicting phases from operating simultaneously?
A. The conflict monitor unit only
B. The barrier structure and ring constraints **[CORRECT]**
C. The detector system
D. The preemption system
Correct Answer: B
Rationale: The barrier structure and ring constraints within the dual-ring controller prevent conflicting phases from operating simultaneously.
While the conflict monitor provides a secondary safety check, the primary prevention is through the controller's internal barrier and ring logic.
Q16: A technician is programming a controller for a protected/permitted left turn. During the permitted portion, which
signal indication is displayed?
A. Steady green arrow
B. Steady yellow arrow
C. Flashing yellow arrow **[CORRECT]**
D. Steady red ball
Correct Answer: C
Questions and Verified Answers | Grade A | 100% Correct ( Update)
Section 1: Advanced Controller Operations and Phasing
Q1: A traffic signal technician is reviewing the phase assignment at a NEMA TS-2 dual-ring intersection. The major
street through movements are assigned to which phases?
A. Phases 1 and 5
B. Phases 2 and 6 **[CORRECT]**
C. Phases 3 and 7
D. Phases 4 and 8
Correct Answer: B
Rationale: In NEMA TS-2 dual-ring controller architecture, even-numbered phases represent through movements and odd-numbered phases
represent left-turn movements. Major street through movements are typically assigned to phases 2 and 6, which are the even phases on Ring 1
and Ring 2 respectively.
Q2: What is the definition of a traffic cycle in signal operations?
A. The total time a signal displays green for all phases combined
B. The total elapsed time between the start of a specific display until that display comes up again **[CORRECT]**
C. The time required for a pedestrian to cross the intersection
D. The sum of all green and yellow intervals for the major street
Correct Answer: B
Rationale: A traffic cycle is defined as the total elapsed time between the start of a specific display until that same display comes up again. The
cycle length determines how often each movement receives service and consists of all phases in sequence including their green, yellow, and red
intervals.
Q3: In a NEMA TS-2 dual-ring, 8-phase controller, which phase numbers represent left-turn movements?
A. Even-numbered phases (2, 4, 6, 8)
B. Odd-numbered phases (1, 3, 5, 7) **[CORRECT]**
C. Phases 1 through 4 only
D. Phases 5 through 8 only
Correct Answer: B
Rationale: In the NEMA TS-2 dual-ring, 8-phase controller structure, odd phases (1, 3, 5, 7) are designated for left-turn movements, while even
phases (2, 4, 6, 8) are designated for through movements.
Q4: A technician is analyzing a dual-ring controller timing diagram. The barriers in the diagram serve what primary
function?
A. They prevent vehicles from entering the intersection during red
B. They provide logical boundaries separating conflicting phase groups **[CORRECT]**
C. They limit the maximum green time for each phase
D. They synchronize the controller with the coordinated clock
Correct Answer: B
Rationale: Barriers are logical boundaries in a dual-ring controller that separate conflicting phase groups, specifically the major street
movements from the minor street movements. There are two barriers in a dual-ring controller.
Q5: In a dual-ring controller, how many phases can run simultaneously, one from each ring?
A. One phase total across both rings
B. Two phases, one from each ring **[CORRECT]**
C. Four phases, two from each ring
, D. All eight phases can run at the same time
Correct Answer: B
Rationale: In a dual-ring controller, one phase can run in each ring at the same time, for a total of two concurrent phases. These concurrent
phases must be non-conflicting, such as a through movement on one ring operating simultaneously with a protected left turn on the other ring.
Q6: What is a leading left turn in NEMA phase numbering?
A. A left turn that occurs before the opposing through movement **[CORRECT]**
B. A left turn that occurs after the through movement (lagging)
C. A left turn that occurs simultaneously with the through movement
D. A permissive left turn with a flashing yellow arrow
Correct Answer: A
Rationale: A leading left turn is the first phase serviced once crossing a barrier, meaning the left-turn movement occurs before the adjacent
through movement on the same street. Major street left-turn phases (typically phases 1 and 5) are commonly configured as leading left turns.
Q7: A signal operates with protected-only left turns. Which indication is displayed during the left-turn phase?
A. Flashing yellow arrow
B. Steady green arrow **[CORRECT]**
C. Steady yellow arrow
D. Flashing red arrow
Correct Answer: B
Rationale: During a protected-only left-turn phase, a steady green arrow is displayed, indicating that left-turning vehicles have a protected
movement with no conflicting traffic. A flashing yellow arrow is used for permissive left turns.
Q8: Which type of left-turn phasing allows a flashing yellow arrow for permissive left turns?
A. Protected only
B. Permissive only
C. Protected/Permitted **[CORRECT]**
D. Leading only
Correct Answer: C
Rationale: A protected/permitted left-turn phase allows the flashing yellow arrow indication for the permissive portion of the phase. During the
protected portion, a steady green arrow is displayed, and during the permissive portion, a flashing yellow arrow is shown.
Q9: What are concurrent phases in a dual-ring controller?
A. Phases that run in sequence on the same ring
B. Phases that operate simultaneously without conflict **[CORRECT]**
C. Phases that share the same detector inputs
D. Phases that are programmed with identical timing
Correct Answer: B
Rationale: Concurrent phases are phases that operate simultaneously without conflict, such as a through movement on one ring and an adjacent
protected left turn on the other ring. The dual-ring controller structure allows this concurrency.
Q10: How many barriers exist in a NEMA TS-2 dual-ring controller?
A. One barrier separating Ring 1 from Ring 2
B. Two barriers: one separating major street from minor street, and another completing the cycle **[CORRECT]**
C. Four barriers, one for each side of the intersection
D. Eight barriers, one for each phase
Correct Answer: B
Rationale: There are two barriers in a NEMA TS-2 dual-ring controller. The first barrier separates major street movements from minor street
movements. The second barrier completes the cycle.
Q11: A lagging left turn is characterized by which sequence?
, A. Left turn phase runs before the through movement
B. Left turn phase runs after the through movement **[CORRECT]**
C. Left turn phase runs simultaneously with the through movement
D. Left turn phase runs only during preemption
Correct Answer: B
Rationale: A lagging left turn occurs after the through movement on the same street has completed. This is the opposite of a leading left turn,
where the left turn occurs first.
Q12: Which phases are typically assigned as major street left-turn phases in a standard NEMA 8-phase operation?
A. Phases 2 and 6
B. Phases 3 and 7
C. Phases 1 and 5 **[CORRECT]**
D. Phases 4 and 8
Correct Answer: C
Rationale: In standard NEMA 8-phase dual-ring operation, phases 1 and 5 are typically assigned as the major street left-turn phases. These are
odd-numbered phases, consistent with the NEMA convention.
Q13: A technician needs to determine the cycle length at an intersection. The cycle consists of which intervals?
A. Green intervals only
B. Green and yellow intervals only
C. Green, yellow, and red intervals for all phases in sequence **[CORRECT]**
D. Green, yellow, red, and all-red intervals for the major street only
Correct Answer: C
Rationale: The cycle length consists of all phases in sequence including their green, yellow, and red intervals. This total time determines how
frequently each movement receives service.
Q14: What distinguishes a leading phase from other phases in dual-ring operation?
A. It is always the first phase to receive green time in the cycle
B. It is the first phase serviced once crossing a barrier **[CORRECT]**
C. It always has the longest green time
D. It is the only phase that can be preempted
Correct Answer: B
Rationale: A leading phase is defined as the first phase serviced once crossing a barrier in a dual-ring controller. When the controller crosses a
barrier, the leading phase is the first to receive green time on the new side of the barrier.
Q15: In a dual-ring controller, what prevents conflicting phases from operating simultaneously?
A. The conflict monitor unit only
B. The barrier structure and ring constraints **[CORRECT]**
C. The detector system
D. The preemption system
Correct Answer: B
Rationale: The barrier structure and ring constraints within the dual-ring controller prevent conflicting phases from operating simultaneously.
While the conflict monitor provides a secondary safety check, the primary prevention is through the controller's internal barrier and ring logic.
Q16: A technician is programming a controller for a protected/permitted left turn. During the permitted portion, which
signal indication is displayed?
A. Steady green arrow
B. Steady yellow arrow
C. Flashing yellow arrow **[CORRECT]**
D. Steady red ball
Correct Answer: C
