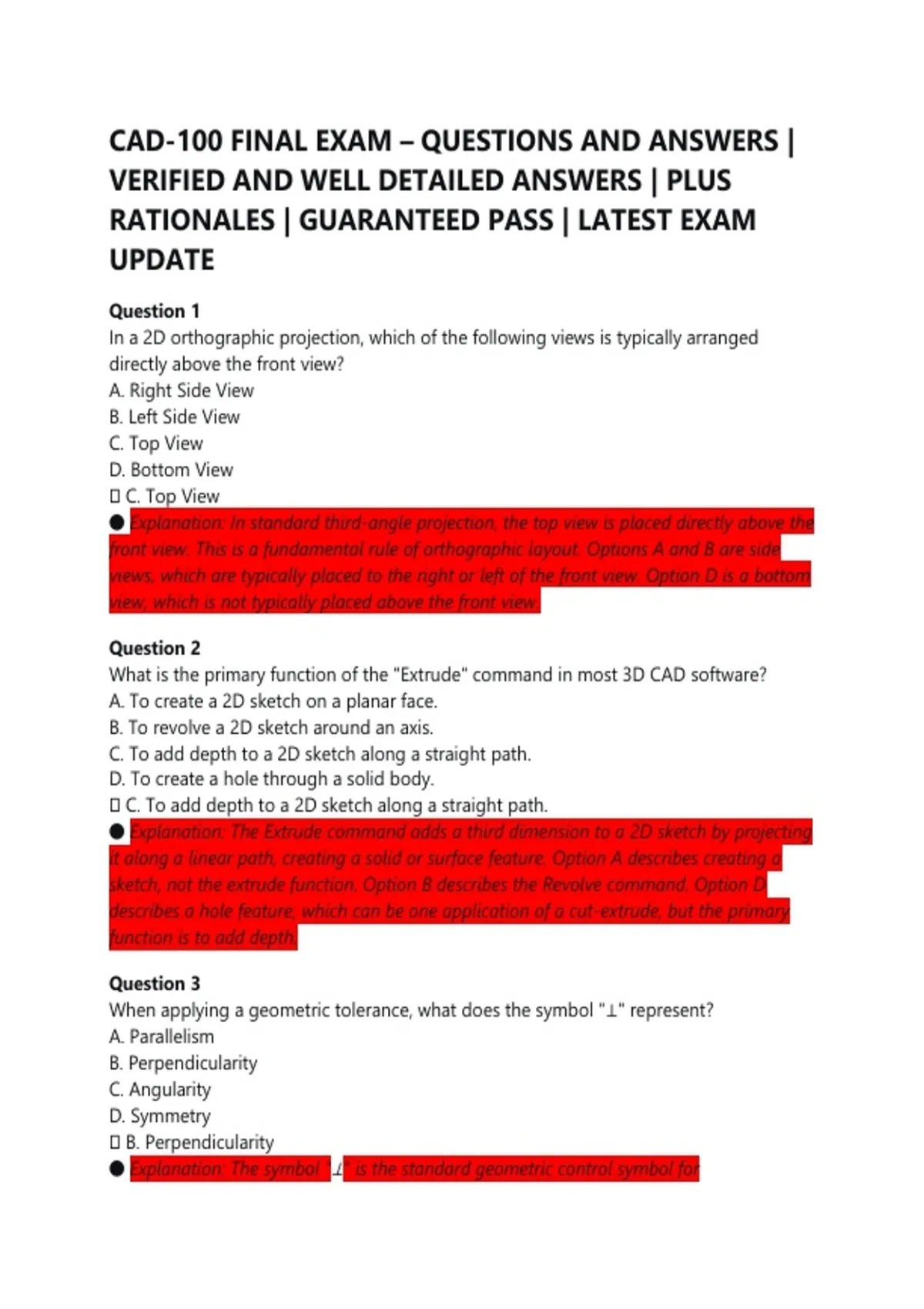

CAD-100 FINAL EXAM – QUESTIONS AND ANSWERS |
VERIFIED AND WELL DETAILED ANSWERS | PLUS
RATIONALES | GUARANTEED PASS | LATEST EXAM
UPDATE
Question 1
In a 2D orthographic projection, which of the following views is typically arranged
directly above the front view?
A. Right Side View
B. Left Side View
C. Top View
D. Bottom View
🟢 C. Top View
🔴 Explanation: In standard third-angle projection, the top view is placed directly above the
front view. This is a fundamental rule of orthographic layout. Options A and B are side
views, which are typically placed to the right or left of the front view. Option D is a bottom
view, which is not typically placed above the front view.
Question 2
What is the primary function of the "Extrude" command in most 3D CAD software?
A. To create a 2D sketch on a planar face.
B. To revolve a 2D sketch around an axis.
C. To add depth to a 2D sketch along a straight path.
D. To create a hole through a solid body.
🟢 C. To add depth to a 2D sketch along a straight path.
🔴 Explanation: The Extrude command adds a third dimension to a 2D sketch by projecting
it along a linear path, creating a solid or surface feature. Option A describes creating a
sketch, not the extrude function. Option B describes the Revolve command. Option D
describes a hole feature, which can be one application of a cut-extrude, but the primary
function is to add depth.
Question 3
When applying a geometric tolerance, what does the symbol "⊥" represent?
A. Parallelism
B. Perpendicularity
C. Angularity
D. Symmetry
🟢 B. Perpendicularity
🔴 Explanation: The symbol "⊥" is the standard geometric control symbol for
,Perpendicularity, which controls the orientation of a feature at a 90-degree angle to a
datum. Parallelism is represented by "∥". Angularity is represented by an angle symbol.
Symmetry is represented by a different, specific symbol.
Question 4
A design engineer is evaluating two different materials for a load-bearing part. Material
A has a high yield strength but low ductility, while Material B has a lower yield strength
but high ductility. If the part is expected to experience sudden, high-impact loads, which
material is the safer choice?
A. Material A, because it will not deform under any load.
B. Material A, because higher yield strength always indicates better performance.
C. Material B, because it can absorb energy through plastic deformation before failure.
D. Either material, as impact loads are not a factor in material selection.
🟢 C. Material B, because it can absorb energy through plastic deformation before failure.
🔴 Explanation: Ductility is the ability of a material to deform plastically before fracturing.
High ductility allows a material to absorb impact energy, making it safer under sudden
loads. Material A, with low ductility, is more likely to fracture suddenly in a brittle manner.
Yield strength is a measure of resistance to initial deformation, but under impact, the
ability to absorb energy is paramount.
Question 5
In the context of CAD file management, what is the primary purpose of a Bill of
Materials (BOM)?
A. To define the geometric tolerances of each part.
B. To list all the components, materials, and quantities required for an assembly.
C. To manage the revision history of individual part files.
D. To provide a detailed step-by-step assembly procedure.
🟢 B. To list all the components, materials, and quantities required for an assembly.
🔴 Explanation: A Bill of Materials is a comprehensive list of all parts, sub-assemblies,
materials, and their respective quantities needed to manufacture a complete product.
Option A refers to a separate tolerance analysis. Option C is a function of Product Data
Management (PDM). Option D describes an assembly instruction manual, not a BOM.
Question 6
What does the term "Design for Manufacturability" (DFM) primarily emphasize?
A. Making the design visually appealing to customers.
B. Ensuring the design can be produced easily, cost-effectively, and with high quality.
C. Focusing solely on the functional performance of the product.
D. Designing parts that are impossible to assemble incorrectly.
🟢 B. Ensuring the design can be produced easily, cost-effectively, and with high quality.
🔴 Explanation: DFM is a design philosophy that prioritizes simplicity and ease of
,manufacturing. It aims to reduce costs, minimize defects, and shorten production cycles.
Option A focuses on aesthetics. Option C ignores the manufacturing constraints. Option D
describes Design for Assembly (DFA), a related but distinct concept.
Question 7
You are working on a complex assembly with hundreds of parts. Your computer is
experiencing lag when rotating the model. Which of the following is the MOST effective
strategy to improve performance?
A. Increase the screen resolution.
B. Open all individual part files simultaneously.
C. Reduce the level of detail or use a simplified representation of the assembly.
D. Increase the number of undo steps in the software settings.
🟢 C. Reduce the level of detail or use a simplified representation of the assembly.
🔴 Explanation: Reducing the graphical complexity of the assembly by using simplified
configurations, lightweight components, or suppressing unnecessary features drastically
reduces the computational load on the graphics processor. Options A and D will have
negligible or negative effects on performance. Option B would worsen the performance
issues by using more system memory.
Question 8
According to the ASME Y14.5 standard, what does the term "datum" refer to?
A. The total allowable variation in a part's size.
B. A theoretically exact point, axis, line, or plane from which other features are
referenced.
C. The nominal dimension of a feature.
D. The maximum and minimum limits of a dimension.
🟢 B. A theoretically exact point, axis, line, or plane from which other features are
referenced.
🔴 Explanation: A datum is a theoretically perfect geometric feature (point, line, plane,
axis) used as a reference for locating or orienting other features. It is the foundation of a
coordinate system for measurement. Option A defines tolerance. Option C defines a basic
dimension. Option D defines limits of size.
Question 9
Which of the following is the correct order of operations for creating a basic 3D model
from a 2D sketch in a parametric solid modeling environment?
A. Select a plane, create a 2D sketch, apply a feature (e.g., extrude).
B. Apply a feature, create a 2D sketch, select a plane.
C. Select a plane, apply a feature, create a 2D sketch.
D. Create a 2D sketch, select a plane, apply a feature.
🟢 A. Select a plane, create a 2D sketch, apply a feature (e.g., extrude).
, 🔴 Explanation: The standard workflow in parametric modeling is to first define a plane or
face to work on, then create a 2D sketch on that surface, and finally use a 3D feature (like
Extrude, Revolve, or Sweep) to generate the solid model from that sketch. The other
options have the operations in an illogical or non-functional order.
Question 10
A title block in an engineering drawing typically contains information EXCEPT:
A. The part name and number.
B. The scale of the drawing.
C. The material specification.
D. The manufacturing cost of the part.
🟢 D. The manufacturing cost of the part.
🔴 Explanation: The title block is a standardized area on a drawing that provides
administrative and identification data like part number, name, scale, material, and
revision status. Manufacturing cost is not typically included, as it is variable and belongs to
costing or BOM documents.
Question 11
What is the primary difference between a "sweep" and a "loft" feature?
A. A sweep creates a solid, while a loft creates a surface.
B. A sweep uses a single cross-section along a path, while a loft uses multiple cross-
sections.
C. A loft is always a revolved feature.
D. A sweep cannot follow a curved path.
🟢 B. A sweep uses a single cross-section along a path, while a loft uses multiple cross-
sections.
🔴 Explanation: A Sweep feature uses one or more profiles that are guided along a path,
maintaining a constant cross-section shape. A Loft feature, conversely, connects two or
more different cross-sectional profiles to create a smooth transition, allowing the shape to
change along its length.
Question 12
In a 2D drawing, what does a centerline (a thin line with alternating long and short
dashes) indicate?
A. The visible outline of a part.
B. A hidden feature behind the part.
C. The center of a circle, arc, or symmetrical feature.
D. A cutting plane for a section view.
🟢 C. The center of a circle, arc, or symmetrical feature.
🔴 Explanation: Centerlines are used to define the center of circular or symmetrical
features to aid in dimensioning. Visible outlines are represented by continuous thick lines.
