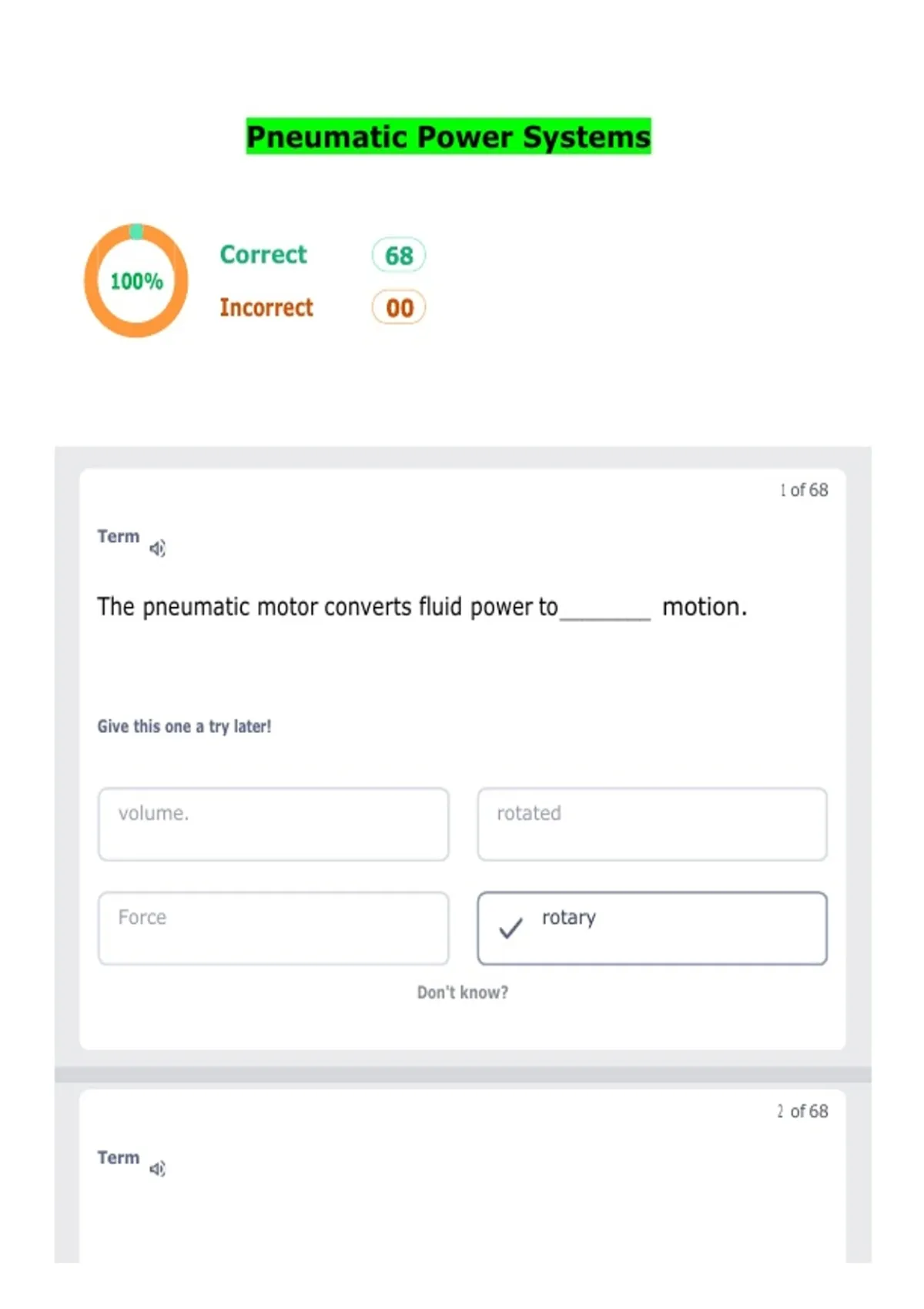

Pneumatic Power Systems
Correct
Incorrect
1 of 68
Term
The pneumatic motor converts fluid power to ________ motion.
Give this one a try later!
volume. rotated
Force rotary
Don't know?
2 of 68
Term
,The retract speed of a single-acting cylinder can be controlled by
connecting a flow control valve to the __________ port of the circuit's 3/2
DCv.
Give this one a try later!
exhaust orffice
check retract.
Don't know?
3 of 68
Term
Using pneumatic leverage, distance is _____ _.
Give this one a try later!
sacrificed. cylinder.
air filter orffice
Don't know?
4 of 68
,Term
Quick-connect fittings allow fast and easy assembly and disassembly
of circuits.
Give this one a try later!
single-acting Frictional
atmospheric Quick-connect
Don't know?
5 of 68
Term
Placing a needle valve in the _________ line of the DCV of a bi-directional
application affects the speed in both directions.
Give this one a try later!
poppet compressor.
pressure cross.
Don't know?
, 6 of 68
Term
Pneumatic motors use air pressure to create a tuming force called
__________ at the motor shaft.
Give this one a try later!
air filter Force
orffice torque
Don't know?
7 of 68
Term
A pressure regulator is used to _____________downstream pressure.
Give this one a try later!
control volume.
rotary Actuator
